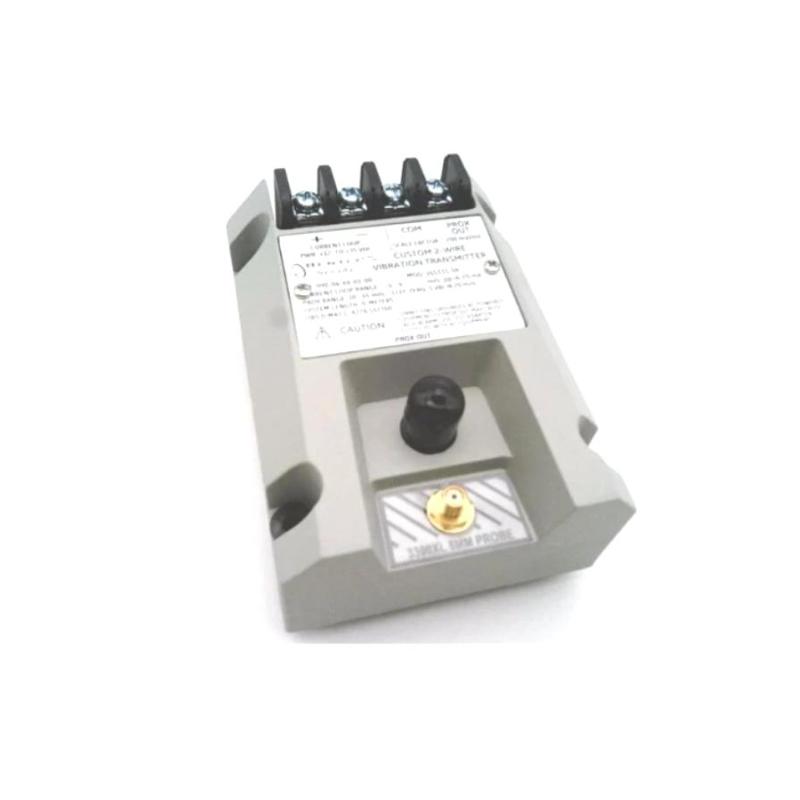

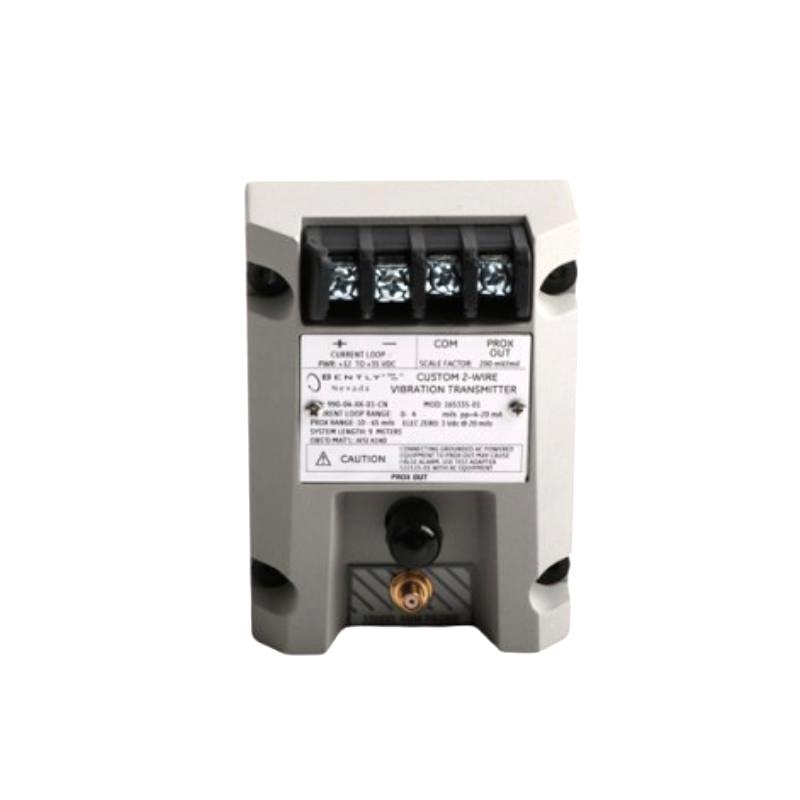

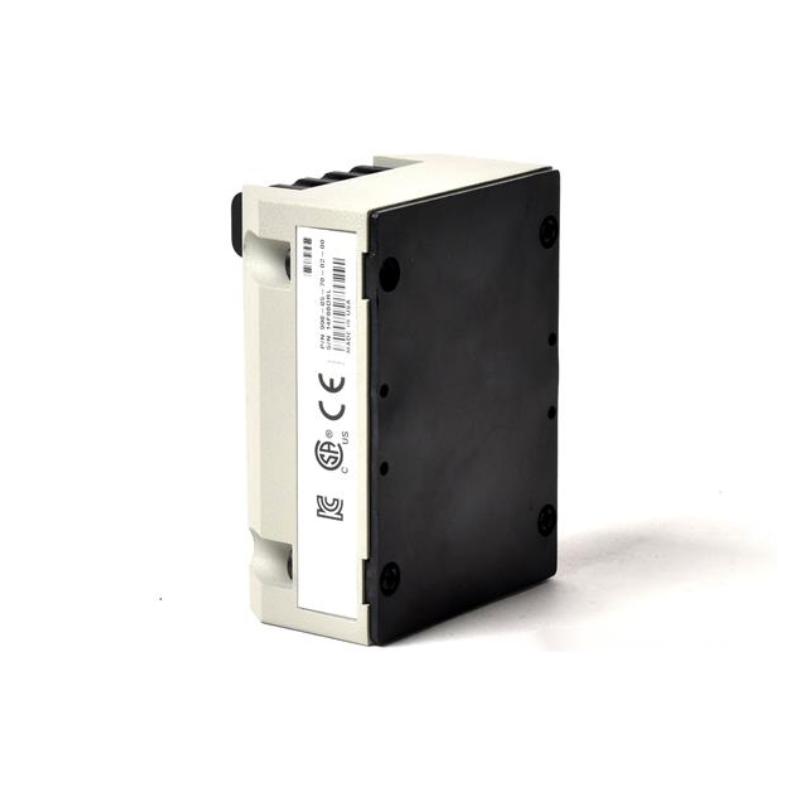

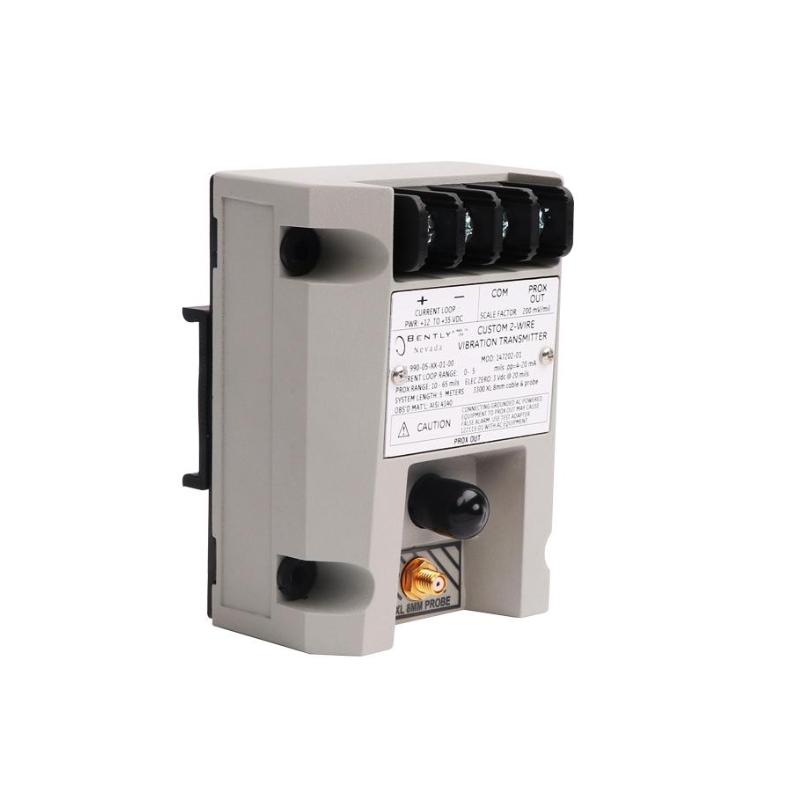

Bently Nevada 990-04-90-01-05 Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 990-04-90-01-05 |
| Series | 990 |
| Measurement Range | 0–4 mils pp (0–100 μm pp) |
| System Length | 9.0 m (approx. 29.5 ft) |
| Mounting | 35 mm DIN rail clips |
| Probe Compatibility | 3300 NSv proximity probe with matching extension cable |
| Output | 4–20 mA DC, 2-wire, loop-powered |
| Supply Voltage | +12 to +35 VDC |
| Loop Accuracy | ±1.5% of full-scale range |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Current Limit | Approximately 23 mA |
| Frequency Response | 5 Hz to 6,000 Hz |
| Probe Gap | 0.5–1.75 mm |
| Diagnostic Output | PROX OUT and COM |
| Operating Temperature | −35°C to +85°C |
| Storage Temperature | Approx. −51°C to +100°C |
| Agency Approvals | CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS maritime approval |
| Dimensions | Approx. 100 × 74 × 53 mm |
| Net Weight | Approx. 0.43–0.50 kg |
FAQ
Q: What is the Bently Nevada 990-04-90-01-05?
A: It is a 990 Series vibration transmitter used to continuously monitor vibration from a 3300 NSv proximity measurement system and provide a proportional 4–20 mA output.
Q: What is the measurement range of this model?
A: The 04 configuration corresponds to 0–4 mils peak-to-peak, or approximately 0–100 μm peak-to-peak.
Q: What does the 90 configuration represent?
A: The 90 configuration is used in market listings for a 9.0 m probe and extension-cable system. This differs from the commonly documented 5 m and 7 m standard configurations, so the exact cable length should be confirmed against the unit nameplate or purchase documentation.
Q: What does the 01 mounting code specify?
A: The 01 option specifies 35 mm DIN rail clips for mounting the transmitter in an industrial control cabinet or enclosure.
Q: What does the final 05 suffix mean?
A: The 05 approval configuration is associated with CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval.
Q: What type of output does the 990-04-90-01-05 provide?
A: It provides a standard 4–20 mA DC, two-wire loop-powered output proportional to the measured vibration amplitude.
Q: What probe is required for this transmitter?
A: The 990 is designed to work with a Bently Nevada 3300 NSv proximity probe and compatible extension cable. The transmitter incorporates the signal-conditioning function, so a separate external Proximitor module is not normally required.
Q: What are the dimensions and weight?
A: The transmitter is approximately 100 × 74 × 53 mm and weighs about 0.43–0.50 kg. Actual packaged shipping weight may be higher.
Bently Nevada 990-04-90-01-05 Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
