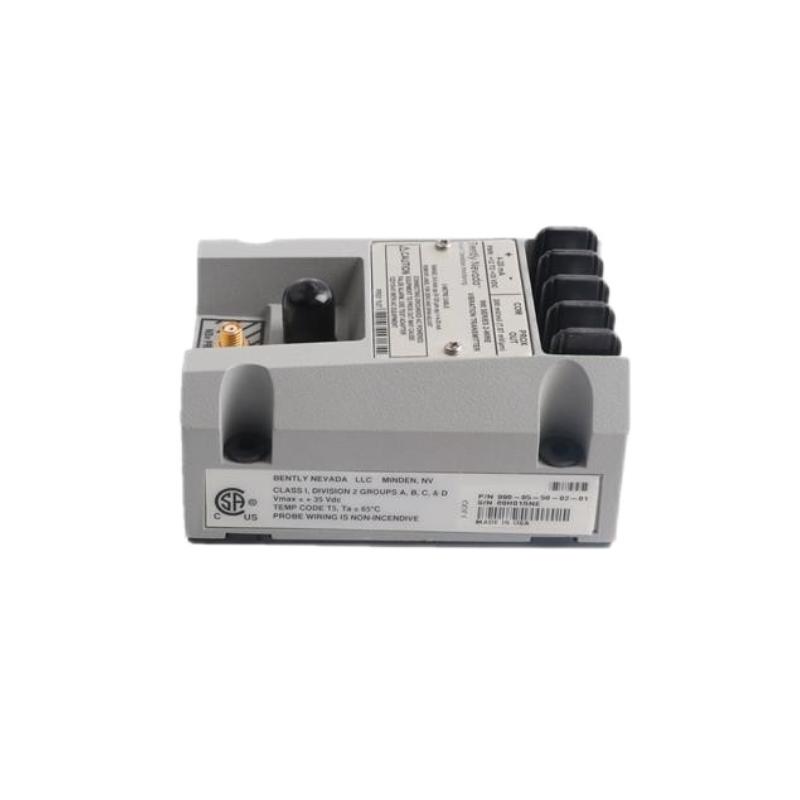

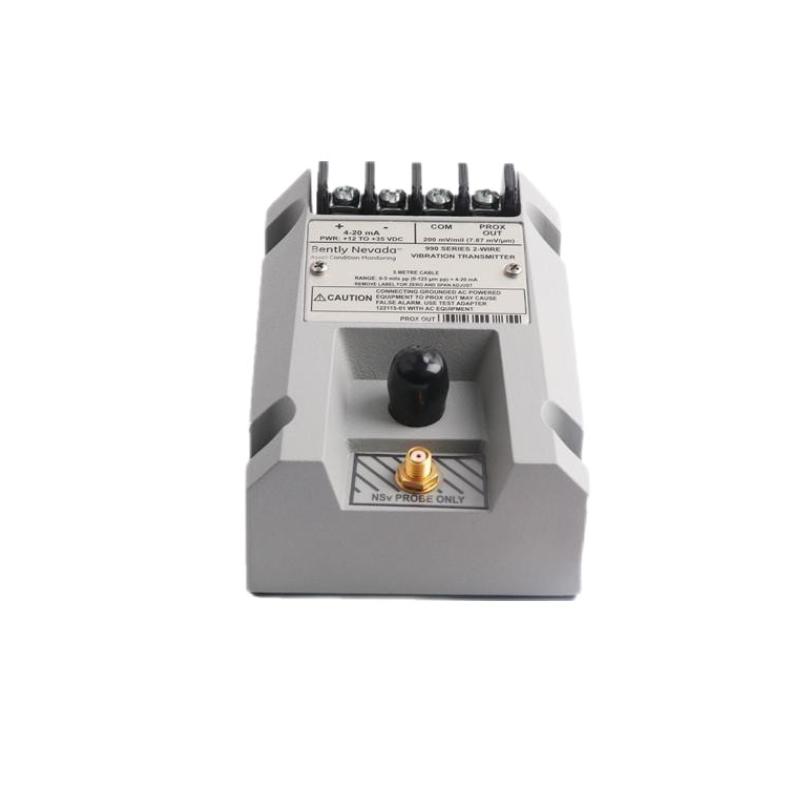

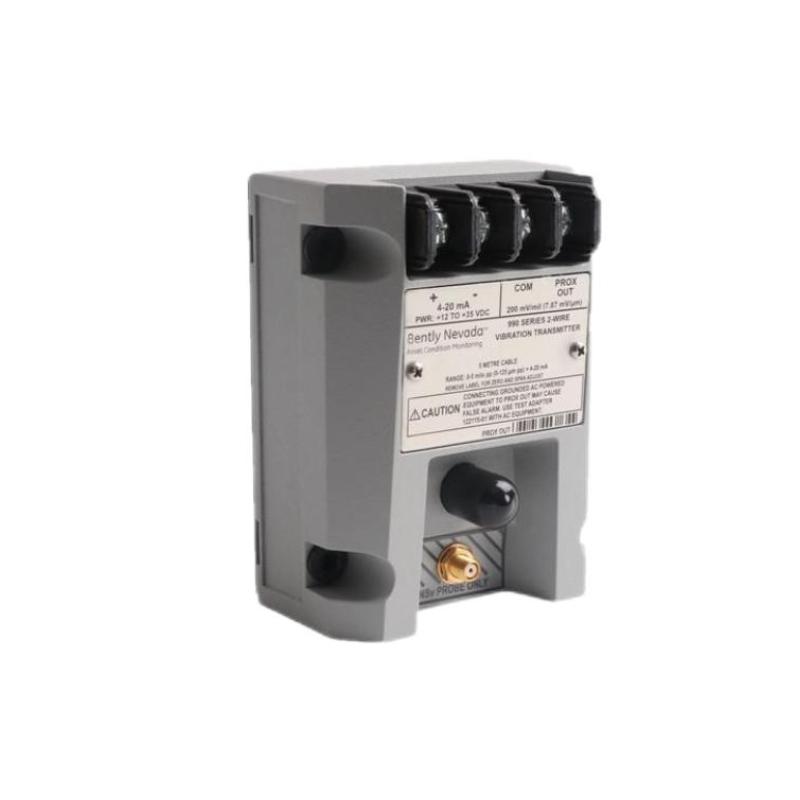

Bently Nevada 990-04-XX-01-05 165335-01 Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 990-04-XX-01-05 with MOD 165335-01 |
| Series | 990 |
| Modification | 165335-01 — MOD 4140 3300XL 8 mm, 9 m |
| Measurement Range | 0–4 mils pp (0–100 μm pp) |
| Probe System | 3300XL 8 mm proximity probe system |
| System Length | 9.0 m (29.5 ft), specified by MOD 165335-01 |

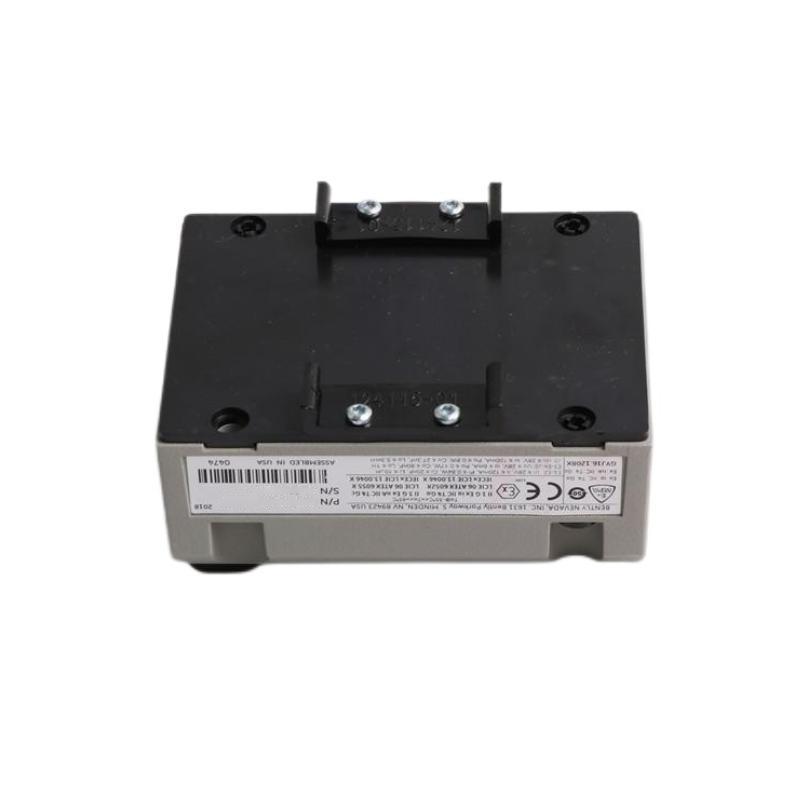

| Mounting | 35 mm DIN rail clips |
| Input | One non-contacting 3300 NSv proximity probe and extension cable |
| Output | 4–20 mA DC, 2-wire, loop-powered |
| Supply Voltage | +12 to +35 VDC |
| Loop Accuracy | ±1.5% over specified full-scale range |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Current Limiting | 23 mA typical |
| Frequency Response | 5 Hz to 6,000 Hz, +0/−3 dB |
| Probe Gap | 0.5–1.75 mm (20–55 mils) |
| Prox Out Impedance | 10 kΩ |
| Operating Temperature | −35°C to +85°C |
| Storage Temperature | Approx. −51°C to +100°C |
| Agency Approvals | CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS maritime approval |
| Construction | Potted construction for high-humidity environments |
| Dimensions | Approx. 100 × 74 × 53 mm |
| Net Weight | Approx. 0.44 kg |
FAQ
Q: What is the Bently Nevada 990-04-XX-01-05 with MOD 165335-01?
A: It is a 990 Series vibration transmitter configured for machinery vibration monitoring. The unit converts the signal from a compatible proximity probe system into a proportional 4–20 mA output.
Q: What does MOD 165335-01 specify?
A: Bently Nevada documentation identifies 165335-01 as MOD 4140 3300 XL 8MM 9M. It is a factory modification associated with a 3300XL 8 mm proximity probe system with a 9 m cable configuration.
Q: What is the vibration measurement range?
A: The 04 configuration provides a full-scale range of 0–4 mils peak-to-peak, equivalent to approximately 0–100 μm peak-to-peak.
Q: What does the XX portion of the model number mean?
A: XX is used as a configuration placeholder in the 990 ordering format. For this particular unit, MOD 165335-01 identifies the specific 3300XL 8 mm, 9 m modified configuration.
Q: What does the 01 mounting code indicate?
A: The 01 option specifies 35 mm DIN rail clips, allowing the transmitter to be installed on a standard DIN rail inside an industrial control cabinet.
Q: What does the final 05 suffix indicate?
A: The 05 approval configuration is associated with CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval.
Q: What type of signal does the transmitter provide?
A: It provides a 4–20 mA DC signal in a two-wire loop-powered configuration. The output is proportional to the measured vibration level and can be integrated with PLC, DCS, and machinery monitoring systems.
Q: What are the dimensions and weight of this model?
A: The transmitter is approximately 100 × 74 × 53 mm and weighs about 0.44 kg. Actual shipping weight may be higher because packaging and accessories are included.
Bently Nevada 990-04-XX-01-05 165335-01 Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
