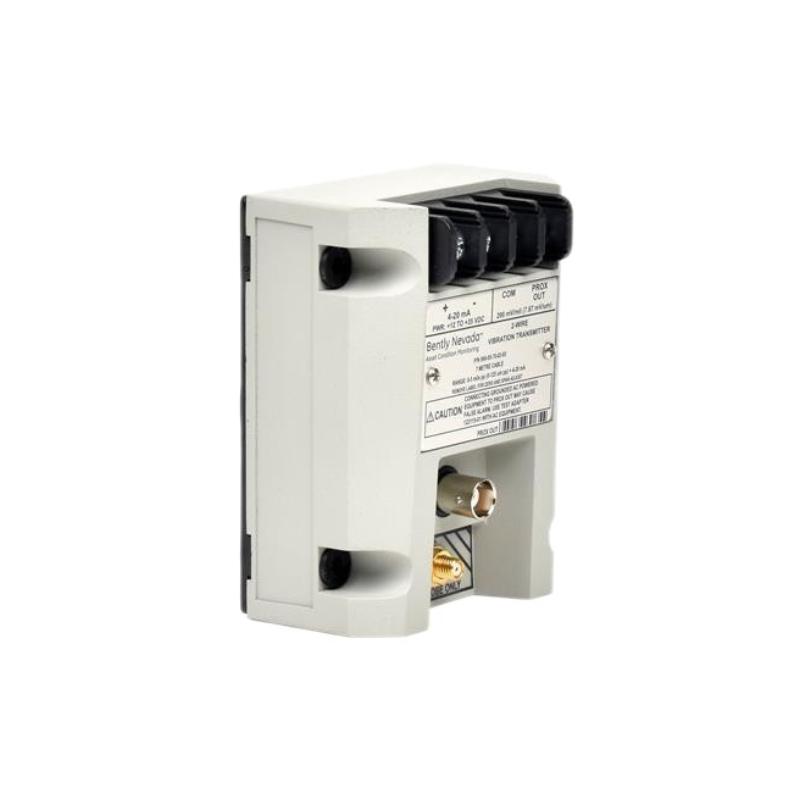

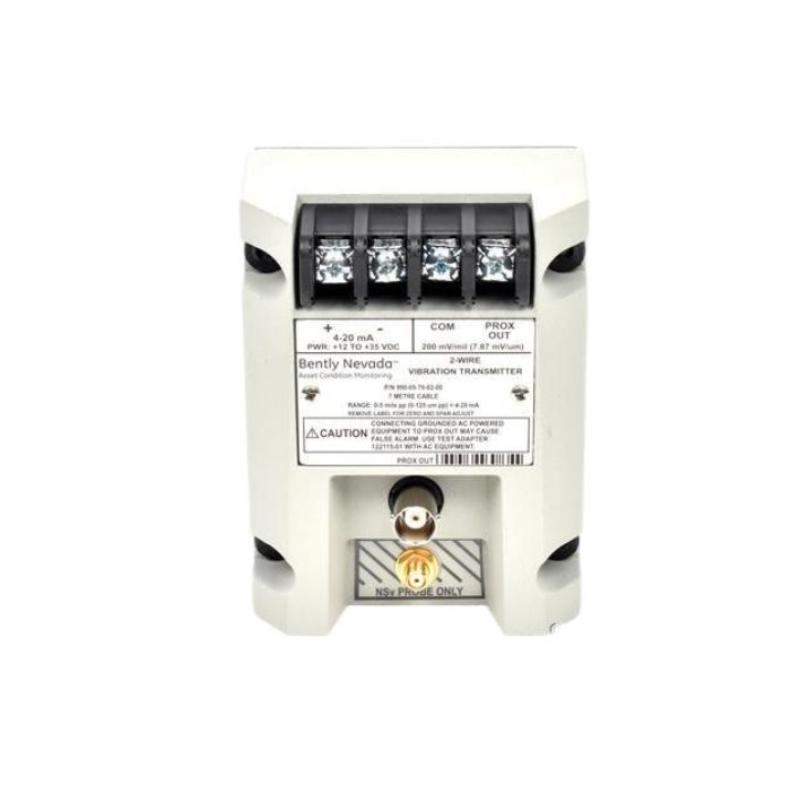

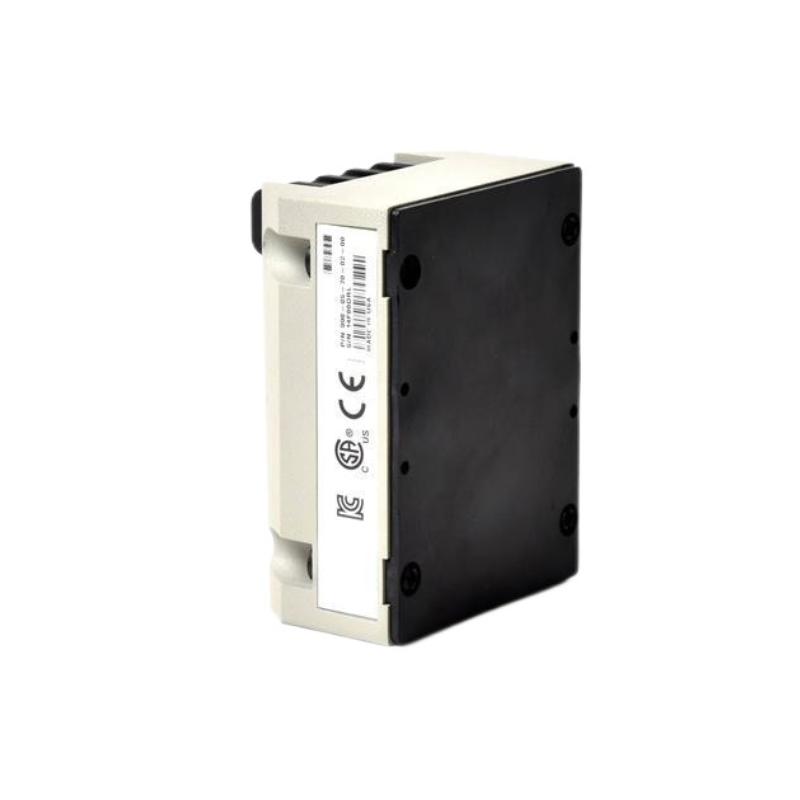

Bently Nevada 990-05-70-02-05 Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 990-05-70-02-05 |
| Series | 990 |
| Measurement Range | 0–5 mils pp (0–125 μm pp) |
| Input | 3300 NSv non-contacting proximity probe with extension cable |
| Output Signal | 4–20 mA DC |
| Configuration | 2-wire, loop-powered |
| System Length | 7.0 m (23.0 ft) |
| Mounting | Bulkhead screws |
| Agency Approval | CSA Division 2, ATEX Zone 0/Zone 2, ABS maritime approval |
| Power Supply | +12 to +35 VDC |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -51°C to +100°C |
| Dimensions | Approx. 100 × 74 × 46 mm |
| Net Weight | Approx. 0.44 kg |
FAQ
Q: What is the Bently Nevada 990-05-70-02-05?
A: It is a 990 Series two-wire, loop-powered vibration transmitter used for continuous shaft vibration monitoring on rotating machinery.
Q: What is the measurement range?
A: The 05 full-scale option provides a range of 0–5 mils peak-to-peak (0–125 μm peak-to-peak).
Q: What does the “70” code represent?
A: 70 indicates a 7.0 m (23.0 ft) proximity transducer system length.
Q: What does the “02” mounting code mean?
A: 02 specifies the bulkhead screw mounting configuration rather than DIN-rail mounting.
Q: What does the final “05” indicate?
A: The final 05 identifies the approval configuration, covering CSA Division 2, ATEX Zone 0/Zone 2 and ABS maritime approval.
Q: Which probe is compatible with this transmitter?
A: The transmitter is designed to accept a 3300 NSv non-contacting proximity probe and matching extension cable.
Q: What output signal does it provide?
A: It provides a 4–20 mA DC proportional output through a two-wire, loop-powered circuit. A dynamic vibration signal is also available through the PROX OUT/COM connection for testing and diagnostics.
Q: What are the dimensions and weight?
A: The transmitter is approximately 100 × 74 × 46 mm and has a net weight of about 0.44 kg. Actual shipping weight will be higher because of packaging and accessories.
Bently Nevada 990-05-70-02-05 Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
