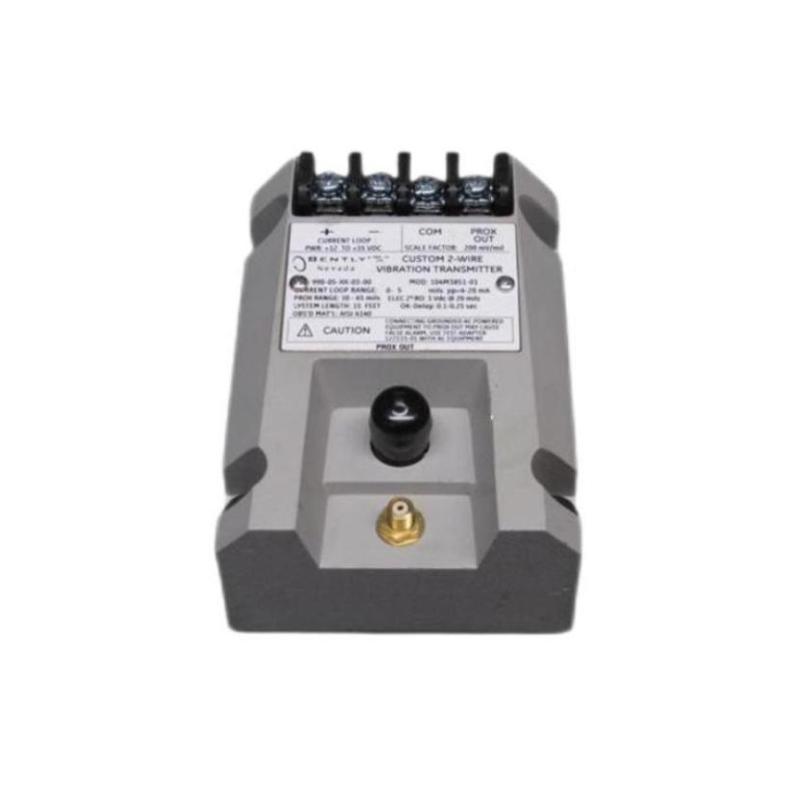

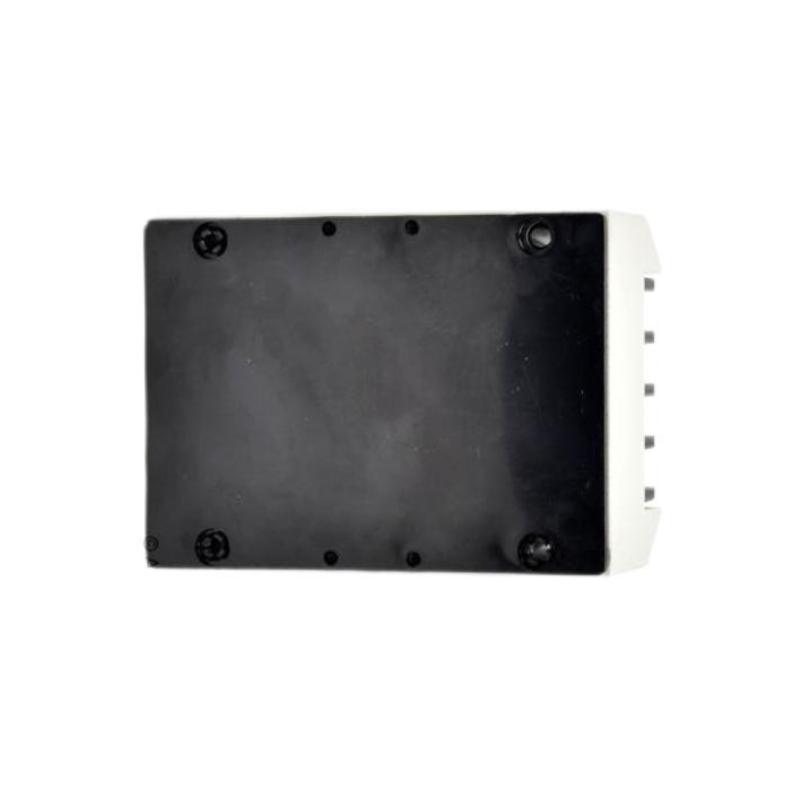

Bently Nevada 990-05-70-03-EN Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 990-05-70-03-EN |
| Series | 990 |
| Measurement Range | 0–5 mils pp (0–125 μm pp) |
| Input | 3300 NSv non-contacting proximity probe with extension cable |
| Output Signal | 4–20 mA DC |
| Configuration | 2-wire, loop-powered |
| System Length | 7.0 m (23.0 ft) |
| Mounting | DIN clips and screws |
| Power Supply | +12 to +35 VDC |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Loop Accuracy | ±1.5% of full scale |
| Current Limit | Approximately 23 mA |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -51°C to +100°C |
| Dimensions | Approx. 100 × 74 × 53 mm |
| Weight | Approx. 0.43 kg |
FAQ
Q: What is the Bently Nevada 990-05-70-03-EN?
A: It is a 990 Series vibration transmitter designed to convert the signal from a 3300 NSv proximity probe into a standard 4–20 mA output.
Q: What is the measurement range?
A: The 05 option specifies 0–5 mils peak-to-peak (0–125 μm peak-to-peak).
Q: What does the “70” designation mean?
A: 70 indicates a 7.0 m (23.0 ft) proximity measurement system length.
Q: What does the “03” mounting code specify?
A: 03 identifies the DIN clips and screws mounting configuration.
Q: What does the “EN” suffix indicate?
A: EN is an order/configuration suffix associated with the specified version of the 990 transmitter. It should not be interpreted as a measurement-range or mounting designation.
Q: Which probe is compatible with this model?
A: The transmitter is designed for use with a 3300 NSv non-contacting proximity probe and matching extension cable.
Q: What output signal and power supply are required?
A: The unit operates from +12 to +35 VDC and provides a 4–20 mA DC proportional output in a two-wire, loop-powered configuration.
Q: What are the dimensions and weight?
A: The transmitter is approximately 100 × 74 × 53 mm and weighs about 0.43 kg. The final shipping weight depends on packaging and accessories.
Bently Nevada 990-05-70-03-EN Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
