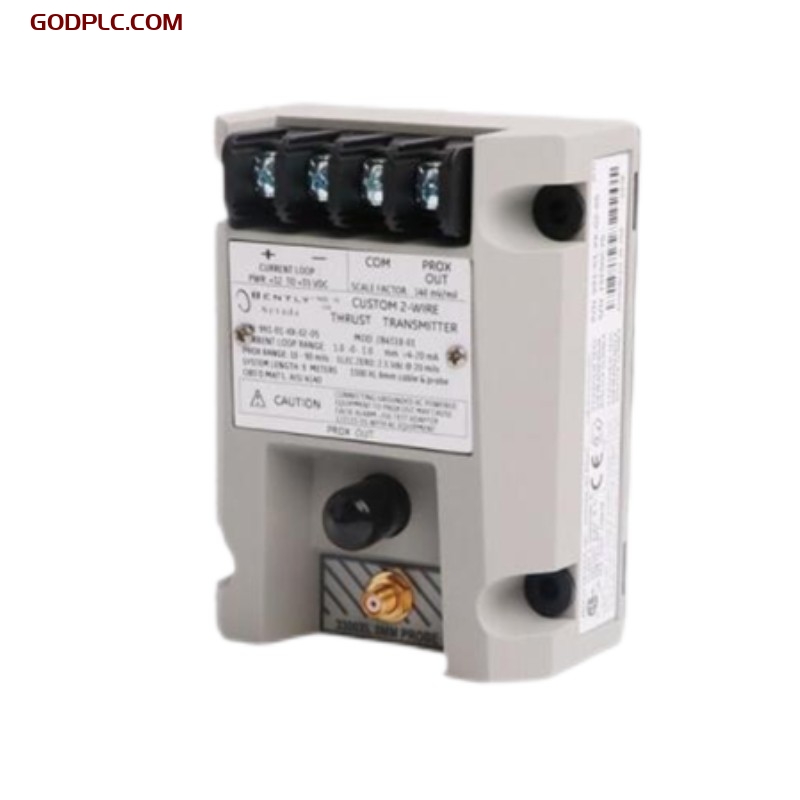

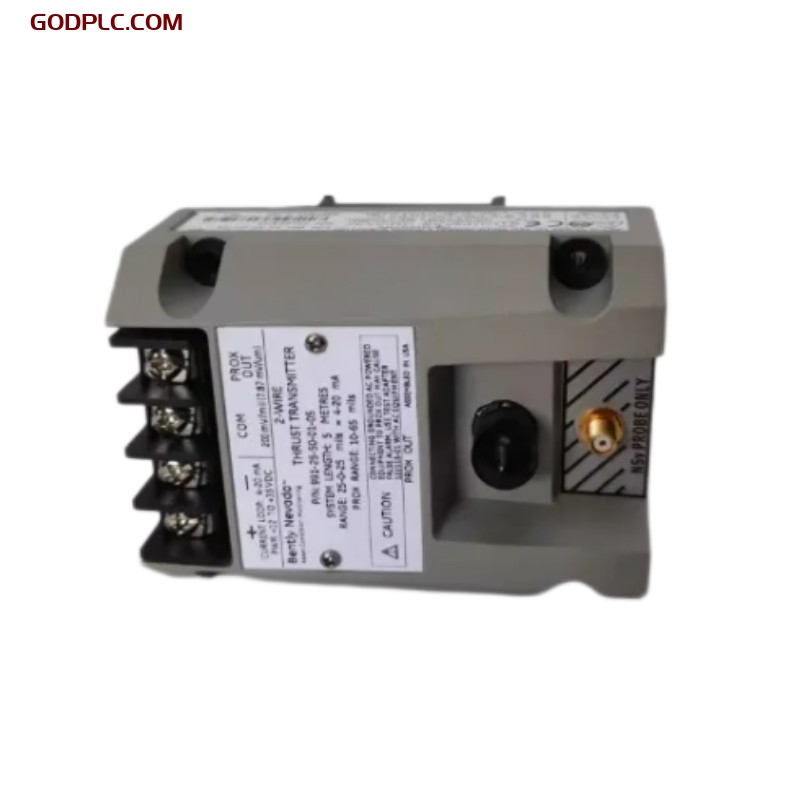

Bently Nevada 991-06-70-01-00 991 Thrust Sensor
Product Overview
The Bently Nevada 991-06-70-01-00 is a high-performance thrust sensor from the 991 series, designed to monitor axial shaft position (thrust position) in rotating machinery. It provides precise and reliable measurement of shaft displacement, a critical parameter for protecting and diagnosing the condition of compressors, turbines, pumps, and motors.
Engineered for use in harsh industrial environments, the 991 series thrust sensors are rugged and compact, ensuring long-term stability, minimal drift, and accurate performance. This model is commonly used in applications requiring continuous thrust monitoring to prevent machinery damage due to axial movement.
Key Features
-
High Accuracy: Provides precise measurement of axial shaft position, essential for machinery protection systems.
-
Industrial-Grade Design: Built for durability in harsh conditions including high temperature, vibration, and contaminants.
-
Compact Size: Ideal for installations with limited space, especially in retrofit applications.
-
Direct Shaft Monitoring: Enables real-time data collection for thrust position and early detection of mechanical issues.
-
Reliable Performance: Designed to meet the rigorous standards of continuous condition monitoring systems.
-
Corrosion Resistance: Constructed from materials that withstand chemically aggressive environments.
Technical Specifications
3.1 Dimensions and Weight
| Parameter | Value |
|---|---|
Dimensions |
100.1 x 73.9 x 53.3mm |
| Weight | 0.43 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | 991-06-70-01-00 |
| Series | 991 Series |
| Manufacturer | Bently Nevada |
| Application | Axial shaft (thrust) position monitoring |
| Mounting Type | Threaded with lock nut |
| Operating Temp | -35°C to +177°C |
| Storage Temp | -50°C to +200°C |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Linearity | ±1% full-scale |
| Frequency Response | Up to 10 kHz |
| Gap Range | 0.25 to 2.0 mm |
| Cable Type | Integral coaxial cable |
| Connector Type | Miniature coaxial connector (TNC/BNC) |
Industry Applications
-
Power Generation: Ensures thrust position monitoring in steam turbines and generators, preventing mechanical damage.
-
Oil & Gas: Used in compressors and pumps within upstream and downstream operations to enhance system reliability.
-
Petrochemical Plants: Protects rotating assets in continuous process operations with high vibration and load variation.
-
Heavy Industry: Suitable for monitoring axial movement in motors and gearboxes in steel, cement, and mining sectors.
-
Aerospace and Defense: Provides essential data for thrust position control in mission-critical rotating systems.
The Bently Nevada 991-06-70-01-00 991 Thrust Sensor is a robust, high-precision device engineered for continuous monitoring of axial displacement in critical rotating equipment, playing a vital role in machinery protection and predictive maintenance systems.
Bently Nevada 991-06-70-01-00 991 Thrust Sensor is in stock. Please contact us for a quick quote and competitive pricing.
