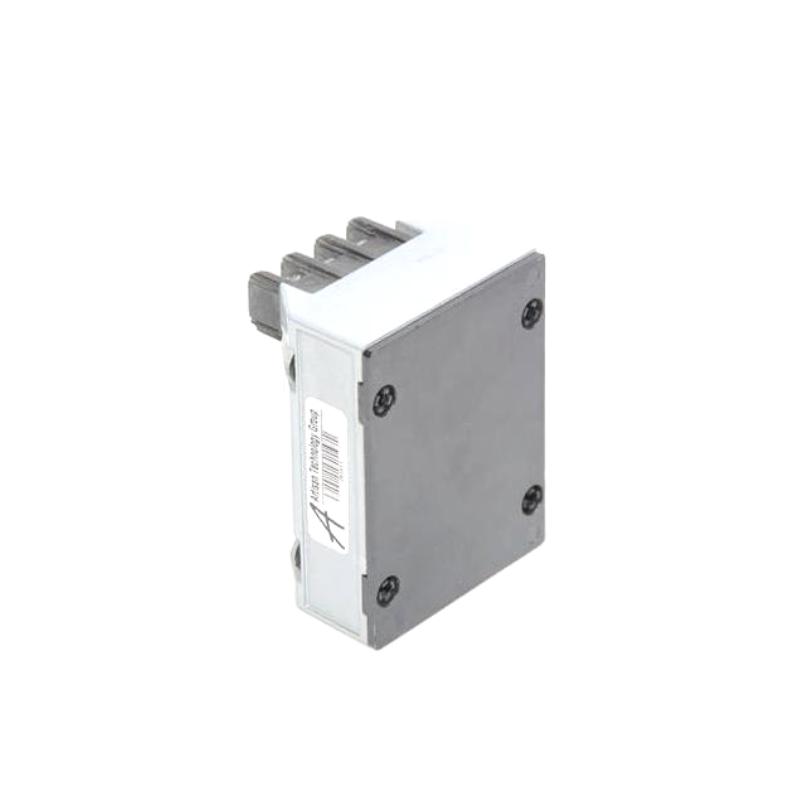

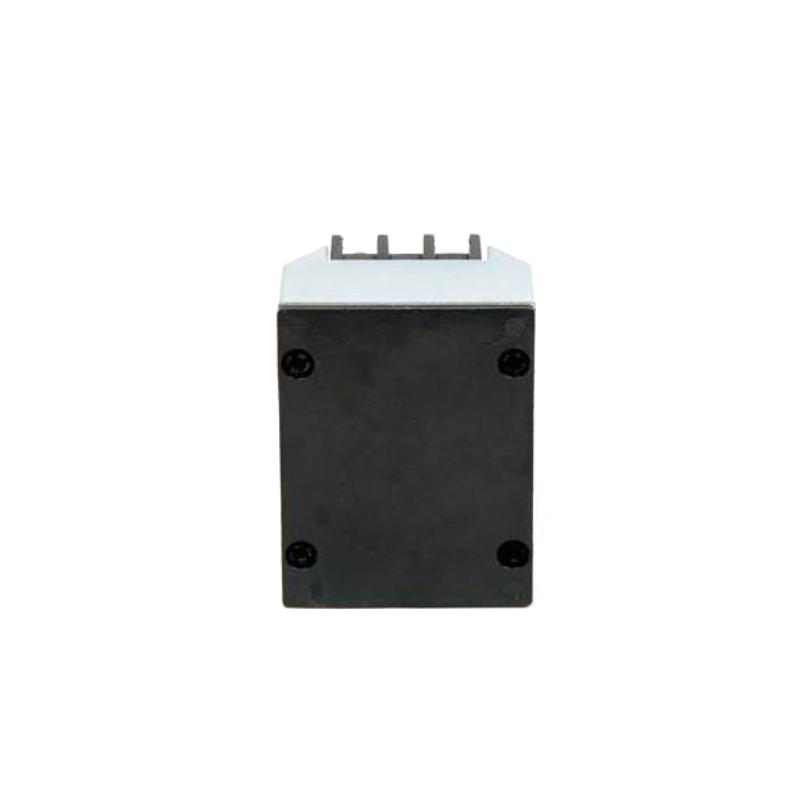

Bently Nevada 991-25-XX-01-CN Thrust Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Thrust Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 991-25-XX-01-CN |
| Series | 991 |
| Function | Axial Displacement / Thrust Monitoring |
| Measurement Principle | Eddy-current proximity sensing |
| Input | 1 × 3300 NSv non-contacting proximity probe with extension cable |
| Output Signal | 4–20 mA proportional axial-displacement signal |
| Signal Configuration | 2-wire, loop-powered |
| Power Supply | +12 to +35 V DC |
| Maximum Loop Resistance | 1,000 Ω at 35 V DC, including cable |
| Current Limiting | Approx. 23 mA |
| Zero / Span Adjustment | Non-interacting external adjustments |
| Proximitor | Integrated |
| Dynamic Output | Non-isolated PROX OUT and COM terminals |
| System Length | 5.0 m or 7.0 m, depending on configuration |
| Mounting | 35 mm DIN rail |
| Application | Continuous axial-thrust monitoring |
| Typical Equipment | Centrifugal air compressors, small pumps, motors and fans |
| Dimensions | Approx. 73 × 50 × 100 mm |
| Weight | Approx. 0.44 kg |
FAQ
Q: What is the 991-25-XX-01-CN used for?
A: It is a Bently Nevada 991 Series thrust transmitter designed to measure axial displacement and provide a proportional output for rotating-machinery monitoring.
Q: What type of probe does it accept?
A: The transmitter accepts one non-contacting Bently Nevada 3300 NSv proximity probe together with its compatible extension cable.
Q: What output signal does it provide?
A: It provides a 4–20 mA proportional axial-displacement signal for connection to compatible PLC, DCS, machinery-monitoring, or control systems.
Q: What power supply is required?
A: The transmitter operates from +12 to +35 V DC and uses a two-wire, loop-powered configuration.
Q: What is the maximum loop resistance?
A: The maximum specified loop resistance is 1,000 Ω at 35 V DC, including the resistance of the connecting cable.
Q: Does the transmitter require a separate Proximitor sensor?
A: No. The 991-25-XX-01-CN incorporates the Proximitor function into the transmitter, simplifying installation and reducing the need for an external signal-conditioning unit.
Q: What machines are commonly monitored with this transmitter?
A: Typical applications include centrifugal air compressors, small pumps, motors, and fans where continuous axial-displacement monitoring is required.
Q: What are the dimensions and weight?
A: The transmitter is approximately 73 × 50 × 100 mm and weighs about 0.44 kg. Actual shipping dimensions and weight will be higher when packaging and accessories are included.
Bently Nevada 991-25-XX-01-CN Thrust Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
