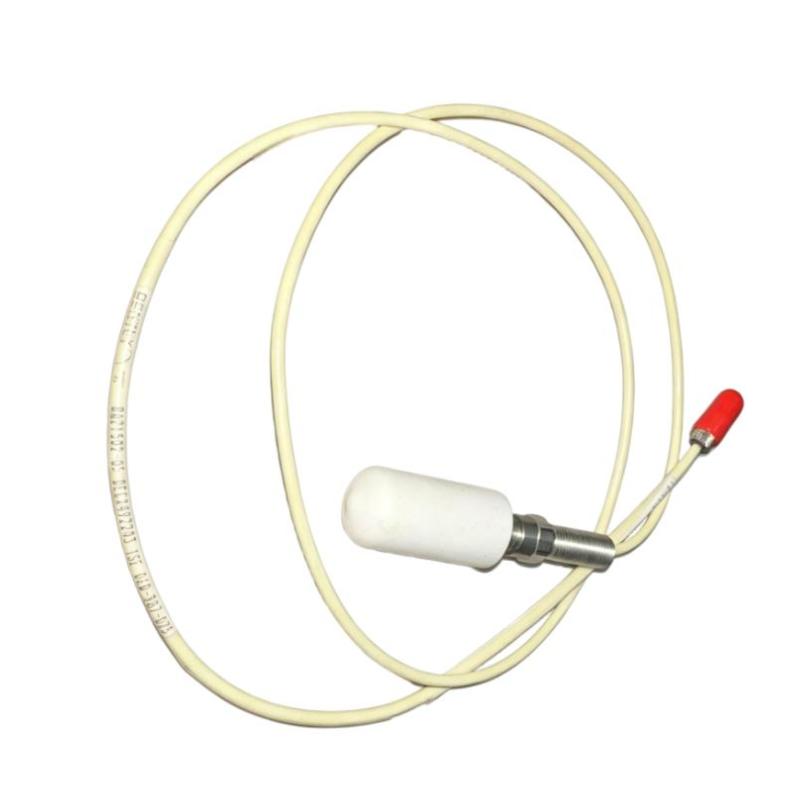

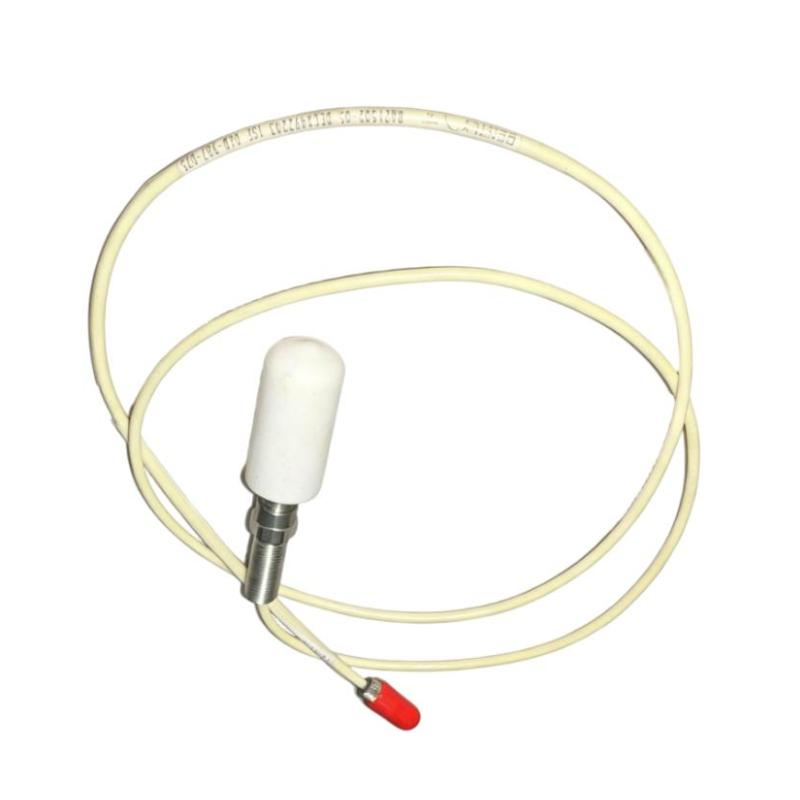

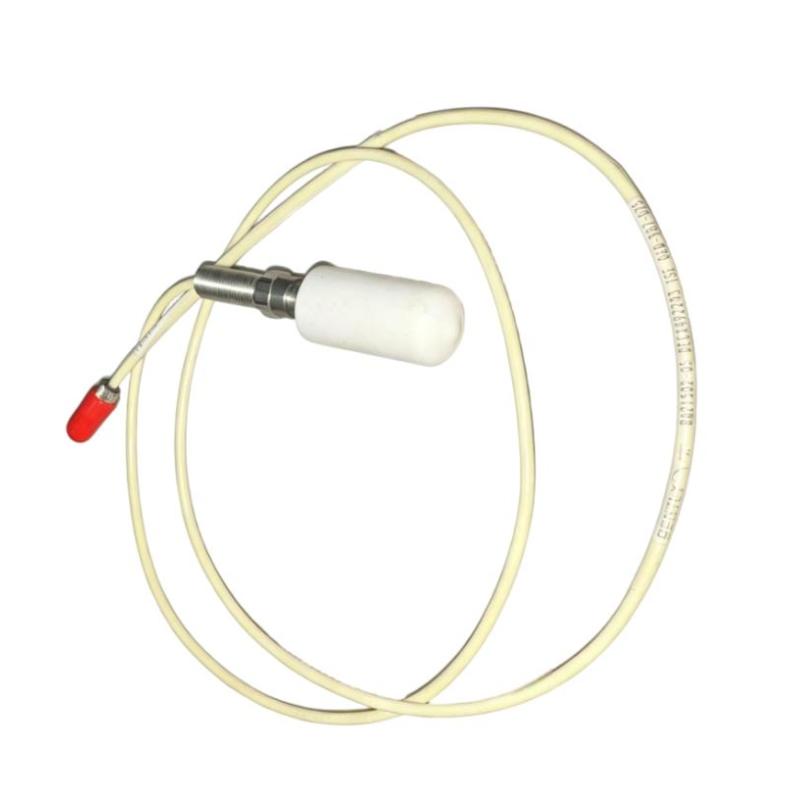

1. What is the main function of the Bently Nevada BA21502-06 Probe-Type Proximity Sensor?

The Bently Nevada BA21502-06 Probe-Type Proximity Sensor is designed for non-contact measurement of rotating machinery shaft displacement, vibration and position changes. It uses eddy current sensing technology to detect the distance between the probe tip and a conductive target surface, providing accurate measurement signals for monitoring systems.

This type of sensor is widely used in machinery protection and condition monitoring applications where precise shaft movement detection is required. By continuously measuring shaft vibration and displacement, it helps identify abnormal operating conditions such as rotor imbalance, shaft misalignment, mechanical looseness and bearing-related problems.

The BA21502-06 provides important measurement data for Bently Nevada monitoring systems, helping engineers evaluate equipment health and perform predictive maintenance.

2. What industrial equipment can use the Bently Nevada BA21502-06 sensor?

The BA21502-06 Probe-Type Proximity Sensor is suitable for various rotating machinery applications that require accurate shaft vibration and position monitoring.

Typical applications include steam turbines, gas turbines, compressors, generators, pumps and industrial motors. These machines often operate under high-speed and continuous-duty conditions, making accurate shaft monitoring essential for preventing unexpected failures.

By detecting small changes in shaft position and vibration levels, the sensor helps maintenance teams identify potential mechanical problems early and improve equipment reliability.

3. How does the Bently Nevada BA21502-06 proximity sensor work?

The BA21502-06 operates based on eddy current sensing technology. The sensor generates an electromagnetic field at the probe tip, and when the conductive shaft surface enters this field, changes in the electromagnetic characteristics are detected and converted into electrical signals.

The output signal changes according to the distance between the probe and the target surface. This allows the monitoring system to accurately analyze shaft displacement and vibration conditions.

Because the measurement process does not require physical contact with the rotating shaft, the sensor can provide reliable monitoring performance even in high-speed rotating equipment applications.

4. How should the Bently Nevada BA21502-06 be installed?

During installation, the BA21502-06 sensor should be positioned according to the equipment manufacturer’s requirements to ensure accurate measurement of shaft movement.

The probe must maintain the correct installation gap between the sensor tip and the rotating target surface. Incorrect installation distance may affect measurement accuracy and signal stability.

The cable connection should also be properly secured to prevent signal interruption caused by loose connections or mechanical movement. After installation, technicians should verify sensor output signals and monitoring system readings to confirm correct operation.

Proper installation is essential for achieving reliable vibration and displacement measurements.

5. What problems can occur if the BA21502-06 sensor signal is abnormal?

Abnormal signals from the BA21502-06 may be caused by several factors, including incorrect installation, improper sensor gap, cable damage, poor connections or interference from the surrounding environment.

If the sensor output becomes unstable, technicians should first check the mechanical installation condition and confirm that the probe position remains correct. The cable and connection points should also be inspected for possible damage or loose contacts.

If installation and wiring are normal, the monitoring system configuration and actual machine operating condition should be reviewed. A systematic troubleshooting process helps determine whether the issue comes from the sensor, wiring or mechanical equipment.

6. Can the Bently Nevada BA21502-06 be used for online machinery protection systems?

Yes. The BA21502-06 Probe-Type Proximity Sensor is designed for continuous online monitoring applications and can be integrated into machinery protection systems.

Online monitoring allows operators to continuously observe shaft vibration, displacement and position changes while equipment is running. This provides valuable information for detecting early signs of mechanical problems.

In critical industrial applications, real-time monitoring helps reduce unexpected downtime, improve maintenance planning and protect expensive rotating equipment from severe damage.

7. How can the measurement accuracy of the BA21502-06 proximity sensor be improved?

To maintain accurate measurement performance, the BA21502-06 should be installed according to proper mechanical and electrical installation practices.

The sensor gap should be correctly adjusted, and the probe should be securely mounted to prevent movement during equipment operation. Signal cables should be installed away from strong electromagnetic interference sources whenever possible.

Regular inspection of sensor connections, signal quality and monitoring parameters can also help maintain measurement accuracy. Proper maintenance ensures stable operation and reliable vibration monitoring results.

8. What role does the Bently Nevada BA21502-06 play in predictive maintenance?

The BA21502-06 plays an important role in predictive maintenance by providing continuous shaft vibration and displacement data for equipment condition analysis.

By monitoring changes in vibration patterns and shaft movement, engineers can identify early warning signs of mechanical problems before they lead to major equipment failures.

When combined with Bently Nevada monitoring systems, the sensor helps create a complete machinery health monitoring solution. It supports data-based maintenance decisions, reduces unnecessary downtime and improves the safety and efficiency of industrial operations.
