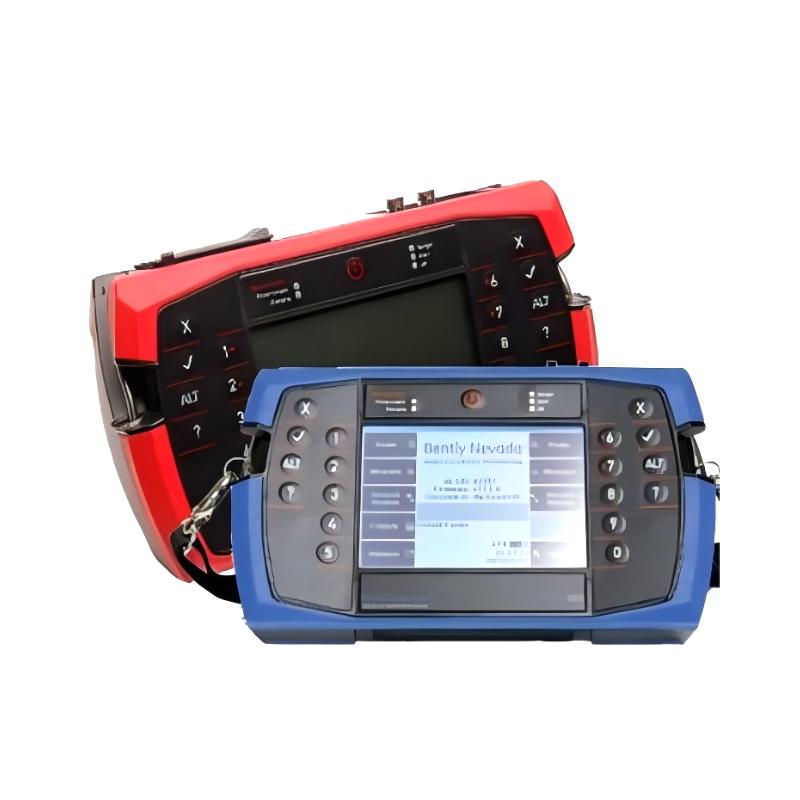

Bently Nevada SCOUT140EX Portable Vibration Data Collector and Analyzer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Portable Vibration Data Collector and Analyzer |
| Product Model | SCOUT140EX |
| Manufacturer | Bently Nevada |
| Series | SCOUT Series |
| Number of Channels | 4 simultaneous channels |
| Measurement Functions | Vibration data collection, analysis, route monitoring, dynamic balancing |
| Supported Sensors | Acceleration, velocity, displacement, current, voltage, DC-coupled and 4–20 mA sensors |
| Sensor Inputs | 1 × BNC, 3 × LEMO |
| A/D Conversion | 24-bit ADC |
| Maximum Frequency | 80 kHz Fmax |
| FFT Resolution | Up to 12,800 lines |
| Dynamic Range | ≥95 dB |
| Tachometer Range | 10 to 300,000 RPM |
| Tachometer Accuracy | ±0.1% |
| Waveform Samples | 1,024 to 32,768 samples |
| Time Synchronous Averaging | 1 to 128 averages |
| Internal Storage | 1 GB non-volatile flash memory |
| Battery Life | Approx. 10 hours |
| Display | Backlit, sunlight-readable LCD |
| Protection Rating | IP65 |
| Hazardous Area Certification | ATEX and IECEx Zone 2 |
| Data Transfer | USB |
| Software Compatibility | System 1 and Ascent Level 2 |
| Balancing | Single-plane and two-plane dynamic balancing |
| Dimensions | Approx. 280 × 130 × 55 mm |
| Weight | Approx. 1.0 kg |
| Application | Industrial machinery condition monitoring |
FAQ
Q: What is the SCOUT140EX?
A: The SCOUT140EX is a portable four-channel vibration data collector and analyzer designed for machinery condition monitoring, vibration diagnostics, route-based data collection, and field balancing.
Q: How many channels can the SCOUT140EX measure simultaneously?
A: It supports four simultaneous measurement channels, allowing multiple vibration sensors to be used during machinery analysis and balancing operations.
Q: What types of sensors are compatible with the SCOUT140EX?
A: The instrument can work with acceleration, velocity, displacement, current, voltage, DC-coupled, and 4–20 mA sensors. The input arrangement includes one BNC connector and three LEMO connectors.
Q: What is the maximum measurement frequency?
A: The maximum specified Fmax is 80 kHz. FFT resolution can reach up to 12,800 lines, providing detailed frequency information for machinery diagnostics.
Q: Can the SCOUT140EX perform dynamic balancing?
A: Yes. The instrument supports field balancing applications, including single-plane and two-plane balancing. It can collect vibration and phase information needed to determine corrective weight placement.
Q: Is the SCOUT140EX suitable for hazardous locations?
A: Yes. The SCOUT140EX is available in configurations certified for ATEX and IECEx Zone 2 applications. The exact certification should always be checked against the nameplate and supplied documentation of the specific unit.
Q: How long can the instrument operate on its battery?
A: Typical battery operating time is approximately 10 hours, although actual runtime depends on measurement settings, display use, sensor configuration, and operating conditions.
Q: What are the dimensions and weight of the SCOUT140EX?
A: The approximate dimensions are 280 × 130 × 55 mm, and the weight is about 1.0 kg. Its compact enclosure and IP65 protection make it suitable for portable use in industrial machinery-monitoring environments.
Bently Nevada SCOUT140EX Portable Vibration Data Collector and Analyzer is in stock. Please contact us for a quick quote and competitive pricing.
