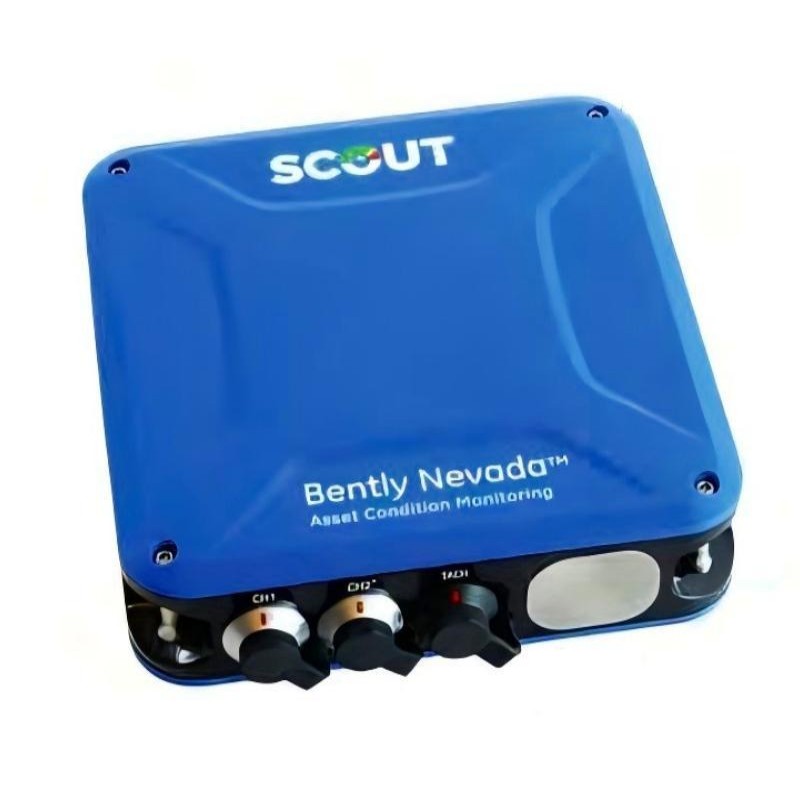

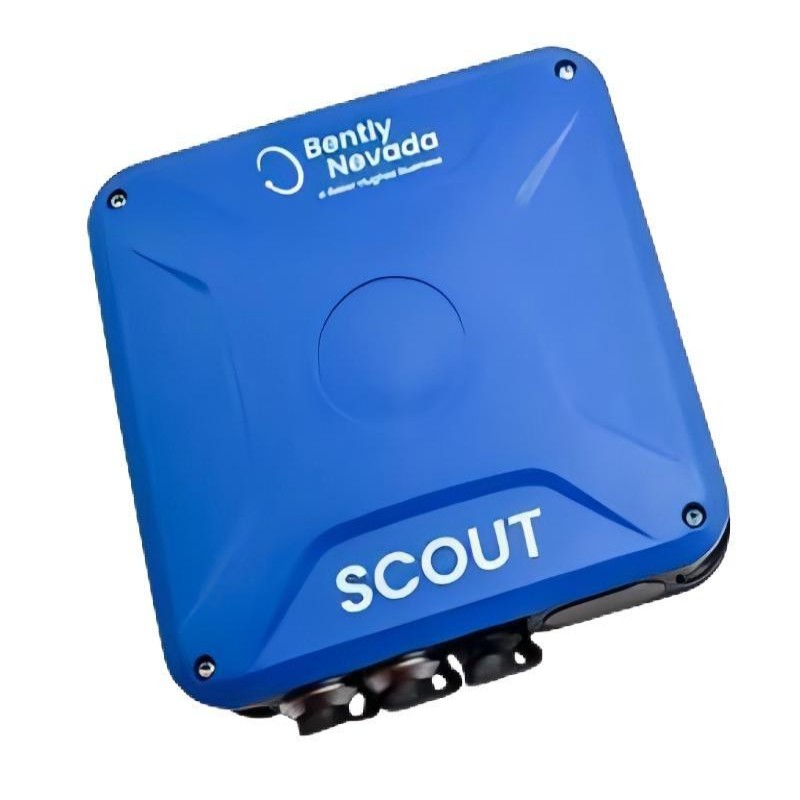

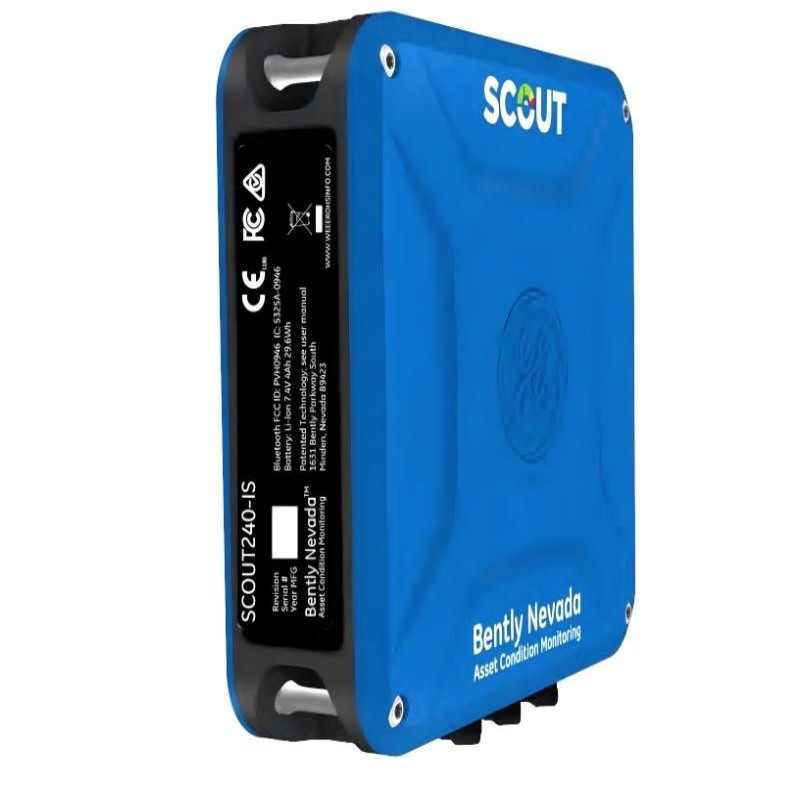

Bently Nevada SCOUT240IS-05 Intrinsically Safe Portable Data Collector – SCOUT Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Product Type | Intrinsically Safe Portable Data Collector |
| Product Model | SCOUT240IS-05 |
| Product Series | SCOUT Series |
| Application | Portable vibration data collection and machinery condition monitoring |
| Number of Channels | 4 simultaneous input channels |
| Compatible Sensors | Accelerometer, velocity, displacement, and voltage sensors |
| Sensor Input | AC-coupled and DC-coupled inputs |
| ADC Resolution | 24-bit |
| Sensor Excitation | 0 or 2.2 mA configurable; 24 V maximum |
| Tachometer / Keyphasor | Supported |
| Speed Measurement Range | 60 rpm to 1,200,000 rpm |
| Speed Accuracy | ±(0.1% + 1 cpm) up to 5 kHz; ±0.3% above 5 kHz |
| Waveform Samples | Up to 8,192 samples with 3 or 4 channels |
| Frequency Lines | Up to 12,800 lines |
| Frequency Units | Hz, CPM, and Orders |
| Wireless Communication | Bluetooth 4.0 Classic |
| Battery | Custom rechargeable Li-ion, 7.4 V, 4000 mAh |
| Typical Operating Time | Approximately 10 hours |
| Charging Time | Approximately 3 hours |
| Operating Temperature | −20 to +60°C; −20 to +50°C in Ex hazardous areas |
| Environmental Rating | Intrinsically safe hazardous-area design |
| Certifications | CSA, IECEx, ATEX multi-approval |
| Dimensions (L × W × H) | 130 × 130 × 35 mm |
| Weight | Approx. 680 g |
| Magnet | No; magnetic mounting base is a separate accessory |
FAQ
Q: What is the Bently Nevada SCOUT240IS-05?
A: The SCOUT240IS-05 is an intrinsically safe, four-channel portable data collector designed for vibration measurement and machinery condition monitoring in hazardous industrial environments.
Q: How many measurement channels does the SCOUT240IS-05 provide?
A: It provides four simultaneous measurement channels, allowing multiple vibration or other compatible sensor signals to be acquired during a measurement route.
Q: What types of sensors can be connected to the SCOUT240IS-05?
A: The unit supports accelerometers, velocity sensors, displacement sensors, and voltage inputs. It can also interface with tachometer and Keyphasor signals for rotational-speed and phase-related measurements.
Q: What is the ADC resolution of the SCOUT240IS-05?
A: The data collector uses a 24-bit analog-to-digital converter, providing high-resolution acquisition for dynamic vibration signals.
Q: Is the SCOUT240IS-05 suitable for hazardous areas?
A: Yes. The “IS” designation indicates an intrinsically safe configuration. The -05 approval option provides multi-approvals covering CSA, IECEx, and ATEX requirements.
Q: How long can the SCOUT240IS-05 operate on one battery charge?
A: Its rechargeable 7.4 V, 4000 mAh lithium-ion battery provides approximately 10 hours of typical route data-collection operation. Actual runtime depends on measurement conditions and usage.
Q: What are the dimensions and weight of the SCOUT240IS-05?
A: The portable data collector measures approximately 130 × 130 × 35 mm (L × W × H) and weighs about 680 g.
Q: Does the SCOUT240IS-05 contain a battery or magnet?
A: It contains a rechargeable lithium-ion battery. The data collector itself does not contain a permanent magnet. A separate magnetic base can be supplied for mounting an accelerometer to suitable machinery surfaces.
Bently Nevada SCOUT240IS-05 Intrinsically Safe Portable Data Collector – SCOUT Series is in stock. Please contact us for a quick quote and competitive pricing.
