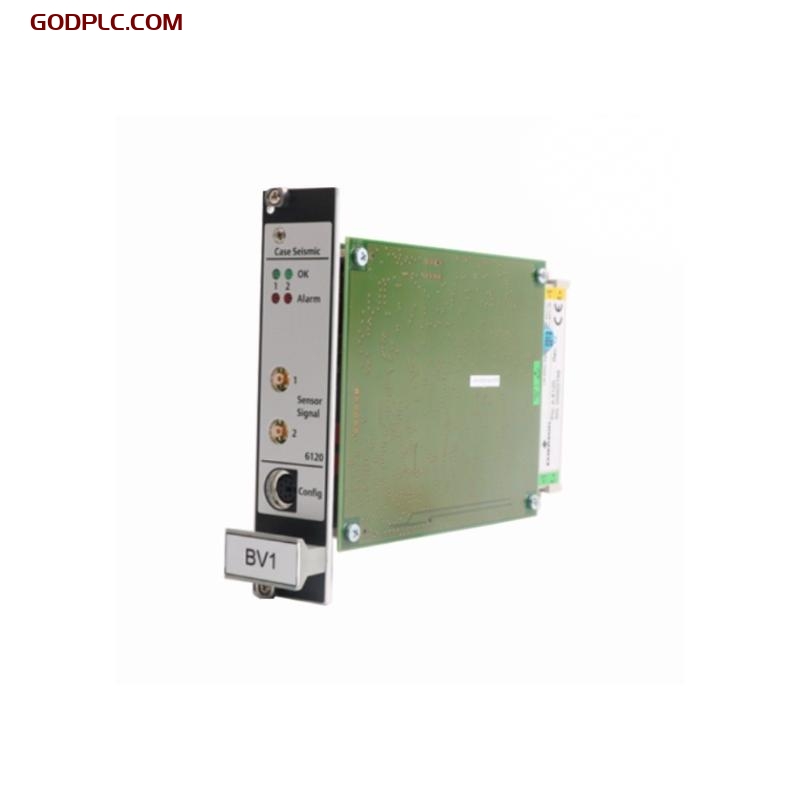

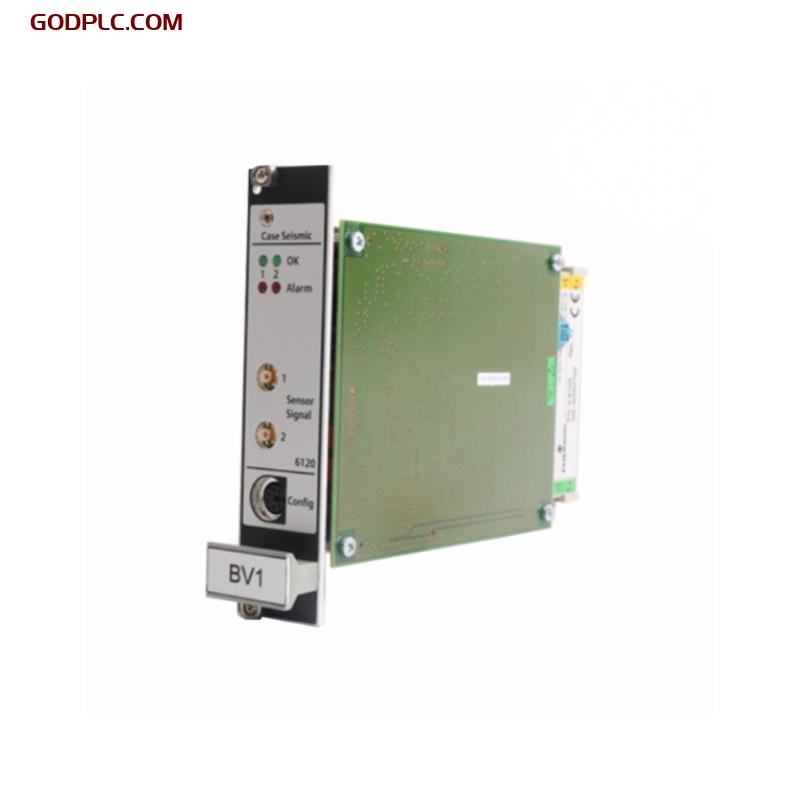

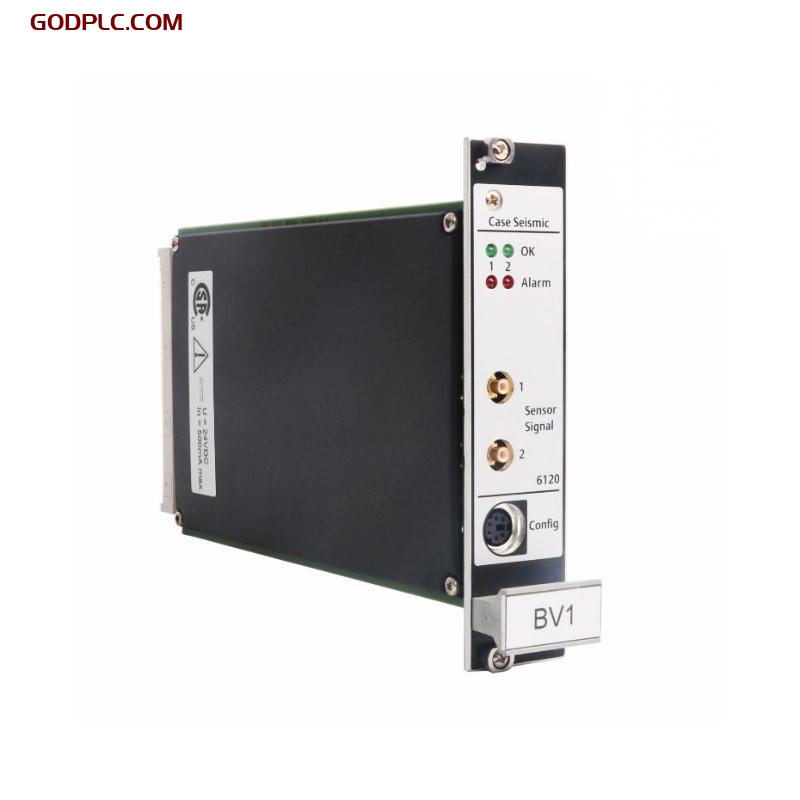

Emerson A6120 Product Introduction

Emerson’s A6120 is an advanced box-type seismic monitor designed to provide reliable and precise control and signal processing for a variety of industrial applications. As part of Emerson’s automation solutions, the A6120 module is carefully designed to meet the demanding requirements of industries such as power generation, oil and gas, petrochemical and manufacturing. The module is designed for high performance, operational stability and integration flexibility, ensuring that it supports the complex control needs of modern industrial systems.

The A6120 offers an efficient and powerful solution for managing a wide range of inputs and outputs, providing real-time control and monitoring of industrial processes. With its compact design and rugged construction, it is able to operate reliably in extreme conditions, including temperature fluctuations, electrical noise and mechanical vibration. Whether used in small setups or larger, more complex industrial systems, the A6120 can be seamlessly integrated with other Emerson modules and control systems, making it a versatile component for industrial automation.

The module provides real-time data processing and signal management, ensuring high-speed operation and reliable communication of industrial control systems. Its protection functions help protect connected devices from power surges, voltage imbalances and other electrical faults, thereby reducing downtime and extending equipment life.

Product Features

• Compact and durable: With dimensions of 160 x 128.4 x 30 mm and a weight of only 0.32 kg, the A6120 can be easily integrated into small spaces, making it an excellent choice for systems with limited space.
• Real-time data processing: The module supports real-time data processing, enabling it to effectively manage signals and control equipment in dynamic industrial environments.
• Wide Compatibility: The A6120 is compatible with a wide range of input and output signals, ensuring it can be integrated into a variety of industrial control systems.
• Built-in protection: The A6120 features overvoltage, undervoltage, and surge protection, making it suitable for use in environments where electrical fluctuations are common.
• Low Power Consumption: Designed to minimize power consumption, the A6120 operates efficiently, helping to reduce operating costs in long-term applications.
• High-Speed ​​Signal Processing: The module has a fast response time, enabling it to quickly process and transmit control signals to connected devices with minimal delay.
• Easy integration: The module’s simple installation process and standard communication interfaces ensure smooth integration into existing control systems, reducing setup time and costs.

Technical specifications

The following table summarizes the key technical specifications of Emerson’s A6120 modules:

Installation and Connection

The A6120 module uses standard DIN rail mounting methods, allowing for easy and safe installation in industrial control panels. Its compact size (160mm x 128.4mm x 30mm) ensures it can be installed in tight spaces, making it ideal for applications where space is limited.

The module is designed to operate in a 24V DC power environment. When setting up the A6120, always ensure it is connected to a reliable power source with appropriate overvoltage and undervoltage protection. The terminal blocks are clearly labeled for easy connection, and the module has standard communication interfaces to simplify integration with other control system components.

Built-in surge protection further ensures the module is immune to electrical interference, helping to prevent damage caused by power surges or voltage imbalances. This makes it suitable for use in industrial environments where electrical noise is prevalent.

Application Areas

Emerson’s A6120 is an ideal solution for a variety of industrial fields, especially those that require control, monitoring and signal processing. Some key industries and applications include:

• Power Generation: A6120 is used in power plants to control and monitor the operation of key equipment to ensure stable and efficient power generation.
• Oil and Gas: In the oil and gas industry, this module helps control pumps, valves, and other equipment, contributing to safe and efficient operations in this demanding industry.
• Petrochemical: A6120 is deployed in petrochemical plants to control various process steps and ensure smooth and safe operation of the production line.
• Manufacturing Automation: This module is also used in automated manufacturing systems, helping to manage the control of machines and production lines, ensuring high output and precision.
• Industrial Automation: In industrial automation systems, the A6120 is a reliable component that manages signals and provides control for a variety of devices, from motors to sensors and actuators.
