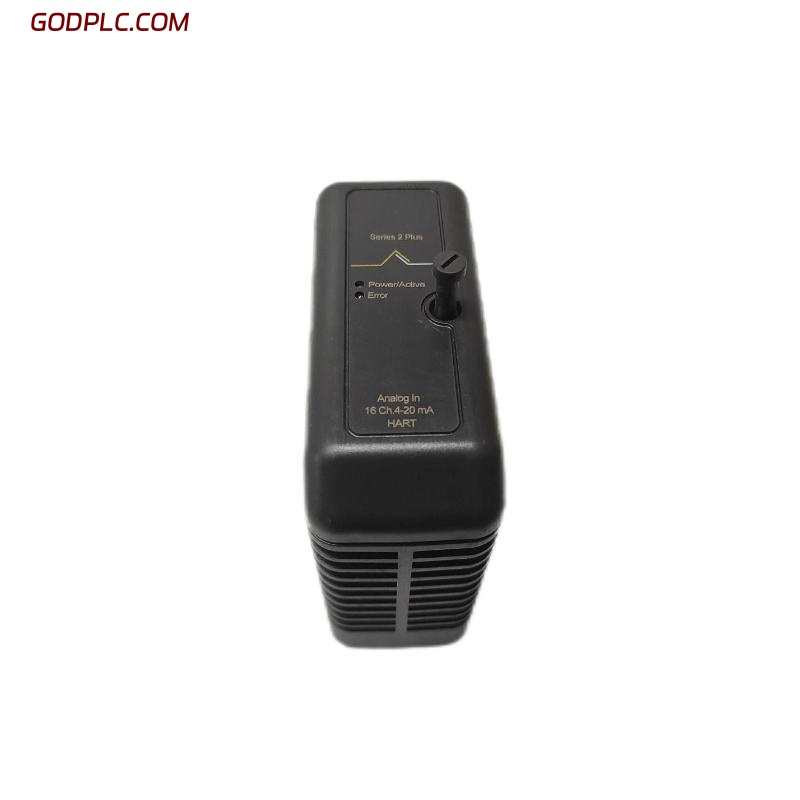

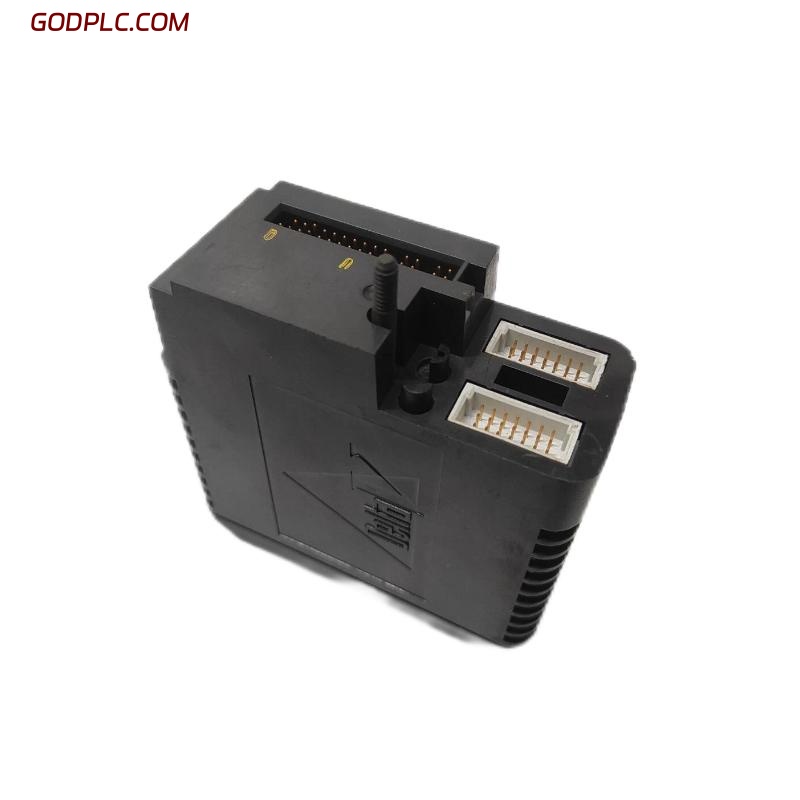

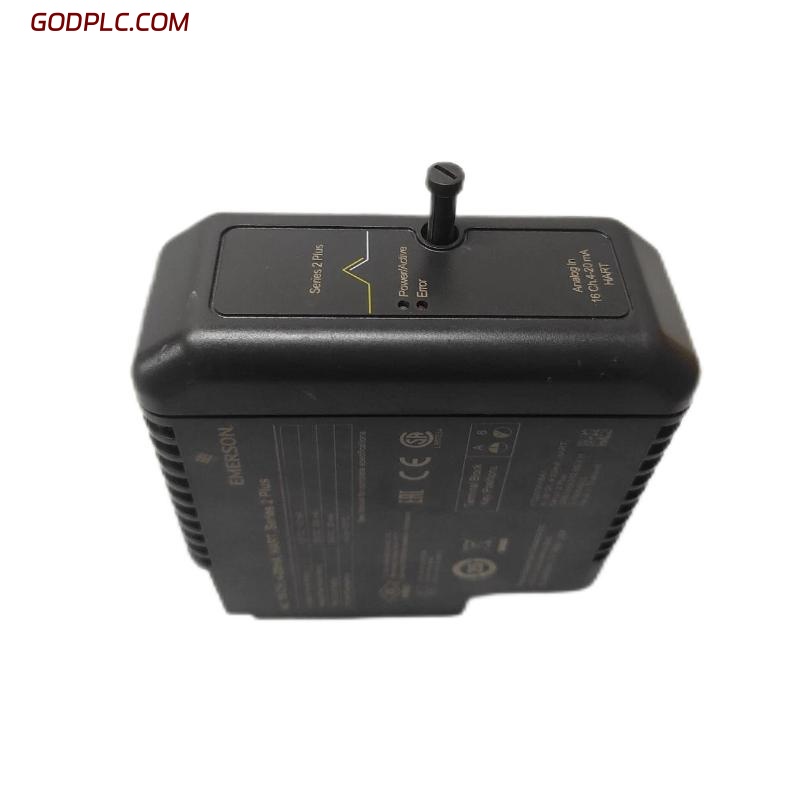

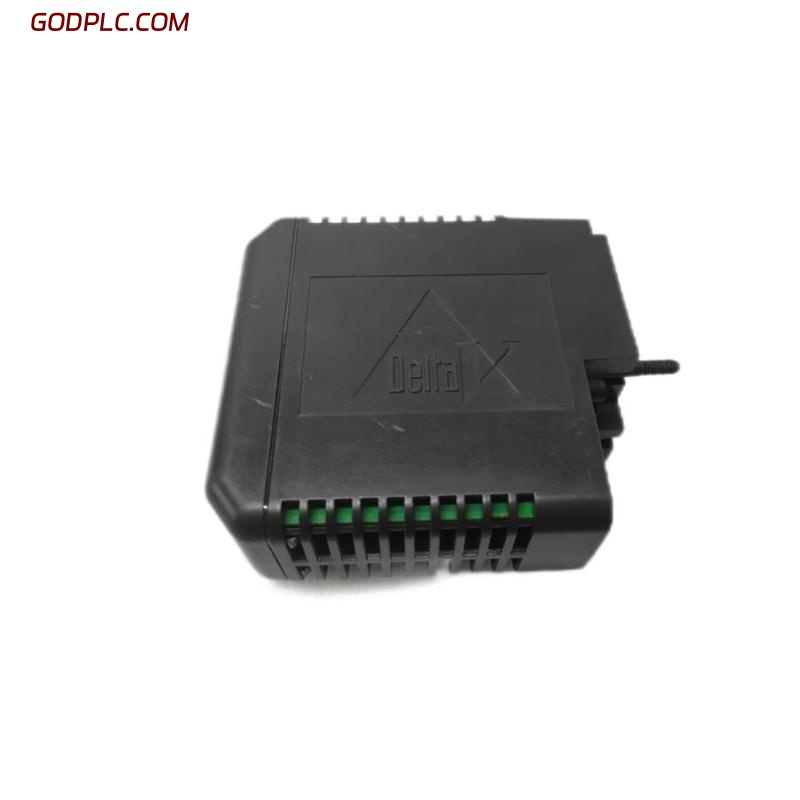

Emerson KC3010X1-BA1 Analog Input Modules
Product Overview
The Emerson KC3010X1-BA1 Analog Input Module is designed for use with the CHARM I/O system, providing high-precision analog signal acquisition in industrial automation systems. This module is specifically engineered to handle a wide range of analog input signals with exceptional accuracy and reliability. It ensures seamless integration within Emerson’s DeltaV™ distributed control systems, offering flexibility and scalability for a variety of industrial applications, from process control to monitoring.
Key Features
-
High-Precision Input: Supports high-resolution measurements for voltage, current, and other analog signals
-
Modular Design: Part of the Emerson CHARM I/O system for flexible and scalable system configurations
-
Signal Conditioning: Includes integrated signal conditioning to enhance measurement accuracy and reliability
-
Isolation: Provides electrical isolation between the input and system to prevent signal interference
-
Integrated Diagnostics: Equipped with built-in diagnostics for quick fault detection and easy troubleshooting
-
Wide Input Range: Capable of handling a wide variety of analog signals, including 4–20 mA, 0–10 V, and other process variables
-
Hot Swap Capable: Designed for online replacement without system shutdown, minimizing downtime
-
Compact Size: Designed to fit in tight spaces, enabling use in high-density I/O configurations
-
Seamless Integration: Compatible with Emerson DeltaV™ system for efficient control and monitoring operations
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC ± 20% |
| Power Consumption | 2.5 W |
| Input Voltage Range | 0 to 10 VDC / 4 to 20 mA |
| Input Impedance | >1 MΩ (for voltage inputs) |
| Output Resolution | 16-bit |
| Communication Protocol | CHARM I/O System (DeltaV™) |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Maximum Input Channels | 8 channels per module |
| Input Signal Type | Voltage (0–10 V), Current (4–20 mA), RTD, Thermocouple |
| Input Signal Accuracy | ±0.1% of Full Scale (typical) |
| Sampling Rate | 1 channel every 250 ms |
| Isolation | 1500 Vrms (channel to channel, channel to ground) |
3.4 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration/Shock | IEC 60068-2 compliant |
3.5 System Compatibility
| Item | Specification |
|---|---|
| Compatibility | Emerson DeltaV™ Distributed Control System |
| Connection Type | Direct connection via CHARM I/O system |
| I/O Channel Integration | Supports integration with other CHARM modules, ensuring a streamlined control architecture |
| Software Compatibility | DeltaV™ configuration software |
Industry Applications
-
Process Control – Ideal for monitoring and controlling process variables in industries like oil & gas, chemicals, and pharmaceuticals
-
Energy Generation – Used for measuring critical parameters in power generation, including temperature, pressure, and flow
-
Water Treatment – For monitoring water quality, chemical dosing, and flow rate in municipal and industrial water treatment plants
-
Food & Beverage – Ensures consistent product quality and compliance with regulatory standards by monitoring process variables like temperature and pH
-
Environmental Monitoring – Measures environmental factors like temperature and humidity in research labs or environmental control systems
-
Automated Manufacturing – Provides real-time data acquisition for controlling machines and ensuring smooth production processes
The Emerson KC3010X1-BA1 Analog Input Module delivers reliable and high-precision analog data acquisition for use in complex industrial applications. Its flexibility, scalability, and seamless integration with Emerson’s DeltaV™ system make it an essential component for process control and automation in various industries.
Emerson KC3010X1-BA1 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
