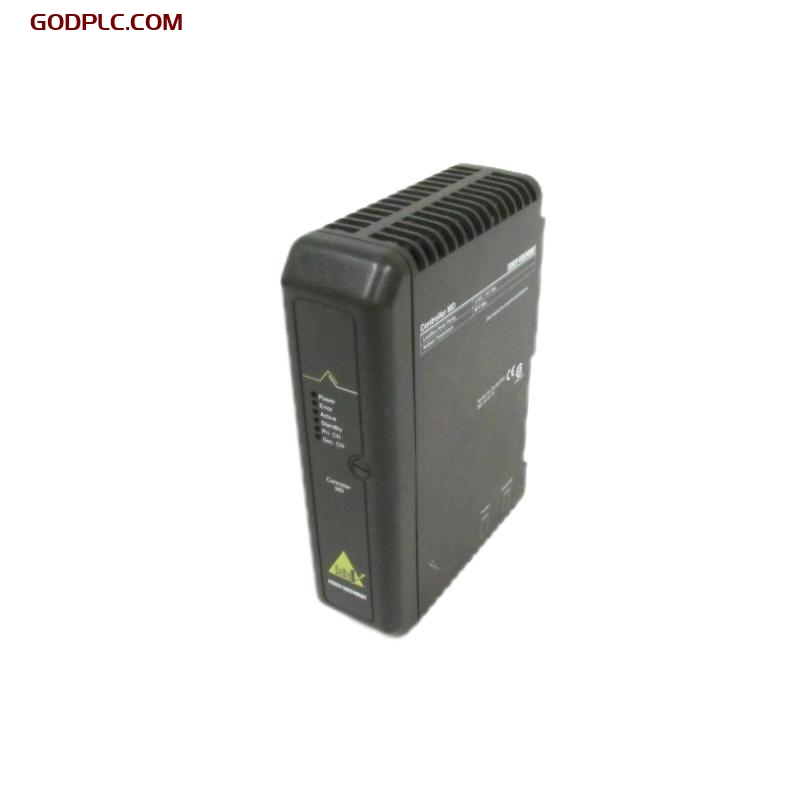

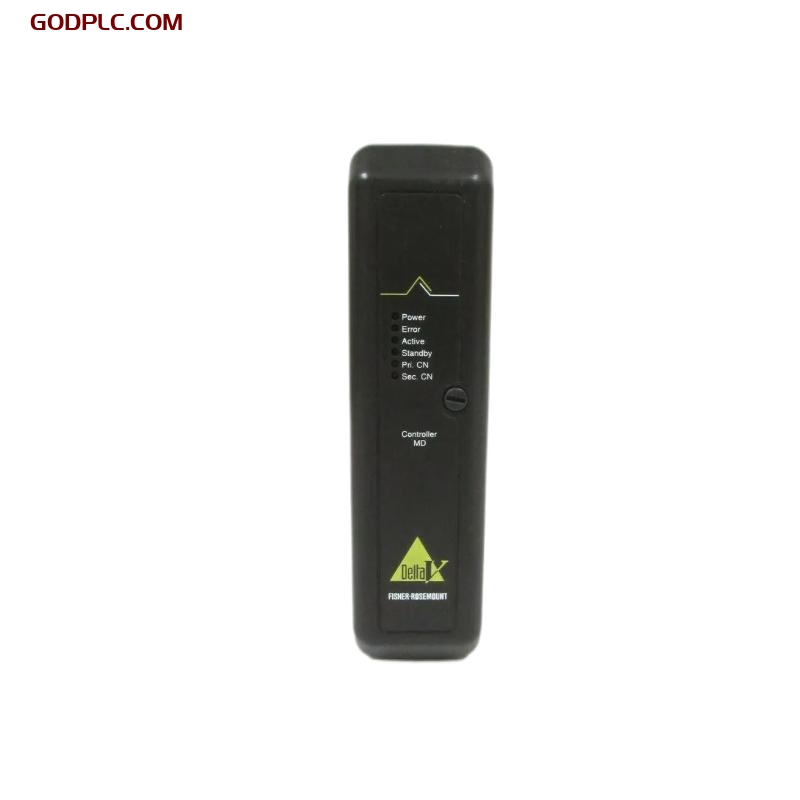

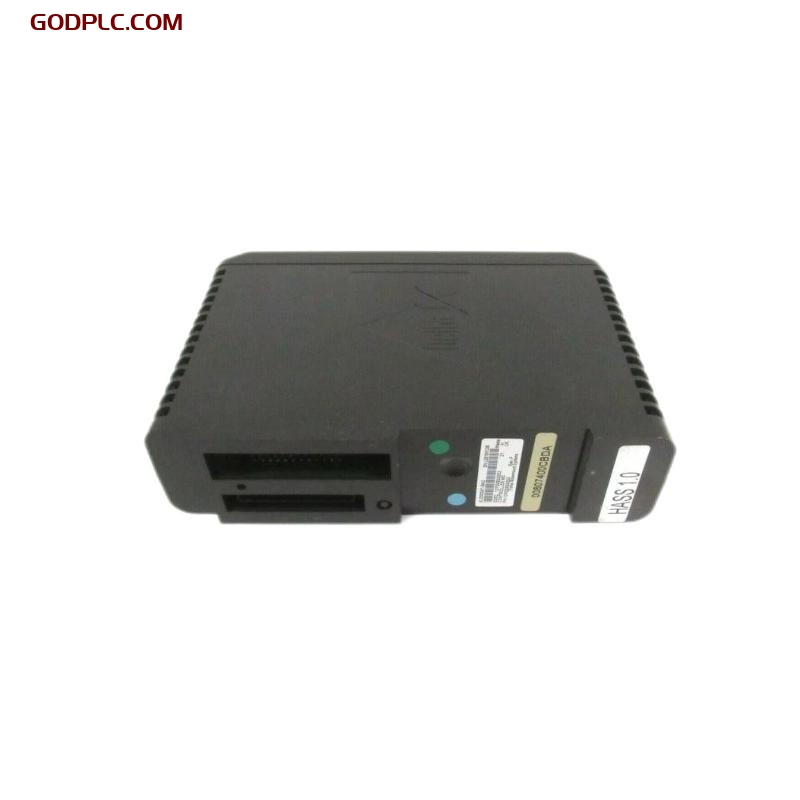

Emerson KJ2003X1-BA2 Controller
Product Overview
The Emerson KJ2003X1-BA2 is a high-performance industrial controller designed for use within Emerson’s DeltaV™ Distributed Control System (DCS). This controller provides efficient process control, ensuring precise monitoring and regulation of industrial systems across various sectors, including oil & gas, chemical processing, and power generation. Its robust design and advanced features, such as real-time diagnostics, redundancy support, and high-speed data handling, make it a crucial component for mission-critical applications requiring reliable and flexible control solutions.
Key Features
-
High-Performance Control – Capable of processing large amounts of data in real-time, ensuring optimal control of complex industrial processes
-
Redundancy Support – Designed for high-availability systems with redundancy capabilities, reducing the risk of downtime and improving system reliability
-
Modular and Scalable – Easily expandable and scalable to meet the evolving needs of industrial operations, supporting a wide range of I/O modules and field devices
-
Real-Time Diagnostics – Provides continuous system monitoring and diagnostics, allowing operators to detect issues early and take corrective actions before they impact operations
-
User-Friendly Interface – Integrated with Emerson’s DeltaV™ software, offering a simple and intuitive user interface for system configuration, monitoring, and troubleshooting
-
Flexible Integration – Supports integration with third-party systems and devices, ensuring seamless communication and interoperability in multi-vendor environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 250 x 200 x 100 mm |
| Weight | 2.5 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC (supplied via DCS backplane) |
| Power Consumption | Approx. 12 W |
| Communication Ports | Ethernet (2 x 100Base-T) |
| Mounting | DIN rail mounting |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 61131-2 compliant |
| Protection | IP20 (when installed in an enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Emerson DeltaV™ DCS and third-party systems |
| I/O Module Support | Compatible with various I/O modules and field devices |
| Configuration Tools | DeltaV™ Engineering Software, DeltaV™ Explorer |
Industry Applications
-
Oil & Gas – Provides reliable control for upstream, midstream, and downstream processes, ensuring operational efficiency and safety in oil and gas production
-
Power Generation – Monitors and controls key systems such as turbines, boilers, and auxiliary equipment in power plants to ensure optimal performance
-
Chemical Processing – Supports complex control loops and integration of field devices for safe and efficient chemical manufacturing operations
-
Pharmaceuticals – Facilitates precise control of batch and continuous processes in pharmaceutical production, maintaining compliance with strict industry standards
-
Water & Wastewater – Enables efficient management of water treatment facilities, providing reliable monitoring and control of pumps, valves, and sensors
The Emerson KJ2003X1-BA2 Controller offers advanced control capabilities and flexible integration for a wide range of industrial applications. With its high-performance processing, redundancy support, and real-time diagnostics, this controller ensures optimal performance, reliability, and ease of integration into the DeltaV™ DCS platform.
