Product Introduction

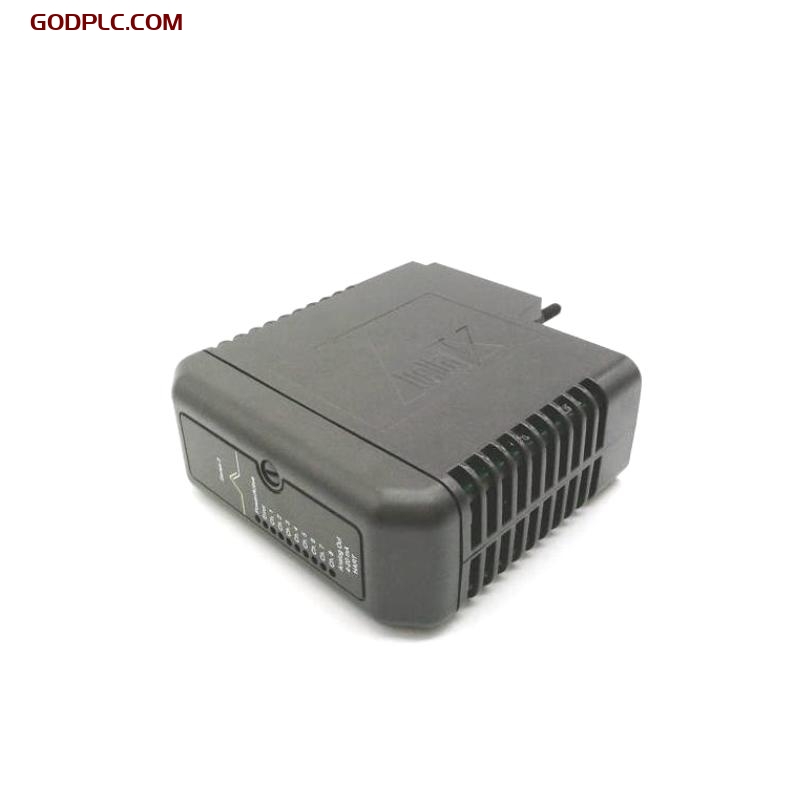

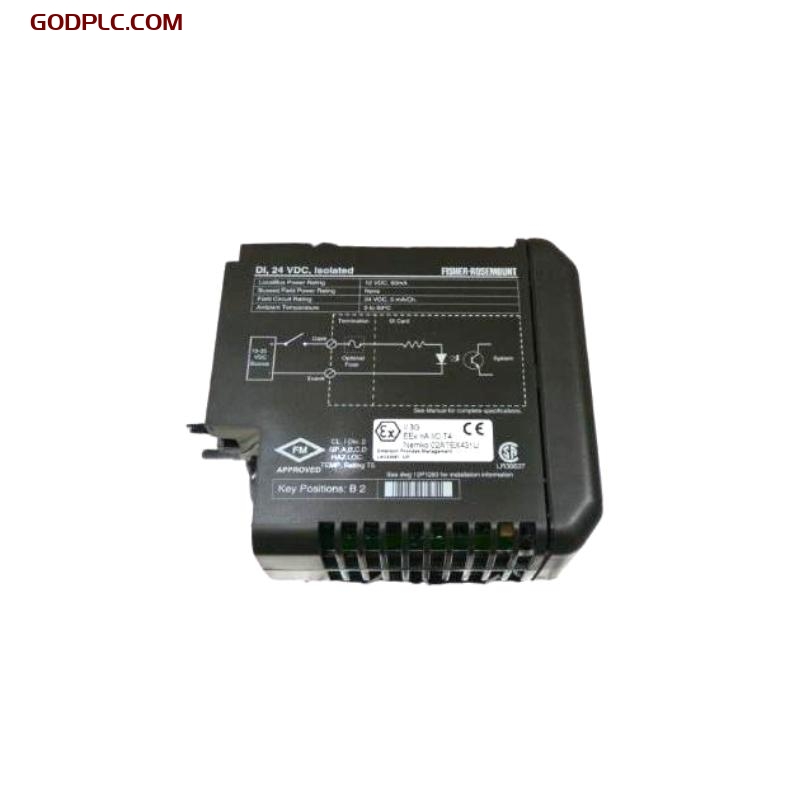

The Emerson KJ3001X1-BA1 12P0549X152 is a Series 2 Discrete Input (DI) module designed for the DeltaV Distributed Control System (DCS). This module facilitates the integration of discrete (digital) signals from field devices into the control system, enabling precise monitoring and control of industrial processes. With its robust design and high reliability, it is well-suited for operation in hazardous environments, ensuring continuous and safe process automation.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | KJ3001X1-BA1 |
| Part Number | 12P0549X152 |
| Series | DeltaV Series 2 |
| Input Channels | 8 isolated channels |
| Input Voltage | 24 VDC |
| Current Rating per Channel | 5 mA |
| Input Impedance | 10 kΩ (typical) |
| Operating Voltage Range | 18–30 VDC |
| Isolation Voltage | 500 VDC |
| Resistance Range | 5–16 Ω |
| Power Consumption (LocalBus) | 12 VDC at 100 mA |
| Field Circuit Rating | 24 VDC at 5 mA per channel |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock Tolerance | 10 g half-sine wave for 11 ms |
| Vibration Tolerance | 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Airborne Contaminant Level | G3 (Harsh) |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 120 × 80 × 30 mm |
| Weight | 0.2 kg |
Product Applications
The KJ3001X1-BA1 module is utilized across various industrial sectors, including:
- Oil and Gas: Monitors and controls drilling operations, pipeline management, and refining processes.
- Chemical Processing: Manages chemical reactions, mixing operations, and safety interlocks.
- Power Generation: Oversees turbine controls, boiler management, and electrical distribution systems.
- Water and Wastewater Treatment: Controls pumps, valves, and filtration systems to ensure water quality.
- Pharmaceutical Manufacturing: Ensures precise control of production processes to maintain product quality and compliance.
- Food and Beverage: Automates processing lines, packaging, and quality control systems.
- Pulp and Paper: Monitors paper production processes, including pulping, drying, and rolling.
- Metals and Mining: Controls material handling systems, crushers, and conveyors.
Product Advantages
- High Reliability: Designed for stable operation in hazardous and demanding industrial environments.
- Isolated Channels: Each of the 8 input channels is isolated, preventing interference and enhancing signal integrity.
- Wide Operating Temperature Range: Operates effectively in extreme temperature conditions, from -40°C to +70°C.
- Robust Design: Withstands mechanical shocks and vibrations, ensuring durability in industrial settings.
- Flexible Integration: Compatible with a variety of sensors and switches, facilitating seamless integration into existing systems.
- Compact Form Factor: Its dimensions and weight allow for efficient use of control cabinet space.
- Compliance with Standards: Meets industry standards for environmental and operational performance, ensuring safety and reliability.
Related Models in the Same Series
| Model Number | Description |
|---|---|
| KJ3001X1-BB1 | 16-channel Discrete Input Module with 24 VDC isolated inputs. |
| KJ3001X1-BC1 | 8-channel Discrete Output Module with 24 VDC outputs. |
| KJ3001X1-BD1 | 16-channel Discrete Output Module with 24 VDC outputs. |
| KJ3001X1-BE1 | 8-channel Relay Output Module for higher voltage switching applications. |
| KJ3001X1-BF1 | 8-channel Analog Input Module with HART protocol support. |
| KJ3001X1-BG1 | 8-channel Analog Output Module with HART protocol support. |
| KJ3001X1-BH1 | 4-channel High-Density Thermocouple Input Module for temperature measurements. |
| KJ3001X1-BJ1 | 4-channel RTD Input Module for precise temperature monitoring. |
| KJ3001X1-BK1 | 8-channel Pulse Input Module for frequency and pulse counting applications. |
| KJ3001X1-BL1 | 8-channel Pulse Output Module for pulse generation tasks. |
Emerson KJ3001X1-BA1 12P0549X152 Discrete Input Module Brand new and original is in stock. Please contact us for a quick quote and competitive pricing.
