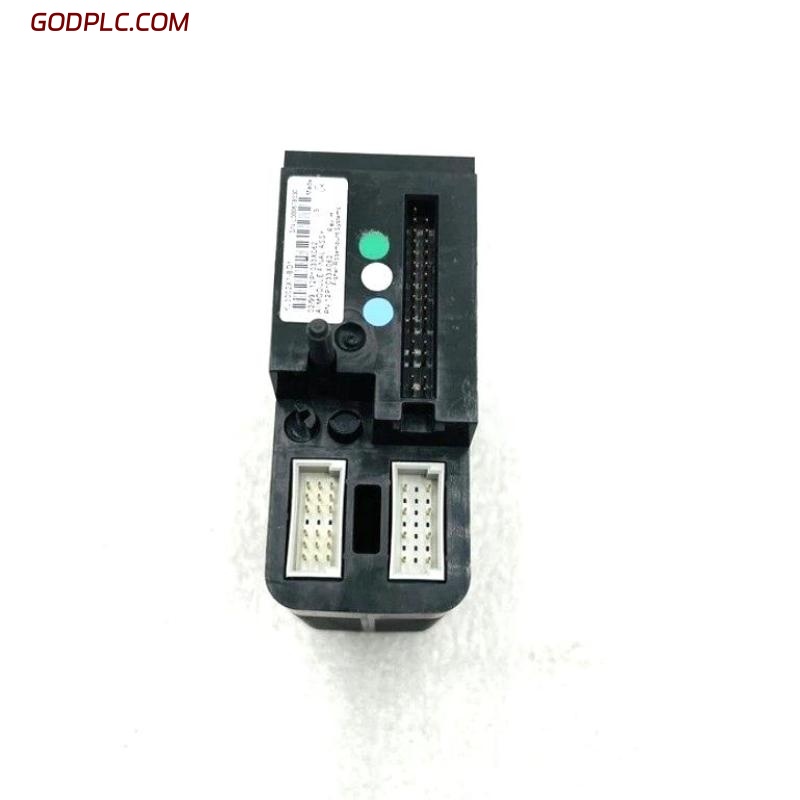

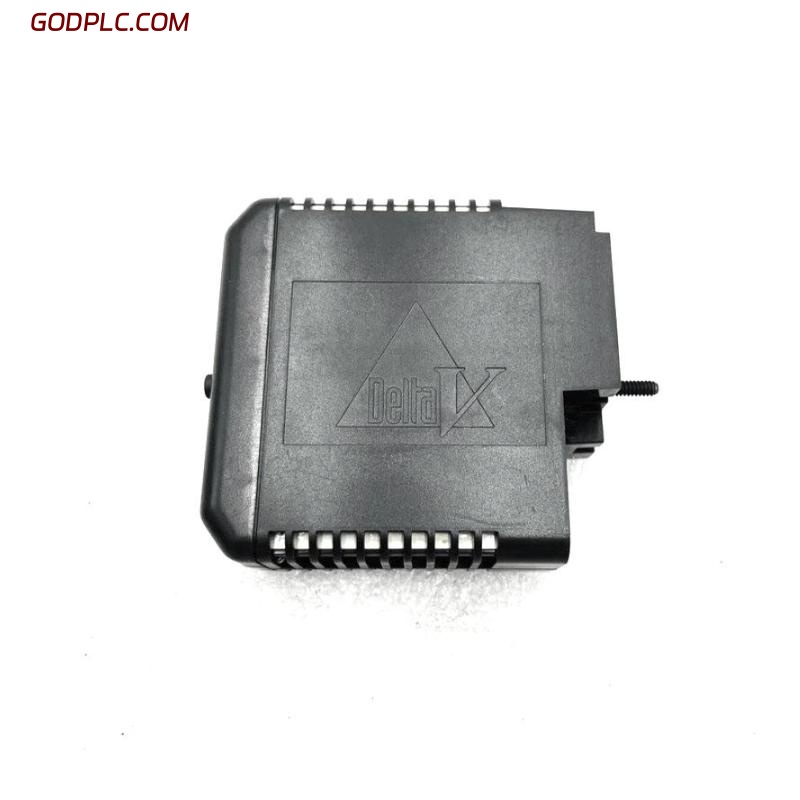

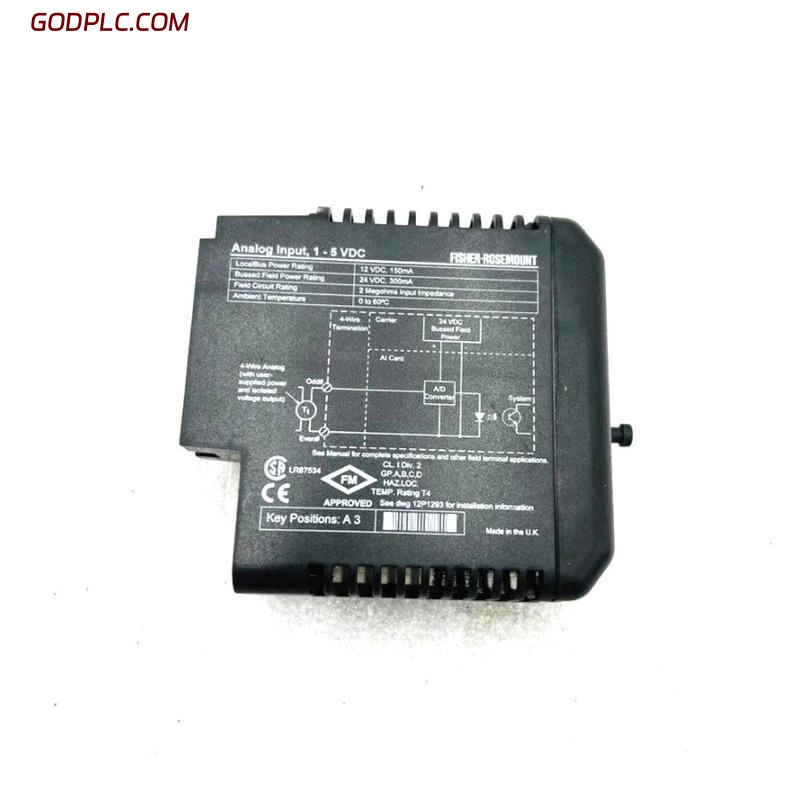

Emerson KJ3002X1-BD1 12P1033X102 Terminal Module Unit
Product Overview
The Emerson KJ3002X1-BD1 12P1033X102 Terminal Module Unit is an advanced component designed to support the connection and termination of input and output signals in industrial control and automation systems. Offering high reliability and compatibility, this terminal module provides easy integration with Emerson’s CHARM I/O systems and various industrial networks. It features robust construction, ensuring the secure and efficient transmission of signals across a wide range of industrial applications.
Key Features
-
Reliable Signal Termination: Facilitates secure connections for both input and output signals to control systems
-
Compact Design: Space-efficient and designed for easy installation within standard control panels or racks
-
Durable Construction: Built with high-quality materials to withstand harsh industrial environments
-
Modular Compatibility: Compatible with Emerson’s CHARM I/O systems, enabling flexible system configurations
-
Clear Identification: Marked labeling for straightforward signal identification and wiring management
-
Easy Integration: Plug-and-play design simplifies installation with minimal configuration required
-
High Channel Density: Supports multiple I/O channels in a single unit, reducing the number of modules needed for complex systems
-
Enhanced Reliability: Designed for continuous operation in demanding industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.5 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| I/O Channels | Up to 12 channels |
| Current Rating | 0.5 A per channel (max) |
| Isolation | Galvanic isolation between channels |
| Protection Features | Overvoltage, overcurrent, and short circuit protection |
3.3 Mechanical Characteristics
| Item | Specification |
|---|---|
| Mounting Type | DIN rail mountable |
| Terminal Type | Spring or screw terminal options available |
| Enclosure Type | Plastic housing for light industrial use |
| Cooling | Natural convection (no fan required) |
3.4 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration/Shock | IEC 60068-2 compliant |
| Certification | CE, UL, CSA |
Industry Applications
-
Industrial Control Systems – Ideal for integrating with CHARM I/O systems in various industrial processes
-
Oil and Gas – Used in control and monitoring systems to ensure safe and reliable operation of equipment
-
Manufacturing Automation – Powers sensors and other devices requiring signal termination in automation systems
-
Process Control – Provides essential signal routing and connection management in process control applications
-
Building Automation – Facilitates the connection of devices such as temperature sensors, HVAC controllers, and security systems
-
Energy Generation – Supports control systems in power plants, renewable energy systems, and substations
The Emerson KJ3002X1-BD1 12P1033X102 Terminal Module Unit is an essential component for simplifying the connection of I/O signals and ensuring the smooth operation of industrial control systems. Its compact design and high reliability make it an ideal choice for diverse industrial applications.
Emerson KJ3002X1-BD1 12P1033X102 Terminal Module Unit is in stock. Please contact us for a quick quote and competitive pricing.
