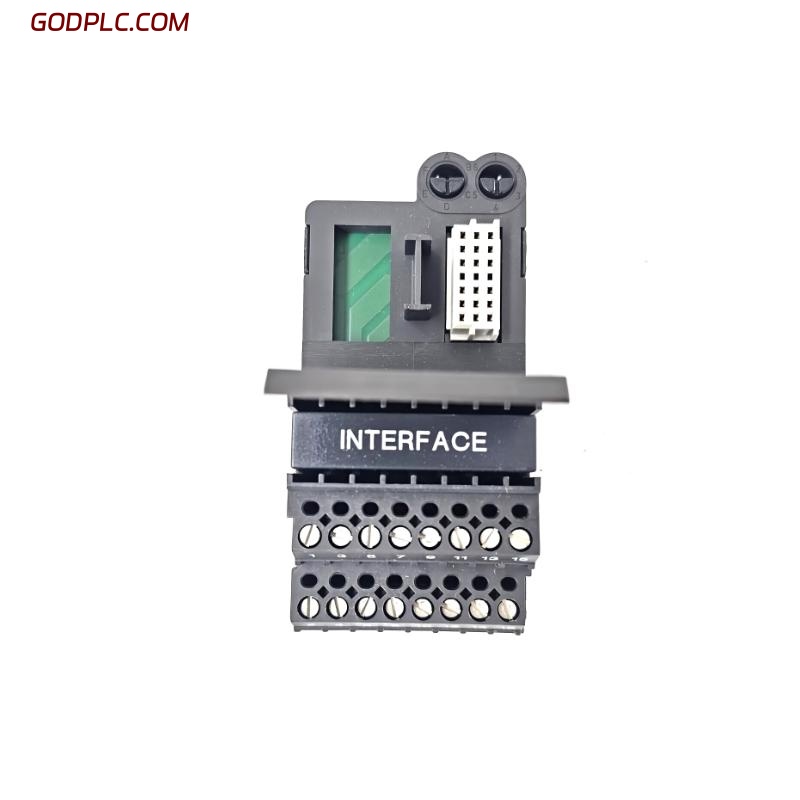

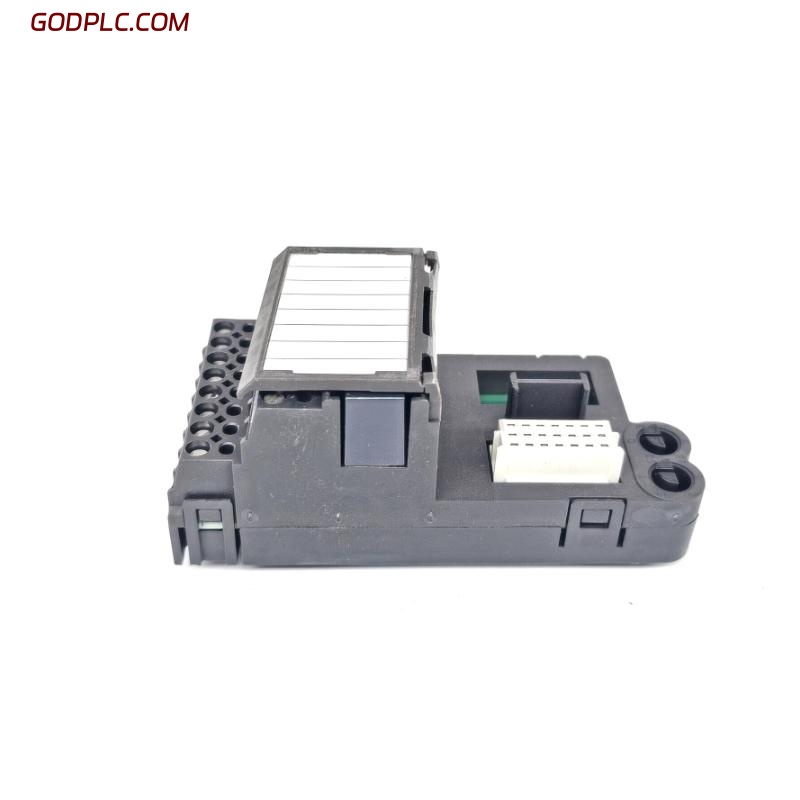

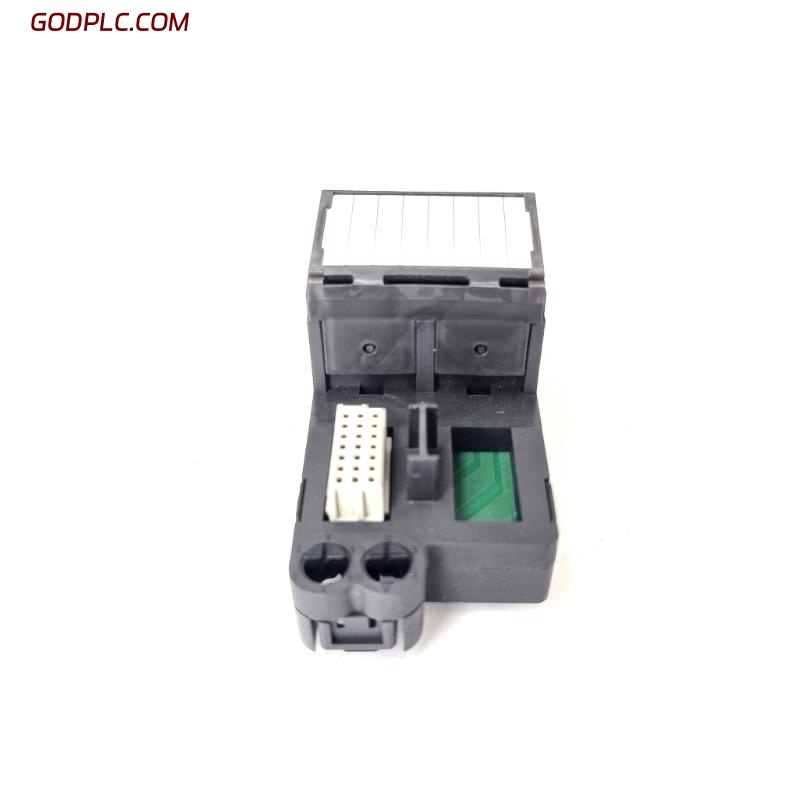

Emerson KJ3003X1-EA1 Serial Interface Terminal Block
Product Overview
The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is designed for seamless communication between Emerson’s CHARM I/O system and other industrial devices. It supports high-speed serial data transmission for enhanced system integration, enabling reliable communication in complex automation environments. The terminal block ensures secure and stable connections while providing ease of installation and maintenance, making it an essential component for automation and control systems.
Key Features
-
Serial Communication: Facilitates high-speed serial communication between Emerson’s CHARM I/O system and external devices such as PLCs, controllers, and sensors
-
Modular Design: Part of the CHARM I/O system, allowing for easy integration into distributed control systems (DCS) and industrial automation setups
-
Reliable Data Transmission: Supports both RS-232 and RS-485 protocols for flexible serial communication
-
Space-Saving Design: Compact terminal block that can be easily mounted on DIN rails, saving valuable panel space
-
Easy Installation: Features tool-free wire connections for simplified installation and maintenance
-
Signal Isolation: Provides isolation between the control system and external devices, enhancing noise immunity and protecting against surges
-
Wide Operating Range: Designed to operate reliably in demanding industrial environments, with extended temperature and humidity tolerance
-
Diagnostic Capabilities: Includes built-in diagnostic features for easy troubleshooting and ensuring optimal system performance
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 70 x 55 mm |
| Weight | 0.09 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC |
| Communication Protocol | RS-232, RS-485 |
| Baud Rate | Up to 115200 bps |
| Isolation | 1500 VDC galvanic isolation |
| Data Transmission | Full-duplex |
| Signal Type | Differential or single-ended (depending on protocol) |
3.3 Mechanical Characteristics
| Item | Specification |
|---|---|
| Mounting Type | DIN rail mountable |
| Terminal Type | Spring or screw terminal options available |
| Enclosure Type | Plastic housing for industrial use |
| Cooling | Natural convection (no fan required) |
3.4 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration/Shock | IEC 60068-2 compliant |
| Certification | CE, UL, CSA |
Industry Applications
-
Process Control – Ideal for industries requiring serial communication for control and monitoring systems, including petrochemical, chemical, and pharmaceutical sectors
-
Automation – Used in industrial automation to facilitate communication between different devices such as PLCs, controllers, and sensors
-
Power Generation – Facilitates communication in power plants, enabling integration between control systems and external devices
-
Oil and Gas – Supports communication in critical systems for drilling, refining, and pipeline monitoring
-
Manufacturing – Enables seamless communication between machines, sensors, and control systems in manufacturing plants
-
Building Automation – Used for data transmission in building management systems for HVAC, lighting, and security systems
The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is a robust and reliable solution for serial communication in industrial systems. Its compatibility with the CHARM I/O system, ease of installation, and extensive diagnostic features make it a perfect choice for ensuring smooth communication in automation and control environments.
Emerson KJ3003X1-EA1 Serial Interface Terminal Block is in stock. Please contact us for a quick quote and competitive pricing.
