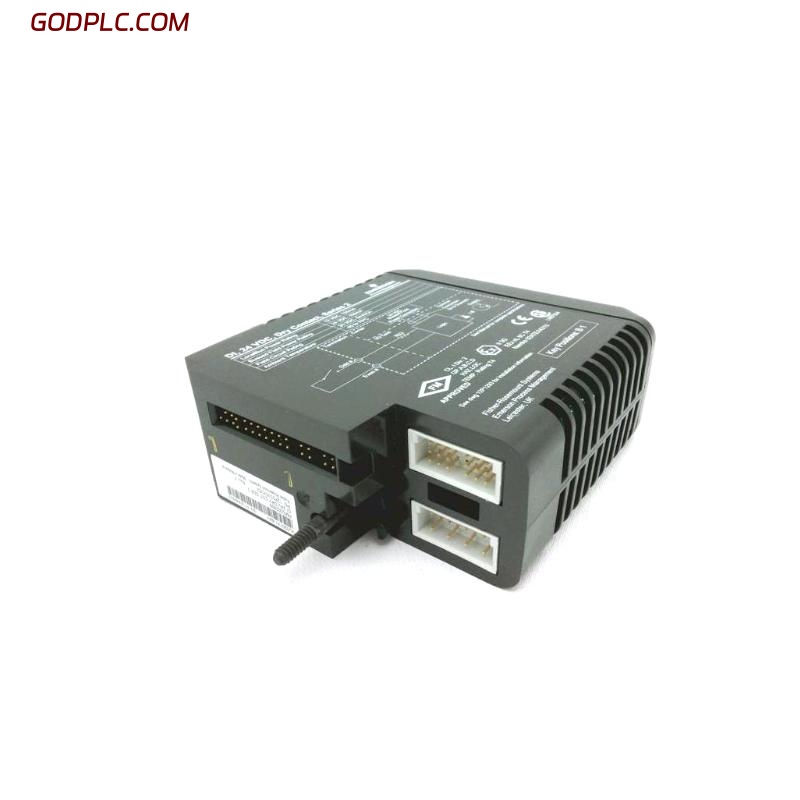

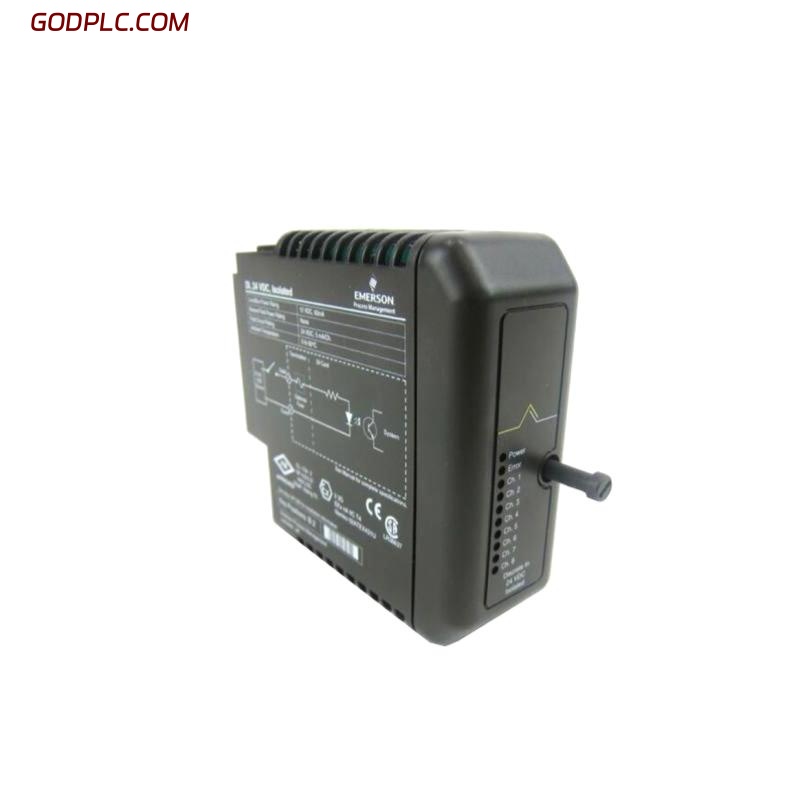

Emerson KJ3201X1-BA1 Input Module
Product Overview
The Emerson KJ3201X1-BA1 Input Module is a high-reliability analog input module designed for seamless integration with Emerson’s DeltaV distributed control systems (DCS). This module provides accurate and isolated analog signal acquisition from a wide range of process sensors. Engineered for high availability and robust performance, the KJ3201X1-BA1 is ideally suited for mission-critical applications across industries requiring continuous and stable monitoring.
Key Features
-
DeltaV System Integration – Fully compatible with Emerson DeltaV systems, ensuring seamless installation and configuration
-
High Signal Accuracy – Delivers precise analog input measurements for critical process variables
-
Isolated Input Channels – Each channel is electrically isolated, enhancing system protection and signal integrity
-
Hot-Swappable Design – Enables module replacement without system downtime, improving maintainability
-
Status Indicators – Built-in LEDs for module health and channel status simplify diagnostics
-
Wide Input Range – Accepts a variety of analog signals including 4–20 mA, making it suitable for diverse sensors
-
Compact Form Factor – Space-efficient design for use in dense control panel environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 x 150 x 50 mm |
| Weight | 0.25 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 8 analog input channels |
| Input Signal | 4–20 mA (typical) |
| Channel Isolation | Channel-to-channel and channel-to-bus isolation |
| Resolution | 16-bit ADC |
| Power Consumption | Approx. 3 W |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Emerson DeltaV Distributed Control System |
| Module Type | Analog Input Module |
| Compatible I/O Carriers | DeltaV Series 2 I/O Baseplates and Carriers |
Industry Applications
-
Chemical Processing – For accurate monitoring of process variables such as pressure, temperature, and flow
-
Oil and Gas – Used in upstream and downstream automation systems for reliable sensor integration
-
Power Generation – Supports stable data acquisition for turbine control and plant instrumentation
-
Pharmaceuticals – Ensures compliance with stringent process monitoring requirements
-
Water and Wastewater – Ideal for level, flow, and chemical dosing system inputs
The Emerson KJ3201X1-BA1 Input Module is a trusted choice for high-accuracy analog signal acquisition in critical process applications. Its robust build, ease of integration, and dependable performance make it a key component in modern DeltaV-based control architectures.
Emerson KJ3201X1-BA1 Input Module is in stock. Please contact us for a quick quote and competitive pricing.
