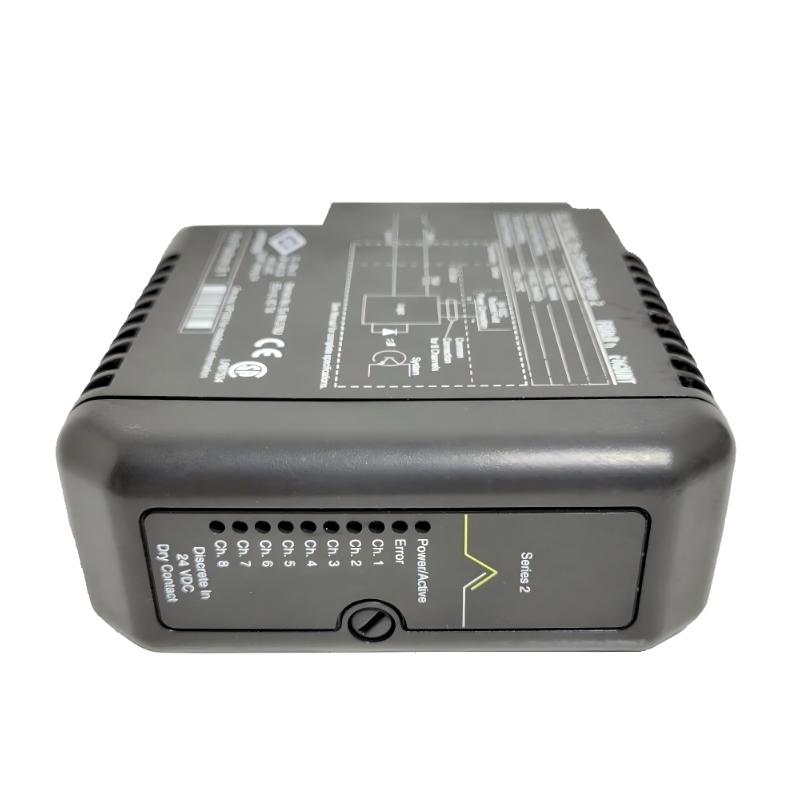

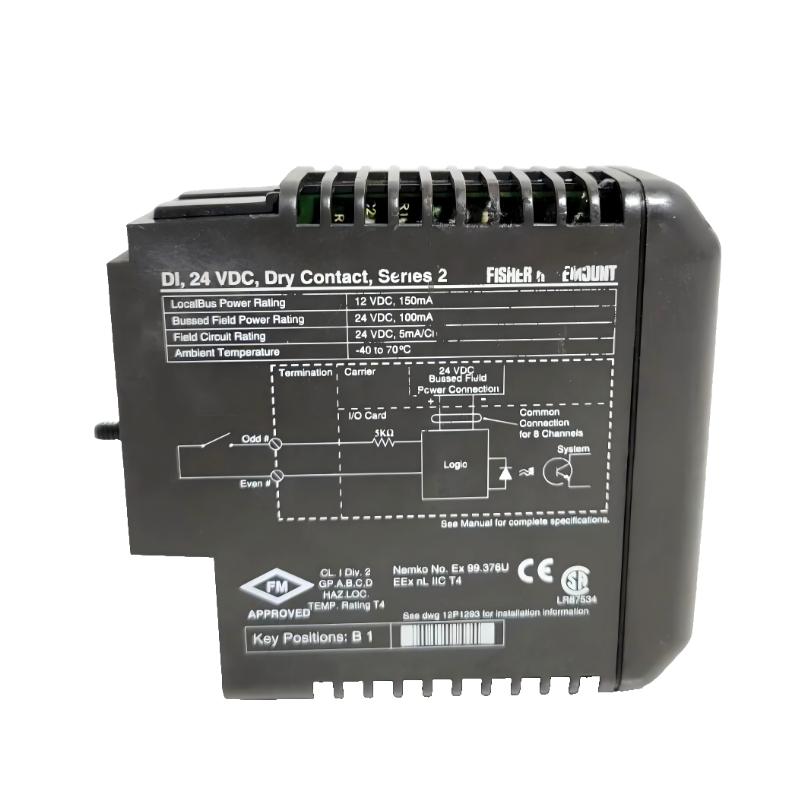

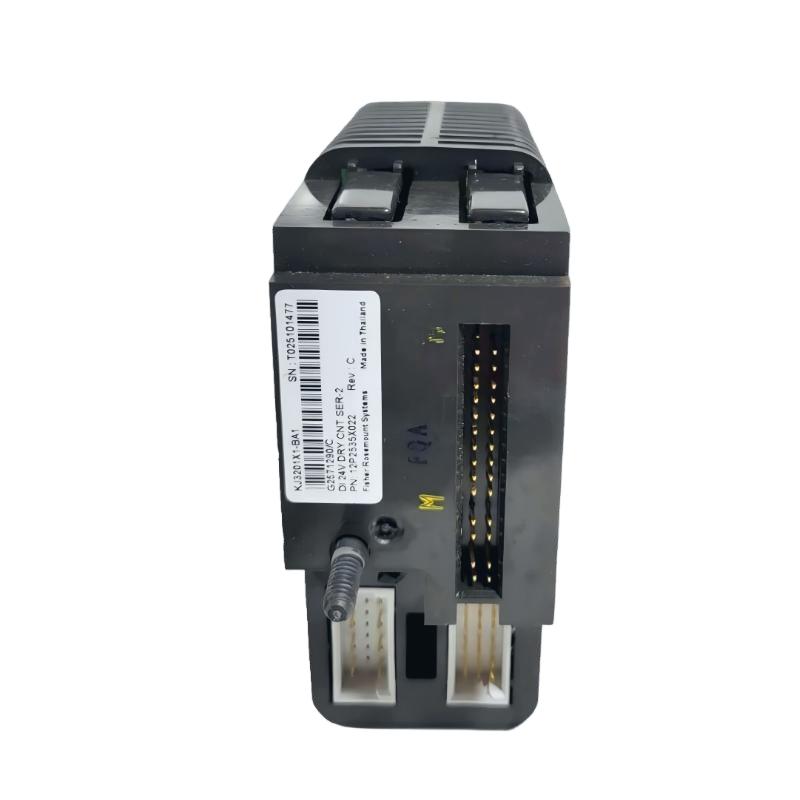

Q1: What is the primary function of the Emerson KJ3201X1-BJ1 8-Channel Dry Contact Card?
A1: The KJ3201X1-BJ1 is designed to monitor dry contact signals from field devices and transmit their ON/OFF status to the DeltaV control system. It acts as an interface between mechanical or relay-based field contacts and the automation system, enabling accurate detection of equipment states such as running, stopped, tripped, or alarm conditions. This makes it an essential component for discrete signal acquisition in industrial automation applications.

Q2: What types of field devices can be connected to this module?
A2: The module can interface with a wide range of dry contact-based devices, including push buttons, limit switches, relay auxiliary contacts, safety interlocks, proximity switch outputs, and status contacts from motors or valves. These devices provide simple open/close signals that represent equipment status or operator actions, allowing the control system to accurately monitor field conditions in real time.

Q3: Why are dry contact inputs commonly used in industrial systems?
A3: Dry contact inputs are widely used because they provide a simple, reliable, and electrically isolated method of transmitting status signals. Since they do not carry a voltage themselves, they reduce the risk of electrical interference and simplify wiring design. In industrial environments where robustness and simplicity are important, dry contact inputs offer a highly dependable solution for discrete signal monitoring.

Q4: How does the module ensure reliable signal detection?
A4: The KJ3201X1-BJ1 uses industrial-grade input circuitry designed to accurately detect contact closure and opening conditions. It incorporates filtering and noise suppression techniques to eliminate false triggering caused by electrical noise or contact bounce. This ensures that only valid signal changes are processed by the control system, improving overall data reliability.

Q5: What diagnostic capabilities does this module provide?
A5: The module includes diagnostic functions that continuously monitor input channel status and module health. It can detect wiring issues, abnormal signal conditions, or communication-related faults. These diagnostics are reported to the DeltaV system, enabling operators and maintenance personnel to quickly identify and resolve problems before they impact process operation.

Q6: How does the KJ3201X1-BJ1 improve system reliability?
A6: By providing accurate and stable detection of discrete field signals, the module ensures that the control system receives correct real-time status information. Its isolation design and industrial-grade construction help protect against electrical disturbances, reducing the risk of incorrect readings. Reliable input data is essential for proper execution of control logic, alarms, and interlocks, which directly enhances overall system safety and stability.

Q7: What installation considerations should be followed?
A7: The module should be installed in the designated DeltaV rack slot and wired according to Emerson’s recommended practices. Field wiring should be carefully checked to ensure proper contact closure connections and secure termination. Shielding and grounding practices should be applied where necessary to reduce electromagnetic interference. During commissioning, each input channel should be tested to verify correct signal recognition.

Q8: How can users maximize long-term performance of the module?
A8: Long-term performance can be ensured through regular inspection of field wiring, terminals, and connected devices to prevent loose connections or corrosion. Periodic system diagnostics should be reviewed to detect early signs of issues. Maintaining a clean and stable control cabinet environment, along with proper grounding and temperature control, further helps extend module life and maintain consistent performance.
