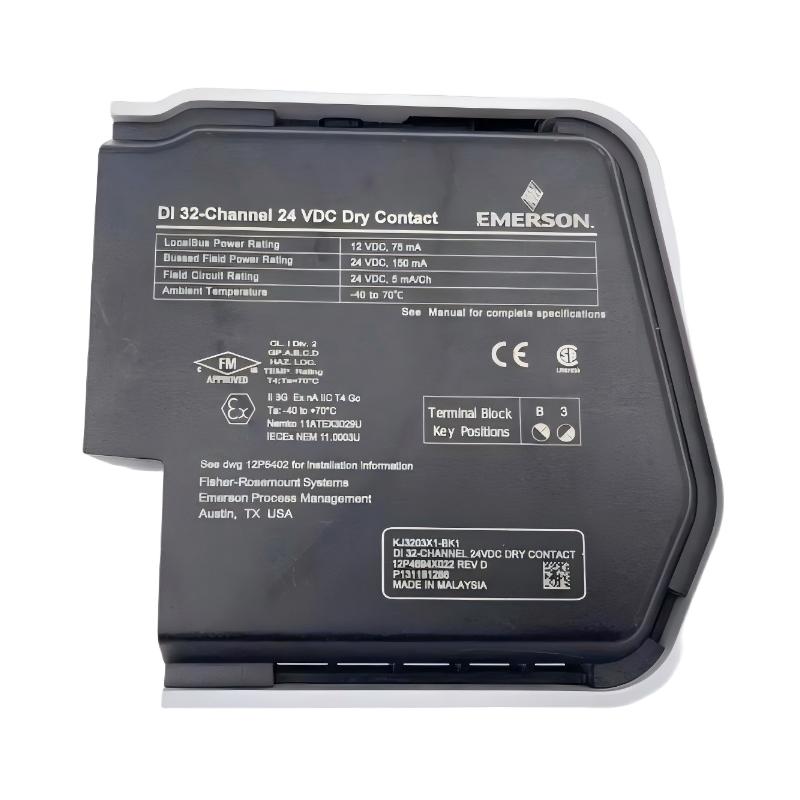

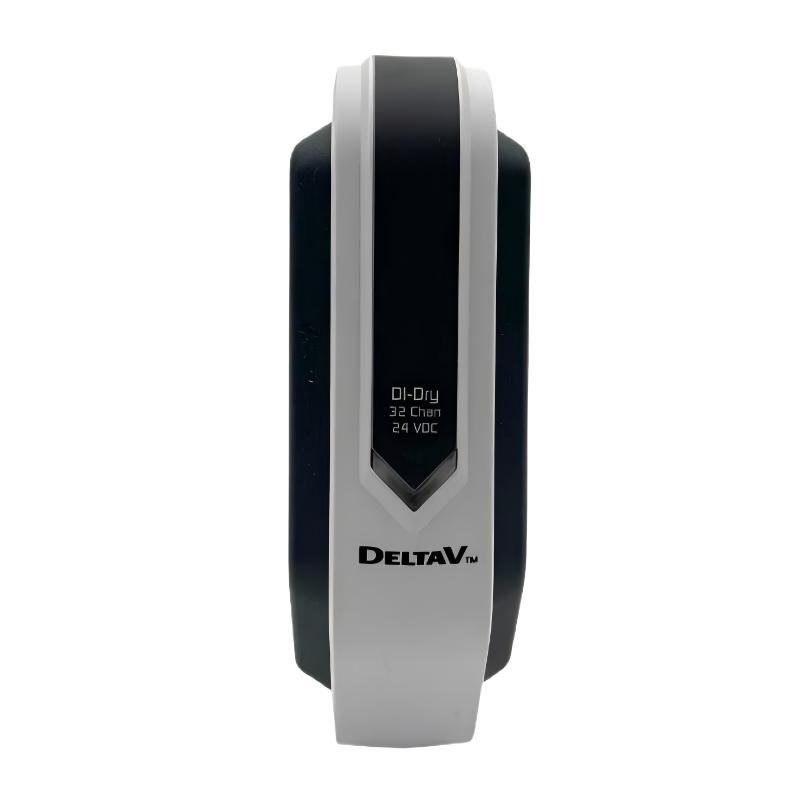

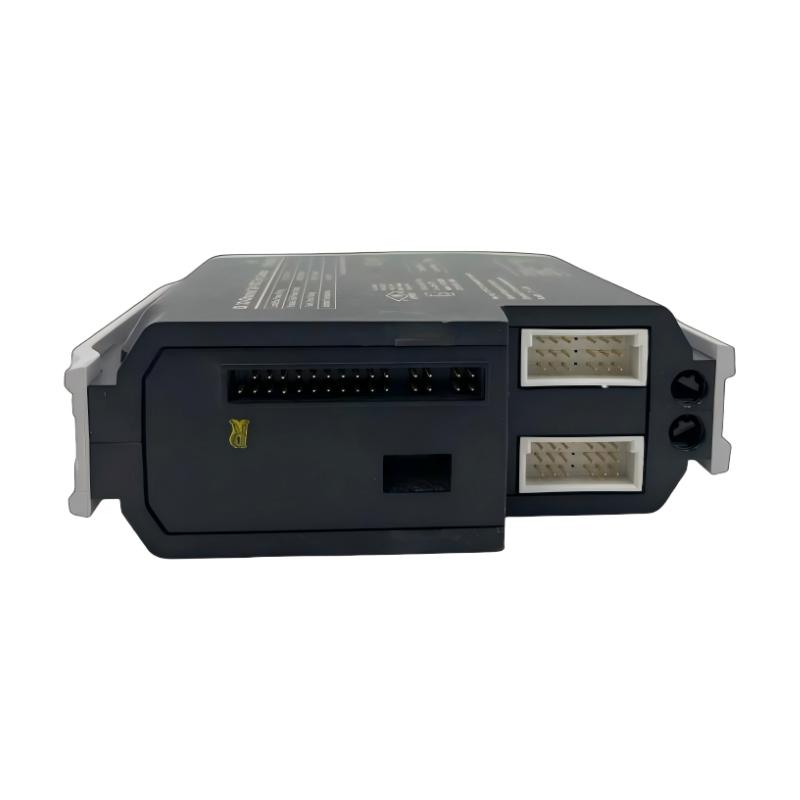

Q1: What is the main function of the Emerson KJ3203X1-BK1 Dry Contact Card?
A1: The Emerson KJ3203X1-BK1 dry contact card is designed to collect ON/OFF status signals from field devices and transmit them to the DeltaV control system. It serves as a key interface between physical equipment and the automation system, allowing the controller to monitor equipment states such as running, stopped, faulted, or interlocked conditions. By converting simple mechanical or relay contact states into digital signals, the module ensures that the control system maintains accurate real-time awareness of field operations, which is essential for safe and efficient process control.

Q2: What types of field devices are compatible with this module?
A2: This module supports a wide range of voltage-free contact devices commonly used in industrial automation. These include push buttons, limit switches, relay auxiliary contacts, motor status contacts, valve position feedback switches, safety interlock contacts, and emergency stop circuits. Because it only requires a simple open or close signal, it is highly versatile and can be used across both process industries and discrete manufacturing environments.

Q3: Why are dry contact input modules widely used in industrial systems?
A3: Dry contact input modules are widely used because they offer a simple, robust, and electrically isolated method for transmitting status information. Since no external voltage is required from the field device itself, the risk of signal mismatch, ground loop issues, or electrical interference is significantly reduced. This makes dry contact systems highly reliable in harsh industrial environments where electrical noise and long cable runs are common challenges.

Q4: How does the module ensure accurate signal detection?
A4: The KJ3203X1-BK1 incorporates advanced input circuitry with noise suppression and debounce filtering to ensure reliable detection of contact state changes. Mechanical contacts often produce brief signal fluctuations when switching states, but the module filters these transients to prevent false triggering. In addition, channel isolation helps eliminate interference between inputs, ensuring that each signal is accurately processed independently.

Q5: What role does this module play in the DeltaV control system?
A5: Within the DeltaV architecture, this module acts as a discrete signal acquisition interface. It continuously feeds real-time status information from field devices into the control system, enabling logic execution such as interlocking, alarm generation, sequence control, and shutdown protection. Without this type of module, the control system would lack visibility into equipment states, making it impossible to perform reliable automation and safety functions.

Q6: What diagnostic functions are available in this module?
A6: The module provides comprehensive diagnostic capabilities that monitor both individual channel status and overall module health. It can detect wiring faults, abnormal signal conditions, communication errors, and internal hardware issues. When a problem is detected, diagnostic information is sent to the DeltaV system, allowing operators and maintenance personnel to quickly identify and resolve issues before they impact production.

Q7: How does the module perform in industrial environments with electrical noise?
A7: The KJ3203X1-BK1 is designed with industrial-grade electromagnetic compatibility protection and robust isolation to ensure stable operation in electrically noisy environments. Facilities with motors, variable frequency drives, and high-power switching equipment often generate significant interference, but the module’s filtering and isolation design effectively mitigate these effects, ensuring reliable signal acquisition even under challenging conditions.

Q8: What practices help ensure long-term reliability of this module?
A8: Long-term reliability can be maintained through regular inspection of field wiring and terminal connections to ensure they remain secure and free from corrosion. Periodic review of diagnostic data helps identify early signs of signal degradation or wiring issues. Maintaining a clean control cabinet environment, ensuring proper grounding, and avoiding excessive heat or humidity also contribute significantly to extending the operational lifespan and maintaining stable performance over time.
