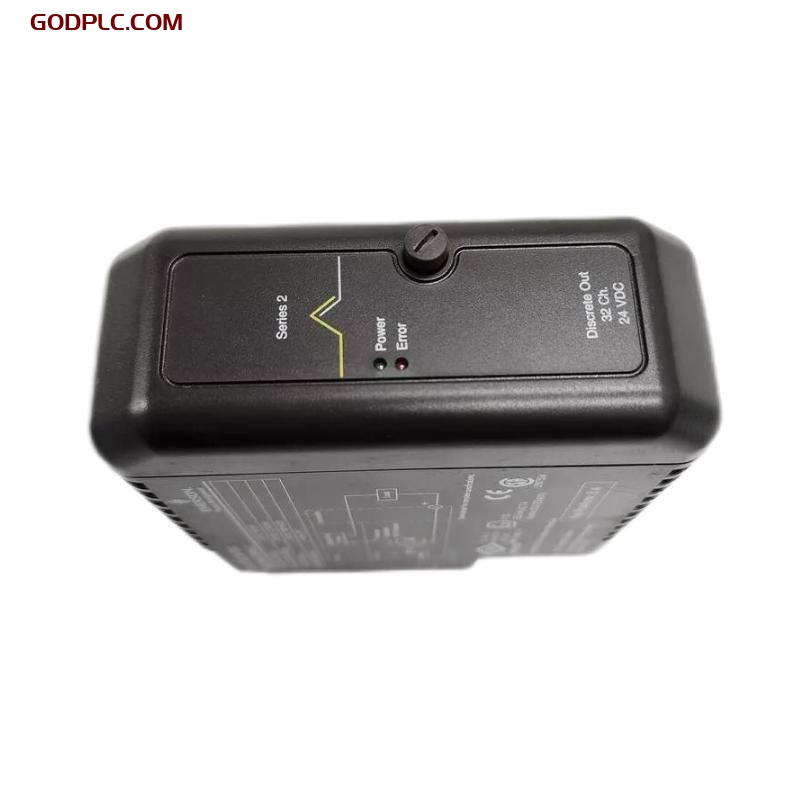

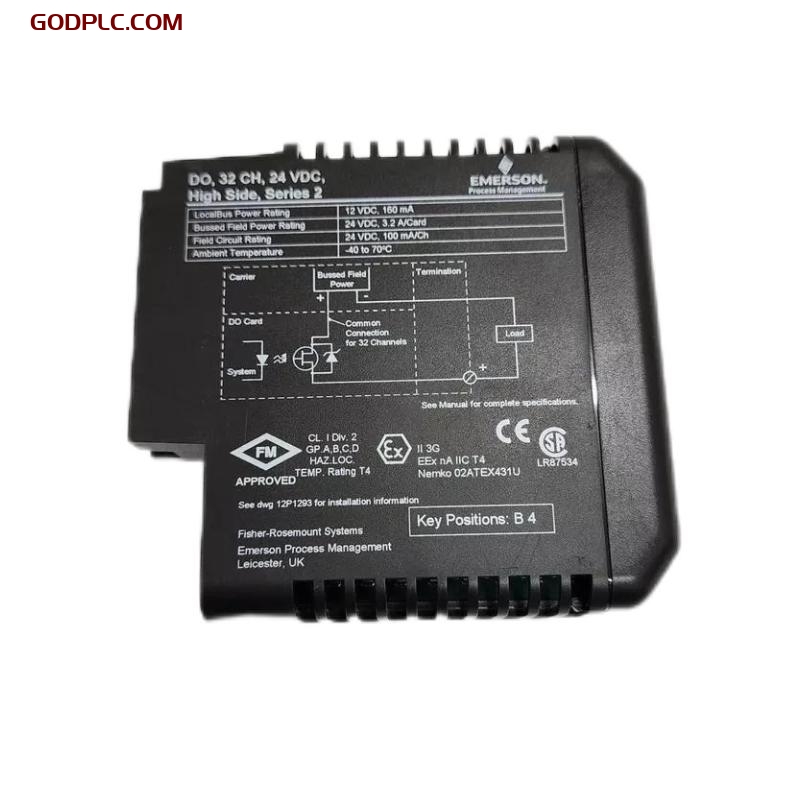

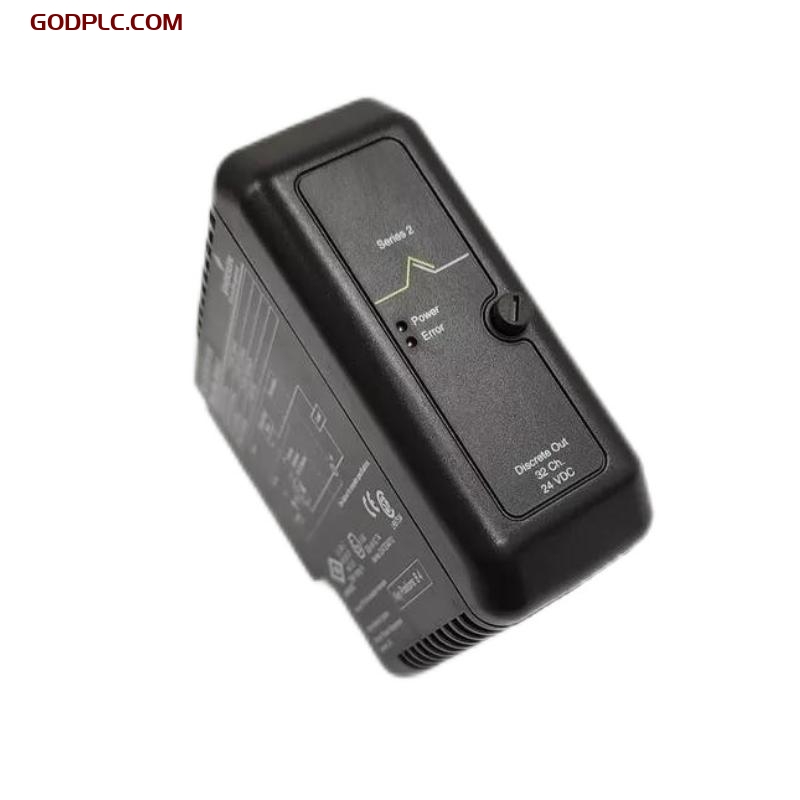

Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module Card
1. Product Overview
The Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module Card is an integral part of the DeltaV control system, designed for discrete output control in industrial automation applications. It provides reliable output for controlling devices such as solenoids, relays, and actuators, ensuring smooth and efficient operation in various process control environments. The module is capable of handling up to 16 discrete outputs and is ideal for industries requiring high performance, precision, and flexibility.
With its robust design, the KJ3204X1-BA1 module offers seamless integration within DeltaV systems, providing both ease of use and advanced functionality. Its wide operating temperature range and compliance with international standards make it suitable for diverse industrial sectors, including chemicals, pharmaceuticals, power generation, and manufacturing.
2. Key Features
-
16 Discrete Outputs: Supports up to 16 discrete output channels for controlling devices such as relays, actuators, and solenoids.
-
Reliable Operation: Ensures reliable and stable output control for industrial applications.
-
Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -40°C to +70°C.
-
Seamless Integration: Easily integrates into the DeltaV control system for smooth operation and system scalability.
-
Compliance with International Standards: Certified for use in hazardous areas, meeting safety and EMC standards for industrial environments.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | KJ3204X1-BA1 12P3275X032 |
| Manufacturer | Emerson (DeltaV Series) |
| System Compatibility | DeltaV Control Systems |
| Mounting | Designed for panel mounting |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
3.3 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24V DC |
| Output Type | Discrete (Digital) |
| Output Channels | 16 outputs |
| Output Load | Up to 1A per channel |
| Power Consumption | 0.8 W Max |
| Status Indicators | LEDs for output status |
3.4 System Features
-
High Reliability: Designed for continuous operation with minimal downtime.
-
Built-In Diagnostics: Provides real-time monitoring and fault detection for improved system maintenance.
-
Hot-Swappable: Allows for replacement or addition of modules without interrupting system operation.
-
Wide Compatibility: Fully compatible with the DeltaV digital automation system for simplified system integration.
4. Industry Applications
The Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module Card is ideal for use in a wide range of industrial applications, including:
-
Chemical & Petrochemical: Control of valves, actuators, and other critical equipment in chemical processing plants.
-
Power Generation: Discrete control of turbines, generators, and other equipment in power plants.
-
Manufacturing: Precision control of machinery and automated systems in production lines.
-
Pharmaceutical: Used in automated drug manufacturing and packaging processes.
-
Water & Wastewater Treatment: For controlling pumps, valves, and other devices in water treatment facilities.
With its high reliability and seamless integration into DeltaV systems, the KJ3204X1-BA1 module is an essential component in process control and automation systems.
Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module Card is in stock. Please contact us for a quick quote and competitive pricing.
