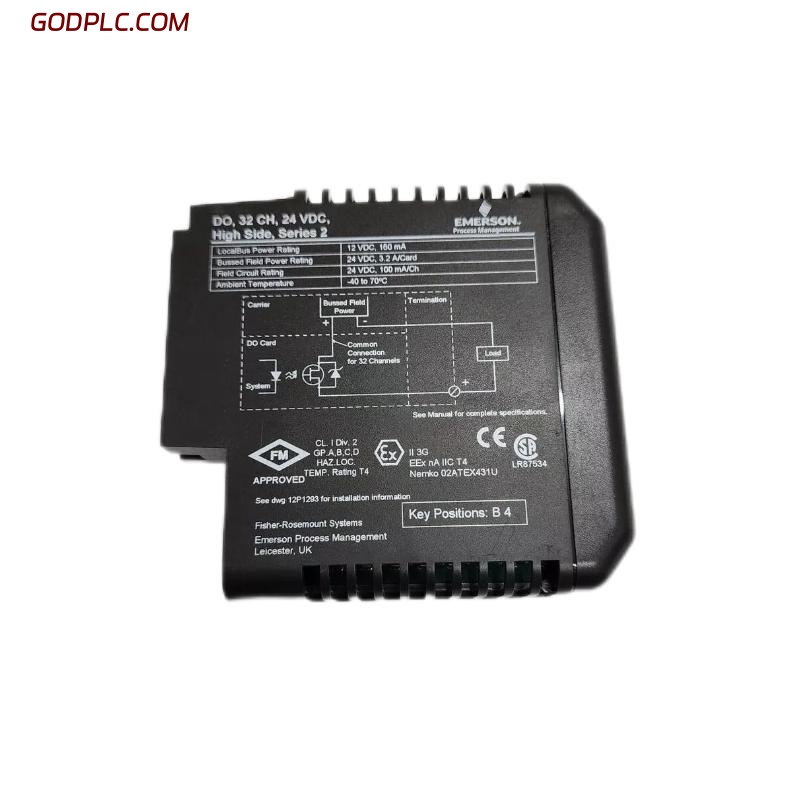

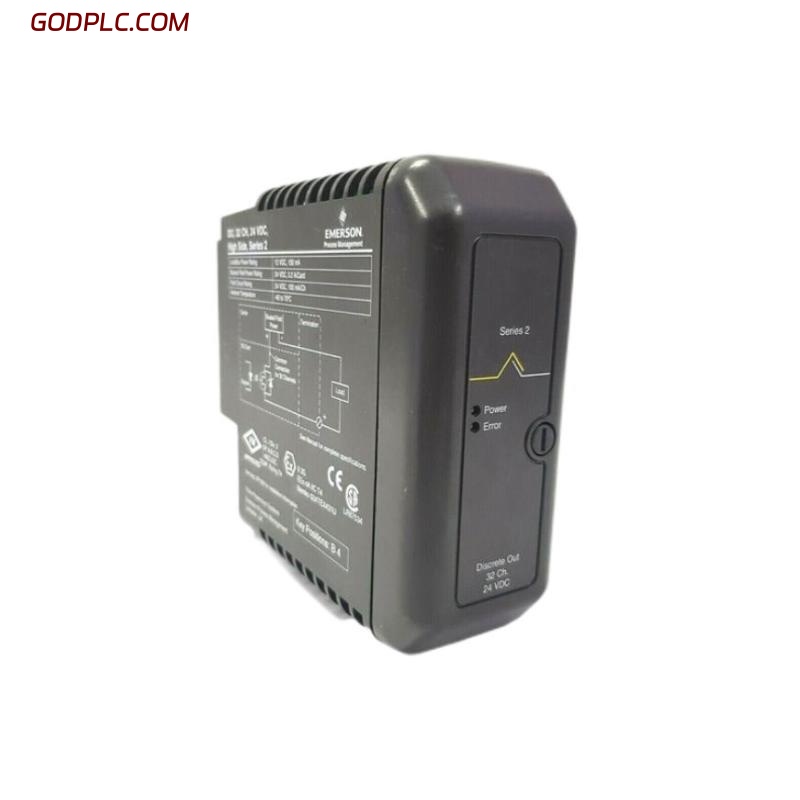

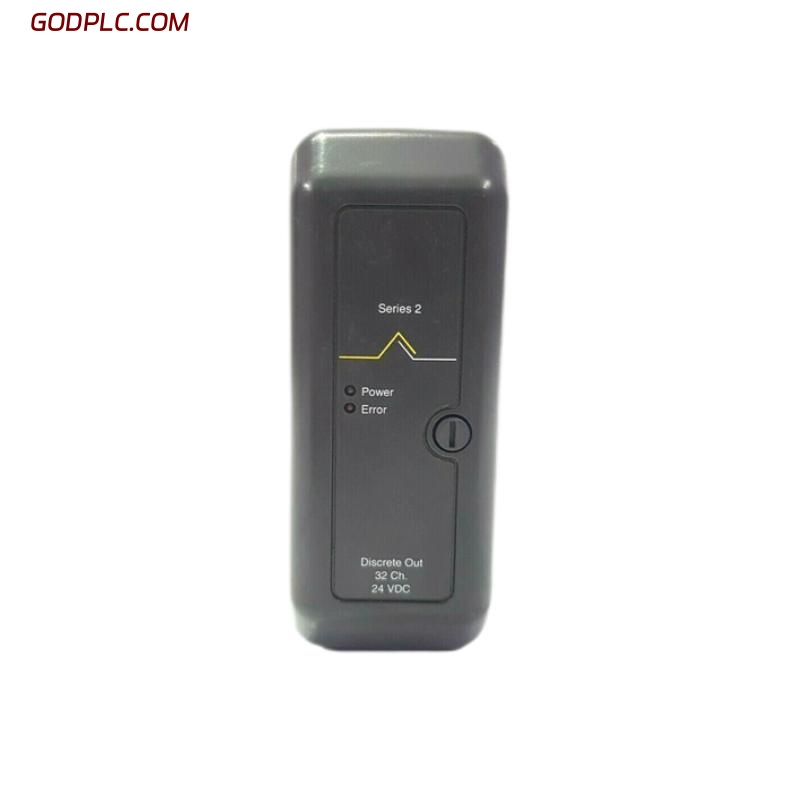

Emerson KJ3204X1-BA1 Discrete Output Module Card

Product Overview
The Emerson KJ3204X1-BA1 Discrete Output Module Card is designed for the seamless control of discrete output devices in industrial automation systems. As part of the DeltaV control system, this module provides reliable, high-performance output control for actuators, relays, and other field devices. The KJ3204X1-BA1 module supports various output types, including both sinking and sourcing configurations, allowing it to interface with a wide range of equipment in demanding industrial applications. It ensures efficient process control and improves system reliability by offering real-time diagnostics and fault detection capabilities.

Key Features

• Flexible Output Configuration – Supports both sinking and sourcing output configurations to accommodate different types of field devices

• High Current Handling – Capable of driving output devices with high current requirements, making it suitable for industrial-grade applications

• Built-In Diagnostics – Features real-time diagnostics for monitoring module health and detecting faults, minimizing system downtime

• Efficient Control – Provides fast, reliable control of discrete devices such as relays, solenoids, and actuators

• Hot-Swappable – Allows for easy replacement of the module without system shutdown, ensuring continuous operation

• Wide Operating Range – Supports a broad temperature range for operation in challenging industrial environments

• Enhanced Isolation – Ensures safe and reliable operation by providing electrical isolation between the output channels and the control system

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Industrial Automation – Provides reliable control for a wide range of discrete field devices in automation systems, including solenoids, valves, and relays

• Oil & Gas – Controls actuators and safety shutdown devices for efficient operations in upstream and downstream processes

• Power Generation – Used in control systems for monitoring and controlling equipment such as breakers, relays, and actuators in power plants

• Water Treatment – Ensures reliable operation of control valves, pumps, and other discrete field devices in water and wastewater treatment systems

• Manufacturing – Manages automated machinery, actuators, and other discrete devices in production lines for precise control and performance optimization

The Emerson KJ3204X1-BA1 Discrete Output Module Card is a high-performance solution for controlling discrete output devices in demanding industrial environments. Its flexible configuration, real-time diagnostics, and rugged design make it an ideal choice for critical process control applications.
