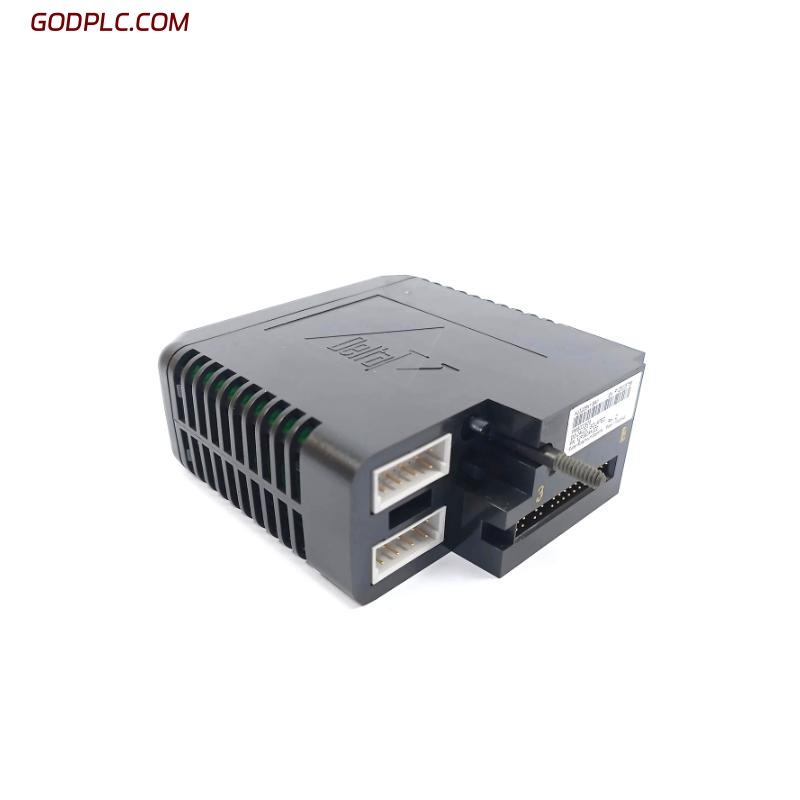

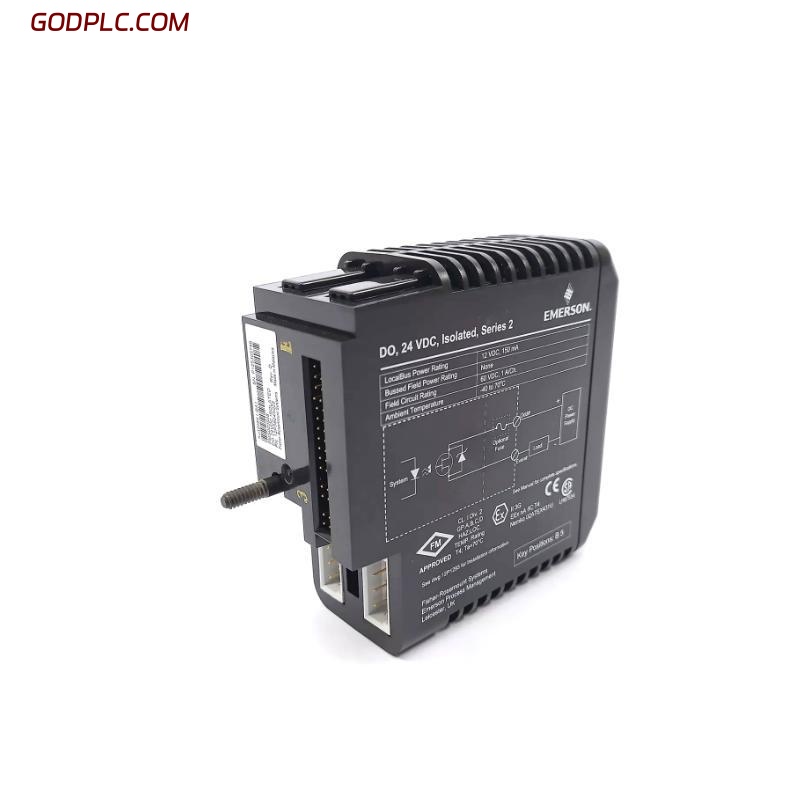

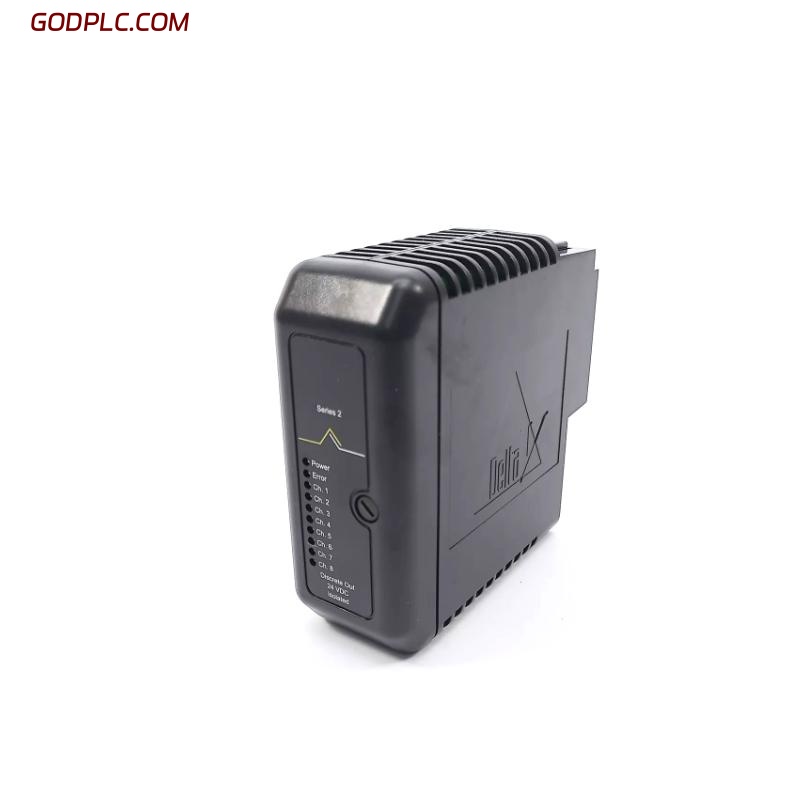

Emerson KJ3208X1-BA1 Discrete Output Card
Product Overview
The Emerson KJ3208X1-BA1 Discrete Output Card is a robust and reliable output solution designed for controlling discrete field devices in industrial automation systems. Fully compatible with Emerson’s DeltaV™ distributed control system (DCS), this card provides precise and fast switching of digital outputs for controlling actuators, relays, solenoids, and other discrete devices. Its flexible configuration, fast response times, and integrated diagnostic capabilities make it an ideal choice for critical process control applications in industries such as oil & gas, chemical processing, power generation, and pharmaceuticals.
Key Features
-
Multiple Output Types – Supports both sinking and sourcing output configurations for versatility in controlling field devices
-
High-Speed Switching – Provides fast and reliable switching for real-time process control
-
Built-In Diagnostics – Integrated diagnostics and status indicators to detect faults quickly, ensuring minimal downtime
-
Seamless Integration – Fully integrates with Emerson’s DeltaV™ DCS for easy configuration, monitoring, and control
-
Flexible Configuration – Allows for easy customization of output settings to meet the specific needs of different applications
-
Compact Design – Designed to maximize space efficiency in control panels, reducing system footprint
-
Durable Construction – Built to withstand harsh industrial environments, ensuring long-term reliability and performance
-
Enhanced Reliability – Redundant options available for critical applications, providing backup and ensuring uninterrupted operation
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.181 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 8 discrete output channels |
| Output Type | Sinking (NPN) or Sourcing (PNP) |
| Output Voltage | 24 VDC nominal |
| Output Current | 0.5 A per channel (max) |
| Switching Frequency | 100 Hz |
| Power Consumption | Approx. 10 W |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Emerson DeltaV™ DCS |
| Module Type | Discrete Output Card |
| Software | DeltaV™ Control Studio, AMS Suite |
Industry Applications
-
Oil & Gas – Controls discrete devices such as valves, pumps, and actuators in upstream and downstream processes
-
Chemical Processing – Provides fast, reliable control of pumps, mixers, and other critical equipment in chemical plants
-
Power Generation – Interfaces with actuators, relays, and breakers in turbine and boiler control systems
-
Pharmaceutical Manufacturing – Ensures precise control of equipment such as filling machines, conveyors, and valves in drug production lines
-
Water and Wastewater Treatment – Manages solenoids, pumps, and valves to ensure smooth and efficient water treatment processes
-
Food & Beverage – Controls packaging, mixing, and quality control systems to maintain high-quality production standards
The Emerson KJ3208X1-BA1 Discrete Output Card is a highly reliable and versatile solution for controlling discrete field devices in industrial automation systems, offering high-speed switching, built-in diagnostics, and seamless integration into Emerson’s DeltaV™ DCS.
Emerson KJ3208X1-BA1 Discrete Output Card is in stock. Please contact us for a quick quote and competitive pricing.
