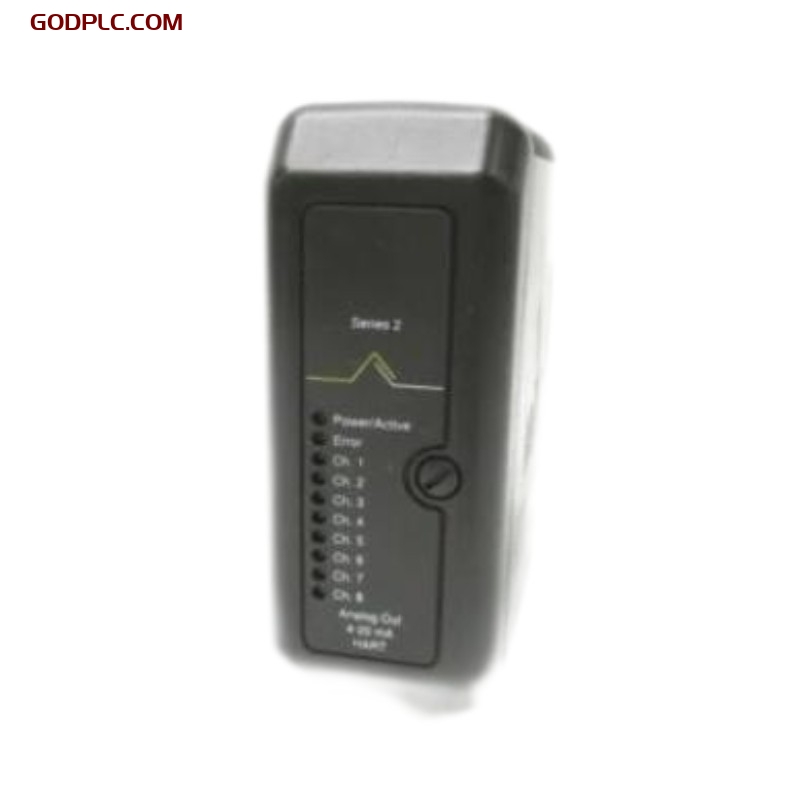

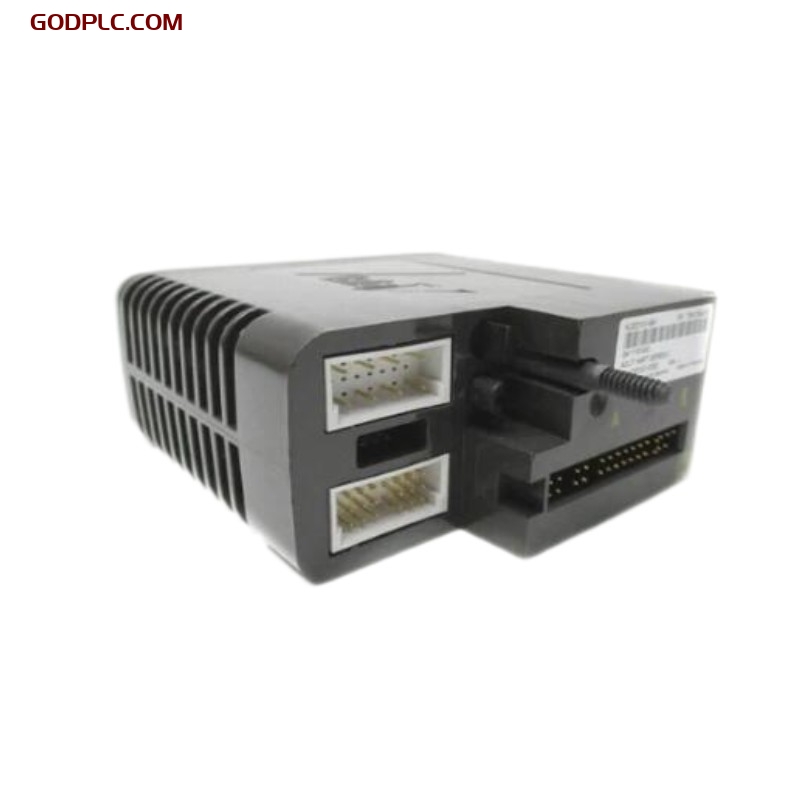

Emerson KJ3221X1-BA1 12P2531X082 Analog Output Modules
1. Product Overview
The Emerson KJ3221X1-BA1 12P2531X082 Analog Output Module is a high-performance industrial module designed for precise analog signal output in industrial control systems. It is part of Emerson’s DeltaV™ control system and is used to interface with a wide range of industrial automation equipment. This module is ideal for applications that require accurate and reliable analog signal transmission to control actuators, valves, and other process control equipment.
The KJ3221X1-BA1 module supports multiple output channels, offering flexibility in various industrial automation setups. It is known for its high accuracy, fast response time, and reliability in harsh industrial environments, making it suitable for industries such as chemical processing, oil & gas, power generation, and manufacturing.
2. Key Features
-
High Precision: Provides high-resolution and precise analog output for accurate process control.
-
Multiple Output Channels: Offers multiple channels for various process control needs, allowing for expanded system capabilities.
-
Fast Response Time: Ensures rapid output changes to support fast process control and adjustments.
-
Robust Construction: Built with industrial-grade components that ensure long-lasting performance in harsh environments.
-
Wide Compatibility: Compatible with Emerson DeltaV™ control systems and other compatible industrial controllers.
-
Easy Integration: Designed for seamless integration with control systems, simplifying installation and setup.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.45 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | KJ3221X1-BA1 12P2531X082 |
| Manufacturer | Emerson |
| Power Supply | 24 V DC |
| Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail Mount |
3.3 Performance Parameters
| Item | Specification |
|---|---|
| Number of Output Channels | 12 |
| Output Range | 4-20 mA, 0-10 V |
| Resolution | 16-bit |
| Output Accuracy | ±0.1% of Full Scale |
| Output Response Time | ≤ 10 ms |
| Communication Protocol | Modbus RTU |
| Maximum Load Resistance | 500 Ω (4-20 mA) |
3.4 Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 8 W |
| Operating Current | ≤ 0.4 A |
4. Industry Applications
The Emerson KJ3221X1-BA1 12P2531X082 Analog Output Module is designed for high-precision control and is utilized in several industries that require reliable analog signal output. Some of the key applications include:
-
Chemical Processing: Ensures accurate control of chemical mixing and process monitoring, enhancing product quality and operational efficiency.
-
Oil & Gas: Used in control systems for monitoring and managing equipment like pumps and valves, ensuring safety and performance in extraction and transportation.
-
Power Generation: Provides accurate control for critical equipment such as turbines and generators, improving system efficiency and reliability.
-
Manufacturing Automation: Supports precise control in automated production lines, ensuring product consistency and process optimization.
-
Water Treatment: Used in water and wastewater treatment facilities for precise control of flow rates and chemical dosing, maintaining environmental standards and compliance.
The KJ3221X1-BA1 12P2531X082 module is an essential component in any automation system that requires reliable and precise analog signal control, providing flexible integration and enhanced control in a wide range of industrial applications.
Emerson KJ3221X1-BA1 12P2531X082 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
