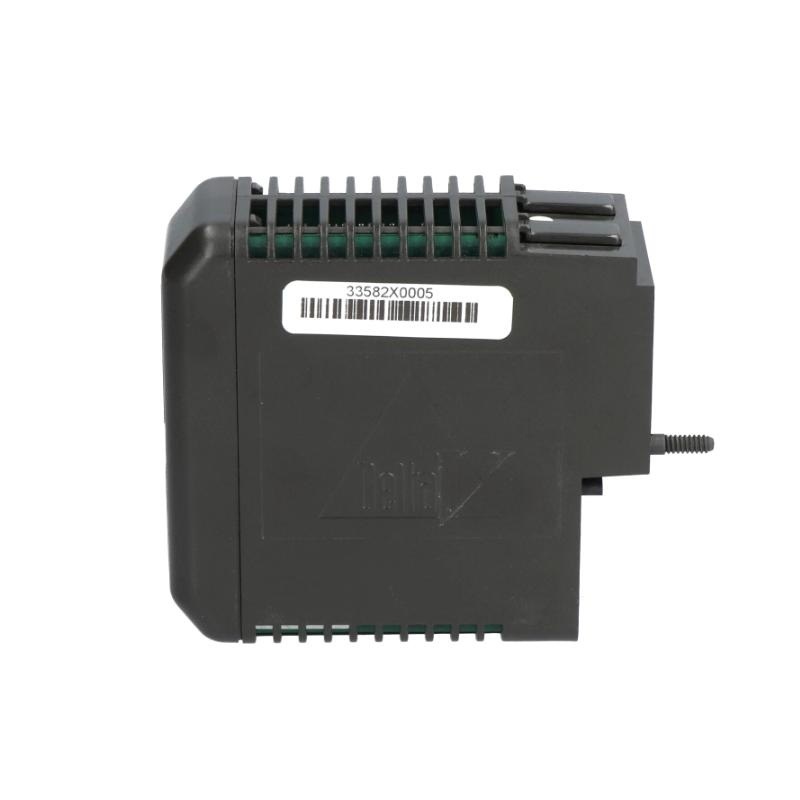

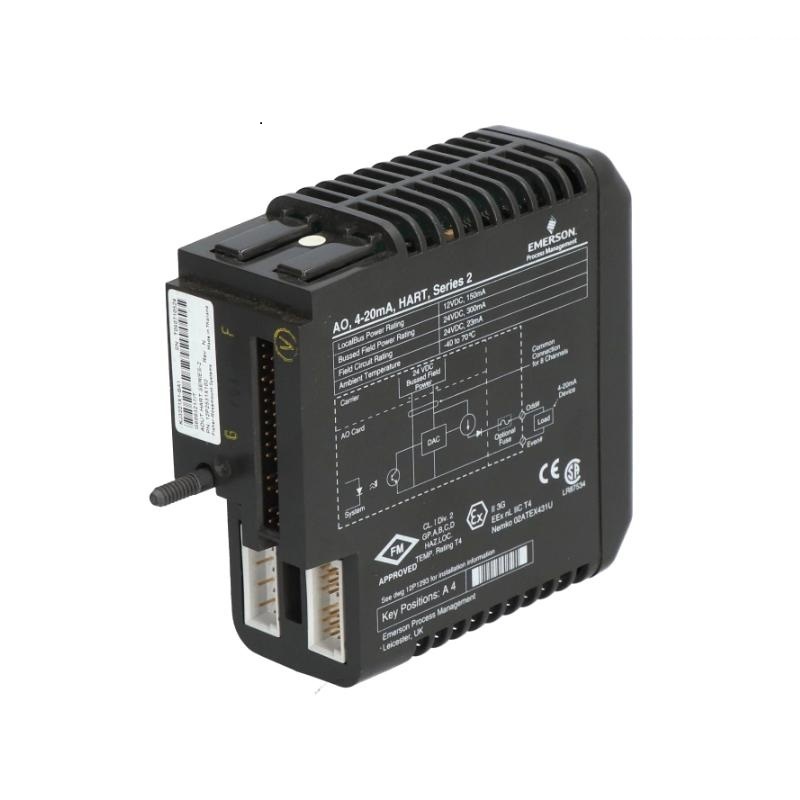

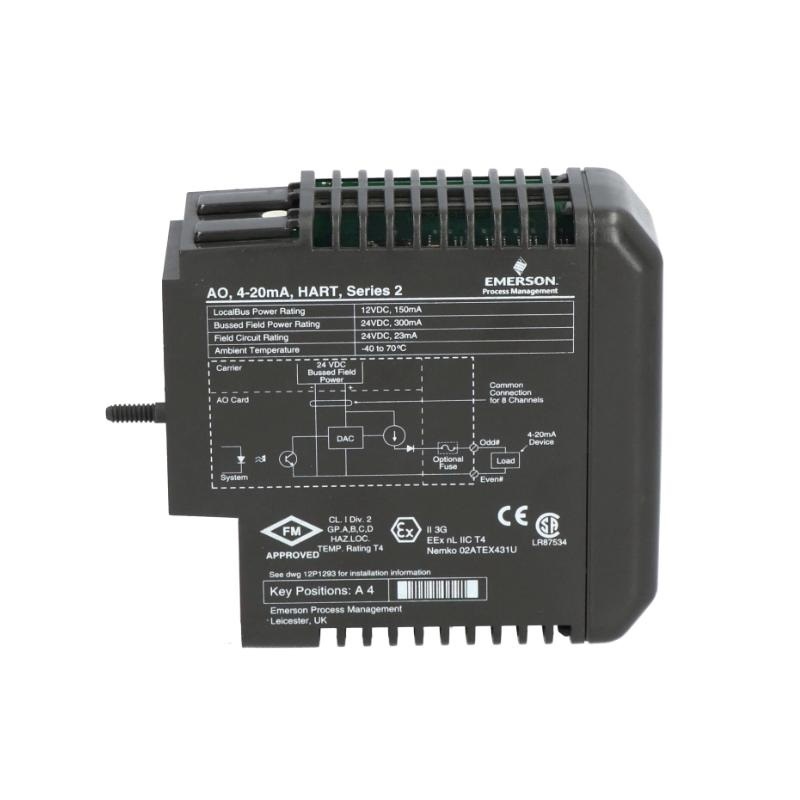

Emerson KJ3221X1-BA1 8-Channel Analog Output Module – DeltaV Series 2
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson |
| Product Type | Analog Output Module |
| Product Model | KJ3221X1-BA1 |
| Ordering Number | |
| Product Series | DeltaV Series 2 |
| Output Channels | 8 |
| Output Signal | 4–20 mA DC |
| Communication | HART |
| Redundancy | Supported |
| Local Bus Power | 12 V DC at 150 mA |
| Bussed Field Power | 24 V DC at 300 mA |
| Field Circuit | 24 V DC at 23 mA per channel |
| Terminal Key Position | A4 |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Shock Resistance | 10 g, ½ sine wave, 11 ms |
| Vibration | 1 mm peak-to-peak at 2–13.2 Hz; 0.7 g at 13.2–150 Hz |
| Ingress Protection | IP20 |
| Dimensions (L × W × H) | Approx. 105 × 107 × 41 mm |
| Weight | Approx. 0.20 kg |
| Battery | No |
| Magnet | No |
FAQ
Q: What is the Emerson KJ3221X1-BA1?
A: It is an 8-channel analog output module for the Emerson DeltaV M-Series control system, providing 4–20 mA outputs with HART communication.
Q: What is the ordering number for KJ3221X1-BA1?
A: The ordering number is 12P2531X102.
Q: How many output channels does this module provide?
A: It provides eight independent analog output channels.
Q: What output signal does it use?
A: The module provides 4–20 mA DC analog outputs and supports HART communication.
Q: Can the KJ3221X1-BA1 be used in a redundant configuration?
A: Yes. The Series 2 module supports redundant configurations when used with the appropriate DeltaV hardware and termination arrangement.
Q: What power does the module require?
A: The local bus power requirement is 12 V DC at 150 mA, while the bussed field power is 24 V DC at 300 mA.
Q: Does the KJ3221X1-BA1 contain a battery?
A: No. It is an electronic I/O module and does not contain a battery.
Q: Does this module contain a magnet?
]
poiu98y7t6A: No permanent magnet is specified. It is not normally treated as a magnetic item for shipping purposes.
Emerson KJ3221X1-BA1 12P2531X102 8-Channel Analog Output Module – DeltaV Series 2 is in stock. Please contact us for a quick quote and competitive pricing.
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 13950166376 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Company Introduction
Xiamen Shengruite Trading Co., Ltd. is a company specializing in the supply of industrial PLC spare parts.
We provide high-quality PLC spare parts to customers in the global manufacturing, energy and power, chemical and other fields.
Since its establishment in 2011, after 13 years of rapid development, the cumulative global shipments have reached 223,650 pieces, with an annual output value of US$50 million.
Successfully served more than 500 customers in more than 100 countries and regions including Saudi Arabia, UAE, the United States, Europe, Africa, and Southeast Asia
Our Mission
Provide customers with the best quality PLC spare parts and the fastest delivery service to ensure that their industrial automation systems are always in the best operating condition.
We provide a 1-year warranty service, and we support returns and exchanges for any issues to ensure your rights and interests are fully protected.
We can provide detailed product images upon request, and our team can arrange warehouse photos for confirmation to ensure you have all the information you need before making a purchase.
Shipping times vary depending on your location. With the support of our 16 global warehouses, we strive to deliver orders as quickly as possible. Contact us to get an estimated delivery time for your specific location.
The minimum order quantity (MOQ) is typically one unit. However, for larger orders, please contact us for potential discounts and pricing details.
Yes, we offer competitive pricing for bulk purchases. Please reach out to our sales team with the specifics of your order to receive a custom quote.
We accept various payment methods for wholesale orders, including bank transfers (T/T), letters of credit, and other options upon agreement. For large transactions, please contact us directly for payment terms.
Yes, we offer flexible ordering options for both small and large quantities. Whether youre looking for a single unit or a large batch, we can accommodate your needs.
We occasionally offer promotional discounts for new wholesale customers. Contact us to learn more about any current offers available for first-time buyers.
If you are unsure of compatibility with your existing setup please provide your system details and our support team can verify compatibility prior to purchase.
Returns are accepted within 30 days if the product is unused, unopened, and in its original packaging. Please note that return shipping and associated costs are the buyer\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\’s responsibility.
Yes, we offer technical support for the installation and integration of our products. Our team can assist with setup, configuration, and troubleshooting to ensure a smooth installation.
Products categories
-

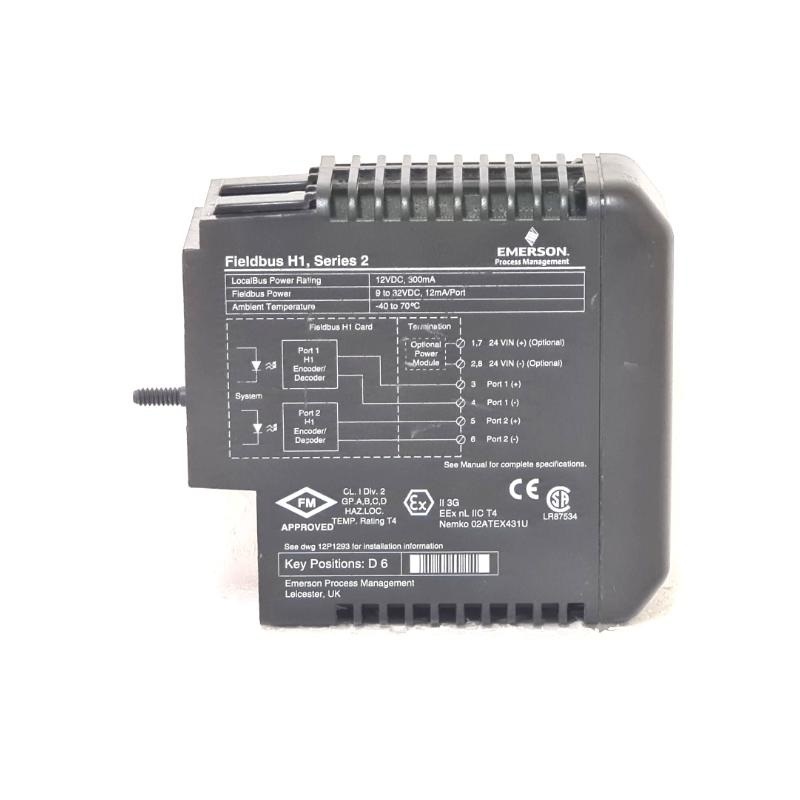

Emerson KJ3242X1-BA1 FOUNDATION Fieldbus H1 Interface Card – DeltaV M-Series Series 2
-

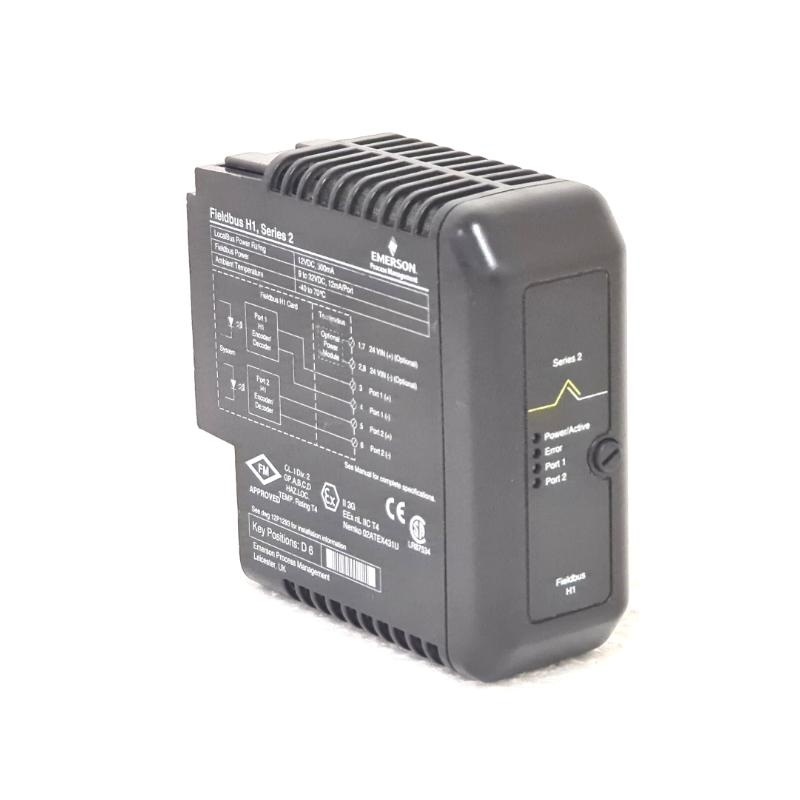

Emerson VE4017P0 FOUNDATION Fieldbus H1 Interface Card – DeltaV M-Series Series 2
-
