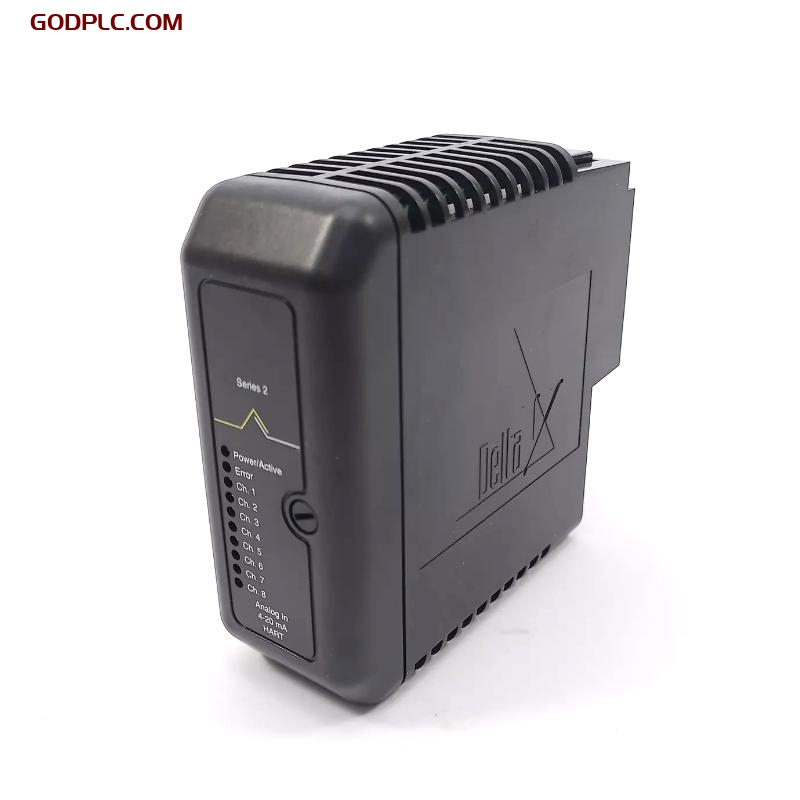

Emerson KJ3222X1-BA1 12P2532X072 Analog Input Modules

Product Overview

The Emerson KJ3222X1-BA1 12P2532X072 Analog Input Module is a high-performance input module designed to provide precise and reliable analog signal processing in Emerson DeltaV and other industrial control systems. It is engineered to handle a wide variety of industrial input signals, including voltage, current, and resistance, making it suitable for applications that require accurate measurement and monitoring of analog process variables.

This module is integral to Emerson’s DeltaV distributed control systems, offering seamless integration and excellent performance. It is ideal for use in demanding applications such as chemical processing, oil and gas, power generation, and pharmaceuticals, where the accuracy of input measurements is critical to ensuring optimal system performance.

Key Features

• High-Accuracy Measurement: Provides accurate analog signal measurement, supporting voltage, current, and resistance inputs.

• Wide Input Range: Supports a wide variety of analog input signals, offering versatility for different process control requirements.

• High-Resolution: Delivers high-resolution input processing, ensuring that even small changes in process variables are captured with precision.

• Seamless DeltaV Integration: Designed to integrate smoothly with Emerson DeltaV systems, offering a complete control solution for complex applications.

• Robust Construction: Built to perform reliably in harsh industrial environments, providing consistent data under challenging conditions.

• Real-Time Performance: Provides real-time data acquisition, enabling prompt and accurate control of process variables.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Chemical Processing: Monitors variables such as pressure, temperature, and flow in reactors and chemical mixing tanks.

• Oil & Gas: Measures key parameters in exploration, production, and refining processes, ensuring smooth operation of equipment.

• Power Generation: Collects data from process control devices like temperature and pressure sensors in power plants.

• Pharmaceuticals: Ensures precise measurement of critical variables in production and manufacturing processes.

• Water Treatment: Monitors input signals from flow meters, level sensors, and pressure transmitters in water and wastewater treatment systems.

The Emerson KJ3222X1-BA1 12P2532X072 Analog Input Module is an essential component for precise analog input signal processing in Emerson DeltaV systems. With its high-resolution, wide input range, and seamless integration, it is a reliable choice for demanding industrial applications that require accurate and real-time data collection. Whether in chemical processing, power generation, or other critical environments, this module ensures optimal system performance through its robust design and accurate measurements.
