Product Introduction

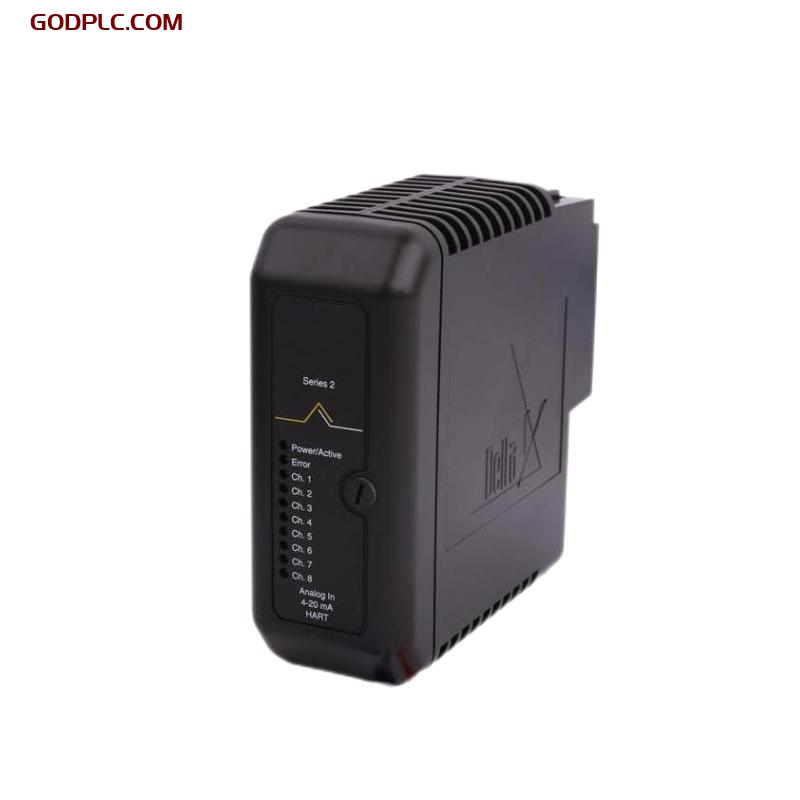

The Emerson KJ3222X1-BA1 / KJ4001X1-CA1 Analog Input Card is a high-performance module designed for use in Emerson’s control systems, providing accurate and reliable analog signal processing for various industrial applications. This card is an essential component of the DeltaV and Ovation control systems, designed to capture and transmit analog signals for real-time process control.

This analog input card is equipped with advanced features that make it an ideal solution for high-precision measurement applications. It provides versatility in a wide range of industries, including chemical processing, power generation, oil and gas, and manufacturing, where reliable data acquisition is critical for system monitoring and process control.

With the ability to handle a variety of input signals, the KJ3222X1-BA1 / KJ4001X1-CA1 offers flexibility and scalability in system designs. It ensures that the control system receives accurate and timely data to adjust operations, optimize efficiency, and improve overall performance.

Product Specifications

Product Applications

The Emerson KJ3222X1-BA1 / KJ4001X1-CA1 Analog Input Card is designed for integration into industrial automation systems where accurate, real-time analog data is required. The following are some common applications:

• Process Automation: The card plays a critical role in process control systems for industries such as oil and gas, chemical manufacturing, and power plants, where real-time monitoring and control are vital for maintaining optimal production conditions.

• Flow and Pressure Control: It is used in applications that require continuous monitoring of flow meters and pressure transmitters, providing valuable data to ensure systems operate within their specified parameters.

• Temperature Monitoring: The card processes temperature signals from thermocouples or RTDs, offering precise control over heating and cooling systems in industries that require strict temperature regulation.

• Level Control Systems: This module is useful in level control applications in tanks, silos, and other storage systems, ensuring the appropriate level of material is maintained.

• Energy Monitoring: In energy-intensive industries, the card is used to monitor and control electrical energy consumption, optimizing the use of resources and reducing energy waste.

• Equipment Protection: Monitoring parameters like vibration, pressure, and temperature to protect equipment such as pumps, motors, and turbines, reducing the likelihood of system failure and downtime.

• Water and Wastewater Management: The card facilitates the collection and processing of analog signals in water treatment plants and wastewater systems, ensuring compliance with regulatory standards and operational efficiency.

• Environmental Monitoring: Collects data from environmental sensors to monitor air quality, emissions, and other critical environmental parameters, ensuring compliance with local and international standards.

• Manufacturing and Production Lines: Provides analog input for various sensors used in automated manufacturing systems, enabling precise control of robotic arms, conveyor systems, and assembly lines.

• HVAC Systems: The card helps monitor and control HVAC systems, ensuring that temperature and humidity levels are maintained according to the required standards in large commercial and industrial spaces.

Product Advantages

The Emerson KJ3222X1-BA1 / KJ4001X1-CA1 Analog Input Card offers several notable advantages that contribute to its reliability, performance, and versatility in industrial applications:

1. High Accuracy: With an accuracy of ±0.1% of the full scale, the card ensures that the data processed is precise, which is crucial for effective process control and decision-making.

2. Versatile Input Types: Supports both voltage (0-10V) and current (4-20mA) input signals, providing flexibility in integrating various types of sensors and equipment.

3. High Resolution: The card offers a 16-bit resolution, ensuring that even the smallest variations in input signals are accurately measured.

4. Fast Data Acquisition: With a sampling rate of 1 ms per channel, the card ensures quick data processing, enabling real-time adjustments and optimizations.

5. Wide Temperature Range: Operating between -20°C and +70°C, the card is designed to function in harsh industrial environments, maintaining reliable performance even in extreme conditions.

6. Compact Design: With compact dimensions and a lightweight form factor, the card is easy to install in a wide variety of system configurations, saving space in control panels.

7. Easy Integration: Compatible with Emerson’s DeltaV and Ovation control systems, this card seamlessly integrates into existing setups, ensuring a smooth transition and ease of use.

8. Long-lasting Durability: Built with high-quality materials and IP20 protection, it is designed to withstand dust and debris, ensuring longevity and reducing the need for frequent maintenance.

9. Modular and Scalable: The system can easily be expanded with additional input cards to handle large-scale operations, providing scalability for growing industrial systems.

10. Compliance and Certifications: The card meets international standards and certifications, ensuring safety, reliability, and conformity to environmental regulations, which is essential in highly regulated industries.
