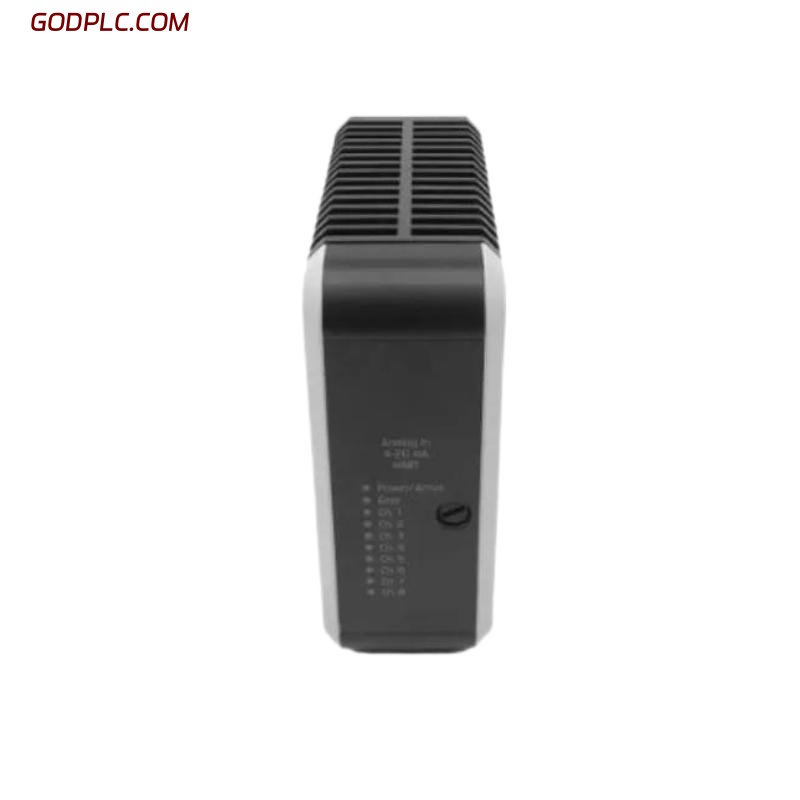

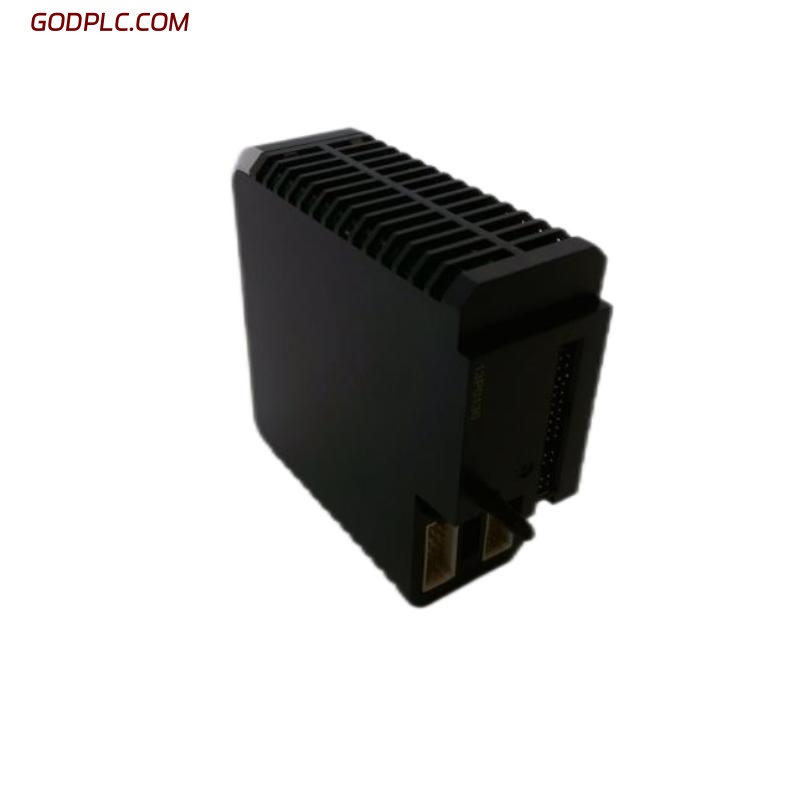

Emerson KJ3222X1-BA2 Input Module
Product Overview
The Emerson KJ3222X1-BA2 Input Module is a high-performance solution designed for managing and processing input signals in industrial automation applications. Fully compatible with Emerson’s DeltaV™ distributed control system (DCS), this module supports a wide range of input types, providing flexible and precise data acquisition. The KJ3222X1-BA2 is ideal for applications requiring accurate signal measurement and fault-tolerant operations, such as in oil & gas, power generation, chemical processing, and pharmaceutical manufacturing. Its rugged construction and built-in diagnostics ensure reliability in harsh industrial environments.
Key Features
-
Wide Input Compatibility – Supports both analog and digital input types for versatile data acquisition from various field devices
-
High Accuracy – Provides high-precision measurement and processing of input signals for reliable control and monitoring
-
Built-In Diagnostics – Features real-time diagnostics and status indicators for early fault detection and rapid troubleshooting
-
Flexible Configuration – Easily configurable to accommodate different input types and field device requirements
-
Compact Design – Space-saving design that reduces control cabinet footprint without compromising performance
-
Durable and Rugged – Designed for use in harsh industrial environments, ensuring long-term reliability and performance
-
Seamless Integration – Fully integrates with Emerson’s DeltaV™ DCS for easy system configuration, operation, and monitoring
-
Redundancy Options – Optional redundant configurations available for critical applications to ensure continued operation in case of failure
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 44 x 108 x 127 mm |
| Weight | 0.45 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 8 analog or digital input channels |
| Input Type | Voltage (0–10V, ±10V) or current (4–20 mA) |
| Resolution | 16-bit ADC for analog inputs |
| Input Isolation | Channel-to-channel isolation for noise immunity |
| Power Consumption | Approx. 15 W |
| Input Range | 0–10V, ±10V, 4–20 mA, 0–20 mA |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Emerson DeltaV™ DCS |
| Module Type | Input Module |
| Communication | DeltaV™ I/O Network, Ethernet |
Industry Applications
-
Oil & Gas – Monitors pressure, temperature, flow, and level sensors in upstream and downstream applications
-
Power Generation – Collects input data from sensors and transducers for turbine, boiler, and electrical system monitoring
-
Chemical Processing – Ensures precise measurement of chemical concentrations, pressure, and temperature for safe process control
-
Pharmaceutical Manufacturing – Supports critical process measurements to maintain regulatory compliance and product quality
-
Water and Wastewater Treatment – Captures data from water quality sensors, flow meters, and level gauges to ensure efficient plant operation
-
Food & Beverage – Monitors temperature, humidity, and pressure in food production lines, ensuring consistent product quality
The Emerson KJ3222X1-BA2 Input Module offers high-precision input processing and versatile configuration, ensuring reliable operation in industrial automation systems. Its seamless integration with the DeltaV™ DCS and robust design make it an ideal solution for demanding applications.
Emerson KJ3222X1-BA2 Input Module is in stock. Please contact us for a quick quote and competitive pricing.
