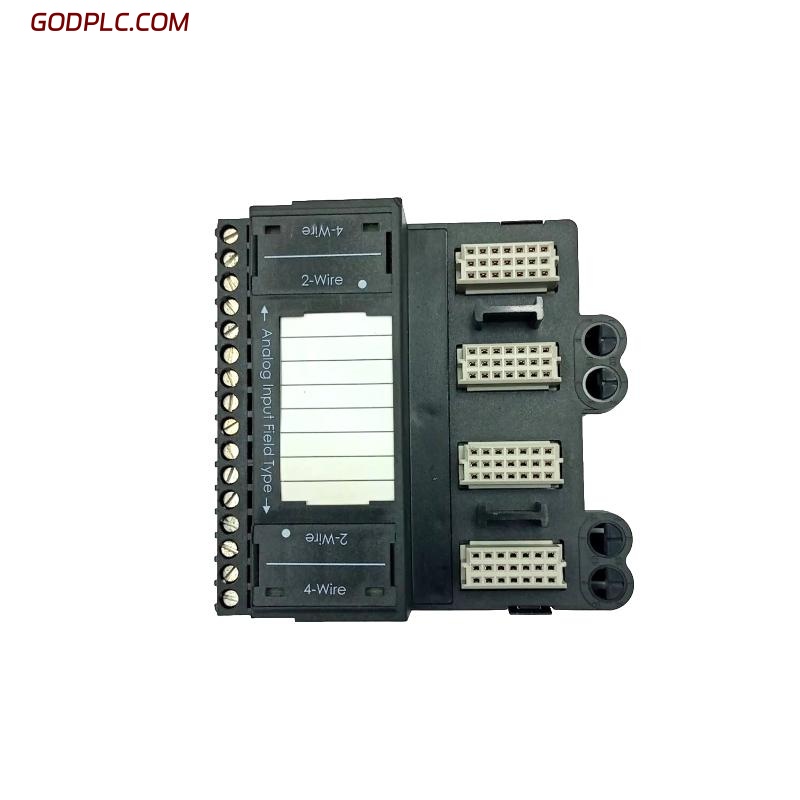

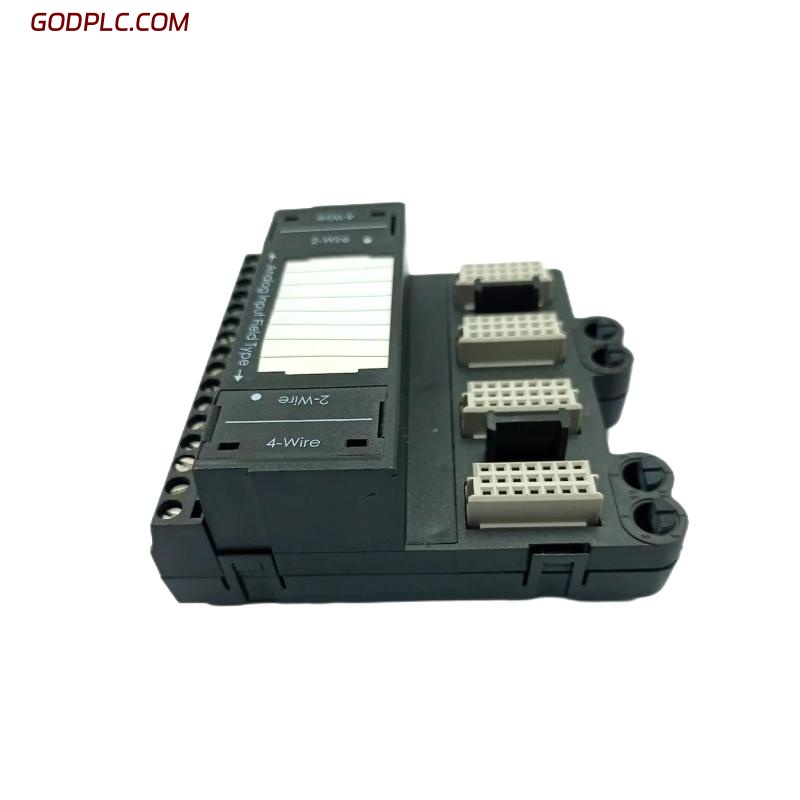

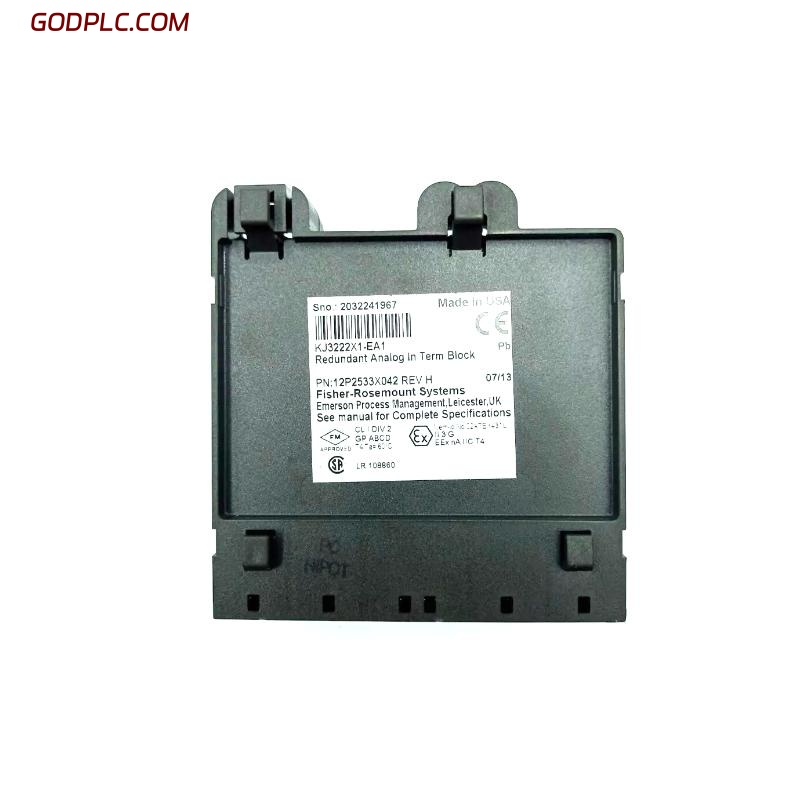

Emerson KJ3222X1-EA1 Terminal
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Emerson KJ3222X1-EA1 Terminal is designed to provide a reliable and high-performance interface for industrial automation systems. It serves as a critical component in managing field device connections, offering seamless integration with Emerson’s DeltaV™ distributed control system (DCS). The KJ3222X1-EA1 is built to support both analog and digital input/output systems, ensuring optimal signal processing and control. Its compact design, ease of installation, and robust construction make it ideal for applications in industries such as power generation, chemical processing, oil & gas, and pharmaceutical manufacturing.
Key Features
-
Versatile Input/Output Support – Compatible with a wide range of input/output types, offering flexibility in managing field devices
-
High Reliability – Built for continuous operation in harsh industrial environments, ensuring long-term stability and uptime
-
Compact and Space-Saving – Optimized design reduces footprint while maintaining robust functionality
-
Easy Integration – Seamlessly integrates with Emerson’s DeltaV™ DCS, ensuring efficient configuration and system monitoring
-
Durable Construction – Rugged materials and design ensure reliable performance in demanding conditions, including high temperatures and vibration
-
Real-Time Diagnostics – Provides built-in diagnostic tools for fault detection, simplifying maintenance and troubleshooting
-
Flexible Configuration – Offers multiple input/output configurations, enabling customization for specific field device requirements
-
Redundancy Capabilities – Optional redundant configuration support for critical applications requiring fault tolerance
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 118 x 102 x 30 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| I/O Channels | 8 analog or digital input/output channels |
| Input/Output Type | Voltage (0–10V, ±10V) or current (4–20 mA, 0–20 mA) |
| Resolution | 16-bit ADC for analog inputs, digital I/O (discrete) |
| Isolation | Channel-to-channel isolation for noise immunity |
| Power Consumption | Approx. 15 W |
| I/O Range | 0–10V, ±10V, 4–20 mA, 0–20 mA |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
Industry Applications
-
Oil & Gas – Provides reliable input/output management for critical control systems in upstream and downstream processes
-
Power Generation – Interfaces with sensors and control devices in turbines, boilers, and electrical systems for real-time monitoring
-
Chemical Processing – Ensures safe and accurate signal management for chemical reactors, pressure transducers, and temperature sensors
-
Pharmaceutical Manufacturing – Maintains stringent control over input and output signals to meet regulatory compliance and quality assurance standards
-
Water and Wastewater Treatment – Facilitates precise control of pumps, valves, and chemical dosing systems to ensure optimal water treatment performance
-
Food & Beverage – Enables reliable control of temperature, pressure, and other critical parameters in food processing lines
The Emerson KJ3222X1-EA1 Terminal is designed to meet the needs of industries requiring high-reliability and precise control over their automation systems. Its robust features, flexible configurations, and seamless integration with Emerson’s DeltaV™ DCS make it an essential component for reliable industrial control.
Emerson KJ3222X1-EA1 Terminal is in stock. Please contact us for a quick quote and competitive pricing.
