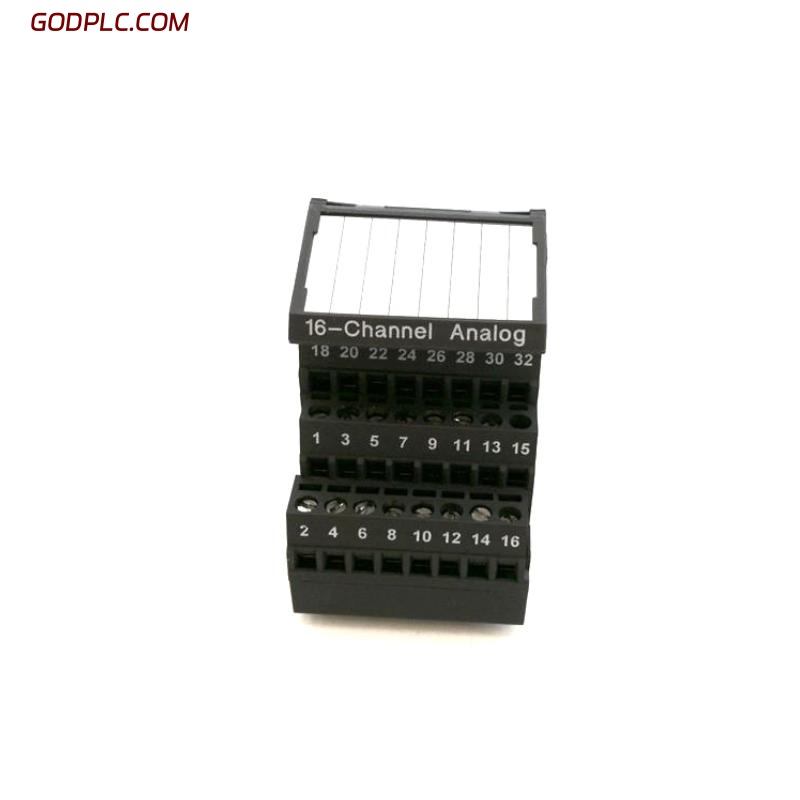

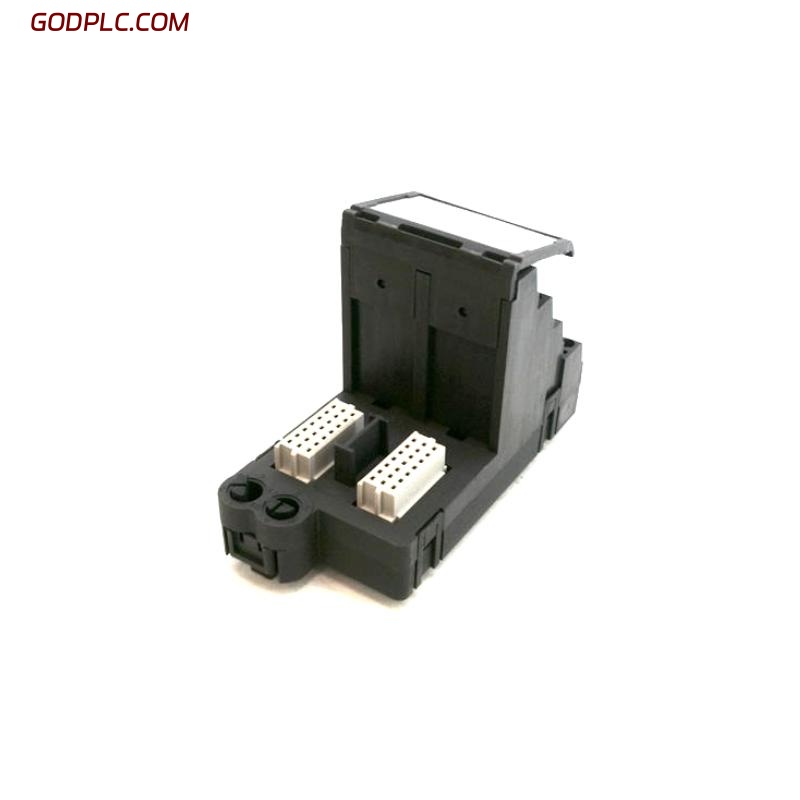

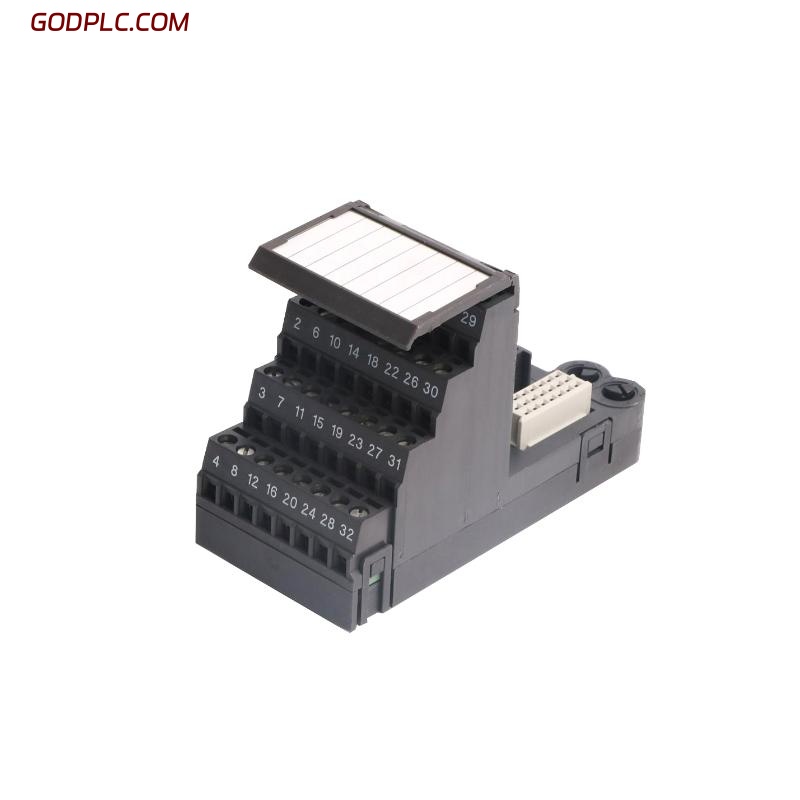

Emerson KJ3223X1-EA1 Terminal Blocks
Product Overview
The Emerson KJ3223X1-EA1 Terminal Blocks are designed to provide secure and efficient connections between field devices and control systems in industrial automation applications. These terminal blocks are part of the DeltaV™ series and offer high-quality, reliable connections for analog input signals. With their compact design, ease of installation, and robust construction, the KJ3223X1-EA1 terminal blocks ensure consistent and safe signal transmission even in harsh industrial environments. They play a critical role in maintaining the integrity of the control system by providing a stable interface between the control modules and field wiring.
Key Features
-
Secure and Reliable Connections – Provides stable and safe connections for analog signals from field devices to control systems
-
Versatile Compatibility – Compatible with a wide range of wire sizes and types, offering flexibility for various installation requirements
-
Compact and Efficient Design – Space-saving form factor for easy installation in control cabinets or racks
-
High Durability – Built to withstand industrial environments, ensuring long-term performance and minimal maintenance
-
Easy Wiring and Installation – Simplifies the wiring process with clear labeling and easy-to-use screw terminals
-
Enhanced Safety – Provides secure connections with high-quality materials that meet industrial safety standards
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 x 150 x 50 mm |
| Weight | 0.835 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | 24 V DC |
| Current Rating | 10 A per terminal |
| Insulation Resistance | ≥100 MΩ at 500 VDC |
| Conductor Size | 0.2 mm² to 2.5 mm² |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with DeltaV™ control systems |
| Communication Protocol | HART, Modbus, DeltaV™ Protocol |
Industry Applications
-
Industrial Automation – Provides secure connections for I/O modules, sensors, and transmitters in automated systems
-
Chemical Processing – Ensures stable and reliable connections for controlling critical process variables
-
Oil & Gas – Used for secure interfacing with field devices in upstream and downstream applications
-
Power Generation – Ideal for connecting various devices in power plants to ensure proper signal transmission
-
Water and Wastewater – Provides reliable connection points for sensors and monitoring equipment in water treatment facilities
The Emerson KJ3223X1-EA1 Terminal Blocks provide secure, reliable, and efficient connections for field devices in industrial control systems. With their robust construction and ease of installation, they ensure stable signal transmission and are essential for maintaining the integrity of the control system in demanding environments.
Emerson KJ3223X1-EA1 Terminal Blocks is in stock. Please contact us for a quick quote and competitive pricing.
