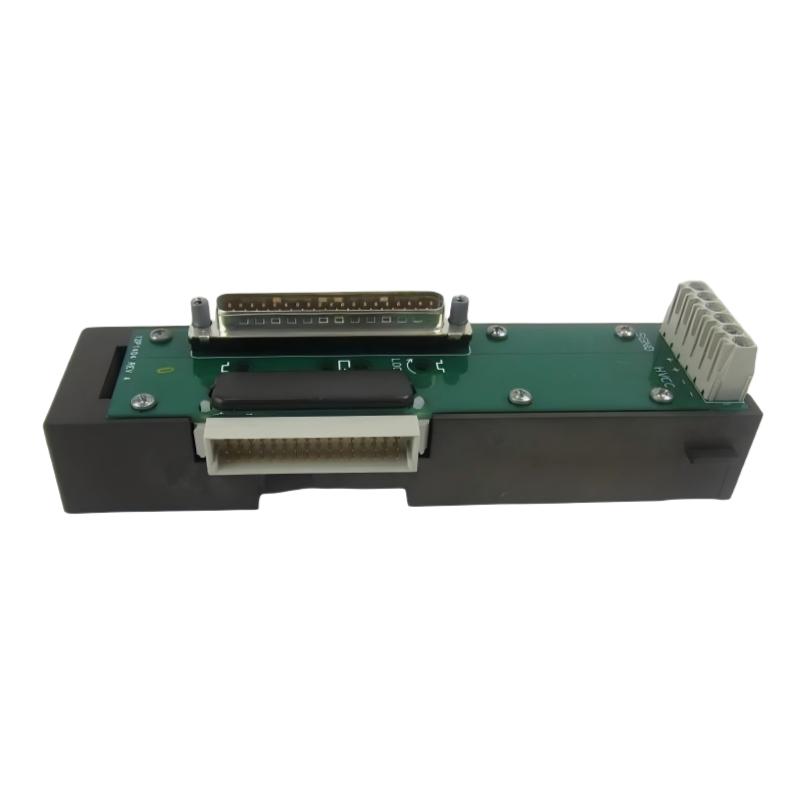

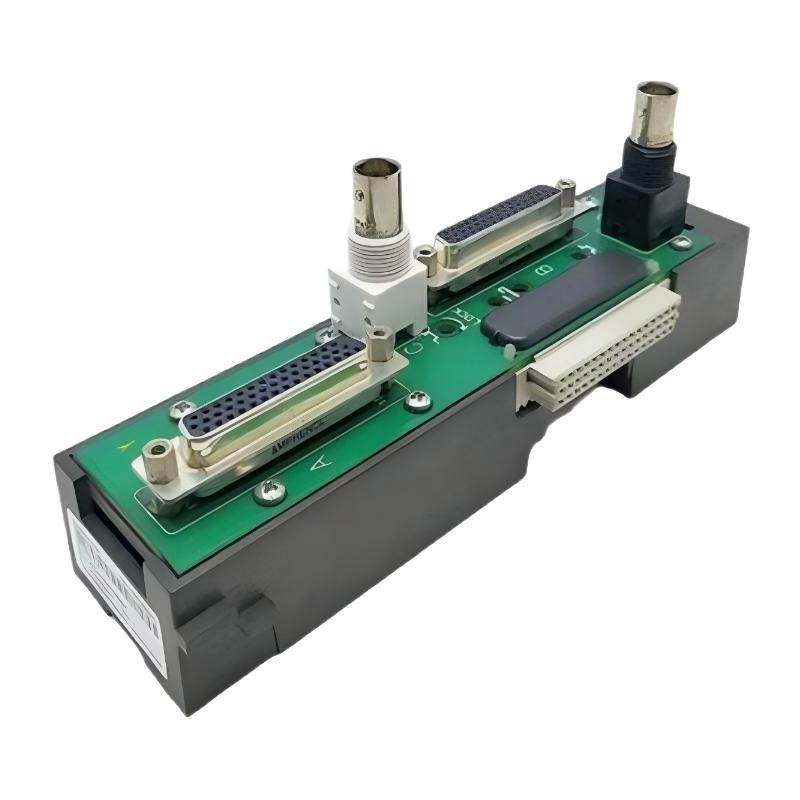

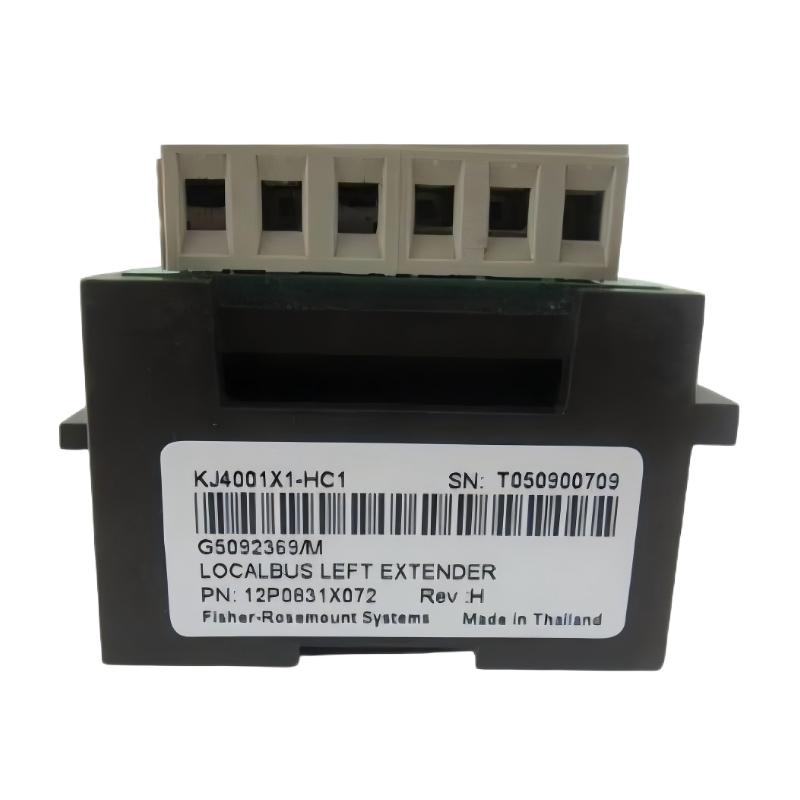

1. What is the main function of a Left Expander in a DeltaV system?

A Left Expander is used to extend the system architecture on the left side of a DeltaV control or I/O rack. Its primary function is to allow additional modules to be connected while maintaining continuous communication through the local bus. This enables engineers to expand system capacity without redesigning the entire rack structure. It ensures that distributed modules operate as part of a unified control system with consistent data exchange.

2. Why is a Left Expander needed in modular control systems?

In modular automation systems, physical space and system architecture often require components to be distributed across multiple positions. Without an expansion interface, system growth would be limited by fixed rack boundaries. A Left Expander allows additional modules to be integrated seamlessly, supporting flexible system scaling and ensuring that communication between modules remains stable and synchronized.

3. How does the Left Expander maintain communication integrity?

Communication integrity is maintained through a controlled electrical interface that preserves signal timing and minimizes distortion. The expander is designed to ensure that digital communication signals pass through without significant attenuation or noise interference. This helps maintain synchronization between modules, which is essential for real-time process control in industrial environments.

4. What role does it play during system expansion or modification?

During system expansion, additional I/O or control modules may need to be added to the left side of an existing rack. The Left Expander provides the necessary physical and electrical interface to connect these new modules into the existing communication backbone. This reduces the need for rewiring or redesigning the system, making expansion faster and more cost-effective.

5. How does electromagnetic interference affect its operation?

Electromagnetic interference (EMI) can introduce noise into communication signals, potentially leading to data corruption or transmission delays. Industrial environments often contain sources of EMI such as motors, drives, and switching equipment. The Left Expander is designed with stable transmission pathways that help reduce susceptibility to such interference, ensuring more reliable communication performance.

6. What problems may occur if a Left Expander is not properly installed?

Improper installation may lead to unstable communication between modules, intermittent signal loss, or failure of system synchronization. Loose connections or misalignment can introduce noise or disrupt the continuity of the local bus. These issues can affect overall system stability and may result in unreliable control behavior or module detection errors.

7. Does the Left Expander require regular maintenance?

The Left Expander is a passive component with no active electronic elements, making it highly reliable and generally maintenance-free. However, periodic inspection is recommended to ensure secure mounting, clean connectors, and absence of mechanical damage. Preventive checks help maintain long-term system stability and reduce the risk of unexpected communication issues.

8. Why is this component important in modern distributed control architectures?

Modern distributed control systems rely heavily on modular design and flexible scalability. The Left Expander enables these systems to grow without compromising communication structure or stability. It supports seamless integration of additional modules, ensures consistent data exchange, and helps maintain system integrity in complex industrial environments, making it a key component in scalable automation architectures.
