1. What is the primary function of the KJ4005X1-BB1 + KJ4005X1-BC1 Left and Right Extenders?

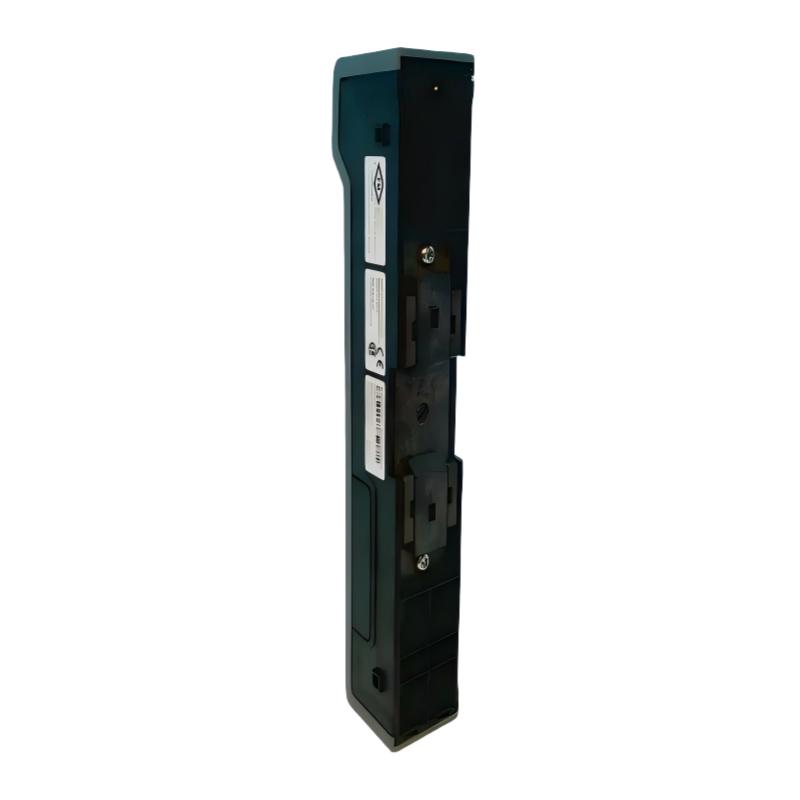

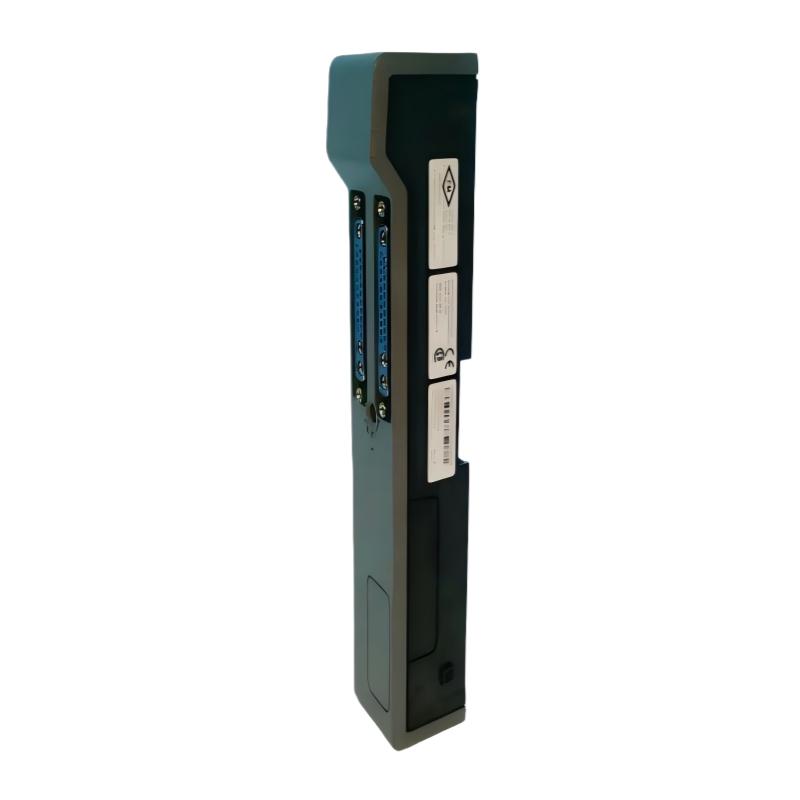

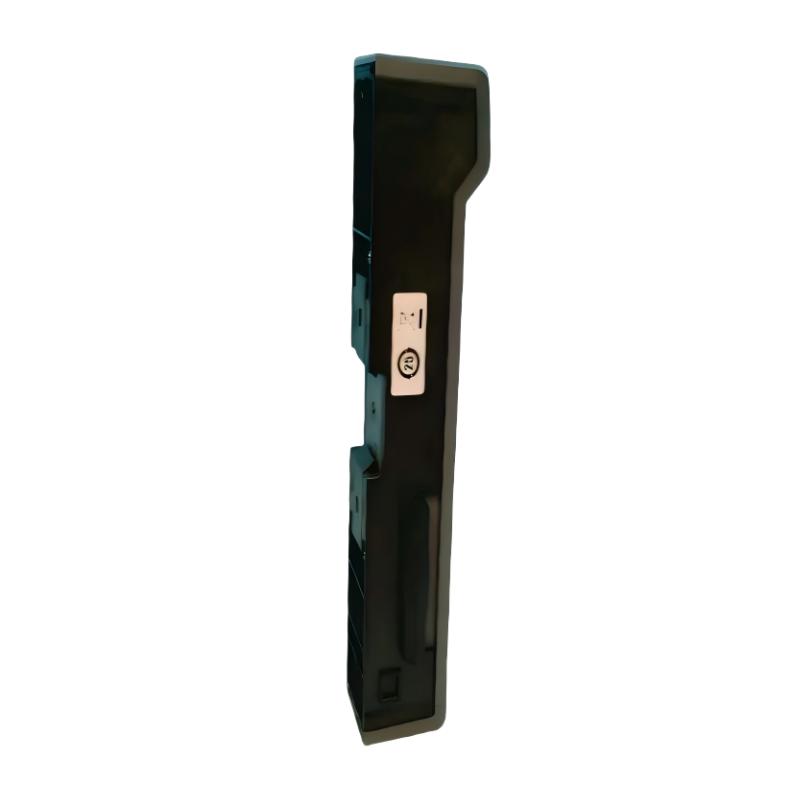

The KJ4005X1-BB1 and KJ4005X1-BC1 extender set is designed to expand the hardware configuration capability of an Emerson DeltaV distributed control system. The pair provides left-side and right-side extension capability, allowing additional system components to be connected while maintaining the original control architecture. In large industrial automation projects, system capacity often needs to be increased due to additional field devices, expanded production lines, or new process requirements. These extenders provide a structured method for extending the system layout, improving scalability while maintaining reliable communication between connected modules. By using dedicated expansion components, engineers can avoid complex redesigns and preserve the stability of the existing automation infrastructure.

2. Why are both left and right extenders used together in a DeltaV system?

The combination of left and right extenders provides a complete expansion solution for extending the physical arrangement of DeltaV hardware modules. Each extender has a specific position and role within the system architecture, ensuring that additional modules can be properly connected and recognized by the control platform. Using both sides together helps maintain mechanical alignment, electrical continuity, and reliable communication across the expanded system structure. This configuration is especially useful in applications where the number of required I/O modules exceeds the capacity of a standard installation and additional hardware space is required.

3. How does the extender set expand the DeltaV system capacity?

The extender set expands system capacity by extending the internal backplane connection between existing hardware sections and additional modules. Instead of adding complicated external wiring, the extenders maintain communication through the standardized system bus structure. This allows newly added components to exchange data with controllers and other system modules efficiently. The modular expansion method reduces engineering complexity, improves installation reliability, and makes future system upgrades easier. When a plant needs additional control points or I/O capability, the extender set provides a flexible way to increase system resources without replacing the existing control platform.

4. What are the main advantages of using dedicated DeltaV extenders instead of custom wiring solutions?

Dedicated DeltaV extenders provide several advantages compared with custom wiring approaches. They are specifically designed for compatibility with the DeltaV hardware architecture, ensuring proper mechanical fit, electrical connection, and communication performance. Custom wiring solutions may introduce additional connection points, increase installation complexity, and create more potential failure locations. By using standardized extender components, engineers can achieve a cleaner system layout, reduce commissioning time, simplify troubleshooting, and improve long-term system reliability. This modular design approach is particularly valuable in critical process industries where system availability is a priority.

5. What industries commonly use the KJ4005X1-BB1 and KJ4005X1-BC1 extender combination?

This extender combination is commonly used in industries that require reliable and scalable process control systems, including oil and gas, petrochemical processing, chemical production, power generation, pharmaceutical manufacturing, water treatment, and large industrial facilities. These industries typically operate complex processes with large numbers of sensors, transmitters, and control loops. As production requirements increase, additional automation hardware may be required. The extender set allows companies to expand their DeltaV infrastructure efficiently while maintaining stable operation and consistent control performance.

6. Does the extender set require system configuration before use?

Yes, proper hardware configuration and system planning are required before installation. Engineers must confirm the correct expansion arrangement, hardware compatibility, and system architecture before integrating the extenders into the DeltaV environment. After physical installation, the expanded hardware structure must be configured within the DeltaV engineering environment so that the system can correctly identify and communicate with the added components. Proper configuration ensures reliable operation, prevents communication issues, and allows the extended system to function as part of the original control platform.

7. How does the extender set improve system maintenance and future upgrades?

The modular design of the KJ4005X1-BB1 and KJ4005X1-BC1 simplifies maintenance and future expansion activities. When additional modules are required, engineers can extend the system using standardized components instead of making major modifications to the existing installation. During troubleshooting, the structured hardware arrangement makes it easier to identify connection problems and replace components efficiently. This reduces maintenance time and helps minimize production interruptions. The expandable architecture also allows plants to upgrade automation functions gradually according to operational needs and investment plans.

8. How does the extender set ensure reliable operation in industrial environments?

The KJ4005X1-BB1 and KJ4005X1-BC1 are designed for demanding industrial automation applications where stable communication and long-term reliability are essential. Their industrial-grade construction supports dependable electrical connections and consistent performance within DeltaV system architectures. The extenders help maintain signal integrity by using standardized backplane connections and reducing unnecessary external wiring. When installed correctly and operated with compatible DeltaV hardware, they can withstand typical industrial challenges such as electrical interference, continuous operation cycles, and changing environmental conditions, providing a reliable foundation for long-term control system expansion.
