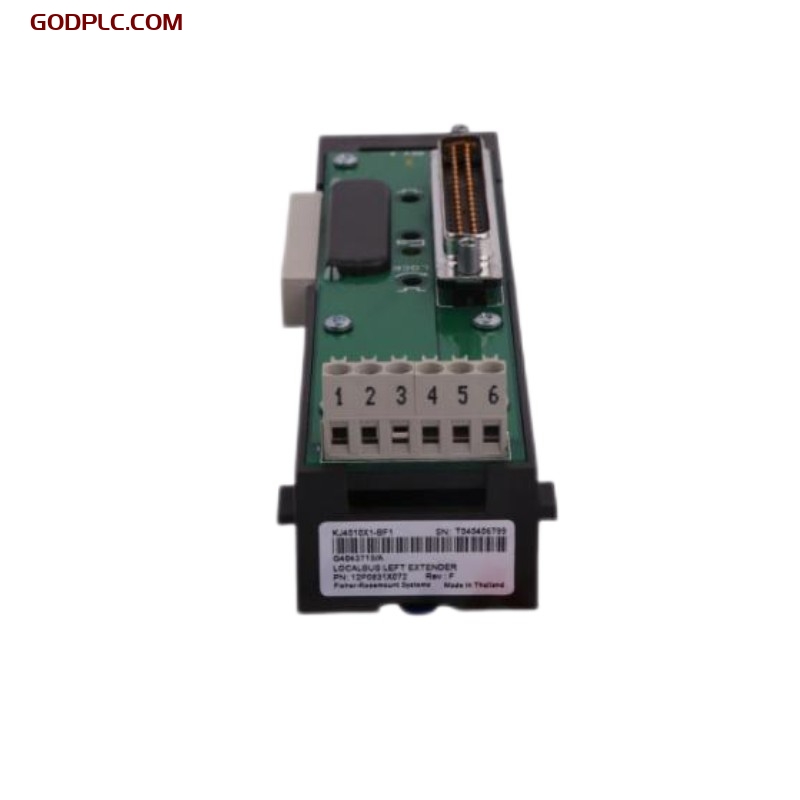

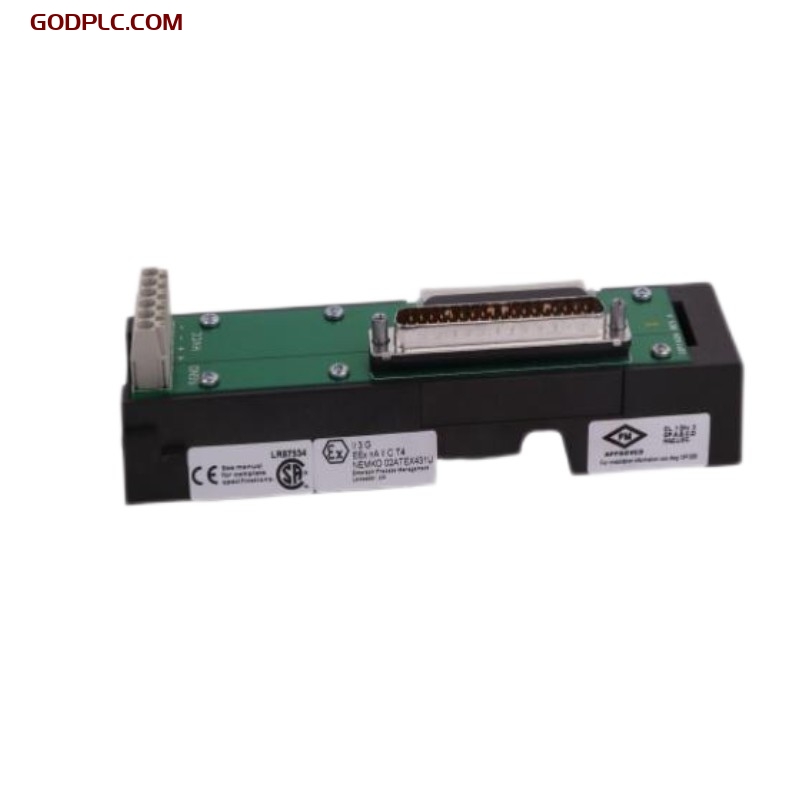

Emerson KJ4010X1-BF1 12P0831X062 DeltaV (M Series) Left Local Bus Extender Cable Assembly
1. Product Overview
The Emerson KJ4010X1-BF1 12P0831X062 DeltaV (M Series) Left Local Bus Extender Cable Assembly is a vital component designed to extend the communication capabilities of the DeltaV (M Series) system. This cable assembly facilitates seamless communication between local bus connections, ensuring reliable data transmission and supporting efficient control and automation in industrial processes.
The KJ4010X1-BF1 cable assembly provides the necessary interface for extending the local bus connection in the DeltaV system, enabling better flexibility for system installation and expansion. It is designed for use in a wide variety of industrial applications, including process control, automation systems, and monitoring solutions, providing a robust and dependable solution for extending communication links within the DeltaV network.
2. Key Features
-
High-Quality Construction: Designed with premium materials for optimal performance and durability.
-
Flexible Cable Design: Supports seamless communication between DeltaV M Series controllers, ensuring reliable data flow.
-
Easy Integration: Compatible with existing DeltaV M Series systems, ensuring easy installation and setup.
-
Enhanced Communication: Facilitates extended local bus connections for larger or more complex systems.
-
Durable and Reliable: Built to withstand industrial environments and maintain consistent performance over time.
-
Plug-and-Play Operation: Quick and easy integration with no need for additional configuration or setup.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 300mm x 200mm x 100mm |
| Weight | 2.5 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | KJ4010X1-BF1 12P0831X062 |
| Manufacturer | Emerson Process Management |
| Product Type | Local Bus Extender Cable Assembly |
| Mounting | Easily integrated with DeltaV M Series systems |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Requirements | Powered via DeltaV system interface |
| Maximum Voltage | 24 V DC |
| Cable Type | Shielded cable for signal integrity |
| Data Transmission | Supports high-speed communication between controllers |
3.4 Environmental Specifications
| Item | Specification |
|---|---|
| Sealing | Fully sealed to prevent ingress of dust or moisture |
| Temperature Range | -20°C to +70°C |
| Cable Durability | Built for industrial-grade environmental resilience |
3.5 Approvals
| Item | Specification |
|---|---|
| UL Certified | Yes |
| CE Mark | Yes |
| RoHS Compliant | Yes |
4. Industry Applications
The Emerson KJ4010X1-BF1 12P0831X062 DeltaV Left Local Bus Extender Cable Assembly is ideal for various industrial applications where reliable, extended communication between control systems is essential:
-
Process Control: Extends communication links in process automation systems, supporting seamless data transmission between controllers and other networked devices.
-
Oil and Gas: Used in offshore and onshore operations to extend communication networks for control systems managing pumps, compressors, and valves.
-
Chemical and Pharmaceutical: Enables robust communication between different sections of automation systems, ensuring precise control over chemical processes and batch operations.
-
Power Generation: Facilitates reliable data transfer between control units for monitoring and control of turbines, boilers, and electrical grids.
-
Manufacturing: Ensures extended communication for manufacturing execution systems (MES), optimizing plant performance and control.
The Emerson KJ4010X1-BF1 12P0831X062 DeltaV Left Local Bus Extender Cable Assembly is essential for industrial networks requiring efficient, reliable, and high-speed communication links across complex automation and control systems.
