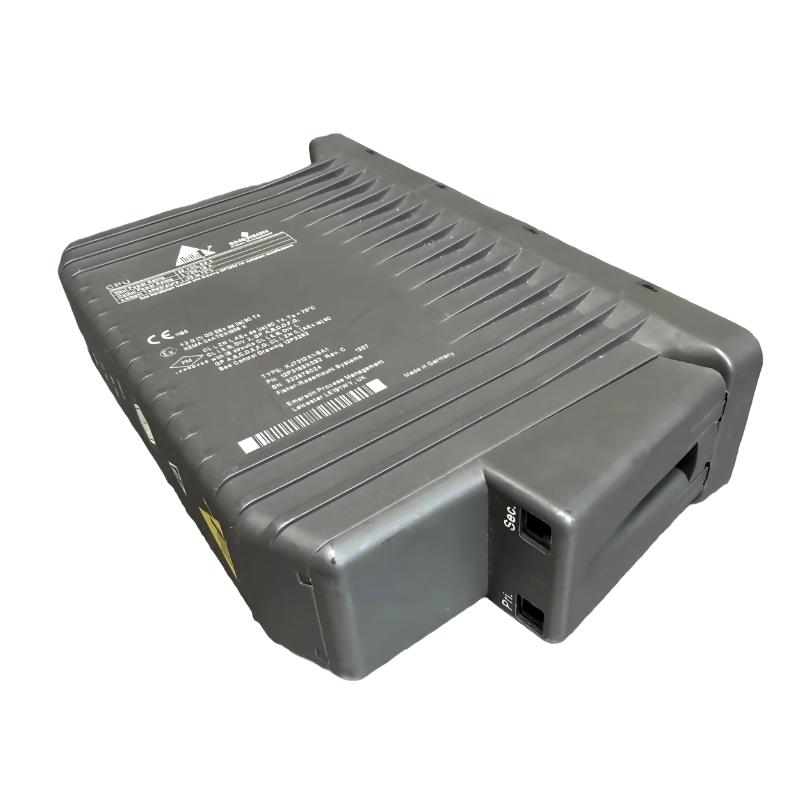

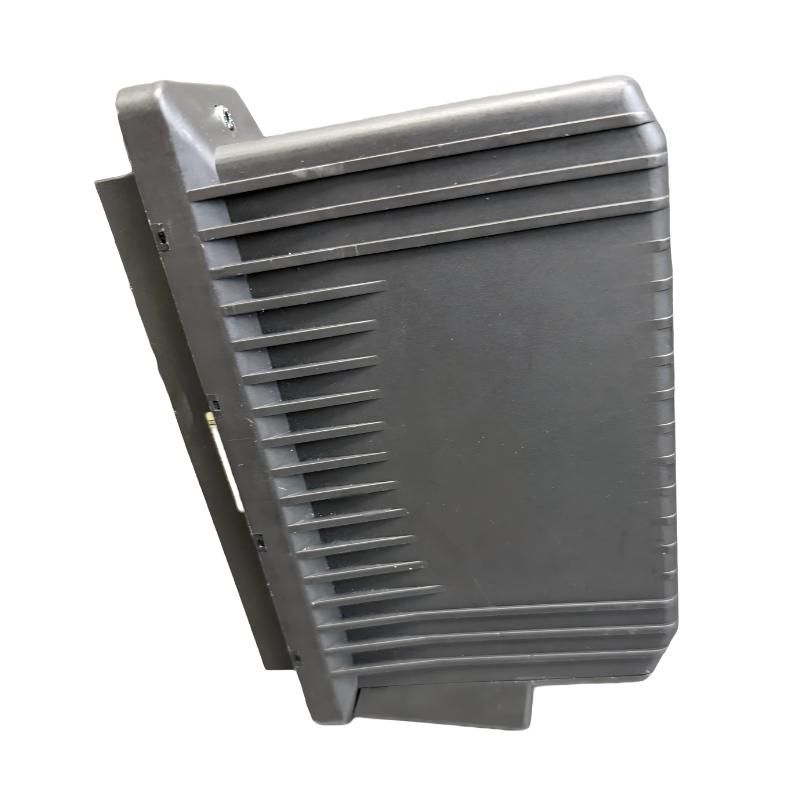

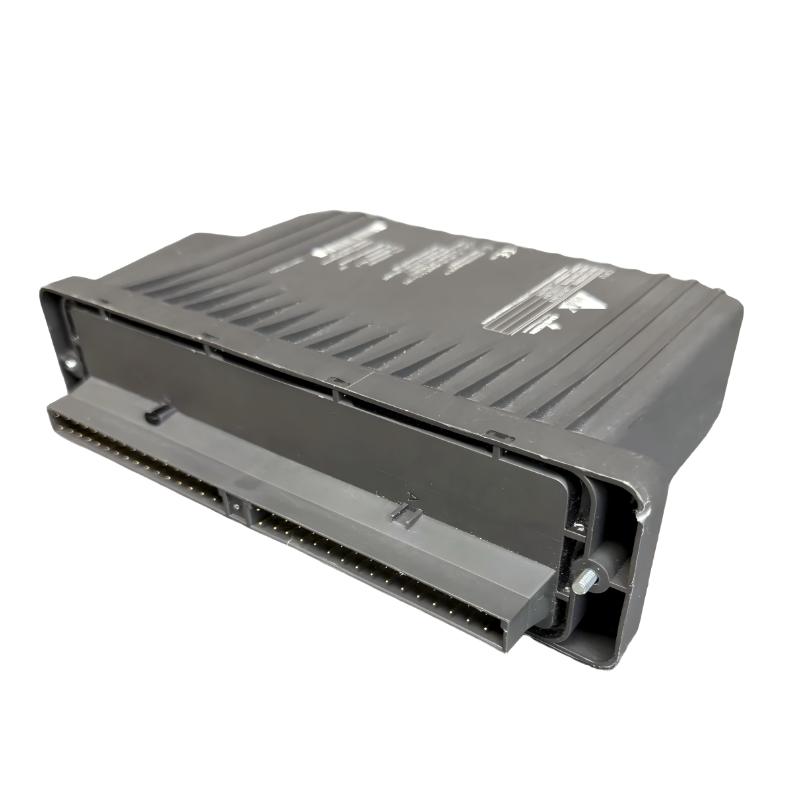

Q1: What is the primary function of the Emerson KJ7012X1-BA1 CPU Module?

The KJ7012X1-BA1 CPU Module is the central processing unit of the Emerson Emerson DeltaV control system. Its primary function is to execute control logic, process real-time input data from I/O modules, and generate corresponding control outputs. It acts as the “decision-making brain” of the entire system, continuously monitoring process conditions and executing control strategies such as PID loops, interlocks, and sequential control logic. Without this module, the system would not be able to perform any coordinated automation or process control tasks.

Q2: Where does the CPU module sit in the system architecture?

The CPU module is located at the core of the control layer in a distributed control system. It sits between the supervisory system (operator stations and engineering tools) and the field I/O layer. It continuously receives process data from I/O modules, processes it according to configured control strategies, and sends output commands back to field devices through the I/O system. This central position makes it responsible for all real-time decision-making in the control architecture.

Q3: What types of control strategies does this CPU support?

The module supports a wide range of industrial control strategies, including PID control loops for continuous regulation, sequential control for batch and step-based operations, logic-based interlocks for safety systems, and alarm handling for abnormal process conditions. These capabilities allow it to handle both simple regulatory control and complex process automation scenarios in industrial plants.

Q4: How does the CPU module achieve real-time deterministic control?

The CPU module uses a deterministic scheduling mechanism to ensure that all control tasks are executed within strict time cycles. Input data acquisition, control algorithm execution, and output generation are all performed in a predictable sequence. This ensures that control responses are consistent and repeatable, which is essential for maintaining process stability in fast-changing industrial environments.

Q5: What role does redundancy play in this CPU module?

In redundant configurations, two CPU modules are installed—one active and one standby. The standby unit continuously synchronizes with the active CPU, mirroring its state and control logic. If the active CPU fails, the standby module takes over immediately without interrupting the control process. This design significantly improves system availability and is commonly used in critical industries such as oil & gas, power generation, and chemical processing.

Q6: What are the key installation considerations?

Installation must be performed under safe system conditions to avoid electrical damage or data corruption. The module must be properly seated into the controller rack to ensure secure backplane communication. Adequate grounding of the control cabinet is essential to reduce electromagnetic interference. In redundant systems, both CPUs must be configured consistently to ensure seamless synchronization.

Q7: What happens if the CPU module fails?

If the CPU module fails in a non-redundant system, the entire control station will stop functioning, leading to loss of control over field devices, halted data processing, and system alarms. In a redundant configuration, the standby CPU immediately takes over control responsibilities, minimizing downtime and preventing process disruption. This makes redundancy a critical feature in high-availability environments.

Q8: Why is the CPU module the most critical component in a DCS system?

The CPU module is the core of the entire control system because it executes all automation logic and coordinates all system components. While I/O modules handle signal acquisition and output, they cannot make decisions independently. The CPU integrates all process data, applies control strategies, and ensures synchronized system behavior. Its performance directly determines system responsiveness, stability, and reliability, making it the most essential component in industrial automation architecture.
