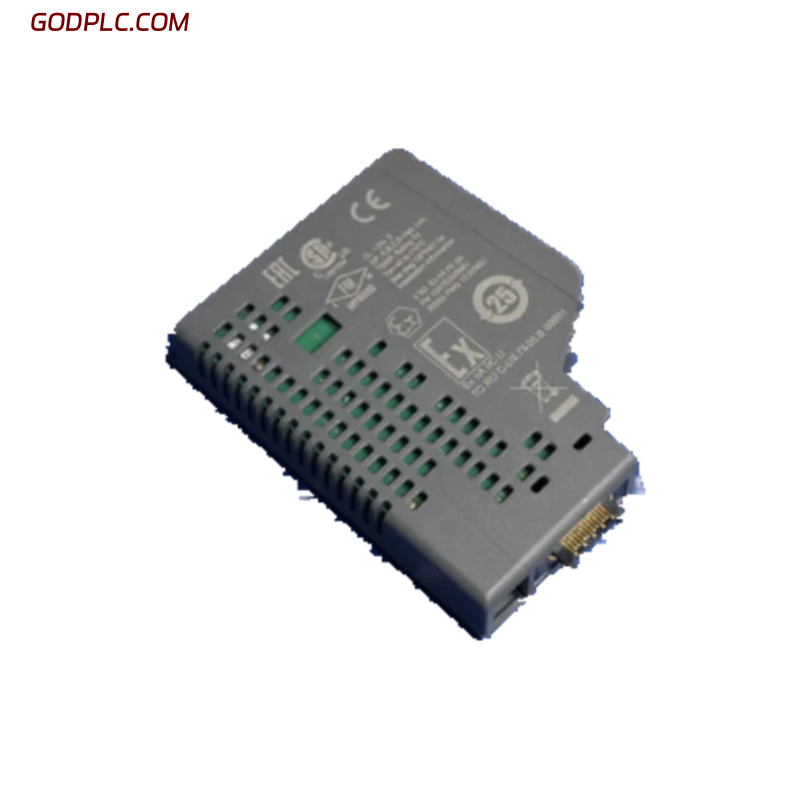

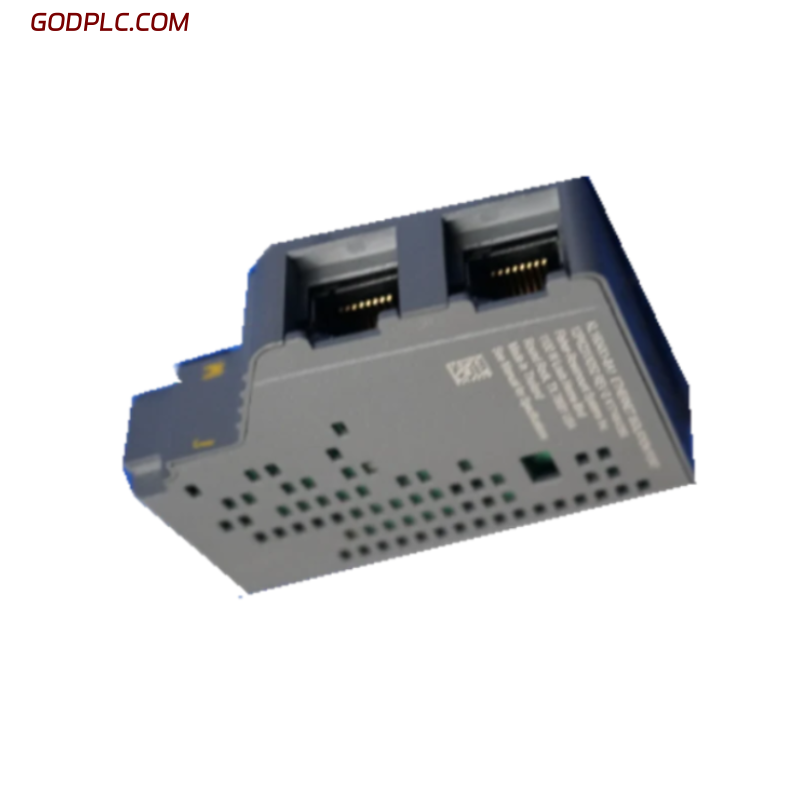

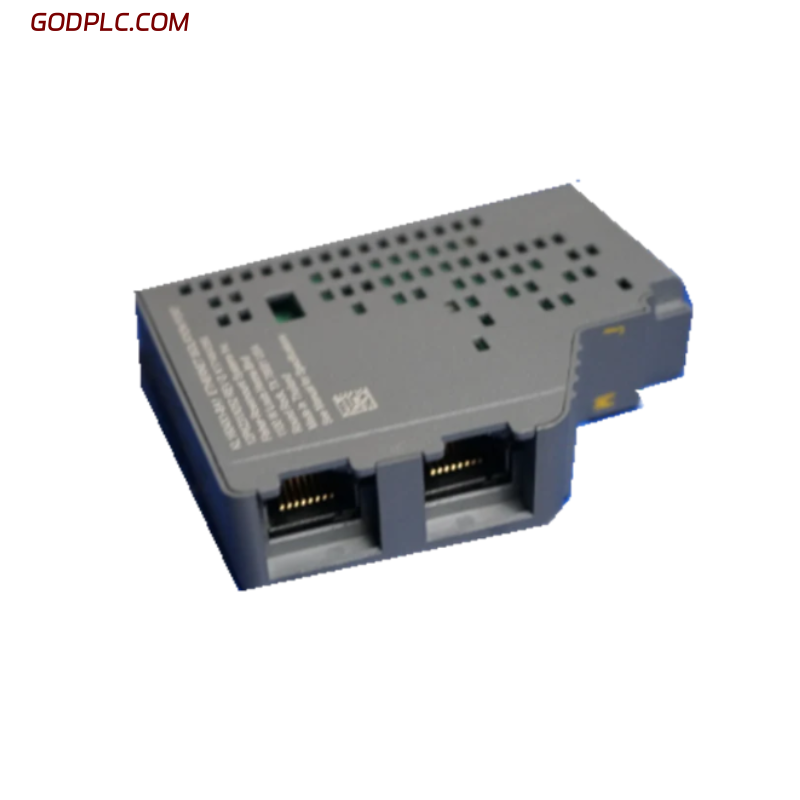

Emerson KL1604X1-BA1 Ethernet Isolated Port
Product Overview
The Emerson KL1604X1-BA1 is an industrial-grade Ethernet isolated port module designed to ensure safe and reliable communication in control and automation networks. It provides galvanic isolation between the Ethernet interface and system logic, protecting critical control components from ground loops, electrical noise, and transient voltage surges. Ideal for use in distributed control systems (DCS), programmable logic controllers (PLCs), and SCADA applications, this module helps maintain signal integrity and improves overall network reliability in harsh industrial environments.
Key Features
-
Ethernet Communication Interface – Supports high-speed, deterministic communication for industrial control networks
-
Galvanic Isolation – Provides electrical isolation between Ethernet lines and control logic, reducing noise and interference
-
Robust EMI Protection – Designed to operate reliably in environments with high electromagnetic interference
-
Compact Design – Easily integrates into control panels and distributed architectures
-
Enhanced Reliability – Reduces risk of damage due to electrical faults or transients
-
Wide Operating Range – Supports industrial-grade temperature and humidity conditions
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 110 x 80 x 30 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Interface Type | Ethernet (10/100 Mbps) |
| Isolation Voltage | ≥1500 V RMS (Ethernet to logic) |
| Power Supply | 24 VDC (typical), low power consumption |
| Surge Protection | Integrated transient voltage suppressors |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Class | IP20 (with proper enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform Compatibility | Emerson DCS and third-party controllers |
| Protocol Support | Standard Ethernet (IEEE 802.3) |
| Mounting Type | DIN rail compatible |
Industry Applications
-
Distributed Control Systems (DCS) – Ensures isolated and stable Ethernet communication in process industries
-
Industrial Automation – Enhances communication integrity in PLC and HMI networks
-
Power Generation and Utilities – Protects control systems from electrical interference in substations
-
Oil & Gas – Enables secure and reliable data communication in hazardous or remote locations
-
Water/Wastewater Treatment – Maintains network uptime in high-moisture and EMI-sensitive environments
The Emerson KL1604X1-BA1 Ethernet Isolated Port provides robust protection and reliable performance for Ethernet-based control systems. Its isolation capability and industrial durability make it a valuable component for maintaining safe and stable data communication across a wide range of industrial applications.
Emerson KL1604X1-BA1 Ethernet Isolated Port is in stock. Please contact us for a quick quote and competitive pricing.
