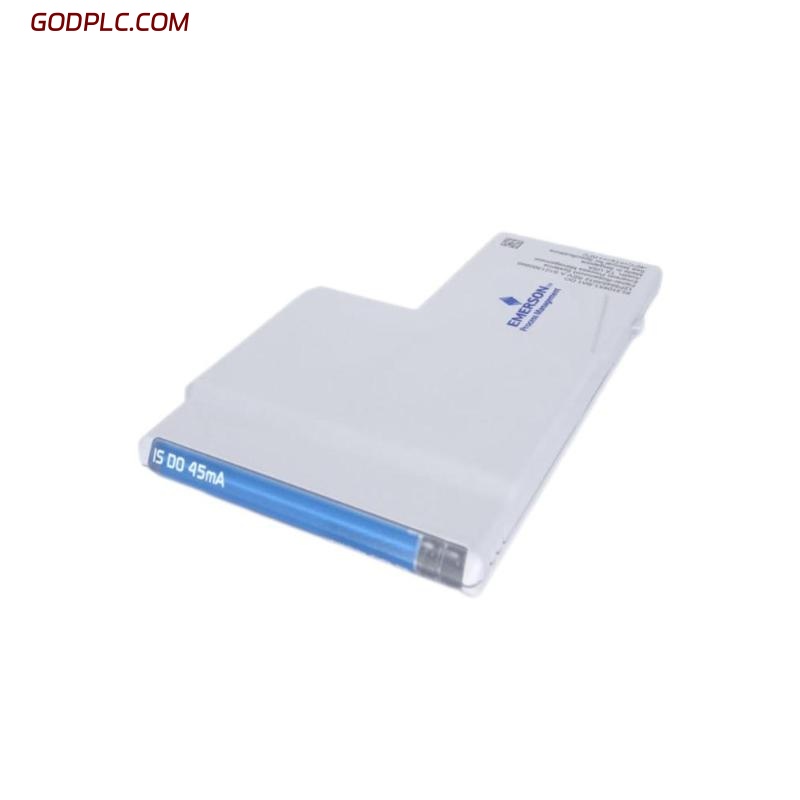

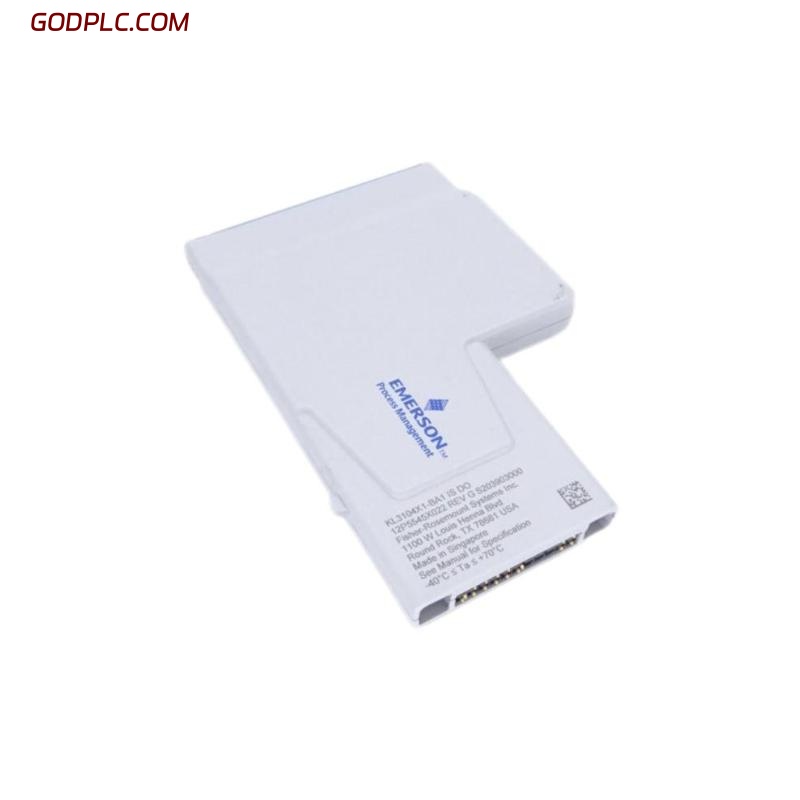

Emerson KL3104X1-BA1 Digital Output CHARM Module
Product Overview
The Emerson KL3104X1-BA1 Digital Output CHARM Module is a part of Emerson’s innovative CHARMs (Common Architecture for Real-time Monitoring) system, designed to provide reliable, high-speed digital outputs for industrial control applications. This module is ideal for controlling actuators, relays, and other field devices that require precise on/off signals in automation systems. With robust construction and seamless integration into Emerson’s control platforms, the KL3104X1-BA1 ensures efficient and accurate output control in various industrial settings, including process control, machine automation, and energy management.
Key Features
-
Four Digital Outputs – Provides four independent, individually configurable digital outputs, allowing flexible control of multiple field devices from a single module.
-
High-Speed Switching – Delivers fast switching times for real-time control of equipment, making it suitable for applications requiring quick response times.
-
Wide Voltage Range – Supports a broad voltage range (24 VDC), compatible with most industrial devices, ensuring versatility in diverse applications.
-
Fail-Safe Operation – Designed with fault-tolerant mechanisms to ensure safe operation and minimize system downtime in the event of a fault.
-
Compact and Space-Efficient – The slim form factor ensures optimal use of panel space, supporting the installation of multiple modules in confined spaces.
-
Easy Integration – Seamlessly integrates with Emerson’s DeltaV™ system and other compatible platforms, enabling quick setup and efficient operation.
-
Built-In Diagnostics – Features built-in diagnostic functions to monitor the health of the module and the connected devices, ensuring operational reliability.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 7.62 x 76.2 x 114.3 mm |
| Weight | 0.031 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Voltage | 24 VDC ± 10% |
| Output Current | 0.5 A per channel (max.) |
| Switching Time | < 5 ms |
| Output Channels | 4 (individual control per channel) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | 5 g (continuous), 25 g (shock) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Emerson DeltaV™ and other Emerson control systems |
| Mounting | Suitable for DIN rail mounting |
Industry Applications
-
Process Control – Controls actuators, valves, and relays in chemical, oil & gas, and power plants, ensuring precise output signals for automation processes.
-
Machine Automation – Provides reliable output control for machines and automated equipment in production lines, ensuring operational efficiency and minimal downtime.
-
Energy Management – Used to control devices such as energy meters, circuit breakers, and energy-saving actuators in large-scale energy management systems.
-
Building Automation – Essential for controlling field devices like lights, HVAC systems, and security devices in commercial and industrial buildings.
-
Water & Wastewater Treatment – Used to control pumps, solenoids, and other equipment in water treatment facilities, helping maintain system efficiency and safety.
The Emerson KL3104X1-BA1 Digital Output CHARM Module offers a reliable, compact, and versatile solution for industrial digital output control. Its ability to integrate seamlessly with Emerson’s control systems, along with its high-speed switching and diagnostic capabilities, makes it an ideal choice for real-time automation applications across a range of industries.
Emerson KL3104X1-BA1 Digital Output CHARM Module is in stock. Please contact us for a quick quote and competitive pricing.
