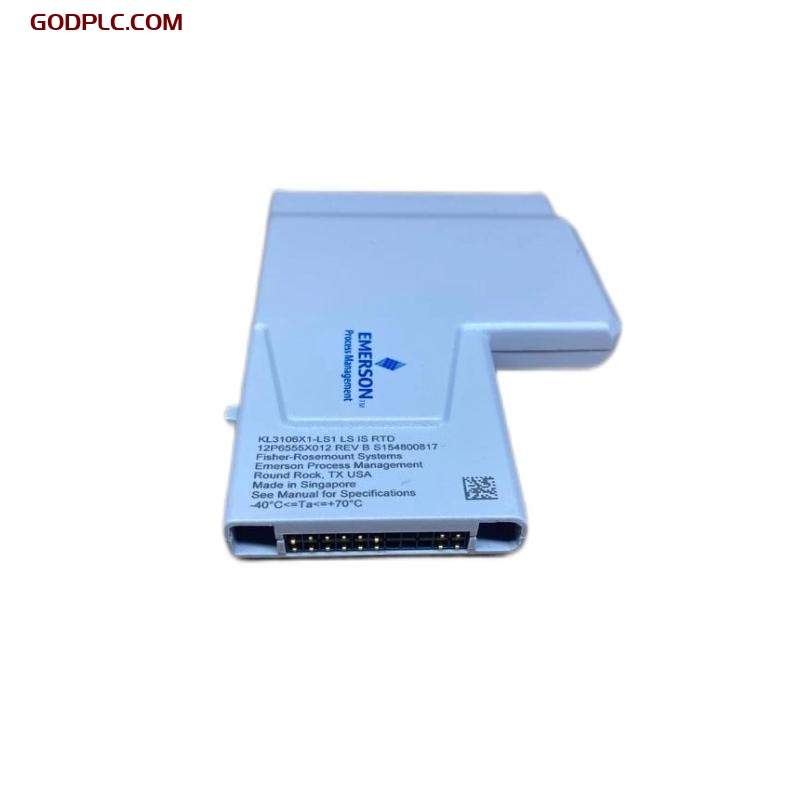

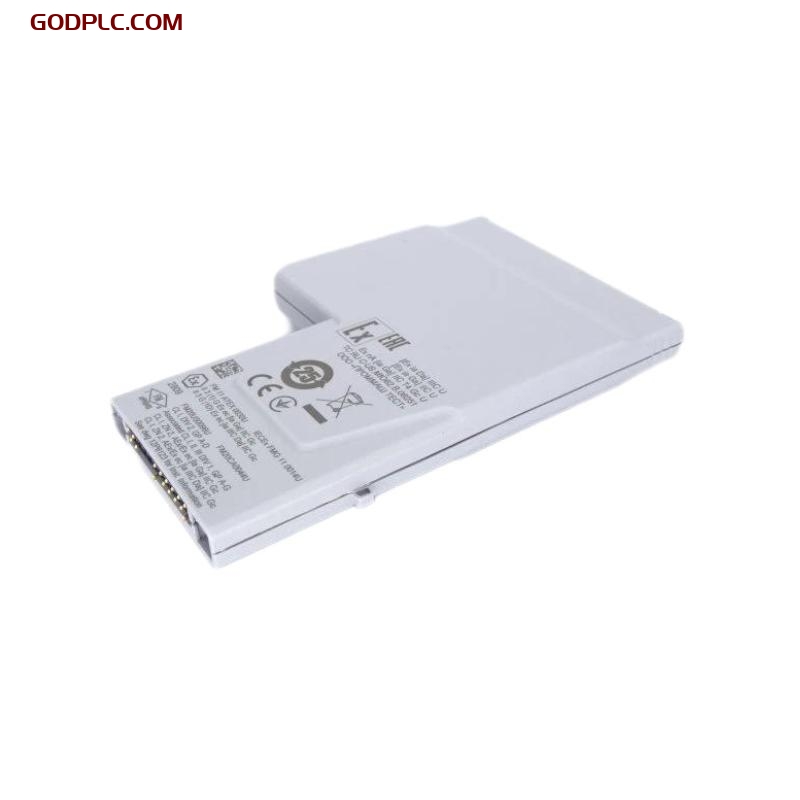

Emerson KL3106X1-LS1 RTD PLC Module

Product Overview

The Emerson KL3106X1-LS1 RTD PLC Module is an essential component of the Emerson DeltaV™ Distributed Control System (DCS), specifically designed to provide accurate temperature measurement and control in industrial automation applications. The RTD (Resistance Temperature Detector) module interfaces directly with temperature sensors to convert their signals into digital data that can be processed by the control system, enabling precise and real-time temperature monitoring.

This module is ideal for industries such as chemical processing, oil and gas, power generation, and pharmaceuticals, where temperature control is critical to the safety, quality, and efficiency of operations. The KL3106X1-LS1 module supports multiple RTD sensors and is engineered to withstand the demanding conditions often found in industrial environments.

With its high accuracy, fast response time, and seamless integration with the DeltaV™ DCS, the KL3106X1-LS1 is perfect for applications requiring consistent and reliable temperature monitoring and control.

Key Features

• High-Accuracy Temperature Measurement – Provides precise temperature readings by interfacing with RTD sensors, ensuring accurate data for process control

• Wide RTD Sensor Compatibility – Supports a variety of RTD types, including 2-wire, 3-wire, and 4-wire configurations, offering flexibility in temperature measurement applications

• Real-Time Monitoring – Fast data conversion from RTD signals to digital values, enabling real-time monitoring of critical temperature parameters

• Seamless Integration – Fully compatible with Emerson DeltaV™ DCS, allowing for easy integration into existing control systems and ensuring minimal configuration time

• Industrial Durability – Built to operate in harsh environments, the KL3106X1-LS1 module is designed to endure extreme temperatures, vibration, and other challenging industrial conditions

• Advanced Diagnostics – Includes built-in diagnostic tools for system health monitoring, ensuring proactive maintenance and reducing the risk of unplanned downtime

• Flexible Configuration – Supports multiple sensor configurations and allows for easy configuration through DeltaV™ software for tailored setups

• Compact and Space-Efficient Design – Optimizes space utilization in control panels or racks, making it ideal for installations with limited space

• High Availability – Features redundancy options for high-availability applications, ensuring continuous operation even in critical environments

Technical Specifications

3.1 Mechanical Specifications

3.2 Electrical Specifications

3.3 Environmental Specifications

3.4 System Compatibility

Industry Applications

• Chemical Processing – Monitors and controls the temperature of reactors, distillation columns, and piping systems, ensuring efficient and safe operation in chemical plants

• Oil & Gas – Provides accurate temperature measurement in refineries, offshore platforms, and pipelines, maintaining safe operations in demanding environments

• Power Generation – Monitors the temperature of critical components such as turbines, boilers, and generators, ensuring efficient energy production and compliance with safety regulations

• Pharmaceuticals – Ensures the control of temperature-sensitive processes, such as batch reactors, fermentation systems, and storage conditions, maintaining high product quality and safety standards

• Food & Beverage – Controls the temperature of pasteurizers, cooking systems, and cooling equipment, ensuring quality control and regulatory compliance in food production

The Emerson KL3106X1-LS1 RTD PLC Module is a vital component in the DeltaV™ DCS, offering high-precision temperature measurement and seamless integration with various industrial control systems. Its flexibility, reliability, and ease of use make it the ideal choice for industries requiring accurate temperature control in demanding environments.
