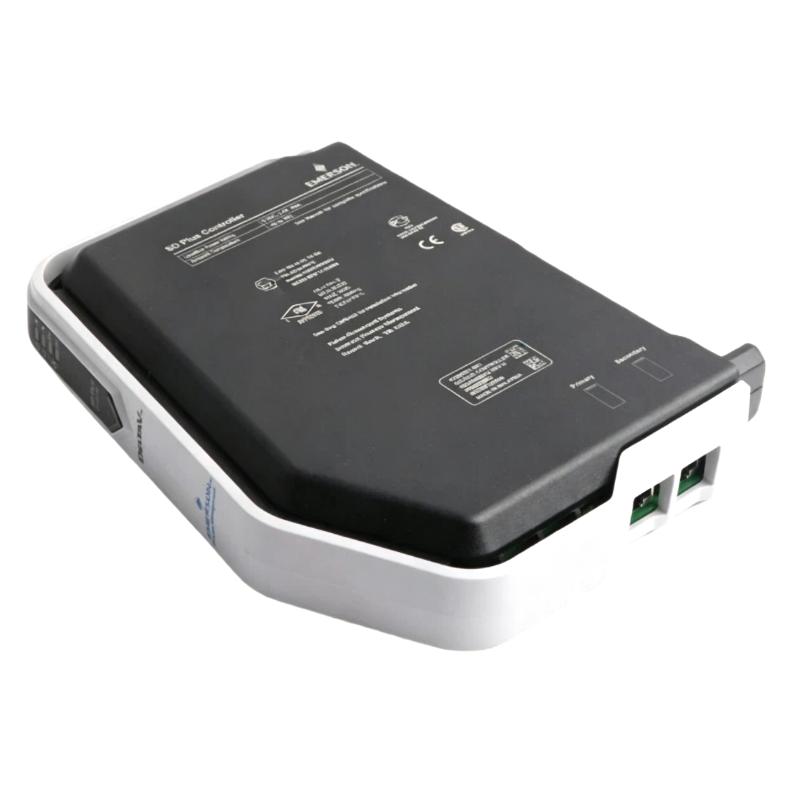

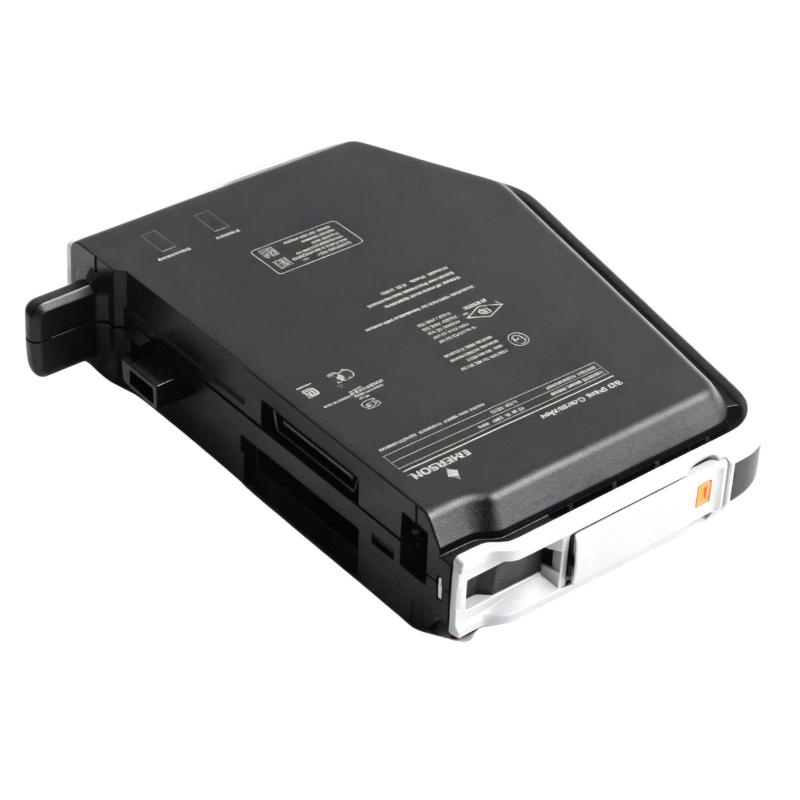

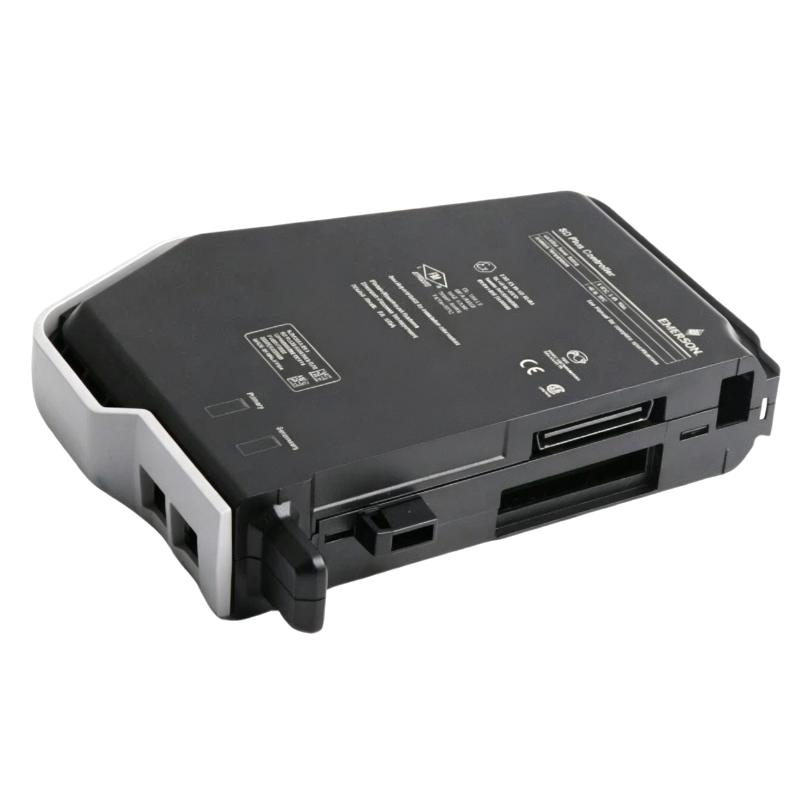

Q1: What is the primary function of the Emerson SE3006 SD PLUS Controller?
A: The SE3006 SD PLUS Controller is the central processing unit of a distributed control system, responsible for executing real-time control logic and coordinating communication between field I/O systems and supervisory layers. Its primary function is to continuously monitor process data from sensors and instruments, execute control strategies such as PID loops, sequence logic, and interlocks, and then generate corresponding output commands to maintain stable and efficient industrial operations. In essence, it acts as the “decision-making core” of the automation system, ensuring that complex industrial processes operate safely, consistently, and within defined operational parameters. It is widely used in environments where precise and uninterrupted process control is essential.

Q2: How does the SE3006 fit into a DeltaV or SD Plus control architecture?
A: In a DeltaV or SD Plus architecture, the SE3006 operates as the central controller within the control layer of the system. It communicates downward with I/O modules that interface with field devices and upward with operator workstations and supervisory systems. The controller receives real-time process data from I/O modules, processes this data according to configured control strategies, and sends control outputs back through the same I/O network. This layered architecture ensures that the controller focuses exclusively on deterministic control execution while other system components handle visualization, configuration, and data archiving. This separation of responsibilities improves scalability, reliability, and maintainability.

Q3: What types of control strategies can the SE3006 execute?
A: The SE3006 supports a wide range of industrial control strategies commonly used in process automation. These include continuous control loops such as PID regulation for maintaining variables like pressure, temperature, and flow, as well as sequential control logic for batch processes and step-by-step operations. It also supports interlock logic for safety and protection functions, alarm handling for abnormal process conditions, and coordinated multi-loop control for complex plant operations. This flexibility allows it to be used in both simple process control applications and highly complex integrated plant systems.

Q4: Does the SE3006 directly connect to field instruments?
A: No, the SE3006 does not directly interface with field instruments such as sensors, transmitters, or actuators. Instead, it communicates with dedicated I/O modules that handle all physical signal connections. These I/O modules acquire raw analog or digital signals from field devices, perform necessary signal conditioning and conversion, and then transmit processed data to the controller. The SE3006 processes this data and sends control commands back through the same I/O infrastructure. This separation improves system modularity and reduces wiring complexity while enhancing overall system reliability.

Q5: What happens if communication between the controller and I/O system is interrupted?
A: If communication between the SE3006 and I/O modules is interrupted, the system will typically detect the failure through built-in diagnostic mechanisms and generate alarms to notify operators. Depending on system configuration, the controller may place outputs into a predefined safe state to ensure process safety. In redundant configurations, a backup controller may automatically take over control functions to maintain uninterrupted operation. The system is designed to minimize process disruption and ensure safe handling of communication failures, which is critical in industrial environments where downtime or instability can have significant consequences.

Q6: Is the SE3006 suitable for redundant control configurations?
A: Yes, the SE3006 is designed to support redundant architectures in many industrial deployments. In a redundant setup, two controllers operate in parallel: one active and one standby. The standby controller continuously synchronizes with the active unit, maintaining an up-to-date process state. If the active controller fails or becomes unavailable, the standby unit seamlessly takes over without interrupting control operations. This redundancy significantly increases system availability and is particularly important in industries where continuous operation is required, such as refining, power generation, and chemical processing.

Q7: In which industries is the SE3006 typically used?
A: The SE3006 SD PLUS Controller is widely deployed in process industries that require high reliability and continuous control. These include oil and gas production facilities, petrochemical refineries, chemical processing plants, power generation stations, pharmaceutical manufacturing facilities, and large-scale water treatment systems. In these environments, the controller ensures stable operation of complex processes, supports safety instrumented functions, and enables efficient production through precise real-time control. Its robustness and scalability make it suitable for both small installations and large integrated industrial plants.

Q8: What are the main advantages of using a distributed control system controller like the SE3006?
A: The SE3006 offers several key advantages inherent to distributed control system architecture. First, it provides high reliability by distributing control functions across multiple system components, reducing the risk of a single point of failure. Second, it delivers real-time deterministic control, ensuring that process adjustments are executed with consistent timing and accuracy. Third, it supports scalability, allowing additional controllers, I/O modules, and system components to be integrated as plant requirements grow. Finally, it improves maintainability and operational flexibility by separating control logic from field wiring and operator interfaces, enabling easier troubleshooting, upgrades, and system optimization in complex industrial environments.
