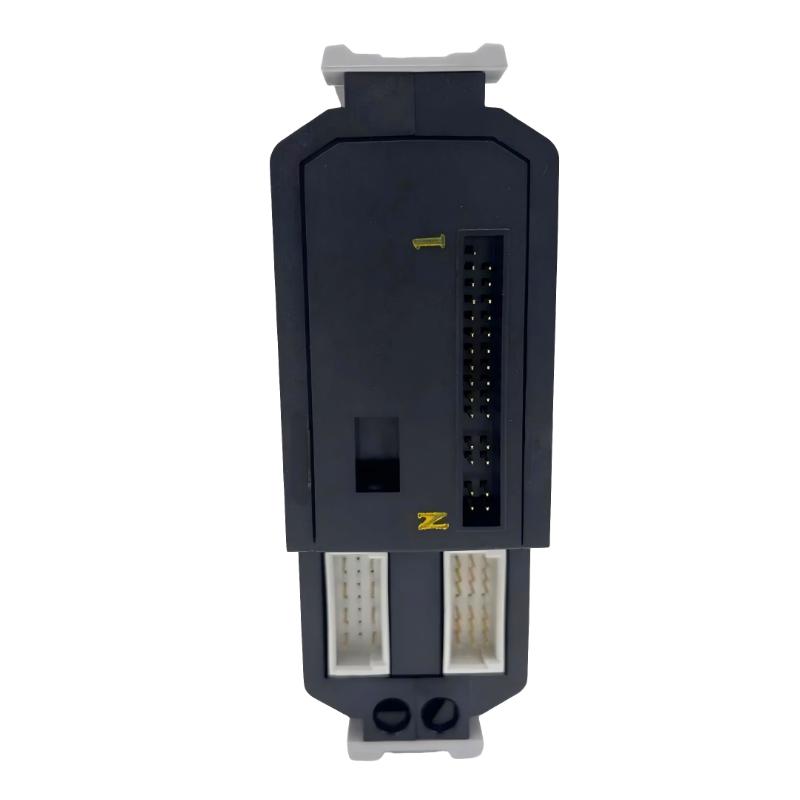

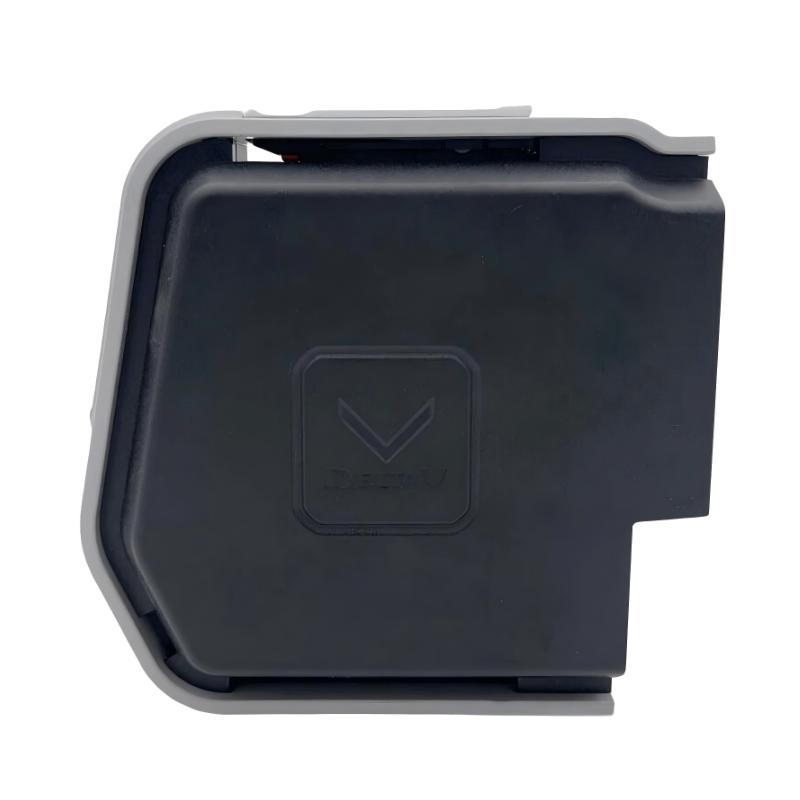

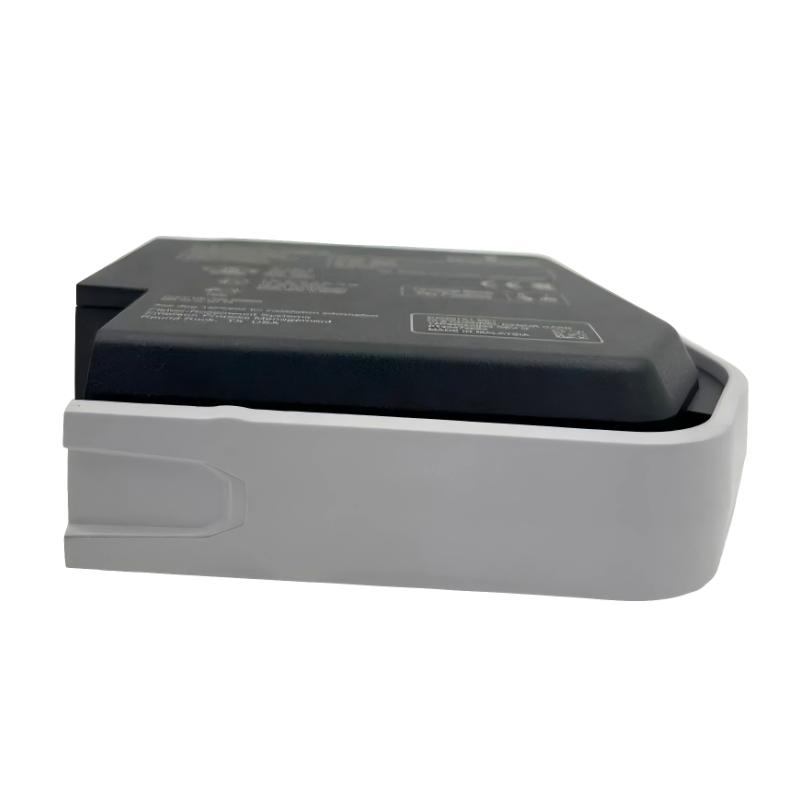

1. What is the primary function of the SE4001S2T1B2 Discrete Input Card?

The SE4001S2T1B2 discrete input card is designed to collect digital on/off signals from field devices and convert them into data that can be processed by the DeltaV control system. These signals represent equipment states such as running or stopped, open or closed, healthy or faulted. In practical industrial automation systems, this module acts as the interface between physical plant equipment and the control logic layer. It ensures that every relevant status change in the field is accurately captured and communicated to the controller in real time, enabling proper execution of interlocks, sequencing logic, and alarm handling.

2. Why are discrete input cards critical in process control systems?

Discrete input cards are essential because a large portion of industrial automation relies on binary state information rather than continuous measurements. Equipment status signals, safety interlocks, and permissive conditions are all represented as discrete inputs. Without reliable acquisition of these signals, the control system would lose visibility into the actual state of the plant. The SE4001S2T1B2 ensures that these signals are consistently and accurately read, which is fundamental for safe operation, correct sequencing, and coordinated process control across the entire system.

3. How does this module provide electrical protection and isolation?

The module incorporates electrical isolation between the field wiring side and the system electronics. This isolation prevents electrical disturbances such as voltage spikes, grounding faults, and electromagnetic noise from reaching the control system backplane. In industrial environments where motors, drives, and switching devices are common, such protection is critical. If a wiring fault occurs on the field side, the isolation barrier ensures that the damage is contained locally, protecting the controller and other system modules from being affected.

4. What types of field devices are compatible with this input card?

The SE4001S2T1B2 is compatible with a wide range of discrete field devices that generate on/off signals. These include mechanical limit switches, push buttons, proximity sensors, pressure switches, relay contacts, motor auxiliary contacts, and emergency stop circuits. It supports both dry contact and wet contact configurations, allowing flexible integration into different industrial control architectures. This versatility makes it suitable for use across many industries and applications.

5. How does the module interact with the DeltaV system architecture?

The module is directly connected to the DeltaV system backplane, which serves as the communication and power distribution backbone. Once a field signal is detected, it is processed internally and transmitted via the backplane to the controller. The controller then uses this information to execute control logic such as interlocking, sequencing, or alarm generation. This tight integration ensures fast and reliable communication between field devices and the control system, enabling coordinated real-time operation.

6. Why is fast response important for discrete input modules?

Fast response is essential because many discrete signals represent critical events that require immediate system reaction. For example, an emergency stop signal or a safety interlock must be processed without delay to prevent unsafe conditions. The SE4001S2T1B2 is designed with fast signal processing characteristics to ensure that changes in field status are detected and transmitted promptly. This minimizes reaction time and helps maintain safe and stable operation of industrial processes.

7. What role do diagnostics play in improving system reliability?

Diagnostics continuously monitor the health of each input channel, including signal status, wiring integrity, and abnormal conditions. If issues such as open circuits, short circuits, or inconsistent signal behavior are detected, the module reports these conditions to the control system. This allows maintenance teams to identify and address problems before they lead to system failure or process disruption. Over time, diagnostic data also supports predictive maintenance strategies, helping improve overall system reliability and reduce unexpected downtime.

8. What maintenance practices are recommended for long-term stable operation?

To ensure long-term reliability, regular inspection of field wiring connections is necessary to confirm that terminals remain secure and free from corrosion or damage. The control cabinet environment should be kept clean, dry, and properly ventilated to minimize environmental stress on electronic components. System diagnostic logs should be reviewed periodically to detect early signs of signal instability or wiring issues. Proper grounding and shielding practices should always be maintained to reduce electromagnetic interference, which helps ensure stable and accurate signal acquisition throughout the module’s operational life.
