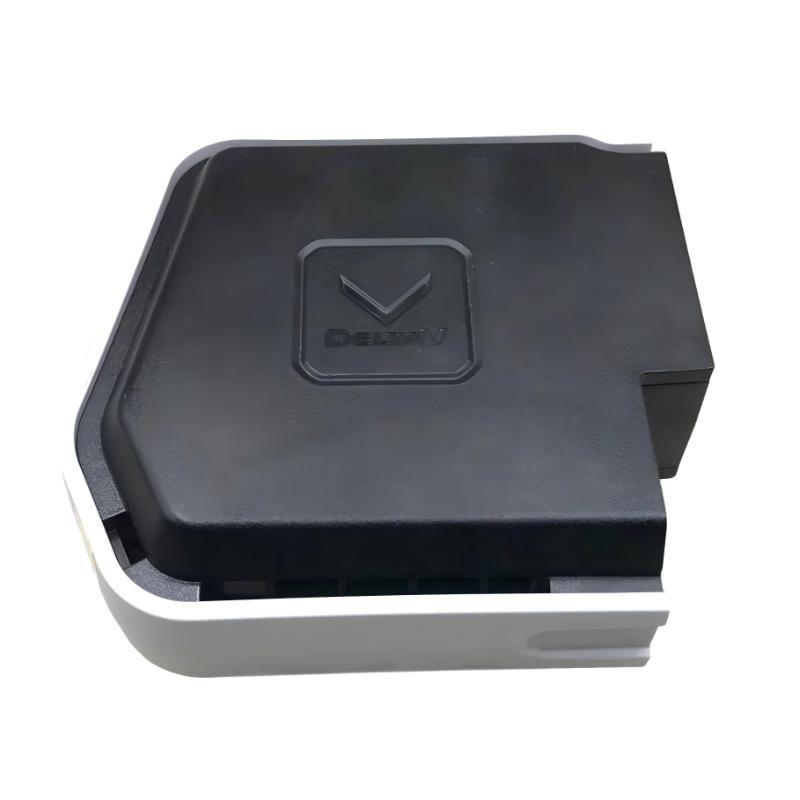

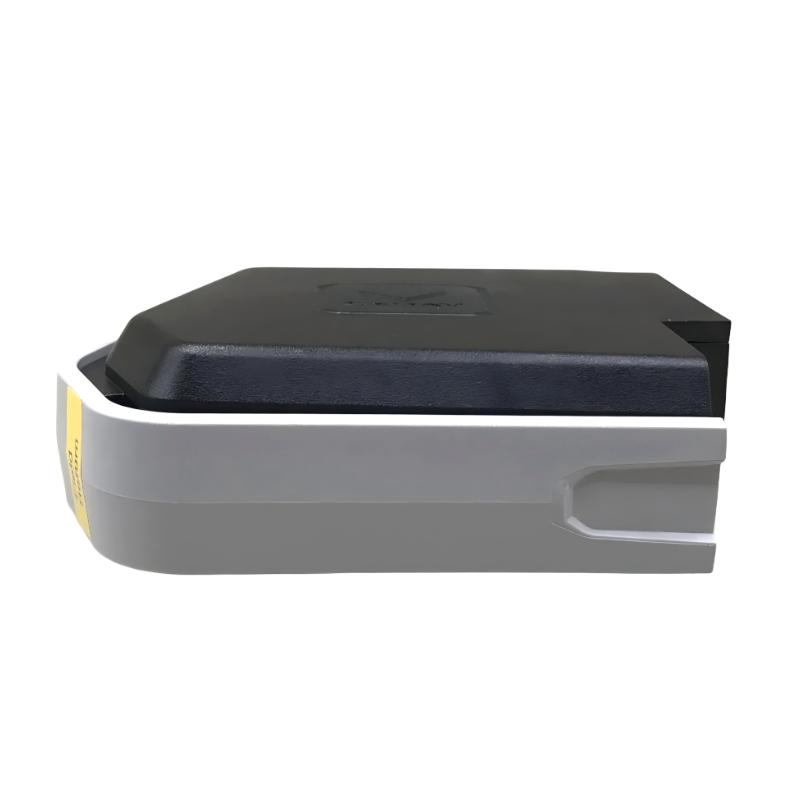

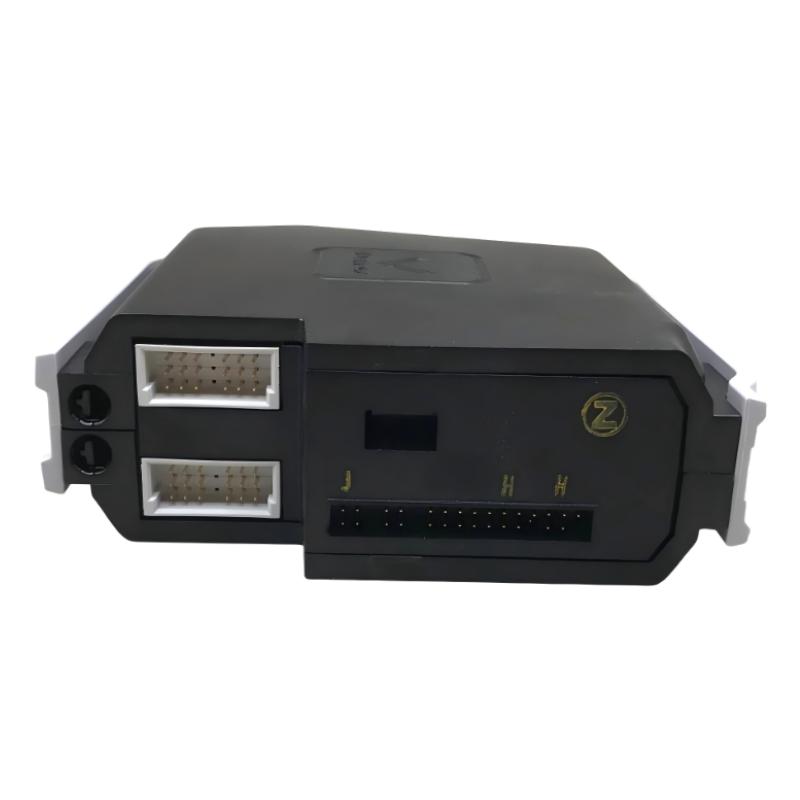

Q1. What is the main function of the Emerson SE4002S2T1B2 Discrete Output Card?
The SE4002S2T1B2 Discrete Output Card is designed to translate control logic signals generated by the Emerson DeltaV Distributed Control System into physical digital output signals used to operate field devices. It serves as the final execution interface between the automation system and process equipment. When the controller determines that a process action is required, the module activates or deactivates specific output channels to drive devices such as solenoid valves, motor starters, relays, alarms, and indicator systems. This ensures accurate execution of control strategies, including sequencing, interlocking, and shutdown logic in industrial environments.

Q2. What types of industrial equipment can be controlled by this module?
This module is widely used to control a variety of discrete field devices in industrial automation systems. Typical applications include solenoid-operated valves for fluid control, magnetic contactors for motor start/stop operations, relay-driven circuits, alarm horns and beacons, pump control systems, and various on/off actuators. Because it uses standard 24 V DC output signals, it is compatible with most industrial control equipment requiring binary switching signals, making it suitable for both continuous process industries and discrete manufacturing environments.

Q3. Why is channel isolation important in discrete output modules?
Channel isolation is essential for ensuring system stability and protecting both the control system and field wiring. In industrial environments, electrical faults such as short circuits, voltage spikes, or grounding issues can occur unpredictably. With channel-to-system isolation, a failure in one output channel does not propagate to other channels or damage the internal electronics of the module. This design significantly improves operational safety, reduces downtime risk, and enhances the overall reliability of the automation system, especially in large-scale installations with many connected outputs.

Q4. How does the SE4002S2T1B2 achieve fast and reliable switching performance?
The module achieves millisecond-level switching performance through tight integration with the DeltaV system backplane and optimized internal output circuitry. Control commands are transmitted from the controller to the module over a high-speed communication bus, minimizing latency. Once received, dedicated driver circuits execute the switching action almost immediately. This fast response is critical in applications such as emergency shutdown systems, safety interlocks, and real-time process control, where delays could lead to unsafe or inefficient operating conditions.

Q5. What role do built-in diagnostics play in this module?
Built-in diagnostics continuously monitor the health of each output channel and the module as a whole. These diagnostics can detect conditions such as open circuits, short circuits, wiring faults, output overloads, and communication issues with the controller. When an abnormal condition is detected, the module reports detailed diagnostic information back to the DeltaV system, enabling engineers to quickly identify and isolate the issue. This reduces troubleshooting time significantly and helps prevent unplanned production interruptions.

Q6. What are the key installation considerations for the SE4002S2T1B2?
Proper installation requires securely mounting the module into the designated DeltaV I/O carrier slot to ensure stable electrical and communication connections. Field wiring should be carefully labeled and verified against system documentation to avoid incorrect channel mapping. Signal cables should be routed separately from high-voltage power lines to reduce electromagnetic interference. A proper grounding system must be in place to ensure signal integrity and system safety. Before commissioning, each output channel should be individually tested to confirm correct operation.

Q7. In which industries is this discrete output module commonly used?
The SE4002S2T1B2 is commonly used in industries such as oil and gas production, petrochemical refining, chemical processing, power generation, pharmaceuticals, food and beverage production, pulp and paper manufacturing, water and wastewater treatment, and general process automation. These industries rely heavily on automated control of field devices, requiring highly reliable digital output modules to ensure safe and efficient plant operation under continuous or batch process conditions.

Q8. How does this module improve long-term system maintainability?
The module’s modular design significantly simplifies maintenance and system lifecycle management. If a fault occurs, the module can be replaced quickly without rewiring field connections, minimizing downtime. Combined with DeltaV’s diagnostic capabilities, maintenance personnel can quickly identify whether an issue is channel-specific or module-wide. This reduces troubleshooting effort, improves maintenance efficiency, and ensures that automation systems remain highly available and cost-effective throughout long-term industrial operation.
