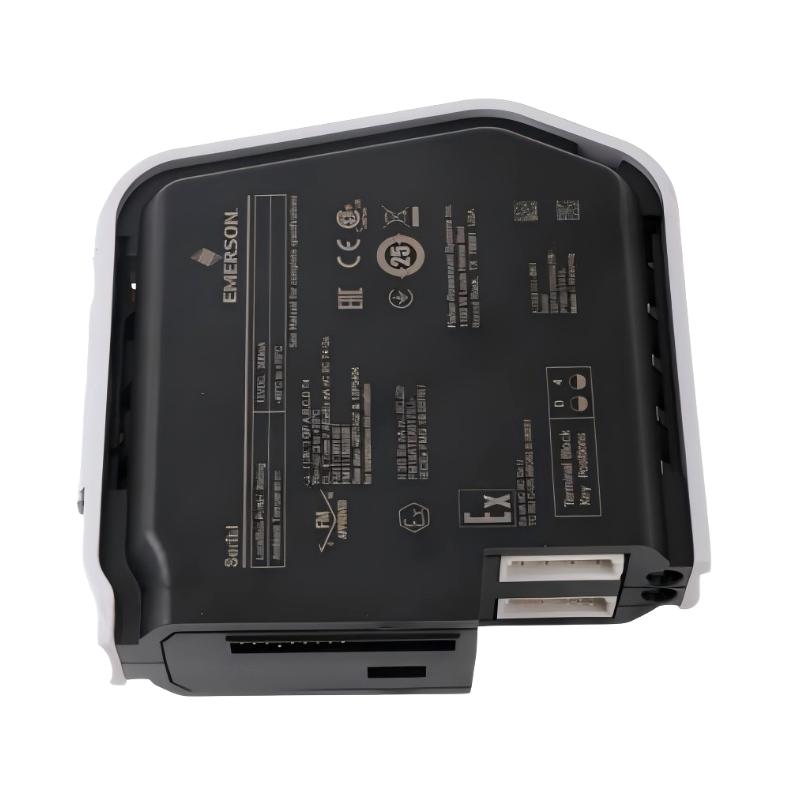

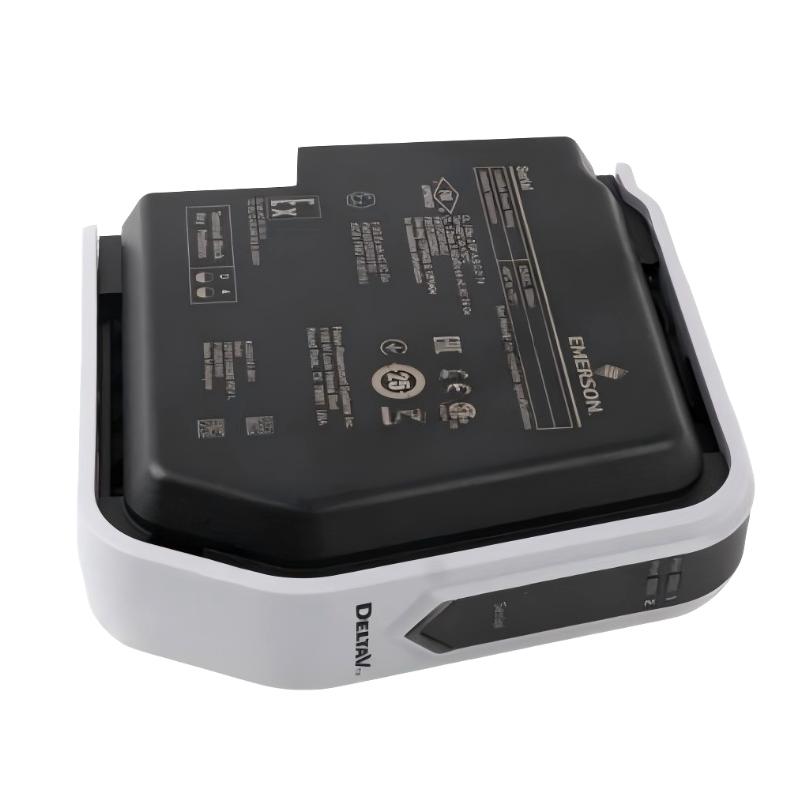

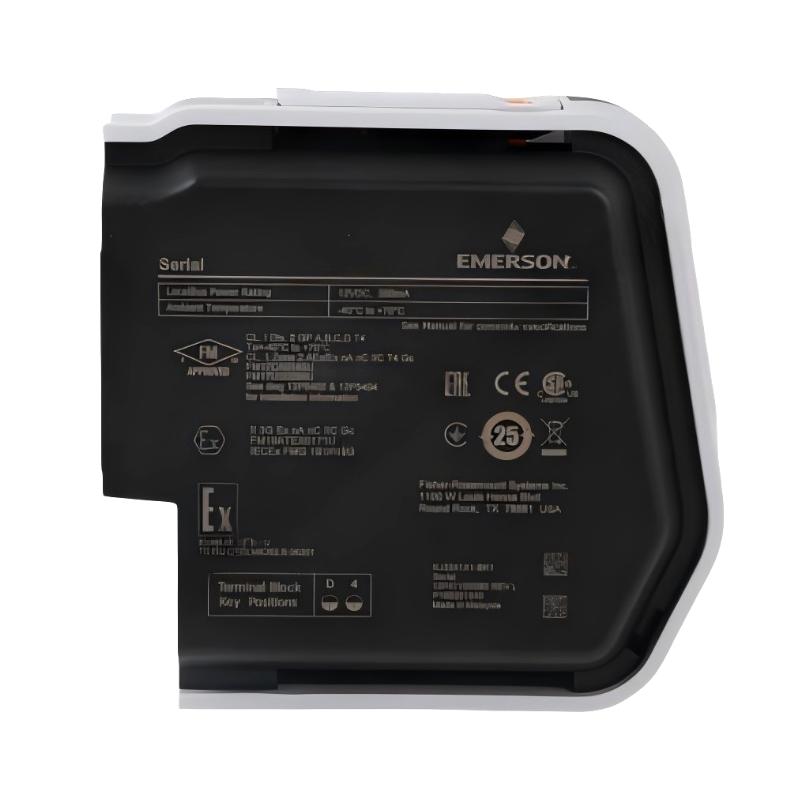

1. What is the main function of the Emerson SE4032S1T2B8 Redundant Discrete Output Card?

The Emerson SE4032S1T2B8 Redundant Discrete Output Card is designed to provide reliable digital output control within Emerson DeltaV distributed control systems.

The module receives output commands generated by the DeltaV control system and converts them into discrete signals used to operate external field devices such as valves, relays, actuators, and switching equipment.

Its redundant output structure improves control signal reliability and helps maintain stable operation of critical field devices.

The module is suitable for industrial applications where continuous equipment control and high system availability are required, allowing operators to perform centralized monitoring and automated control of field processes.

By providing dependable digital output capability, the SE4032S1T2B8 helps improve overall automation system performance and operational stability.

2. What types of field devices can be controlled by the SE4032S1T2B8?

The SE4032S1T2B8 can control various industrial devices that require discrete switching signals.

Common applications include solenoid valves, motor starters, relay circuits, contactors, actuators, and other equipment with digital control inputs.

For example, the module can send commands from the DeltaV system to open or close process valves, start or stop equipment, and activate external control circuits.

By connecting field devices through this output module, operators can manage industrial equipment from a centralized control platform, improving process automation efficiency and reducing manual operation requirements.

3. Why is redundant discrete output important in industrial control systems?

Discrete output signals are responsible for executing control commands to field devices, making them an important part of industrial automation systems.

A failure in output communication may prevent equipment from responding correctly and can affect production processes.

A redundant discrete output module improves system availability by providing enhanced reliability for critical control signals.

The SE4032S1T2B8 helps reduce the risk of control interruptions caused by individual output failures and ensures that important operating commands can be transmitted more consistently.

This makes the module suitable for industries requiring stable and continuous automated equipment control.

4. What should be considered when installing the SE4032S1T2B8?

Before installation, technicians should confirm that the DeltaV system is in a safe maintenance condition and follow Emerson installation procedures.

The module should be installed in the correct DeltaV S-Series I/O position and properly connected to the system backplane.

Field wiring should be checked to ensure connected devices are compatible with the output requirements of the module.

For redundant output applications, engineers should verify the redundancy configuration, control logic, and field device connections.

After installation, the module status, output channel operation, and field equipment response should be tested through the DeltaV engineering environment before the system is placed into service.

5. How can SE4032S1T2B8 output faults be diagnosed?

When output faults occur, technicians should first review DeltaV diagnostic information to identify possible module alarms or communication issues.

The next step is to confirm whether the control system is generating the correct output command.

Field wiring should be inspected for loose terminals, damaged cables, incorrect connections, or external equipment failures.

Connected devices such as valves, relays, and actuators should also be checked to confirm they can respond correctly to control signals.

By analyzing system commands, module diagnostics, wiring conditions, and field device operation, engineers can quickly determine the cause of output failures and restore normal control performance.

6. Can the SE4032S1T2B8 be used for valve control applications?

Yes. The SE4032S1T2B8 is commonly used for industrial valve and actuator control applications.

Many process valves rely on digital commands such as open, close, start, or stop signals. The module transfers these commands from the DeltaV system to the connected field devices.

In industries such as oil and gas, chemical processing, and power generation, reliable valve control is essential for maintaining safe and efficient process operation.

The SE4032S1T2B8 provides a stable interface between the control system and field equipment, helping operators achieve automated process control and improved operational efficiency.

7. How can the long-term reliability of the SE4032S1T2B8 be improved?

To ensure reliable long-term operation, the SE4032S1T2B8 should be installed correctly and maintained through regular inspection.

Maintenance personnel should monitor DeltaV diagnostics, check output channel status, and verify that connected devices respond correctly to control commands.

Field wiring should be inspected regularly to prevent failures caused by loose connections, damaged cables, or environmental conditions.

The control cabinet environment should also be maintained properly by controlling dust, humidity, temperature, and vibration.

A preventive maintenance program helps identify potential issues early, reduces unexpected downtime, and improves the overall reliability of industrial automation systems.

8. In which industries is the SE4032S1T2B8 commonly used?

The Emerson SE4032S1T2B8 Redundant Discrete Output Card is widely used in industries including oil and gas, petrochemical, power generation, chemical processing, pharmaceutical manufacturing, water treatment, and industrial automation.

These industries require reliable control of field equipment such as valves, motors, actuators, and switching devices.

The module provides stable communication between Emerson DeltaV systems and industrial field equipment, enabling centralized control and efficient process management.

With redundant output capability, reliable signal processing, and strong compatibility with DeltaV automation systems, the SE4032S1T2B8 is an important component for applications requiring dependable digital output control and high system availability.
