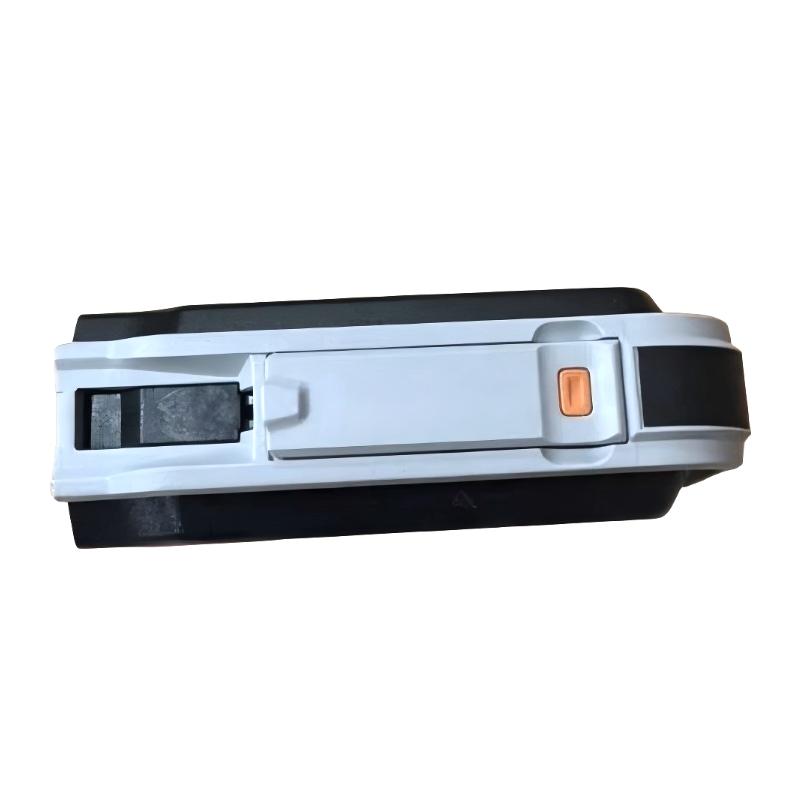

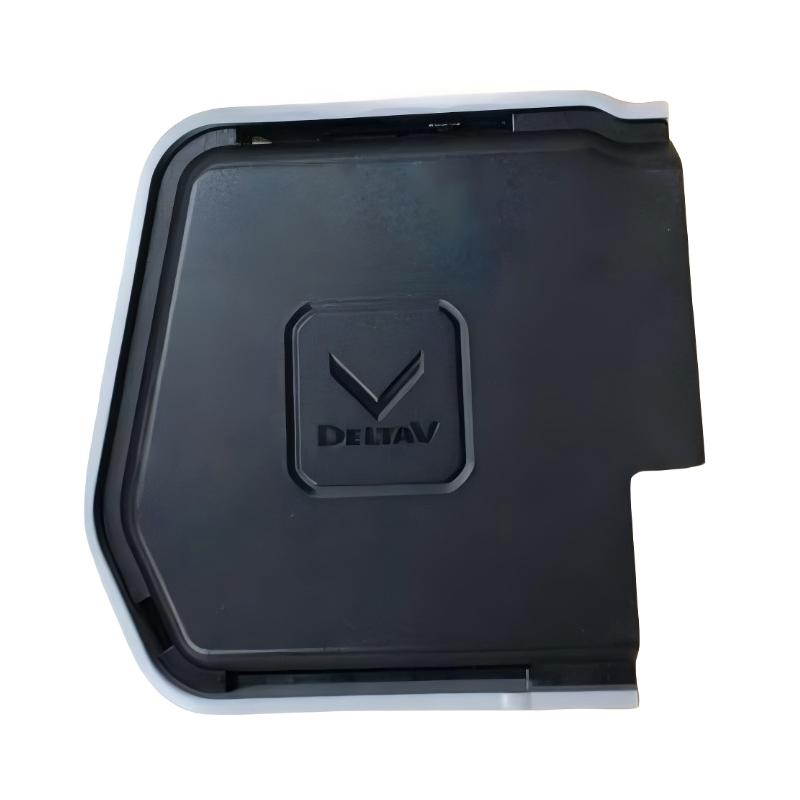

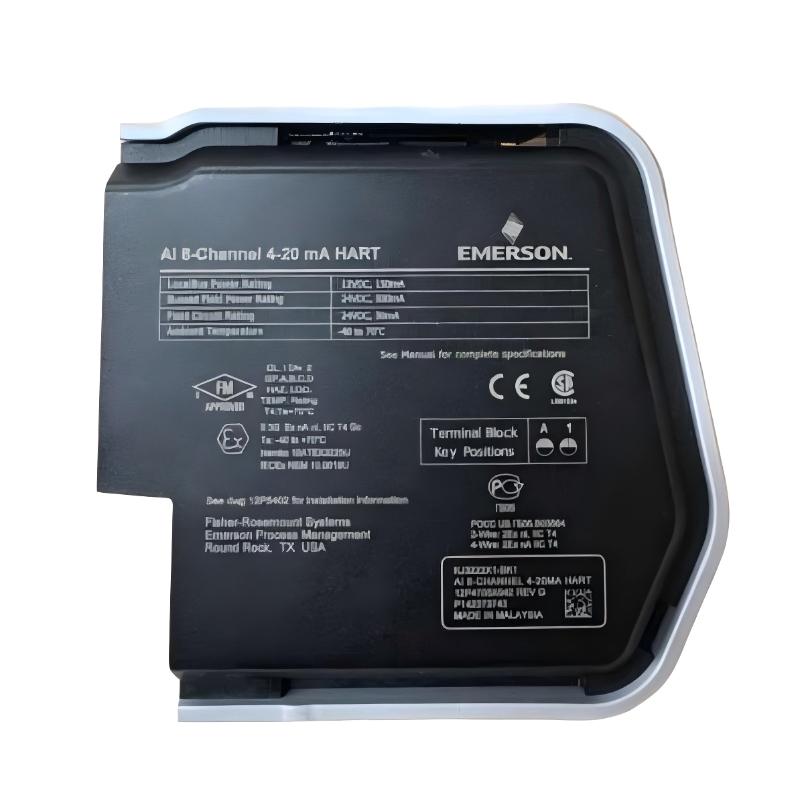

1. What is the primary function of the Emerson SE4033S2B11 Redundant Analog Input Card?

The Emerson SE4033S2B11 Redundant Analog Input Card is designed to collect analog signals from field instruments and provide reliable data acquisition for industrial control systems.

In process automation applications, field devices such as pressure transmitters, temperature sensors, flow meters, and level instruments continuously generate analog signals that must be transferred accurately to the control system. The SE4033S2B11 processes these signals and delivers reliable measurement data for monitoring and control operations.

The redundant design improves system availability by providing additional signal processing capability, reducing the possibility of process interruption caused by input hardware failures. This makes the module suitable for critical applications where continuous operation and accurate measurement are essential.

2. How does the Emerson SE4033S2B11 improve control system reliability?

The SE4033S2B11 improves system reliability through its redundant analog input architecture, which helps maintain stable signal acquisition even when one part of the input path experiences an abnormal condition.

In traditional analog input systems, a failure in an input channel may result in loss of process information or incorrect measurement values. The redundant structure of the SE4033S2B11 provides additional protection by allowing the control system to continue receiving important process data.

The module continuously monitors analog input conditions and supports reliable communication between field devices and the controller. This reduces unexpected downtime and improves the overall availability of industrial automation systems.

For industries such as power generation, petrochemical processing, and oil and gas production, this type of redundancy is important for maintaining safe and stable plant operation.

3. What industrial applications are suitable for the Emerson SE4033S2B11?

The Emerson SE4033S2B11 is suitable for industrial environments that require reliable analog signal monitoring and high system availability.

Typical applications include power plants, oil and gas facilities, refinery systems, chemical production plants, pharmaceutical manufacturing facilities, water treatment systems, and other continuous process industries.

These applications often require accurate monitoring of critical process variables such as temperature, pressure, flow, and liquid level. Any interruption or incorrect measurement may affect production efficiency and operational safety.

By providing reliable analog signal acquisition with redundancy support, the SE4033S2B11 helps maintain stable communication between field instrumentation and the control system.

4. What are the common causes of faults in the Emerson SE4033S2B11?

Common causes of SE4033S2B11 faults may include unstable power supply, incorrect configuration, damaged field wiring, poor terminal connections, faulty field transmitters, electrical interference, or communication problems within the control system.

Typical fault symptoms may include incorrect analog readings, unstable process values, communication alarms, input channel failures, or diagnostic messages from the controller.

Troubleshooting should begin by checking module status information and verifying that the power supply and system communication are operating correctly.

Technicians should then inspect field signal wiring, terminal connections, sensor output signals, and configuration parameters.

A systematic diagnostic process can help identify whether the problem is caused by the module itself, the connected field device, or the control system configuration.

5. What installation practices should be followed for the Emerson SE4033S2B11?

Before installing the Emerson SE4033S2B11, technicians should confirm that the module is compatible with the existing Emerson control system and that the correct installation location is available.

The module should be installed securely in the designated control rack or I/O chassis, with proper connection to the system backplane.

Field signal wiring should follow industrial installation standards, including correct polarity, proper grounding, and suitable shielding to reduce electrical interference.

Signal cables should be separated from high voltage power lines and strong electromagnetic interference sources whenever possible.

After installation, engineers should verify module recognition, configure the required input channels, and perform signal testing to confirm that field devices and the control system are communicating correctly.

6. How should technicians troubleshoot analog input problems with the Emerson SE4033S2B11?

When analog input problems occur, troubleshooting should begin by reviewing system diagnostics and checking the operating status of the SE4033S2B11.

The first step is to confirm that the module is powered correctly and that no hardware alarms are present.

Next, technicians should inspect field instruments, signal cables, terminal connections, and input signal quality to determine whether the issue originates from external equipment.

If field devices and wiring are operating normally, the next step is to verify control system configuration, including channel settings, signal ranges, scaling parameters, and redundancy configuration.

Using a step by step diagnostic approach helps maintenance personnel quickly identify the source of the problem and restore normal operation without unnecessary equipment replacement.

7. Can the Emerson SE4033S2B11 be replaced with another analog input module?

Replacement of the SE4033S2B11 depends on the technical requirements of the existing Emerson automation system.

Although other analog input modules may provide similar signal acquisition functions, differences may exist in redundancy design, supported signal types, communication interfaces, firmware compatibility, and system integration features.

Before replacing the module, engineers should confirm compatibility with the installed controller, engineering software, system configuration, and field instrumentation.

Using an incompatible replacement module may cause communication problems, configuration errors, or reduced system reliability.

Selecting a suitable compatible module ensures that the control system continues to operate correctly and minimizes additional commissioning work.

8. How can users improve the long term reliability of the Emerson SE4033S2B11?

To maximize the long term reliability of the Emerson SE4033S2B11, users should implement regular inspection, preventive maintenance, and continuous system monitoring.

Maintenance activities should include checking module operating status, reviewing diagnostic information, inspecting field wiring, verifying signal stability, and confirming proper communication with the control system.

The surrounding control cabinet environment should be maintained properly to prevent dust, moisture, vibration, and excessive heat from affecting electronic components.

Abnormal signal fluctuations, repeated communication alarms, or unexpected diagnostic messages should be investigated promptly to prevent potential system failures.

Through proper installation, routine maintenance, and timely fault handling, the SE4033S2B11 can provide stable analog signal acquisition performance and support reliable operation of industrial automation systems for an extended period.
