Technical Specifications

FAQ

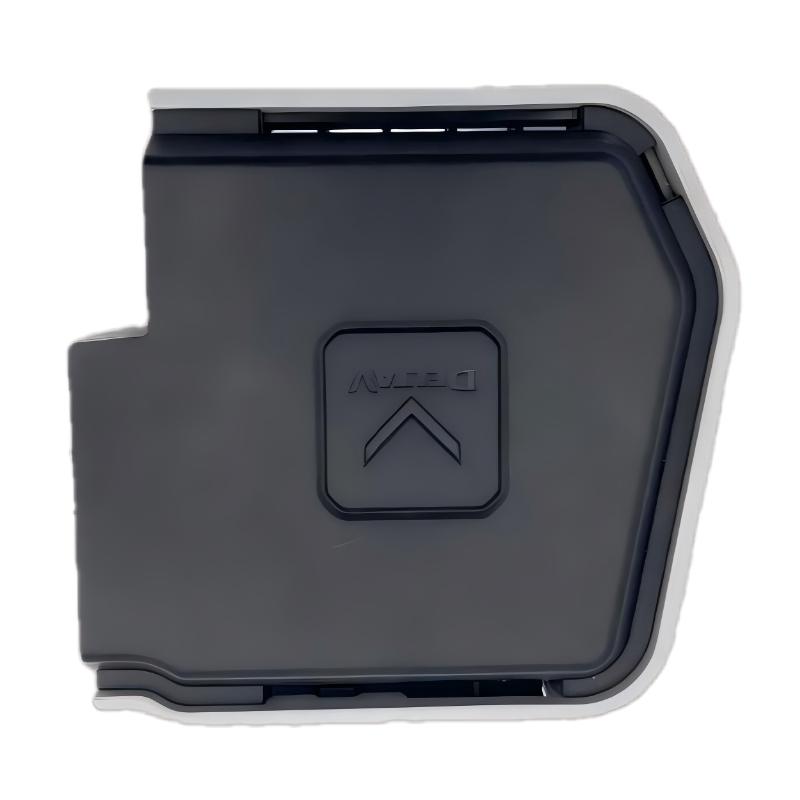

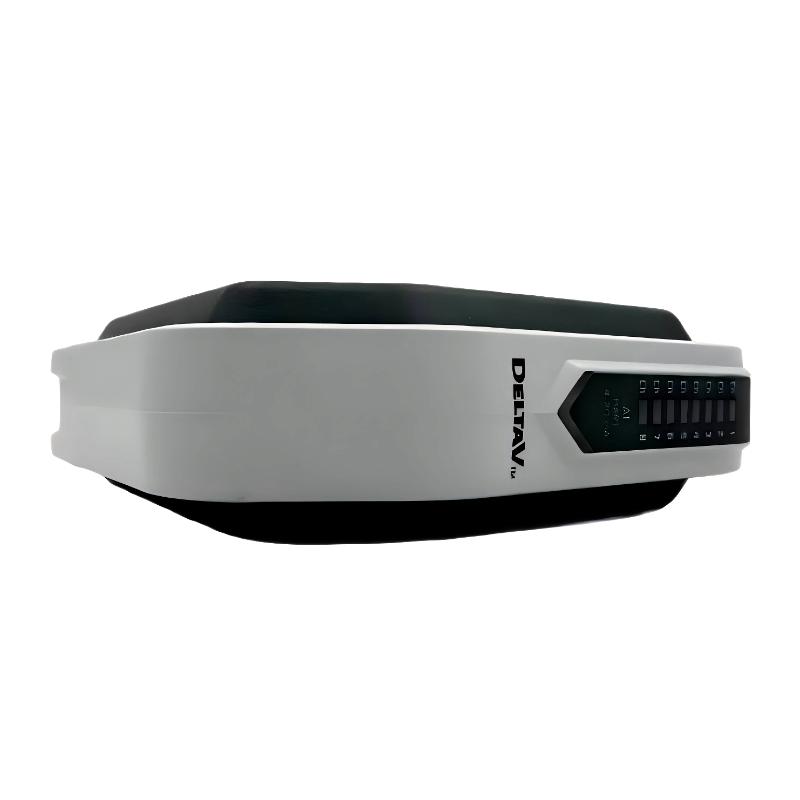

1. What is the main function of the Emerson SE4052S1T2B6 Redundant Discrete Output Card?

The Emerson SE4052S1T2B6 Redundant Discrete Output Card is a digital output module designed for industrial automation control systems. Its main function is to transmit control commands from the controller to field devices through reliable discrete output signals.

In process control applications, many devices require ON/OFF control signals, including valves, relays, actuators, alarm equipment, and safety-related devices. The output card receives commands from the control system and converts them into signals that can operate field equipment.

The redundant design improves system availability by providing additional reliability for critical control applications. If one output path experiences a problem, the redundant configuration helps maintain system operation and reduces the risk of unexpected process interruption.

The SE4052S1T2B6 is suitable for industries where stable and continuous control performance is essential.

2. How does the redundant function of SE4052S1T2B6 improve system reliability?

The redundant function of the SE4052S1T2B6 improves system reliability by reducing the impact of individual hardware failures on the overall control process.

In critical industrial environments, output signals are often responsible for controlling important equipment such as process valves, shutdown devices, and safety-related components. Any unexpected output failure may affect production stability or operational safety.

With redundant output capability, the system can maintain better availability and provide additional protection against single-point failures.

The module continuously works with the control system to monitor output conditions and help operators identify abnormal situations quickly.

This design is especially valuable in industries such as power generation, oil and gas, and chemical processing where continuous operation is required.

3. What industrial applications use the Emerson SE4052S1T2B6?

The Emerson SE4052S1T2B6 is widely used in industrial automation systems that require reliable digital output control.

Typical applications include:

Power plant control systems

Oil and gas production facilities

Chemical processing equipment

Refining automation systems

Pharmaceutical production lines

Water treatment systems

Manufacturing automation equipment

In these applications, the module can control field devices such as solenoid valves, motor starters, relays, alarms, and other discrete actuators.

By providing stable output control, the SE4052S1T2B6 helps automation systems perform accurate process control and improve operational efficiency.

4. What are the common causes of Emerson SE4052S1T2B6 output problems?

Output problems related to the SE4052S1T2B6 are usually caused by field wiring, external devices, system configuration, or communication conditions.

Common causes include:

Incorrect field wiring

Faulty connected devices

Loose terminal connections

Incorrect output configuration

Communication interruptions

Power supply problems

Typical symptoms may include output signals not changing, field devices not responding, or system alarms being generated.

Troubleshooting should begin by checking the control system diagnostics and confirming the module status.

Engineers should then inspect field wiring, connected equipment, and configuration parameters to determine the actual cause.

A structured troubleshooting method helps reduce downtime and improves maintenance efficiency.

5. What installation precautions should be considered for the SE4052S1T2B6?

Before installing the SE4052S1T2B6, engineers should confirm that the module is compatible with the existing Emerson DeltaV system configuration.

During installation, the module should be correctly positioned within the I/O system, and all output connections should be properly wired according to application requirements.

Important installation considerations include:

Confirming correct output signal requirements

Checking field wiring connections

Ensuring proper grounding and shielding

Avoiding electrical interference from high power equipment

Verifying system configuration settings

After installation, the module should be tested to confirm correct communication and proper output operation.

Correct installation helps ensure stable operation and reduces future maintenance issues.

6. How can technicians troubleshoot abnormal output signals from SE4052S1T2B6?

When abnormal output signals occur, technicians should follow a systematic troubleshooting process.

First, check DeltaV system diagnostics to determine whether there are module communication errors or hardware alarms.

Next, verify that the output channel configuration matches the intended application.

The field wiring and connected equipment should then be inspected to confirm that the external devices can respond correctly.

Additional checks may include:

Reviewing controller communication status

Testing output channel operation

Checking power supply conditions

Inspecting connected actuators or relays

If necessary, engineers can perform signal testing to determine whether the issue is caused by the output module, wiring, or external equipment.

This method helps identify faults quickly and restore normal control operation.

7. Can the Emerson SE4052S1T2B6 replace another discrete output module?

Replacement compatibility depends on the specific DeltaV system configuration and application requirements.

Different discrete output modules may have differences in output type, redundancy capability, supported field devices, and system compatibility.

Before replacement, engineers should confirm that the selected module supports the same control functions and meets the requirements of the existing automation system.

Using an incompatible output module may result in incorrect device control, communication problems, or system alarms.

Selecting the correct replacement component ensures reliable operation and minimizes system modification work.

8. How can users maintain long term reliability of the Emerson SE4052S1T2B6?

To maintain long term reliability of the SE4052S1T2B6, users should perform regular inspections and preventive maintenance.

Recommended maintenance activities include:

Checking module operating status

Reviewing system diagnostic information

Inspecting field output connections

Monitoring connected device performance

Maintaining proper control cabinet conditions

The control cabinet should be kept clean and protected from dust, moisture, vibration, and excessive electrical interference.

Any abnormal output behavior or system alarm should be investigated promptly to prevent larger operational problems.

During system maintenance or upgrades, technicians should follow proper handling procedures to protect the module and connected interfaces.

With correct installation, regular monitoring, and timely troubleshooting, the Emerson SE4052S1T2B6 can provide reliable redundant digital output control for industrial automation systems over long operating periods.
