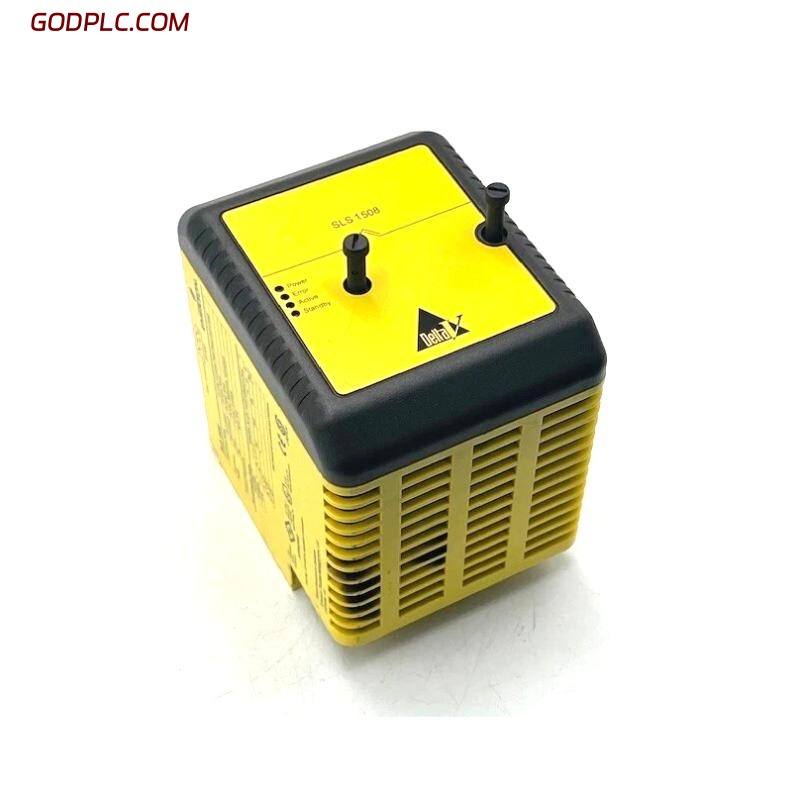

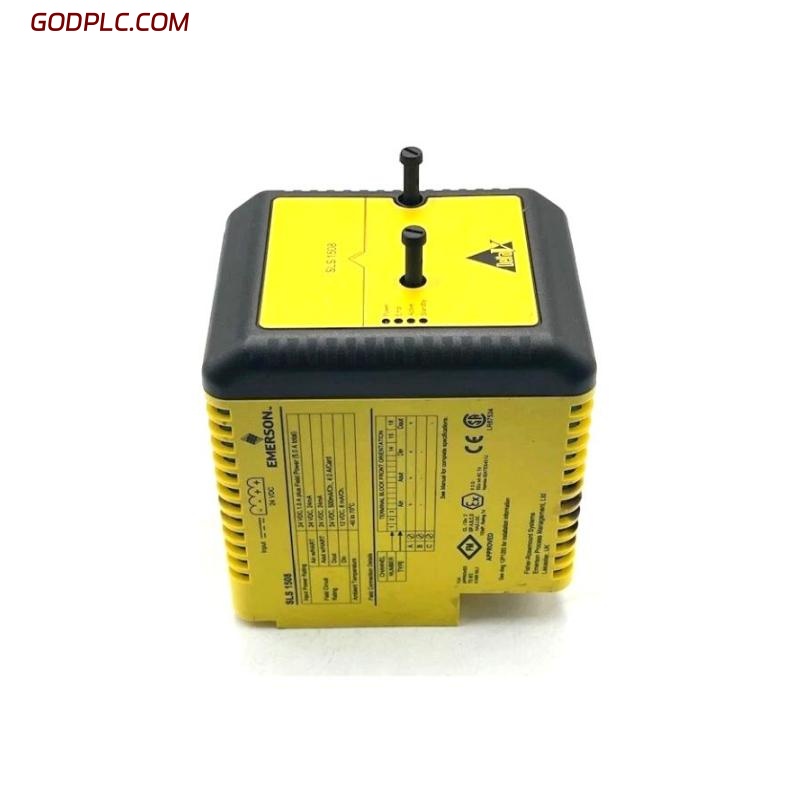

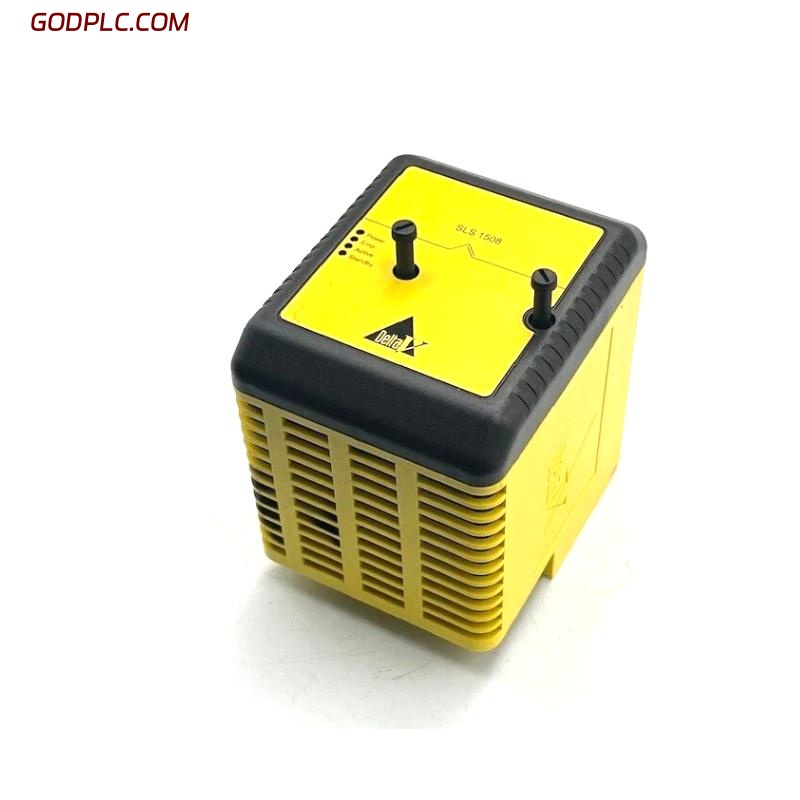

Emerson SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1) Intelligent Logic Solver
Product Overview
The Emerson SLS1508 Intelligent Logic Solver, comprised of the KJ2201X1-BA1 and KJ2201X1-HA1 modules, is designed to provide critical safety and control functions in industrial automation systems. As part of Emerson’s DeltaV™ SIS (Safety Instrumented System), this intelligent logic solver ensures compliance with functional safety standards, providing the processing power for executing safety-related functions and responding to process conditions that may lead to hazardous situations. The SLS1508 is essential for protecting personnel, equipment, and the environment in industries such as oil & gas, petrochemical, power generation, and more.
Key Features
-
Safety-Certified – Fully compliant with IEC 61508, IEC 61511, and other relevant safety standards, ensuring reliable operation in safety-critical applications.
-
Redundant Processing – Supports dual-channel processing for fault tolerance, ensuring continued safety function even if one channel fails.
-
Flexible I/O Support – Compatible with a wide range of Emerson’s safety I/O modules, providing flexibility in the configuration of safety loops for various applications.
-
Real-Time Decision Making – Processes inputs from field devices in real-time to trigger safety actions like shutdowns, alarms, or emergency responses.
-
System Diagnostics – Includes built-in diagnostics and self-testing capabilities to continuously monitor the health of the system and identify potential issues before they impact performance.
-
High Availability – Designed for high availability with hot-swappable modules and redundant communication paths, ensuring continuous operation in demanding environments.
-
Seamless Integration – Easily integrates with Emerson’s DeltaV™ system and other industrial automation platforms, simplifying system setup and enhancing overall performance.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 83.8 × 105.5 × 110 mm |
| Weight | 1.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC ± 20% |
| Current Consumption | 500 mA (per module) |
| Communication Protocol | Ethernet (TCP/IP) |
| Redundancy | Dual-Channel (2oo2) |
| Channel Fault Detection | Yes |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | 5 g (continuous), 25 g (shock) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Emerson DeltaV™ SIS and other Emerson control systems |
| Mounting | Suitable for panel mounting or DIN rail |
Industry Applications
-
Oil & Gas – Protects critical assets and personnel in exploration, production, and refining operations by ensuring safe shutdown and emergency response during hazardous events.
-
Petrochemical – Monitors and controls processes to prevent dangerous conditions such as overpressure, high temperature, and leakage, ensuring compliance with safety regulations.
-
Power Generation – Ensures safe operation of critical systems such as boilers, turbines, and electrical distribution networks by triggering necessary safety actions to protect both people and equipment.
-
Chemical Processing – Plays a key role in safeguarding reactors, distillation columns, and other sensitive equipment from potential safety hazards by executing timely protective actions.
-
Pharmaceutical Manufacturing – Ensures that pharmaceutical production processes are safely controlled, with high reliability in safety monitoring and alarm actions to prevent catastrophic events.
The Emerson SLS1508 (KJ2201X1-BA1 + KJ2201X1-HA1) Intelligent Logic Solver offers unparalleled safety and control for industrial environments that demand high reliability. Its dual-channel redundant processing, built-in diagnostics, and compliance with safety standards make it an ideal solution for mission-critical applications in diverse industries. By providing real-time decision-making and seamless integration with Emerson’s DeltaV™ system, it ensures that safety functions are always operational, minimizing risk and maximizing system uptime.
