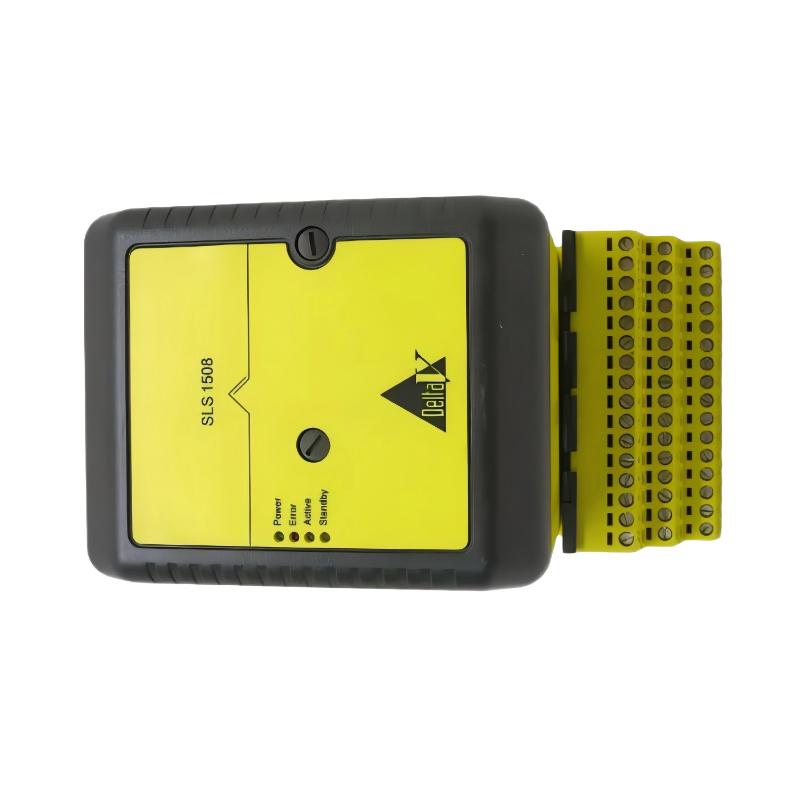

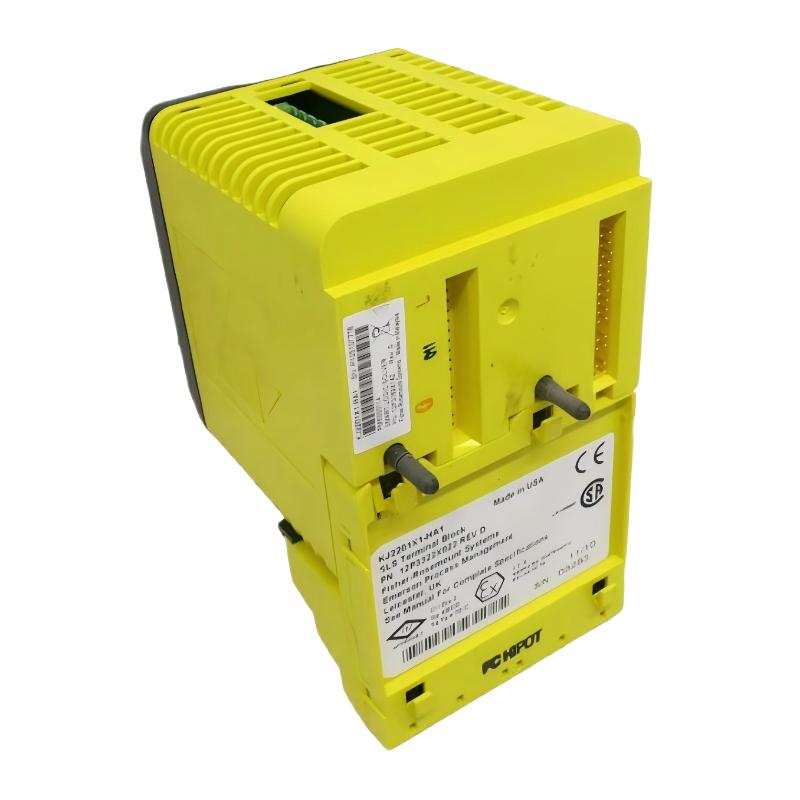

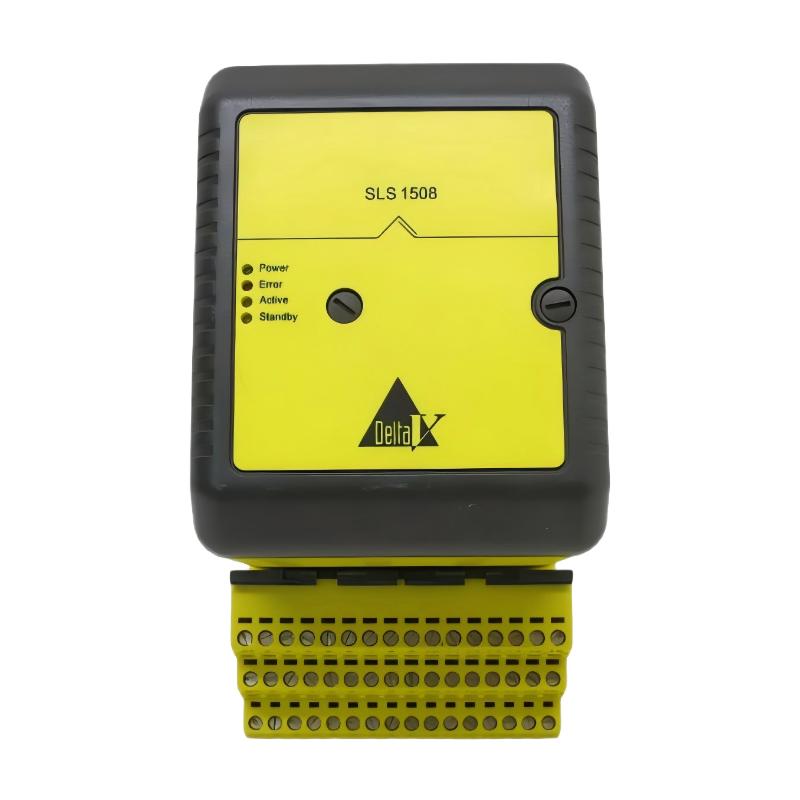

1. What is the primary function of the Emerson SLS1508 KJ2201X1-HA1 Smart Logic Solver With Base?

The Emerson SLS1508 KJ2201X1-HA1 serves as the central logic processing unit within the DeltaV™ Safety Instrumented System (SIS). It continuously monitors field input signals, executes certified safety logic, and initiates protective actions whenever abnormal operating conditions are detected. The module is responsible for implementing Safety Instrumented Functions (SIF), emergency shutdown (ESD) sequences, process interlocks, and other critical safety applications.

Unlike standard process controllers, the Smart Logic Solver is dedicated exclusively to functional safety. It operates independently from the basic process control system, ensuring that essential protection functions remain active even if the primary control system experiences faults or communication failures. This architecture significantly improves plant safety and operational reliability.

2. Which industrial applications are best suited for the SLS1508 KJ2201X1-HA1?

The SLS1508 KJ2201X1-HA1 is designed for safety-critical industrial applications that require highly reliable logic execution and continuous protection. It is widely used in oil and gas production facilities, refineries, petrochemical plants, LNG terminals, power generation stations, chemical processing plants, pharmaceutical manufacturing facilities, and offshore platforms.

These industries often operate under hazardous conditions involving high pressure, high temperature, flammable materials, or toxic substances. The Smart Logic Solver continuously supervises critical process variables and immediately performs predefined safety actions whenever unsafe operating conditions occur. Its high availability and redundant architecture make it particularly suitable for continuous-process industries where safety and uptime are equally important.

3. What are the major advantages of the Emerson SLS1508 KJ2201X1-HA1?

One of the key advantages of the SLS1508 KJ2201X1-HA1 is its ability to execute complex safety logic with deterministic performance and extremely high reliability. It supports configurable I/O, advanced diagnostics, online maintenance capabilities, and redundant controller configurations that minimize process interruptions.

The integrated diagnostic functions continuously monitor processor operation, memory integrity, communication status, and hardware health. This allows maintenance personnel to identify potential issues before they develop into critical failures. The module also supports automatic synchronization between redundant controllers, enabling seamless operation even during controller replacement or maintenance.

Its modular construction simplifies installation, expansion, and servicing, helping reduce lifecycle maintenance costs while maintaining high system availability.

4. How should communication or operational faults be diagnosed on the SLS1508 KJ2201X1-HA1?

Troubleshooting should begin by reviewing controller diagnostics, system alarms, event logs, and status indicators within the DeltaV SIS engineering environment. These diagnostic tools provide valuable information regarding hardware condition, communication health, controller synchronization, and application status.

Engineers should verify the stability of the 24 VDC power supply, inspect carrier connections, terminal blocks, communication interfaces, and wiring integrity. Any loose connectors, damaged cables, or communication interruptions should be corrected before proceeding with software diagnostics.

The safety application, controller configuration, firmware version, and redundancy synchronization should also be verified to ensure consistency across the entire system. If the fault persists after these inspections, advanced diagnostic utilities within DeltaV SIS can be used to isolate the source of the problem without unnecessary hardware replacement.

5. How does the SLS1508 KJ2201X1-HA1 improve Safety Instrumented System reliability?

The Smart Logic Solver improves system reliability through continuous safety monitoring, deterministic logic execution, comprehensive self-diagnostics, and support for fully redundant controller operation. It continuously evaluates critical process variables such as pressure, temperature, flow, level, and equipment status, executing protective actions whenever configured safety limits are exceeded.

Because safety control operates independently from the basic process control system, protective functions remain fully operational even if the production control system experiences hardware or software failures. In redundant configurations, both controllers execute the same safety logic simultaneously, allowing uninterrupted protection if one controller becomes unavailable.

Its continuous health monitoring and fault reporting capabilities also allow maintenance teams to detect and resolve issues before they affect plant operation, significantly improving long-term system availability.

6. What maintenance practices are recommended for the Emerson SLS1508 KJ2201X1-HA1?

Preventive maintenance should include regular inspection of controller diagnostics, communication performance, power supply stability, event history, and system health indicators. Maintenance personnel should periodically inspect carrier connectors, base assemblies, wiring terminals, and communication interfaces for contamination, corrosion, loose connections, or physical damage.

Control cabinets should be kept clean and properly ventilated to prevent excessive operating temperatures. Routine verification of safety application programs, firmware revisions, controller redundancy synchronization, and system backups is also recommended to maintain reliable operation.

Scheduled functional testing of configured Safety Instrumented Functions ensures that all protective logic continues to perform according to design requirements. A comprehensive preventive maintenance program minimizes unexpected failures while extending overall system reliability.

7. What factors can influence the operating performance of the SLS1508 KJ2201X1-HA1?

Several technical factors can affect the performance of the Smart Logic Solver, including unstable power supplies, excessive electromagnetic interference, high ambient temperatures, humidity, vibration, poor grounding, communication network issues, and incorrect controller configuration.

Electrical disturbances may impact controller stability, while communication failures can interrupt synchronization between system components. Configuration inconsistencies, incompatible firmware versions, or improperly implemented safety applications may also generate unexpected alarms or operational issues.

Maintaining proper environmental conditions, stable electrical power, effective grounding, cable shielding, and regular system maintenance significantly improves controller reliability and ensures consistent long-term performance.

8. How can the service life of the Emerson SLS1508 KJ2201X1-HA1 be extended?

Maximizing the service life of the SLS1508 KJ2201X1-HA1 requires proper installation, stable operating conditions, and a disciplined preventive maintenance program. During installation, engineers should follow Emerson’s recommended practices for wiring, grounding, cabinet ventilation, communication configuration, and power distribution.

Throughout operation, the controller should be protected from excessive heat, moisture, dust, corrosive environments, vibration, and electrical disturbances. Routine monitoring of controller diagnostics, communication quality, redundancy status, and event logs allows maintenance personnel to identify developing issues before they become serious failures.

Regular firmware verification, safety application backups, functional testing, and timely replacement of aging components all contribute to improved long-term reliability. By combining proper environmental management with proactive maintenance, the Smart Logic Solver can provide dependable safety protection throughout many years of continuous industrial service.
