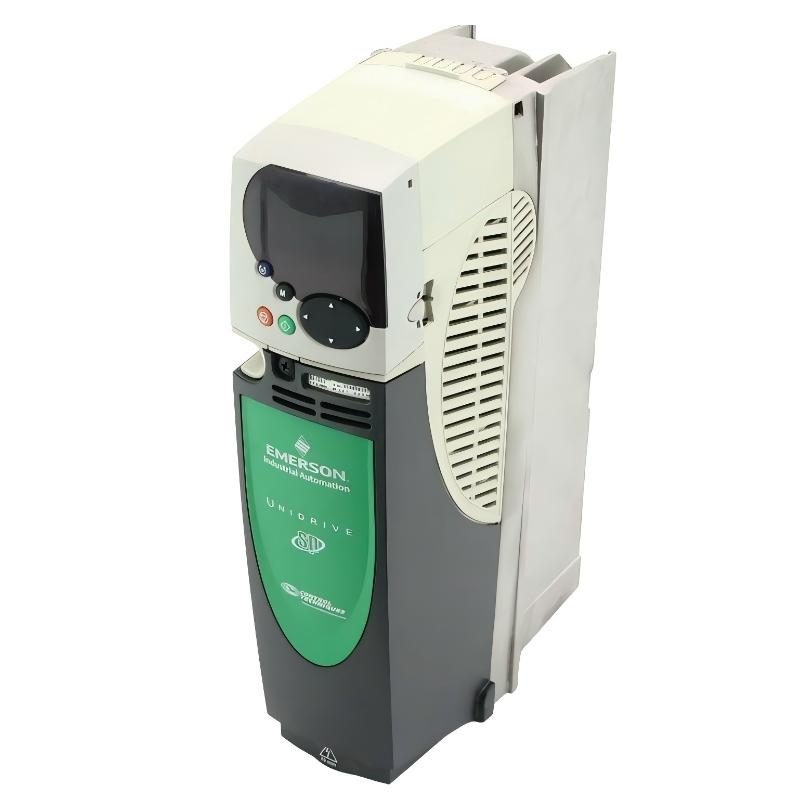

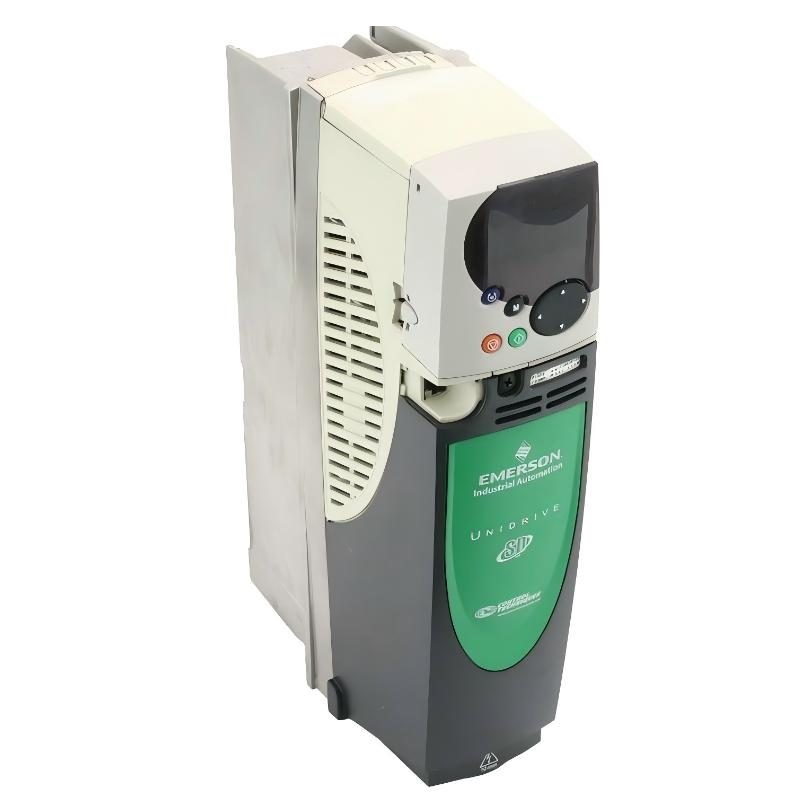

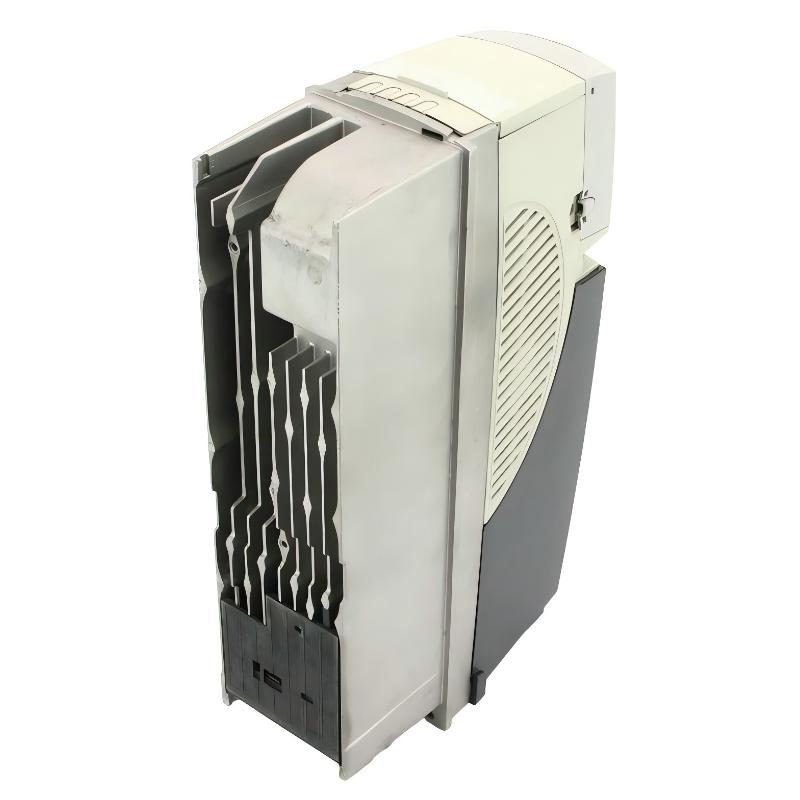

Emerson SP1405 Unidrive SP Universal AC and Servo Drive – Unidrive SP Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson / Control Techniques |
| Product Type | Universal AC and Servo Drive |
| Product Model | SP1405 |
| Product Series | Unidrive SP |
| Frame Size | 1 |
| Input Voltage | 380–480 VAC ±10%, 3-phase |
| Input Frequency | 48–65 Hz |
| Maximum Continuous Current | 7.6 A |
| Maximum Peak Current | 13.3 A |
| Typical Motor Rating | 3.7 kW / 5 HP |
| Normal Duty Power | Approx. 4.0 kW |
| Heavy Duty Power | Approx. 3.0 kW |
| Control Modes | Open-loop, closed-loop vector, servo |
| Communication | RS-485 / Modbus RTU |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 4 |
| Protection Rating | IP20 |
| Dimensions (L × W × H) | Approx. 219 × 100 × 368 mm |
| Weight | Approx. 5.8 kg |
| Battery | No |
| Magnet | No |
FAQ
Q: What is the Emerson SP1405?
The SP1405 is a frame-size-1 Unidrive SP universal AC and servo drive designed for industrial motor control applications.
Q: What input voltage does the SP1405 require?
It operates from a 380–480 VAC, three-phase supply, with a typical tolerance of ±10%.
Q: What is the continuous current rating of the SP1405?
Its maximum continuous current rating is 7.6 A, with a peak current capability of 13.3 A.
Q: What motor power is the SP1405 suitable for?
The typical rating is 3.7 kW (5 HP) in servo-drive applications. Depending on the duty classification, the drive can also be specified around 3.0–4.0 kW.
Q: Can the SP1405 be used for servo applications?
Yes. The Unidrive SP platform supports servo operation as well as open-loop and closed-loop motor control.
Q: Does the SP1405 support Modbus communication?
Yes. RS-485 with Modbus RTU is available for industrial communication and drive control.
Q: What are the dimensions and weight of the SP1405?
The drive is approximately 219 × 100 × 368 mm (L × W × H) and weighs about 5.8 kg.
Q: Does the SP1405 contain a battery or permanent magnet?
No. The standard SP1405 does not contain a user-serviceable battery or a permanent magnet.
Emerson SP1405 Unidrive SP Universal AC and Servo Drive – Unidrive SP Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson / Control Techniques |
| Product Type | Universal AC and Servo Drive |
| Product Model | SP1405 |
| Product Series | Unidrive SP |
| Frame Size | 1 |
| Input Voltage | 380–480 VAC ±10%, 3-phase |
| Input Frequency | 48–65 Hz |
| Maximum Continuous Current | 7.6 A |
| Maximum Peak Current | 13.3 A |
| Typical Motor Rating | 3.7 kW / 5 HP |
| Normal Duty Power | Approx. 4.0 kW |
| Heavy Duty Power | Approx. 3.0 kW |
| Control Modes | Open-loop, closed-loop vector, servo |
| Communication | RS-485 / Modbus RTU |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 4 |
| Protection Rating | IP20 |
| Dimensions (L × W × H) | Approx. 219 × 100 × 368 mm |
| Weight | Approx. 5.8 kg |
| Battery | No |
| Magnet | No |
FAQ
Q: What is the Emerson SP1405?
The SP1405 is a frame-size-1 Unidrive SP universal AC and servo drive designed for industrial motor control applications.
Q: What input voltage does the SP1405 require?
It operates from a 380–480 VAC, three-phase supply, with a typical tolerance of ±10%.
Q: What is the continuous current rating of the SP1405?
Its maximum continuous current rating is 7.6 A, with a peak current capability of 13.3 A.
Q: What motor power is the SP1405 suitable for?
The typical rating is 3.7 kW (5 HP) in servo-drive applications. Depending on the duty classification, the drive can also be specified around 3.0–4.0 kW.
Q: Can the SP1405 be used for servo applications?
Yes. The Unidrive SP platform supports servo operation as well as open-loop and closed-loop motor control.
Q: Does the SP1405 support Modbus communication?
Yes. RS-485 with Modbus RTU is available for industrial communication and drive control.
Q: What are the dimensions and weight of the SP1405?
The drive is approximately 219 × 100 × 368 mm (L × W × H) and weighs about 5.8 kg.
Q: Does the SP1405 contain a battery or permanent magnet?
No. The standard SP1405 does not contain a user-serviceable battery or a permanent magnet.
Emerson SP1405 Unidrive SP Universal AC and Servo Drive – Unidrive SP Series is in stock. Please contact us for a quick quote and competitive pricing.
