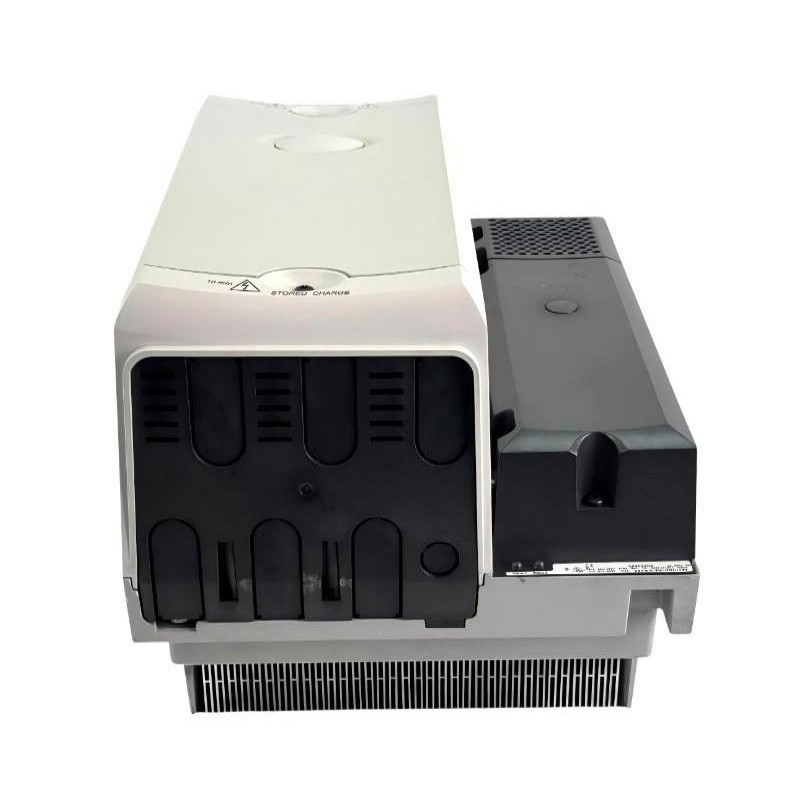

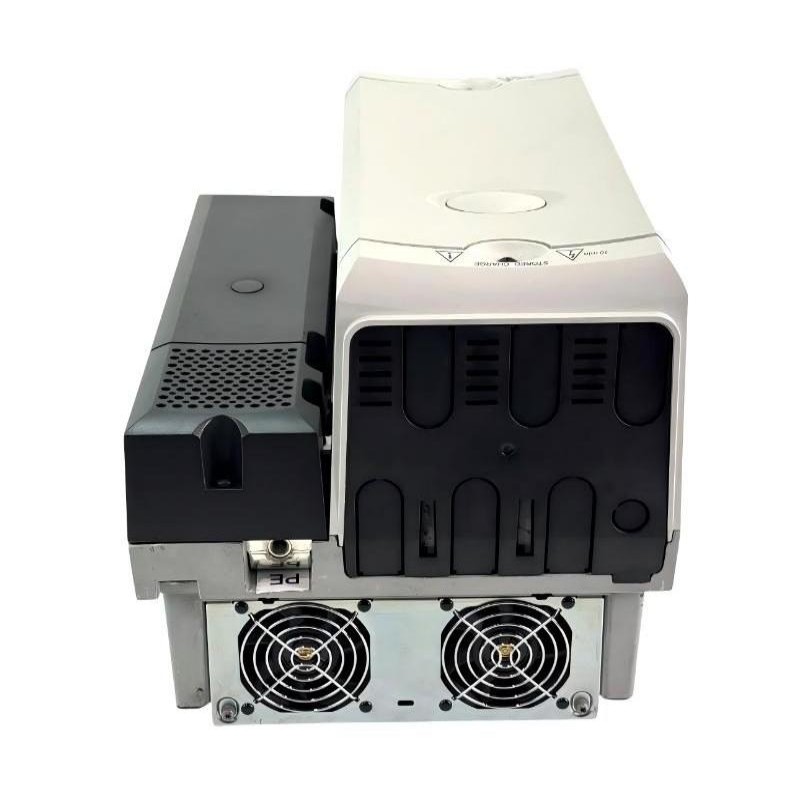

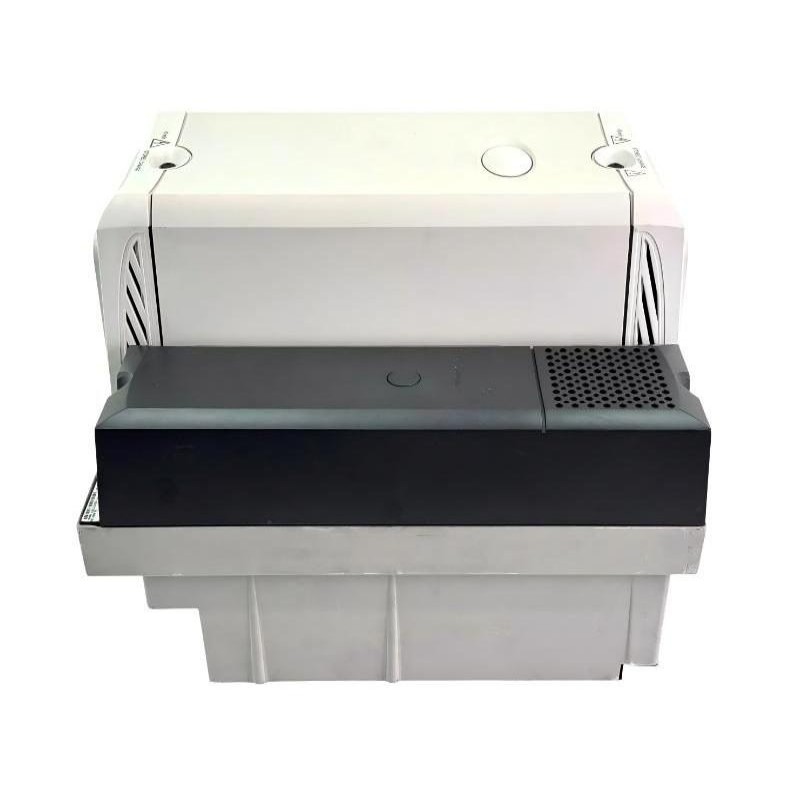

Emerson SPMC2402 Dual Controlled Rectifier Module – Unidrive SPM Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson / Control Techniques |
| Product Type | Dual Controlled Rectifier Module |
| Product Model | SPMC2402 |
| Product Series | Unidrive SPM |
| Function | Three-Phase AC-to-DC Rectification |
| Rectifier Type | Dual Controlled Thyristor Rectifier |
| Input Voltage | 380–480 VAC ±10%, 3-phase |
| Input Frequency | 48–65 Hz |
| Typical Input Current | 2 × 308 A |
| Maximum Input Current | 2 × 312 A |
| Maximum DC Output Current | 2 × 345 A |
| Typical Applications | High-power DC bus and parallel drive systems |
| Required Cooling | Forced-air cooling |
| Dimensions (L × W × H) | Approx. 218 × 155 × 388 mm |
| Weight | Approx. 6.8 kg |
| Battery | No |
| Magnet | No |
FAQ
Q: What is the Emerson SPMC2402?
The SPMC2402 is a high-power dual controlled rectifier module in the Unidrive SPM system. It converts three-phase AC input into controlled DC power for high-power drive configurations.
Q: What input voltage does the SPMC2402 support?
It is designed for a 380–480 VAC three-phase supply with a ±10% voltage tolerance.
Q: What type of rectifier is used in the SPMC2402?
The module uses a dual controlled thyristor rectifier arrangement, allowing controlled AC-to-DC conversion.
Q: What is the current capability of the SPMC2402?
The published ratings include a typical input current of 2 × 308 A, with a maximum input current of approximately 2 × 312 A and a maximum DC current of approximately 2 × 345 A.
Q: Where is the SPMC2402 normally used?
It is primarily used in high-power Unidrive SPM systems, particularly configurations where multiple power modules operate from a common DC bus.
Q: Can the SPMC2402 be used with SPMD power modules?
Yes. Emerson documentation specifies the SPMC2402 as the required rectifier for certain parallel SPMD 400 V motor-drive configurations.
Q: What are the approximate dimensions and weight of the SPMC2402?
The module is approximately 218 × 155 × 388 mm (L × W × H). Supplier specifications list a weight of about 6.8 kg.
Q: Does the SPMC2402 contain a battery or magnet?
No. The SPMC2402 does not contain a battery or permanent magnet.
Emerson SPMC2402 Dual Controlled Rectifier Module – Unidrive SPM Series is in stock. Please contact us for a quick quote and competitive pricing.
