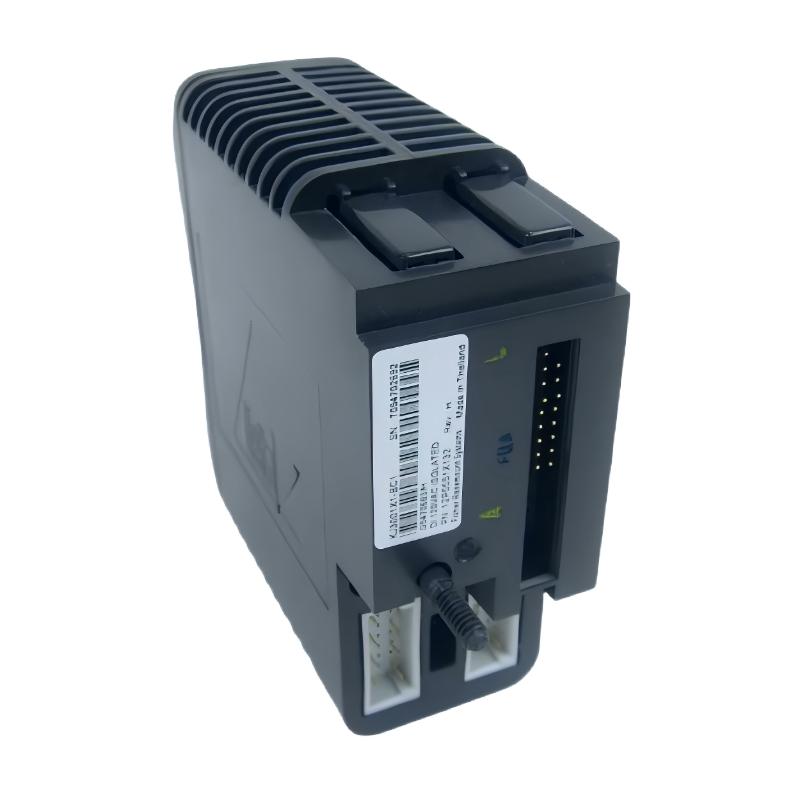

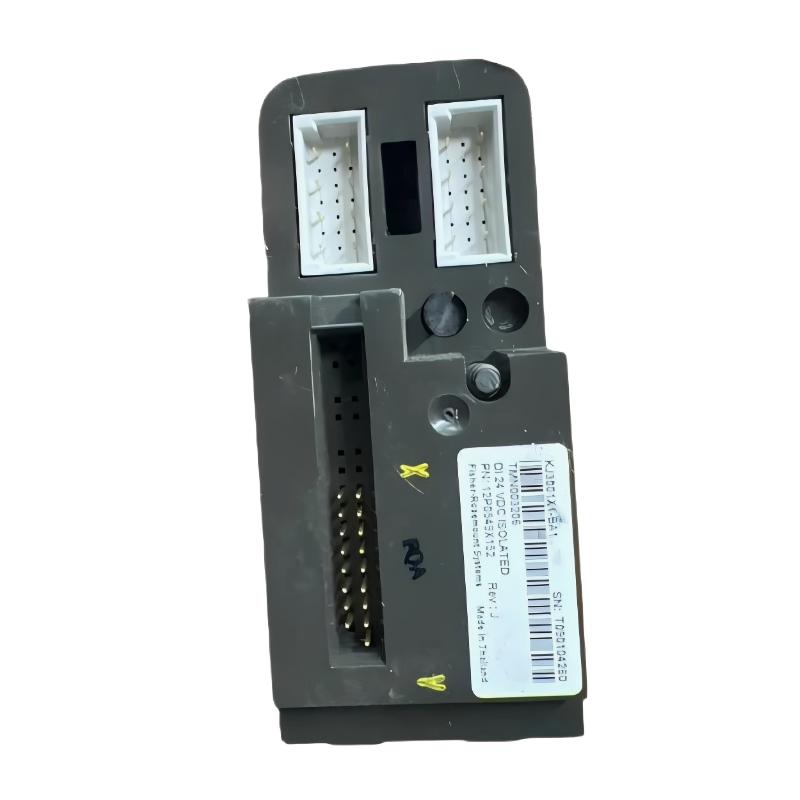

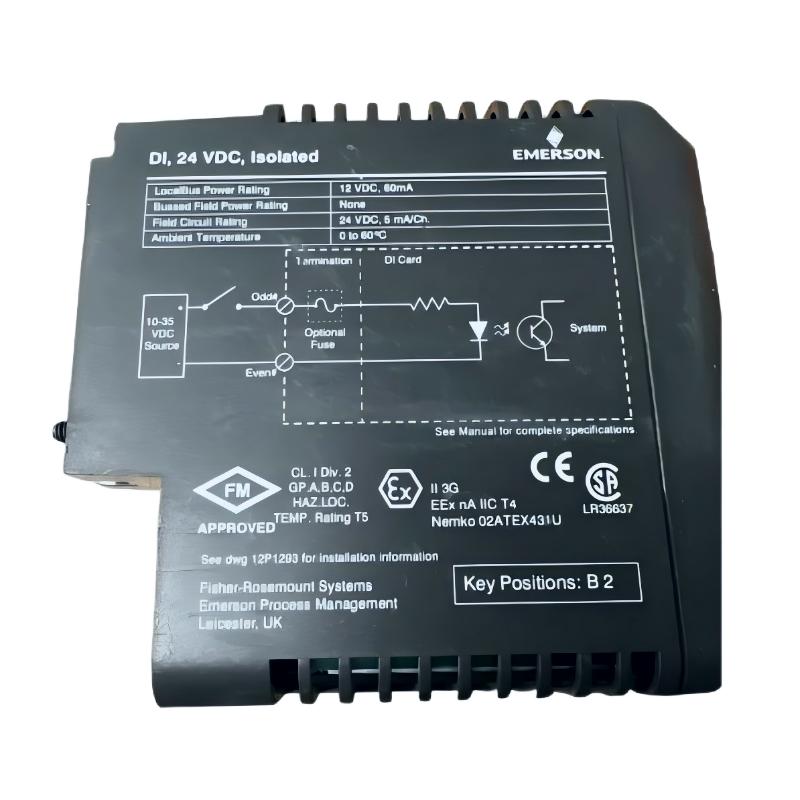

1. What is the main function of the Emerson VE4001S5T2B4 Sequence Of Events Input Card?

The Emerson VE4001S5T2B4 Sequence Of Events Input Card is designed for Emerson DeltaV Distributed Control Systems to capture changes in field device status and record the exact sequence of events.

Unlike standard digital input modules that only monitor the current status of equipment, this module provides event detection and timestamp recording capabilities. It can capture important status changes such as equipment startup, shutdown, alarm activation, and safety interlock actions.

The recorded event information helps engineers analyze abnormal process conditions, investigate equipment failures, and determine the sequence of actions that occurred during an incident.

By providing accurate event tracking, the module improves troubleshooting efficiency and enhances the reliability of industrial automation systems.

2. What industrial equipment and applications are suitable for the Emerson VE4001S5T2B4?

The Emerson VE4001S5T2B4 is suitable for industrial applications that require accurate sequence-of-events monitoring.

Typical applications include motor start and stop monitoring, valve operation tracking, alarm event recording, safety system monitoring, equipment fault analysis, and process abnormality investigation.

In power generation applications, the module can be used to record protection actions and equipment status changes. In oil and chemical industries, it can help analyze process abnormalities and safety interlock operations.

By recording the order and timing of different equipment events, engineers can identify the root causes of system failures more effectively.

3. How does the Emerson VE4001S5T2B4 achieve sequence-of-events recording?

The Emerson VE4001S5T2B4 achieves sequence-of-events recording by monitoring digital input signal changes and applying precise timestamp information to each detected event.

When a connected field device changes state, such as switching from OFF to ON or ON to OFF, the module captures the event and records the corresponding time information.

The collected event data is transferred through the DeltaV I/O communication structure to the control system for analysis, reporting, and troubleshooting.

This function allows operators and engineers to understand the exact order of events during abnormal situations, making it especially valuable for complex industrial processes.

4. How can event recording problems on the Emerson VE4001S5T2B4 be diagnosed?

When event recording problems occur, troubleshooting should begin by checking the module diagnostic information through DeltaV engineering software.

Maintenance personnel should verify the module operating status and check for communication faults, channel alarms, event recording errors, or abnormal diagnostic messages.

The next step is to inspect field input signals, including device output status, wiring connections, terminal conditions, and switch operation.

If the field signals are normal, engineers should review DeltaV configuration settings, event recording parameters, and I/O assignments.

For issues related to event timing accuracy, the system time synchronization function should also be checked.

A complete inspection of hardware, field signals, configuration settings, and time synchronization can help identify and resolve event recording issues.

5. How is the Emerson VE4001S5T2B4 configured in a DeltaV system?

The Emerson VE4001S5T2B4 is configured using Emerson DeltaV engineering software.

During configuration, engineers assign the module to the correct I/O location and define input channels according to the requirements of the application.

Configuration parameters typically include device tags, input signal definitions, event trigger conditions, alarm associations, and event recording settings.

After completing configuration, the settings are downloaded to the DeltaV controller, and event capture functions should be verified through field testing.

Proper configuration ensures accurate event detection and provides reliable information for process analysis and system troubleshooting.

6. What are the common failure causes of the Emerson VE4001S5T2B4 Sequence Of Events Input Card?

Common failure causes include missing event records, unstable input signals, communication failures, incorrect configuration, and time synchronization issues.

If field device signals are unstable, the module may fail to capture events correctly or record incorrect status changes.

Communication problems between the module and DeltaV controller may prevent event information from being transferred properly.

Incorrect configuration settings may cause improper event triggering conditions or incomplete event records.

Environmental factors such as electrical interference, wiring problems, and system timing errors may also affect event recording accuracy.

Regular monitoring of diagnostics and system configuration can help prevent unexpected failures.

7. What advantages does the Emerson VE4001S5T2B4 have compared with standard digital input modules?

The main advantage of the Emerson VE4001S5T2B4 is its ability to provide accurate sequence-of-events recording and detailed event analysis.

Standard digital input modules mainly provide current equipment status information, while this module can capture status changes and record the order in which events occur.

This capability is extremely valuable for analyzing complex industrial incidents, equipment shutdowns, safety system actions, and process abnormalities.

The module is also fully integrated with the DeltaV control system, allowing engineers to review and analyze event data through the system software.

This improves troubleshooting efficiency and helps reduce downtime in critical industrial applications.

8. What maintenance practices are recommended for the Emerson VE4001S5T2B4?

To ensure reliable long-term operation of the Emerson VE4001S5T2B4, regular inspection and preventive maintenance should be performed.

Maintenance personnel should periodically review DeltaV diagnostic information, verify event recording functions, and monitor communication status and input channel conditions.

Field signal wiring, connected equipment outputs, and terminal connections should be inspected to ensure accurate event transmission.

For critical applications, event recording performance and system time synchronization should be tested regularly to ensure accurate data collection during abnormal situations.

Maintaining a clean operating environment and reducing exposure to dust, moisture, vibration, and electromagnetic interference can improve module reliability and extend its service life.
