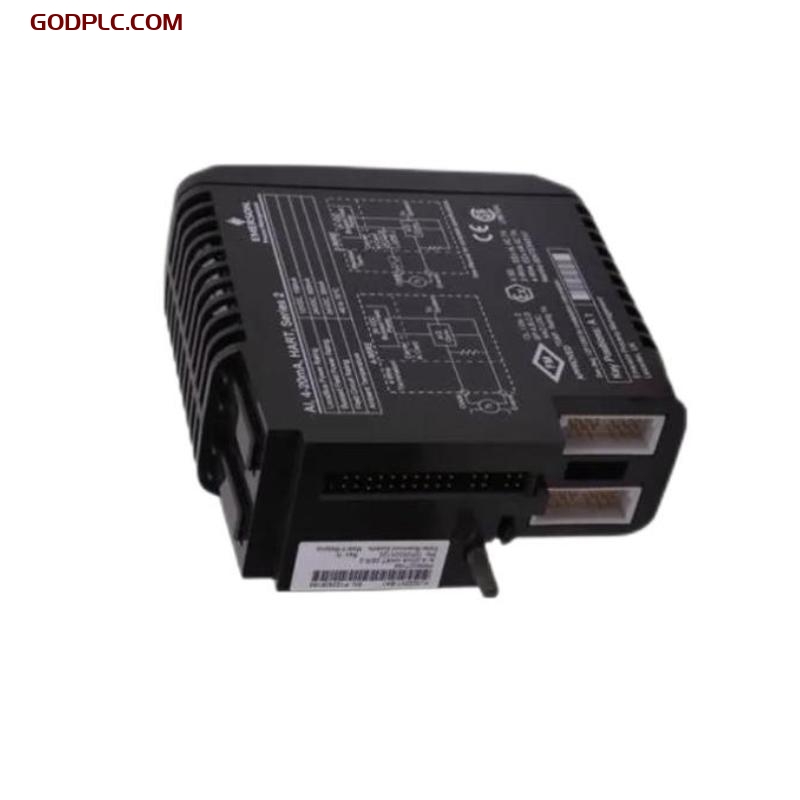

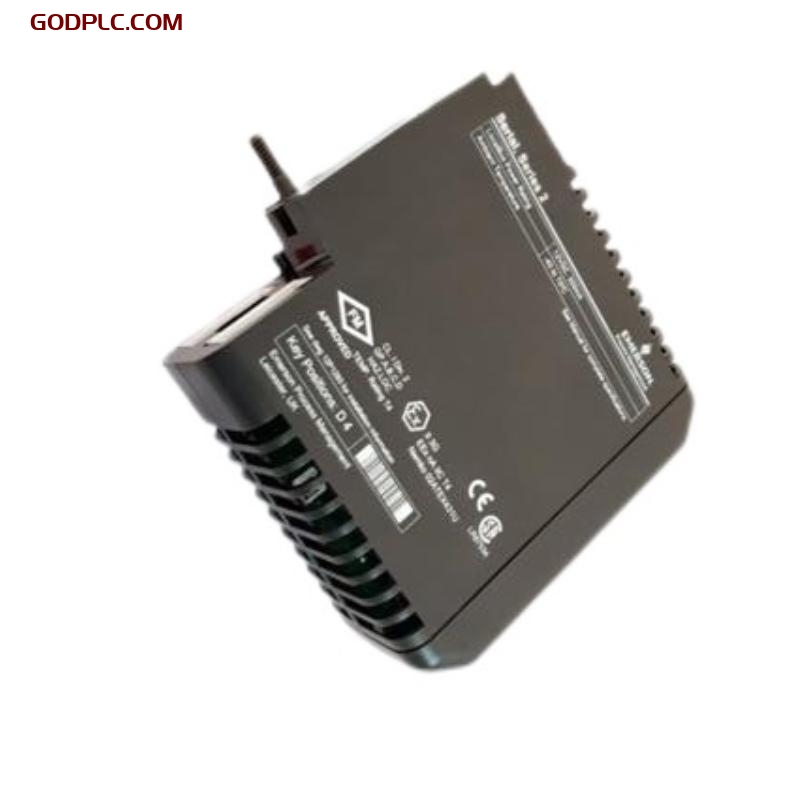

Emerson VE4002S1T2B2 KJ3202X1-BA1 12P2536X032 Output Module
Product Overview
The Emerson VE4002S1T2B2 KJ3202X1-BA1 12P2536X032 Output Module is a high-performance analog output module designed for use in Emerson DeltaV distributed control systems. It is engineered to provide precise and reliable control of process variables by delivering accurate analog output signals to connected field devices. This module supports a variety of industrial applications, including process control, chemical, power generation, and automation systems, where accurate output signal generation is critical.
As part of the Emerson DeltaV system, this module ensures seamless integration with other control and monitoring devices. Its robust design and versatile functionality make it an ideal choice for complex and demanding environments, delivering continuous performance and reliability.
Key Features
-
Precise Analog Output: Delivers high-accuracy analog output signals to control field devices such as valves, actuators, and motors.
-
Wide Output Range: Supports a variety of output ranges including 4–20 mA, 0–10 V, offering flexibility for different process control needs.
-
High Resolution: Provides fine-grained control with 16-bit output resolution, ensuring accurate control of process variables.
-
Seamless DeltaV Integration: Designed to work with Emerson DeltaV systems, enabling easy integration and a complete control solution for industrial automation.
-
Flexible Configuration: The module allows for easy configuration and customization via Emerson DeltaV configuration tools.
-
Reliable and Robust: Built for continuous operation in harsh industrial environments, delivering dependable performance under challenging conditions.
-
Real-Time Control: Provides real-time output signal generation, ensuring that changes in process variables are immediately acted upon.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Voltage | 0–10 V, 4–20 mA |
| Output Resolution | 16 bits |
| Output Channels | 8 Analog Output Channels |
| Load Resistance | 0–600 Ω (for 4–20 mA) |
| Output Impedance | 250 Ω (typical) |
| Power Consumption | Approx. 3 W |
| Input Voltage | 24 V DC |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Emerson DeltaV Systems |
| Communication Protocol | DeltaV Protocol |
| Field Devices | Control valves, actuators, and motor drives |
Industry Applications
-
Process Control: Used to control actuators and other field devices in process control systems, ensuring precise manipulation of process variables.
-
Chemical Industry: Manages output signals for chemical reactors, blending tanks, and other equipment where accurate control of input signals is required.
-
Power Generation: Controls turbines, boilers, and other critical systems in power plants.
-
Water Treatment: Manages the operation of valves and flow control devices in water treatment facilities.
-
Oil & Gas: Controls flow control valves and equipment in oil and gas production facilities, refineries, and pipelines.
The Emerson VE4002S1T2B2 KJ3202X1-BA1 12P2536X032 Output Module is a key component in Emerson DeltaV systems, providing reliable and accurate analog output signals for precise control of industrial processes. With its robust design, flexible configuration options, and high-resolution output, it ensures seamless integration and superior performance in industries such as chemical, power generation, and water treatment. Its high accuracy and real-time control make it essential for optimizing operational efficiency and maintaining system reliability in demanding industrial environments.
Emerson VE4002S1T2B2 KJ3202X1-BA1 12P2536X032 Output Module is in stock. Please contact us for a quick quote and competitive pricing.
