1. What is the main function of the Emerson VE4006P KJ3241X1-BA1 Serial Interface Module?

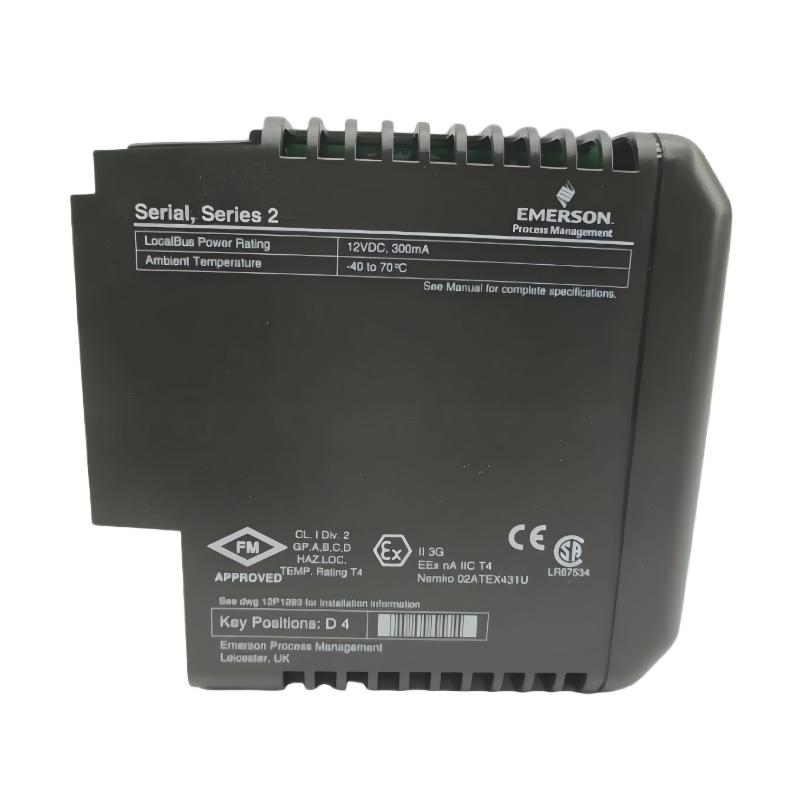

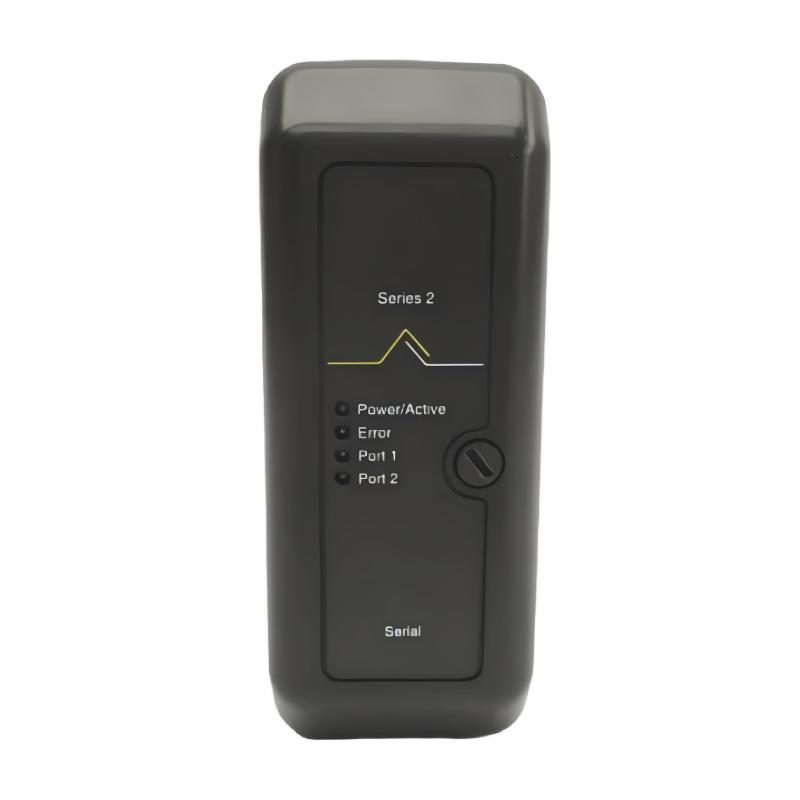

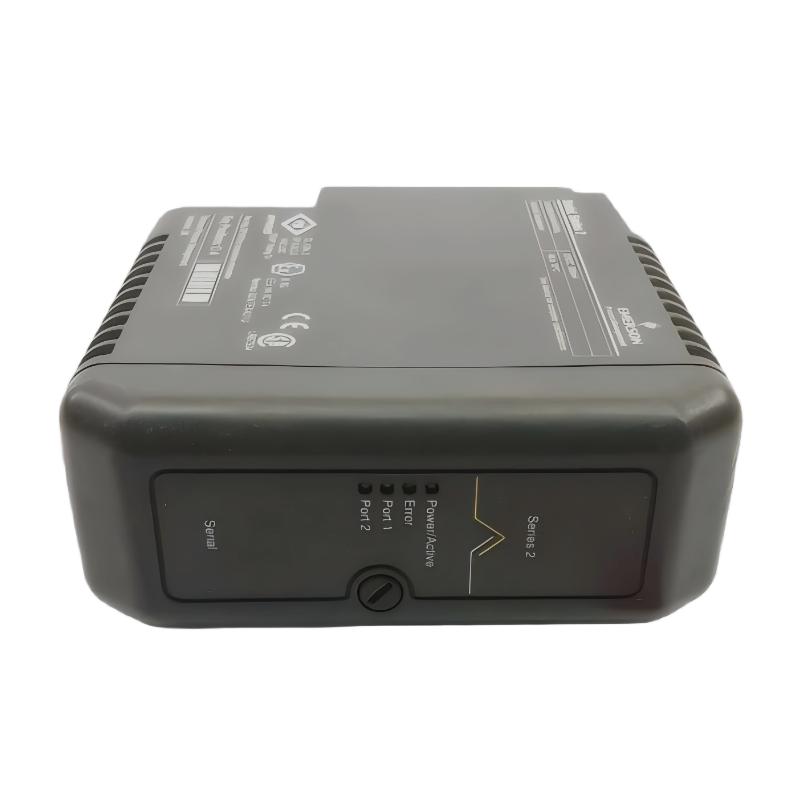

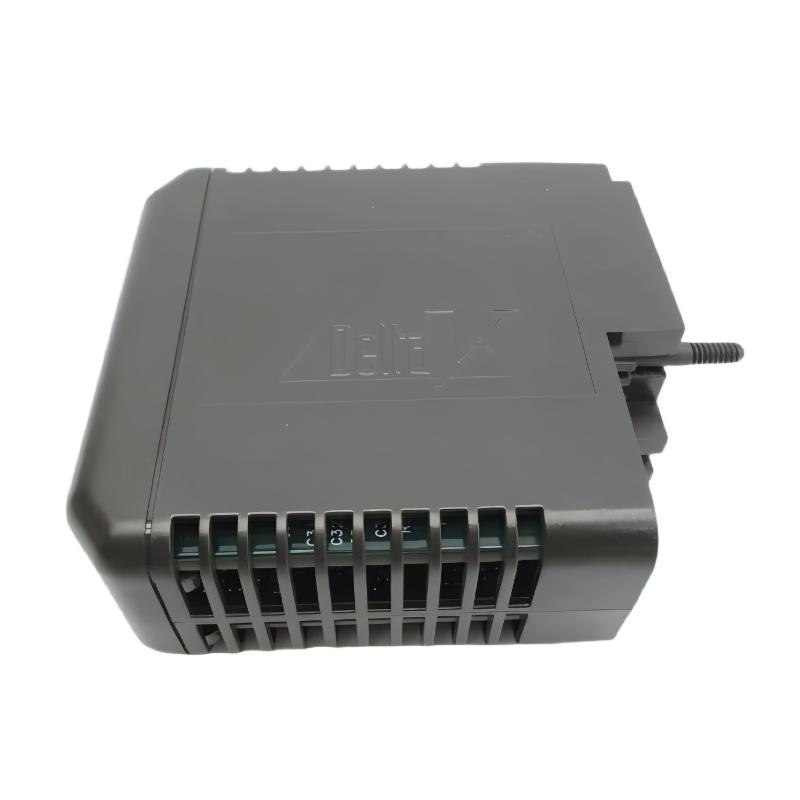

The Emerson VE4006P KJ3241X1-BA1 Serial Interface Module is a communication interface module designed for Emerson DeltaV distributed control systems.

Its primary function is to enable data communication between the DeltaV control system and external serial communication devices, allowing the system to collect, transmit, and process information from connected equipment.

In industrial automation applications, the module can connect intelligent instruments, analyzers, third-party controllers, and other serial devices.

By providing reliable serial communication capability, the VE4006P expands the connectivity of the DeltaV system and improves overall data integration performance.

2. What applications does the Emerson VE4006P KJ3241X1-BA1 support?

The VE4006P KJ3241X1-BA1 is mainly used in industrial environments where serial communication with external devices is required.

Typical applications include:

• Intelligent instrument data acquisition
• Third-party equipment communication
• Analyzer system connection
• Process data transmission
• Automation system expansion

During production operations, the module allows the DeltaV system to collect operating information from external devices and use the data for monitoring, analysis, and control purposes.

It is suitable for industrial applications requiring communication with devices that use serial interfaces.

3. How does the Emerson VE4006P KJ3241X1-BA1 work in a DeltaV system?

The VE4006P communicates with the DeltaV control system through the I/O architecture and provides a communication channel between controllers and serial devices.

The module receives data from connected equipment and transfers the information to the control system for processing.

It can also transmit commands or requests from the DeltaV system to external devices.

Through communication data management and processing, the module allows different industrial devices to exchange information efficiently within the automation system.

4. What are the common causes of communication faults in the Emerson VE4006P KJ3241X1-BA1?

Common causes of communication faults include:

• Incorrect communication parameter settings
• Protocol mismatch
• Serial cable connection problems
• External device communication failure
• Incorrect device addressing
• Electrical interference

When a communication problem occurs, technicians should first check DeltaV diagnostic information and confirm the module operating status.

The next steps should include verifying communication parameters, device configuration, and field wiring conditions.

A systematic troubleshooting process helps identify the cause quickly and restore normal communication.

5. How should the Emerson VE4006P KJ3241X1-BA1 Serial Interface Module be configured?

The VE4006P configuration should be completed according to the communication requirements of the connected equipment.

The configuration process generally includes:

1. Confirming the module installation position.
2. Setting communication parameters.
3. Configuring connected device information.
4. Defining data exchange logic.
5. Completing DeltaV engineering configuration.

Communication settings such as protocol type, data format, and device address must match the external equipment requirements.

Correct configuration improves communication stability and reduces data transmission errors.

6. How can communication problems with the Emerson VE4006P KJ3241X1-BA1 be diagnosed?

Communication troubleshooting requires both software diagnostics and field inspection.

First, check DeltaV system diagnostics, module status, and communication alarms.

Then verify:

• Communication parameter settings
• Device address configuration
• Serial connection status
• External equipment operation condition

If the problem remains, professional communication testing tools can be used to check data transmission quality.

A complete diagnostic procedure helps maintenance engineers locate communication issues efficiently and reduce system downtime.

7. Why is the Emerson VE4006P KJ3241X1-BA1 important in industrial automation systems?

Many modern industrial devices require serial communication to exchange information with control systems.

The VE4006P KJ3241X1-BA1 provides an important communication interface between the DeltaV system and external equipment, allowing different devices to share operational data.

The module helps improve system integration, expand device connectivity, and enhance process monitoring capability.

In industries such as oil & gas, chemical processing, power generation, and manufacturing, reliable communication modules are essential for stable production operations.

8. How can the reliability of the Emerson VE4006P KJ3241X1-BA1 Serial Interface Module be improved?

To improve the reliability of the VE4006P, proper installation, correct configuration, and regular maintenance are required.

Recommended practices include:

• Checking module diagnostic information regularly
• Verifying communication parameter settings
• Inspecting serial cable connections
• Reducing exposure to strong electromagnetic interference
• Maintaining a stable control cabinet environment

During maintenance, technicians should follow proper industrial procedures to avoid incorrect handling.

With effective preventive maintenance, the VE4006P KJ3241X1-BA1 can provide stable serial communication performance and support reliable long-term operation of DeltaV automation systems.
