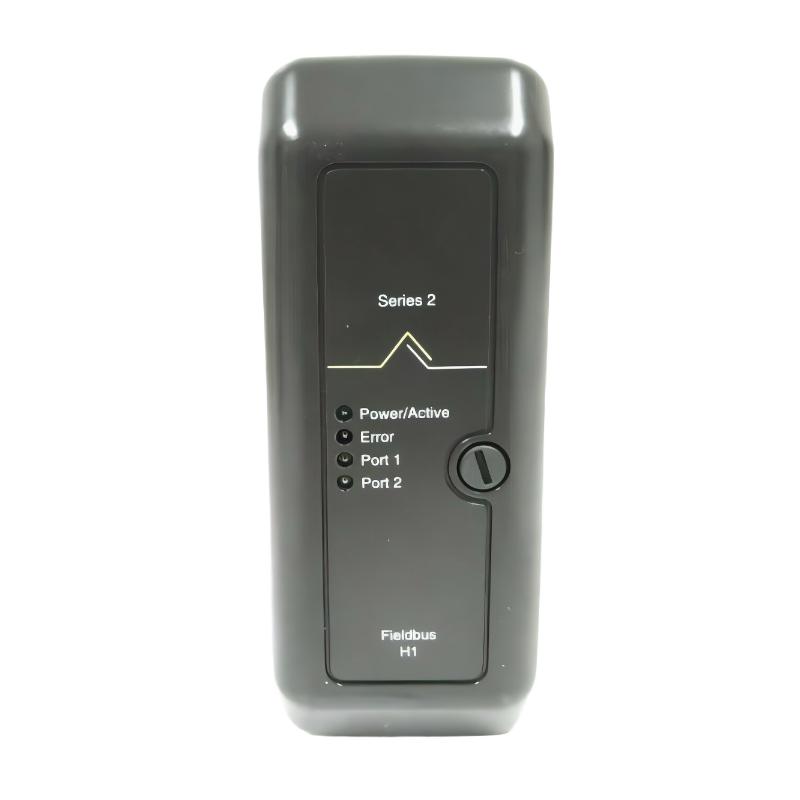

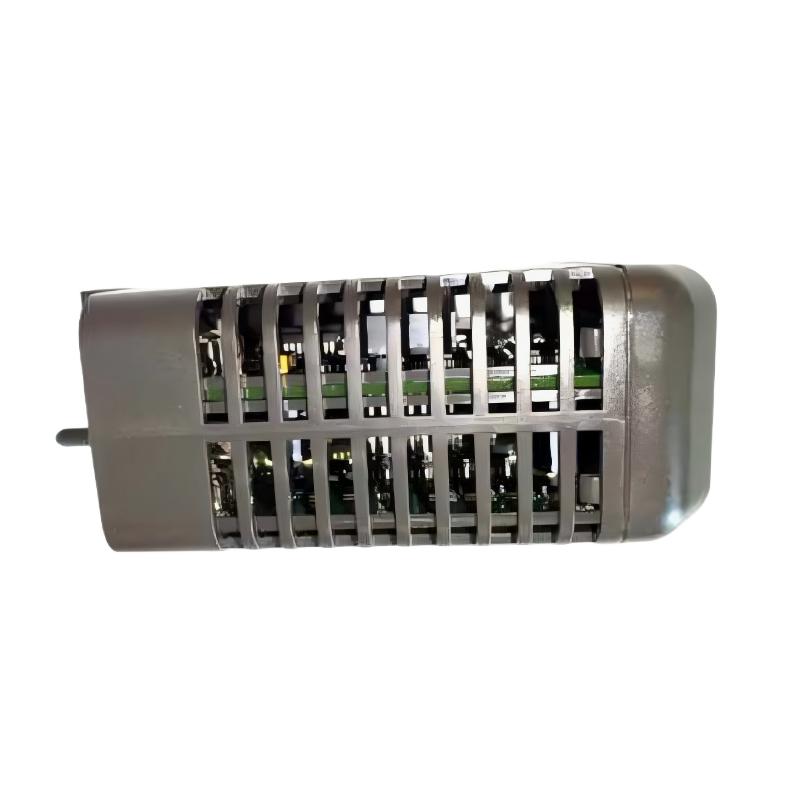

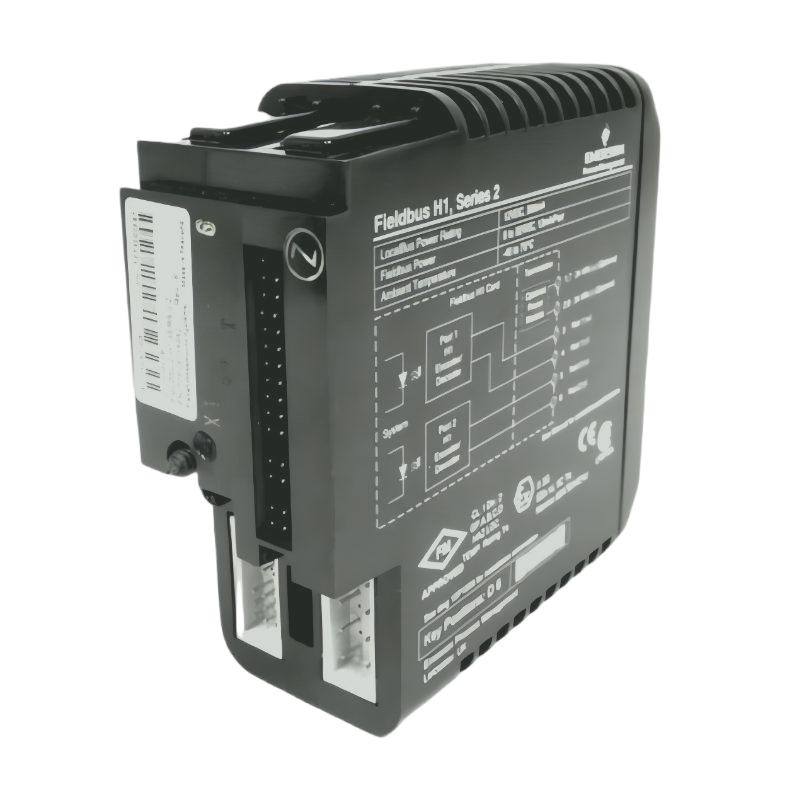

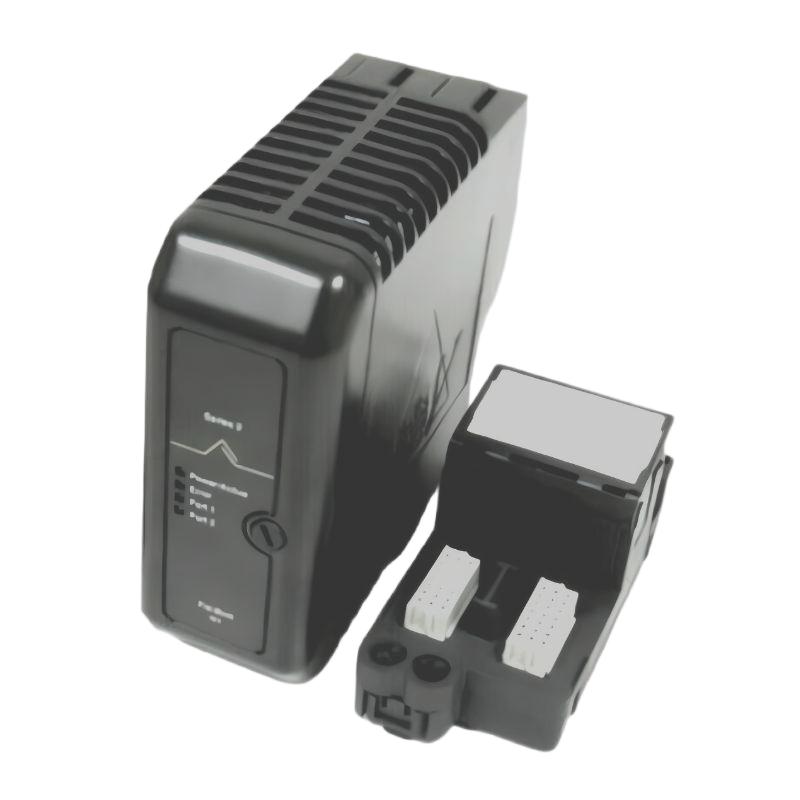

1. What is the primary function of the Emerson VE4017P0 KJ3242X1-BA2 Redundant M-Series H1 I/O Interface Card?

The Emerson VE4017P0 KJ3242X1-BA2 is a redundant FOUNDATION Fieldbus H1 interface solution designed for DeltaV M-Series distributed control systems. Its main function is to provide reliable communication between DeltaV controllers and intelligent field devices connected through an H1 fieldbus network.

The module enables digital communication with smart field instruments such as pressure transmitters, temperature transmitters, flow meters, level instruments, and intelligent valve positioners. It allows the control system to receive process data, perform device diagnostics, configure field instruments, and execute advanced control functions.

The redundant architecture improves system availability by allowing a backup interface card to automatically take over communication if the primary card experiences a fault. This design is especially important for critical industrial processes where continuous operation and minimal downtime are required.

2. Which systems are compatible with the VE4017P0 KJ3242X1-BA2?

The VE4017P0 KJ3242X1-BA2 is designed for Emerson DeltaV M-Series distributed control systems and is used as an H1 fieldbus communication interface within the DeltaV I/O subsystem.

It is commonly installed in industrial facilities using FOUNDATION Fieldbus technology, including oil and gas plants, chemical processing facilities, power generation stations, pharmaceutical production lines, and other process automation applications.

The module allows DeltaV systems to integrate intelligent field devices from different manufacturers, providing flexible device management and advanced diagnostic capabilities within the control environment.

3. What type of field devices can be connected to the VE4017P0 KJ3242X1-BA2?

The VE4017P0 KJ3242X1-BA2 supports FOUNDATION Fieldbus H1 compatible field devices, including smart pressure transmitters, temperature transmitters, flow measurement instruments, level transmitters, and intelligent control valves.

Because FOUNDATION Fieldbus is an open digital communication standard, the interface card can communicate with certified devices from different manufacturers rather than being limited to a single device supplier.

This flexibility allows engineers to design optimized field networks while taking advantage of advanced features such as remote configuration, device status monitoring, calibration support, and predictive maintenance information.

4. How should communication faults on the VE4017P0 KJ3242X1-BA2 be diagnosed?

When communication problems occur, troubleshooting should begin with checking the H1 fieldbus network infrastructure.

First, verify that the fieldbus power supply is operating correctly and that both ends of each fieldbus segment have proper termination. Incorrect termination or unstable power can cause communication errors or device dropouts.

Next, inspect fieldbus wiring, terminal connections, and module installation status to ensure all connections are secure. The DeltaV diagnostic tools should then be used to check interface card status, network quality, device availability, and communication alarms.

If necessary, individual field devices can be isolated and tested to identify whether the issue originates from the interface card, network wiring, power supply, or a connected field instrument.

5. What are the advantages of using a redundant H1 I/O interface configuration?

The redundant configuration of the VE4017P0 KJ3242X1-BA2 significantly improves system reliability by eliminating a single point of failure in the fieldbus communication path.

If the active H1 interface card detects a fault, the standby card can automatically assume communication duties without requiring manual intervention. This helps maintain uninterrupted data exchange between the control system and field devices.

Redundant communication is particularly valuable in industries where unexpected shutdowns can cause significant production losses, safety risks, or complex recovery procedures.

The design improves system availability while reducing maintenance impact on ongoing operations.

6. What installation precautions should be considered for the VE4017P0 KJ3242X1-BA2?

Before installation, the DeltaV system configuration should be verified to ensure the correct module type and redundancy arrangement are being used.

The interface cards should be properly installed in the designated M-Series carrier slots, and all terminal block connections should be checked carefully before system startup.

The FOUNDATION Fieldbus network should follow proper engineering practices, including correct cable selection, appropriate grounding, stable fieldbus power supply, and proper segment termination.

After installation, engineers should use DeltaV diagnostics to confirm that both redundant cards are recognized correctly and that all connected field devices are communicating normally.

7. What factors can affect the performance of the VE4017P0 KJ3242X1-BA2?

Several factors can influence the performance of the H1 interface system, including fieldbus power quality, network wiring conditions, termination configuration, device loading, and electromagnetic interference.

Poor cable installation, incorrect grounding, excessive field device current consumption, or damaged field wiring may reduce communication stability.

Environmental conditions such as excessive moisture, dust contamination, vibration, and temperature fluctuations may also affect long-term reliability.

Regular maintenance, including checking network diagnostics, inspecting connections, and monitoring device health information, helps maintain stable operation and prevents unexpected communication failures.

8. Why is the VE4017P0 KJ3242X1-BA2 important in DeltaV automation systems?

The VE4017P0 KJ3242X1-BA2 is an important communication component in DeltaV M-Series systems because it provides the connection between the control platform and intelligent FOUNDATION Fieldbus devices.

Modern process automation systems rely on accurate and continuous communication with field instruments to monitor operating conditions, optimize processes, and maintain safe equipment operation.

Through reliable H1 fieldbus communication, the module enables advanced device diagnostics, remote configuration, and efficient process control. Its redundant design further improves system availability, making it suitable for critical industrial applications requiring high reliability and continuous operation.
