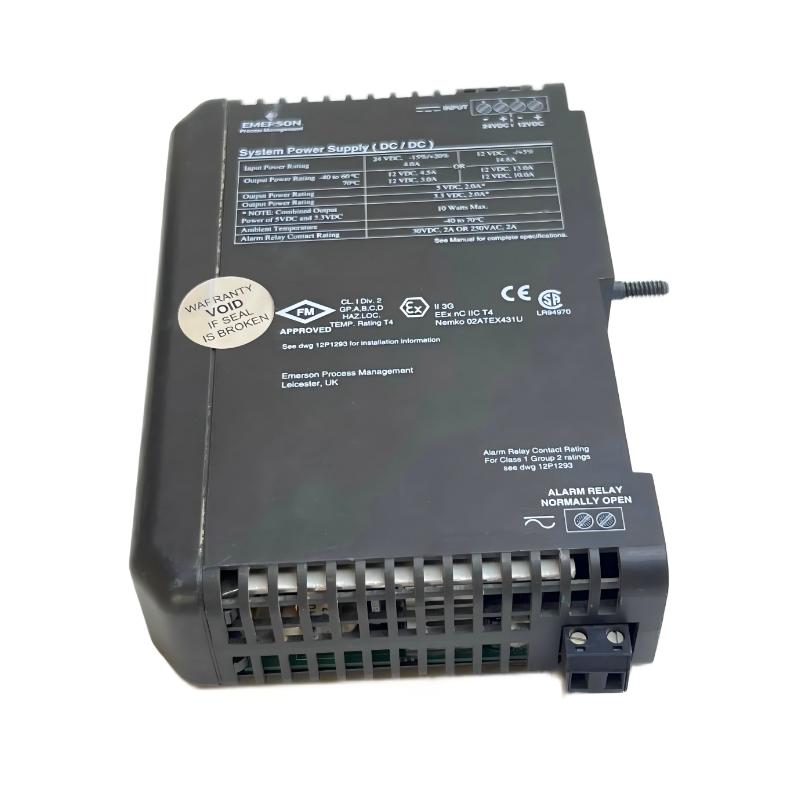

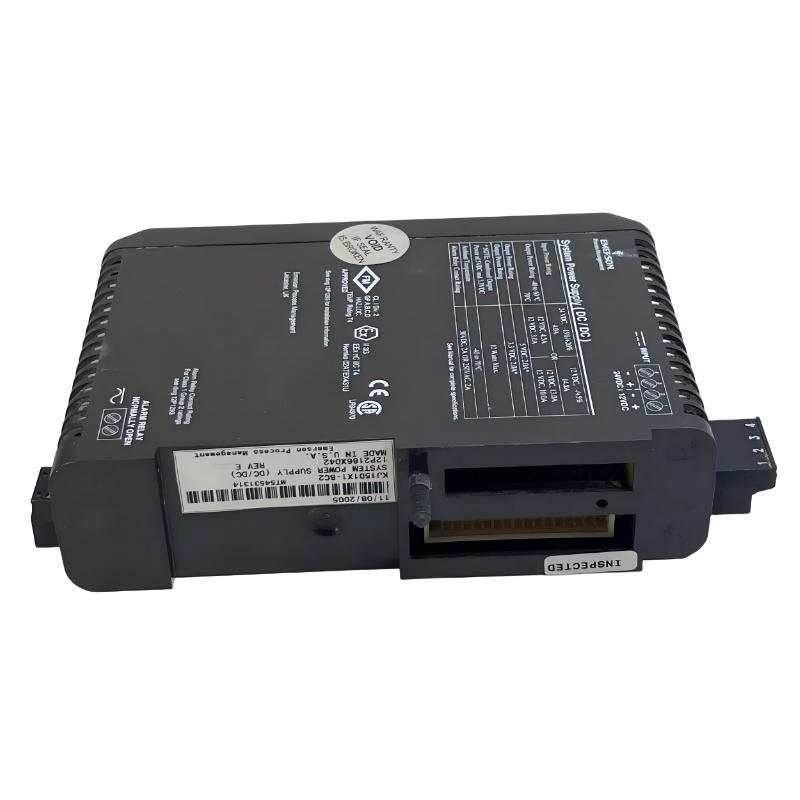

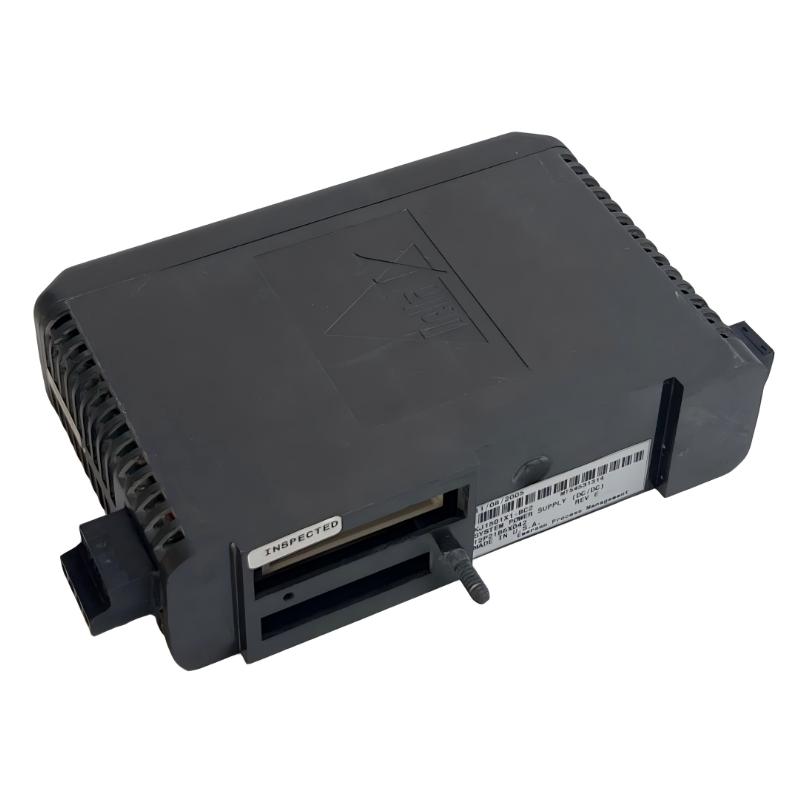

1. What is the main function of the Emerson VE5005 Power Supply?

The Emerson VE5005 Power Supply is designed to provide stable electrical power for control and electronic components within a DeltaV process control system. As an important part of the control system infrastructure, the power supply directly supports the normal operation of controllers, I/O modules, and other electronic devices.

Stable power delivery helps reduce problems such as controller resets, I/O interruptions, communication failures, and unstable module operation caused by power disturbances. For continuous industrial processes, reliable power is therefore an important factor in maintaining overall system availability.

2. What industrial systems is the VE5005 Power Supply typically used in?

The VE5005 is intended for industrial automation and process control applications using Emerson DeltaV control systems. It can be used in industries such as chemical processing, oil and gas, power generation, manufacturing, and other facilities that require continuous monitoring and process control.

In these applications, the power supply operates together with controllers, I/O modules, and other control equipment to provide the electrical power required by the automation system. Reliable power is particularly important in continuous production environments where unexpected control interruptions can affect the process.

3. What are the common symptoms of a VE5005 power supply failure?

A VE5005 failure may result in connected control modules becoming unavailable, system power alarms, unexpected controller resets, I/O communication interruptions, or intermittent loss of power to certain devices.

When the power supply is deteriorating but has not completely failed, the problem may appear intermittently. For example, the system may operate normally for a period before a module suddenly drops offline or a controller restarts.

When these symptoms occur, technicians should check the input power, output condition, connectors, wiring, and connected loads instead of immediately concluding that the VE5005 itself has failed.

4. How can an Emerson VE5005 Power Supply fault be diagnosed?

Troubleshooting should begin by reviewing DeltaV diagnostic information and related system alarms to determine whether there are indications of a power or module operating problem.

The incoming electrical supply should then be checked to confirm that it is stable. The output condition of the VE5005 should also be verified. If the input power is normal but the output is abnormal, the power supply and its associated connections should be investigated further.

Downstream modules should also be checked for abnormal loads or short-circuit conditions, since a problem in a connected device can affect power supply performance. Checking the input, output, and connected loads systematically can help identify the actual source of the fault.

5. What factors can cause the VE5005 to operate abnormally?

Abnormal VE5005 operation can be caused by unstable input power, poor connector contact, aging wiring, abnormal loads, unsuitable cabinet conditions, or changes in electronic component performance after extended operation.

If one of the connected control components develops a fault and draws excessive current, it can also affect the overall power supply condition. Therefore, troubleshooting should not focus exclusively on the power supply itself but should also include the associated power distribution and downstream equipment.

Maintaining good electrical connections, stable input power, and a suitable cabinet environment can help reduce the possibility of power supply problems during long-term industrial operation.

6. How should the VE5005 Power Supply be installed or replaced?

Before installing or replacing the VE5005, the DeltaV control system should be placed in a safe maintenance condition according to site procedures, and the relevant power sources should be properly isolated.

Before removing the existing module, the model and system configuration should be verified, and the positions of relevant connectors and wiring should be recorded. After installing the replacement VE5005, all electrical connections should be inspected carefully to prevent intermittent power problems caused by poor contact.

After power is restored, technicians should monitor DeltaV diagnostic information and the operating status of connected control modules. The system should only be returned to normal service after stable power output and proper operation of controllers and I/O equipment have been confirmed.

7. What should be checked if DeltaV control modules experience intermittent power loss?

If DeltaV control modules experience intermittent power loss, the first step is to check whether the incoming power supply is fluctuating. The VE5005 connectors and associated wiring should also be inspected for loose connections, oxidation, or poor electrical contact.

The power supply output should then be checked while monitoring whether multiple control modules are affected at the same time. If several modules experience problems simultaneously, the common power distribution path should receive particular attention.

If only one module repeatedly loses power, that module and its associated load should also be investigated. Combining electrical measurements with DeltaV diagnostic and alarm records can provide a more accurate indication of the actual fault location.

8. How can the long-term reliability of the VE5005 Power Supply be improved?

Long-term VE5005 reliability can be improved by maintaining stable input power and ensuring that electrical connections, wiring, and connected loads remain in good condition.

Routine maintenance should include inspection of connectors, power wiring, system alarms, and the operating status of connected control modules. Abnormal conditions such as power fluctuations, controller resets, or repeated I/O communication failures should be investigated promptly rather than allowing the system to continue operating with an unresolved fault.

For continuously operating industrial process control systems, preventive maintenance can help identify developing power-related problems at an early stage. Regular testing and timely corrective action can reduce unexpected downtime and help maintain stable DeltaV system operation.
